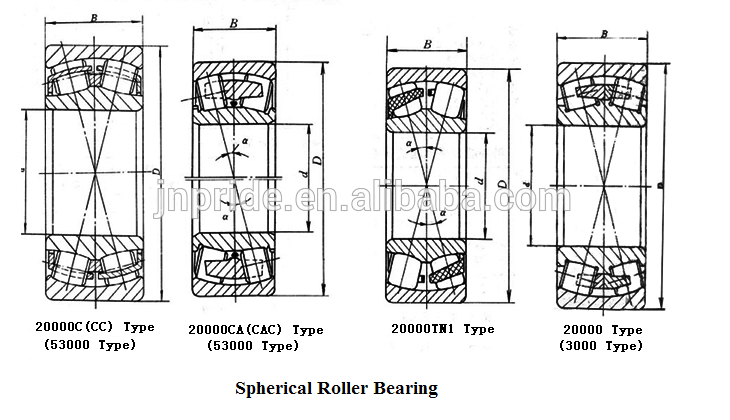

The Structures of spherical roller bearing

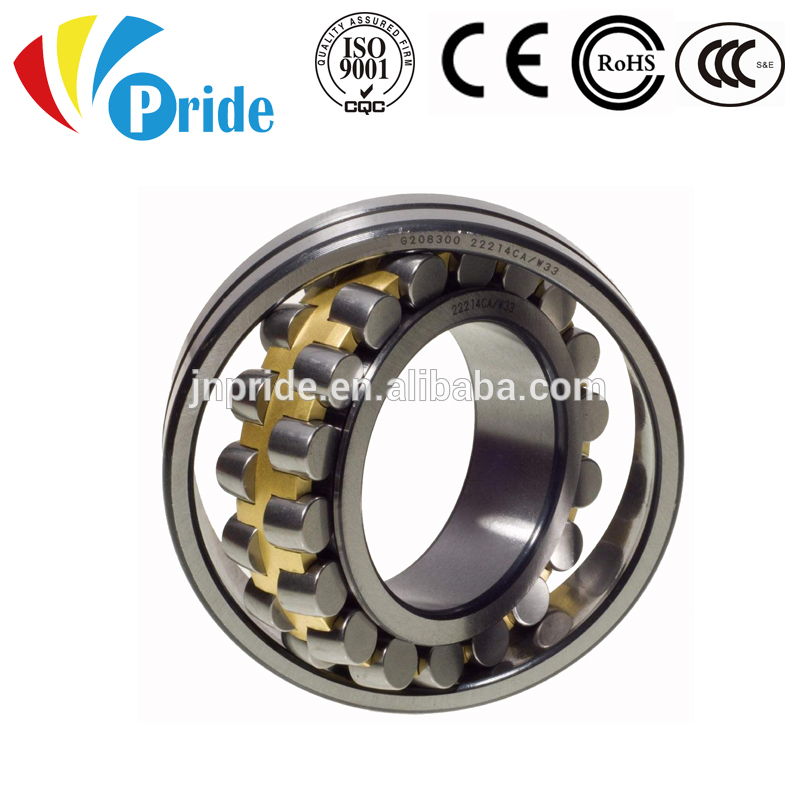

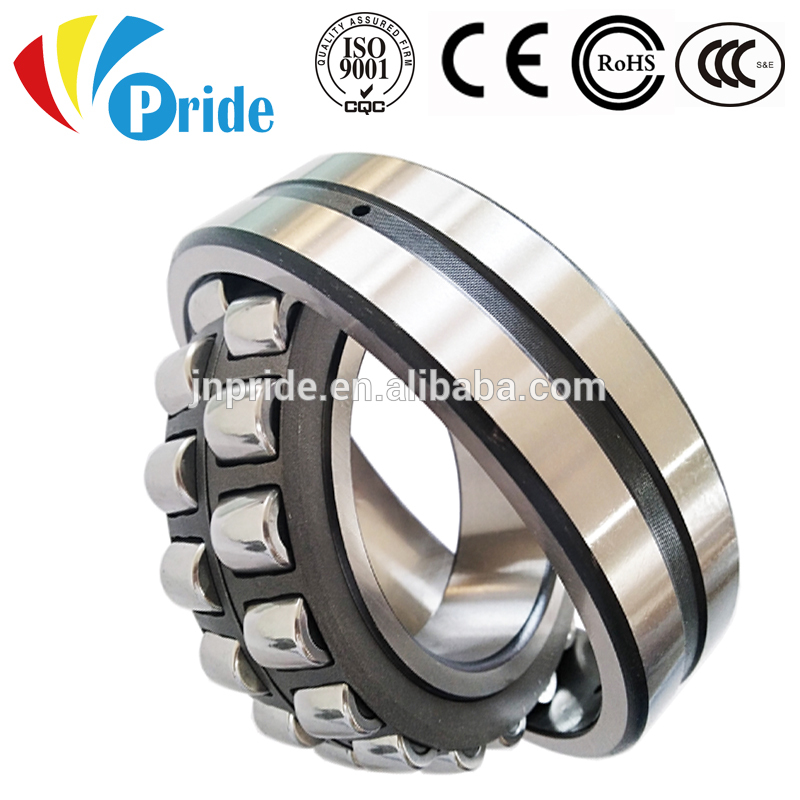

| Product Name | Spherical Roller Bearing 24060CC/W33 24060CCK30/W33 for Tray Dryer |
| Material | Chrome steel |
| Size | 300*460*160mm |
| Weight | 94.1kg |
| Precision Grade | P0 P6 P5 P4 P2 are all available |
| Cage | Steel |
| Hardness | Hrc60-65 |
| Structure | Double row |
| Service | OEM, Customized |
| Certification | ISO9001:2008, CE, RoHS |
| Delivery Time | Generally it is 2-5 days if in stock, 15-30 days if not in stock, it is according to the quantity |
| Package | PE bag+paper box+outer carton+wooden box+pallet, or as customers' requirement |
| Features | Long life with high quality |
| High precision, low noise with strict controlling of the quality | |
| High-loading by the advanced high-technical design | |
| Most competitive price, factory direct | |
| OEM service offered, to meet the customers' requirement | |
| Application | Boiling Dryer, Tray Dryer, Band Drying Machine, Forklift, Steam Driven Pump, Textile Equipment, Gun Drilling Machine, High Frequency Welder, Diagnostic Equipment, Sand Grinder, Dehumidifier, Glass Production Line, Ink-jet Printer, Waste Water Treatment Equipment, Variable Frequency, Pump, Sewing Machine, Workbench, Glazing Machine |
| Price Terms | EXW, FOB, CFR, CIF |
| Payment | Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. |
Description of the cage of spherical roller bearings
| Cage Type | Features |

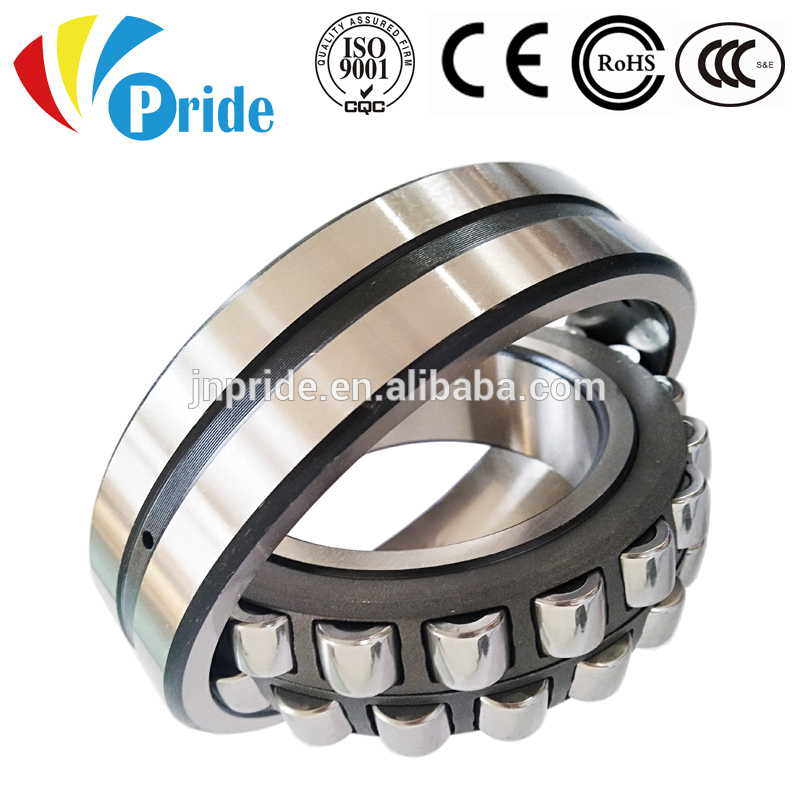

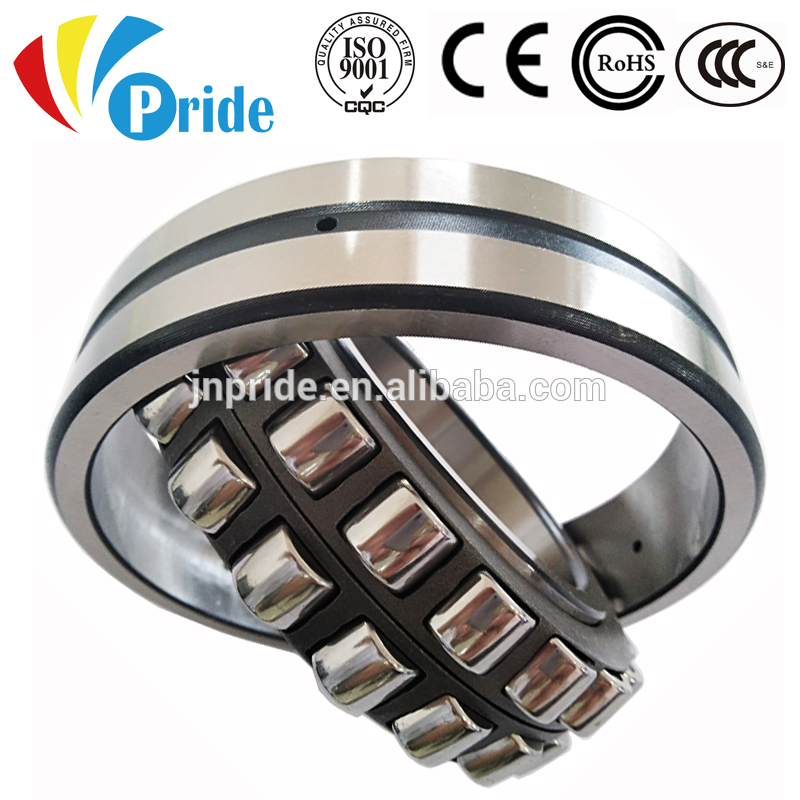

| CC | It consists of two pressed steel cages, flangeless inner ring and guide ring centred on the inner ring, It adopts symmetrical spherical roller,which bear the larger load , longer life compared with CA |

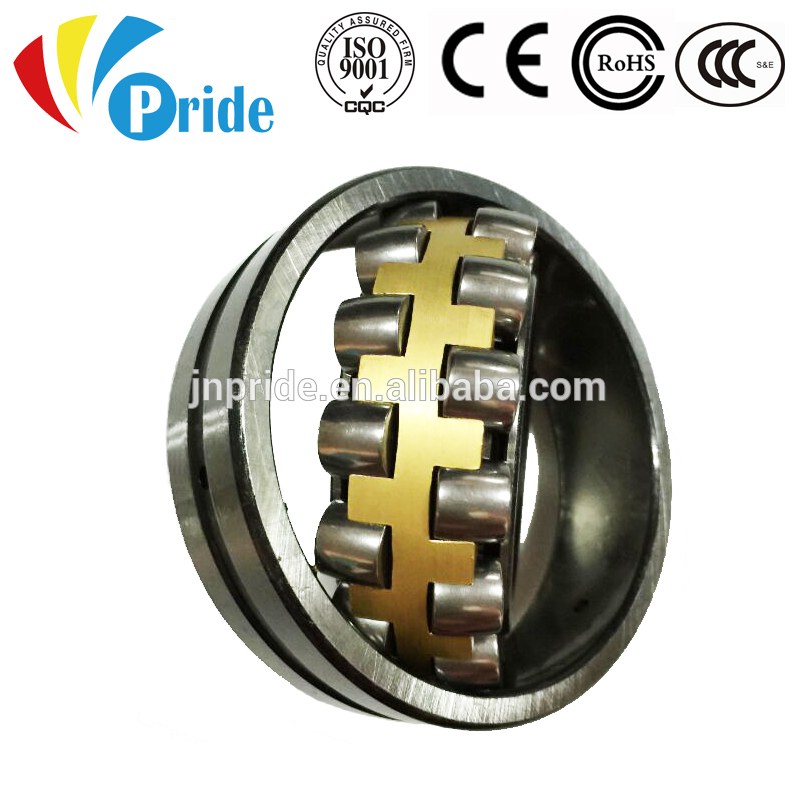

| CA | It consists of one piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.The limit speed is higher,and have a relatively small noise. |
| MB | It consists of two piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.its performance and characteristics are similar to CA, but load rating is lower. |
| E | It is the latest design, using symmetric spherical roller, two piece of pressed steel cages ,flangeless inner ring and guide ring centred on the cage,Guide ring around the outer can improve lubricating condition on roller face of end.It can also reduce friction,help guiding roller in the nonload region,and assist roller into the loading area,meanwhile,the length of roller is getting longer so that the load ratde has been enhanced. Usually rated load can be increased by 20% -35%. |

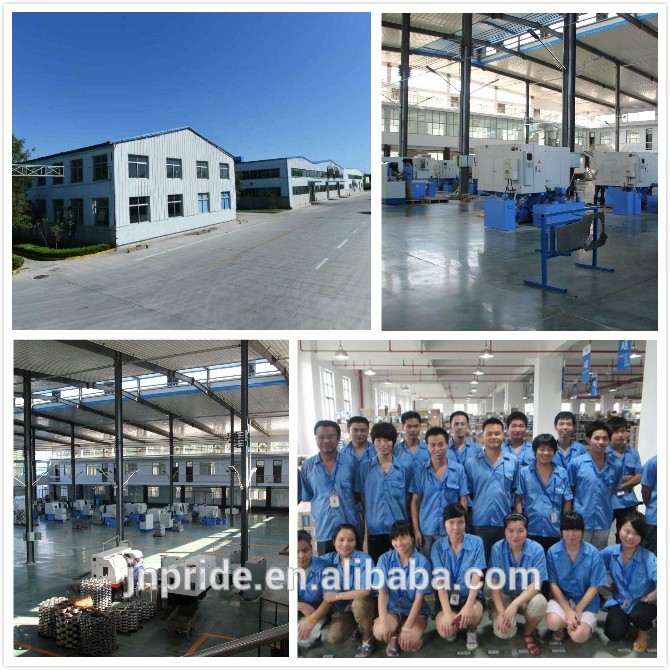

Our office and sales team

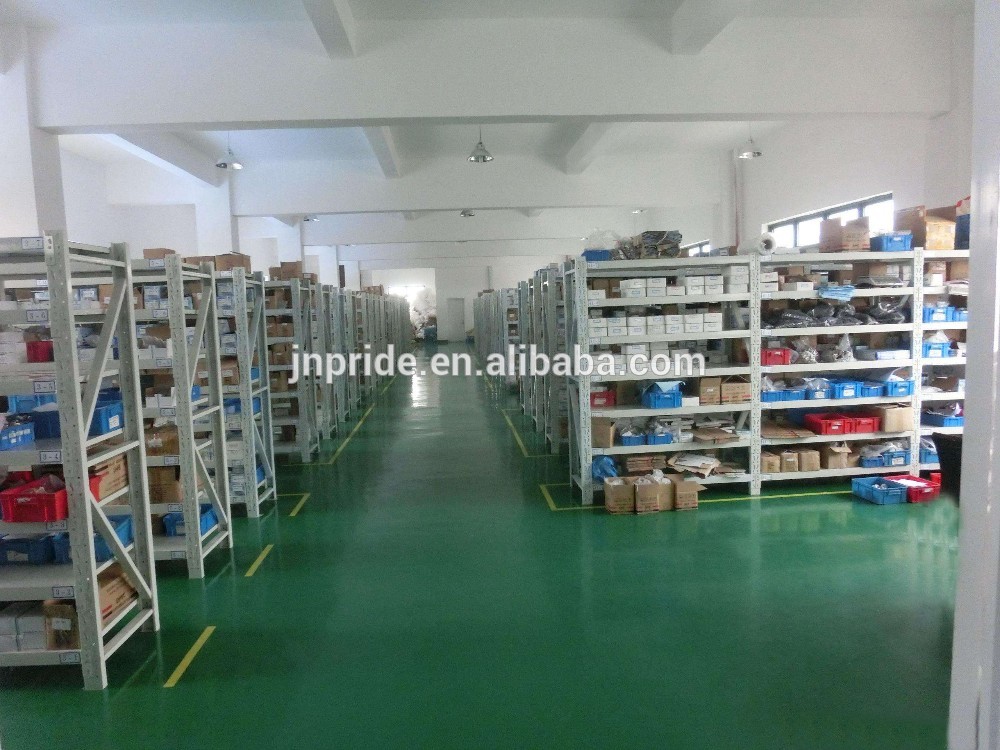

Our warehouse
Our Certifications
Pre-sale service
Our professional sales will introduce the structure and usage of the products we manufacture or sale by proxy in detail, 24/7 is available.
Manufacture, test, packing
After customer placing the order, we will prepare the goods asap to make sure delivery on time.
After-sale service
After customer recieve the goods, if there is any damage during delivery, the cost will be taken by our company, and if there is problem during the warranty period, we will replace or refund it.

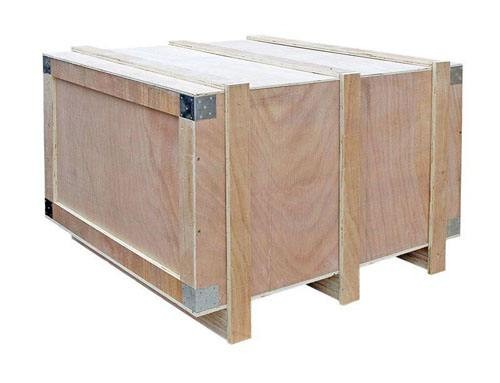

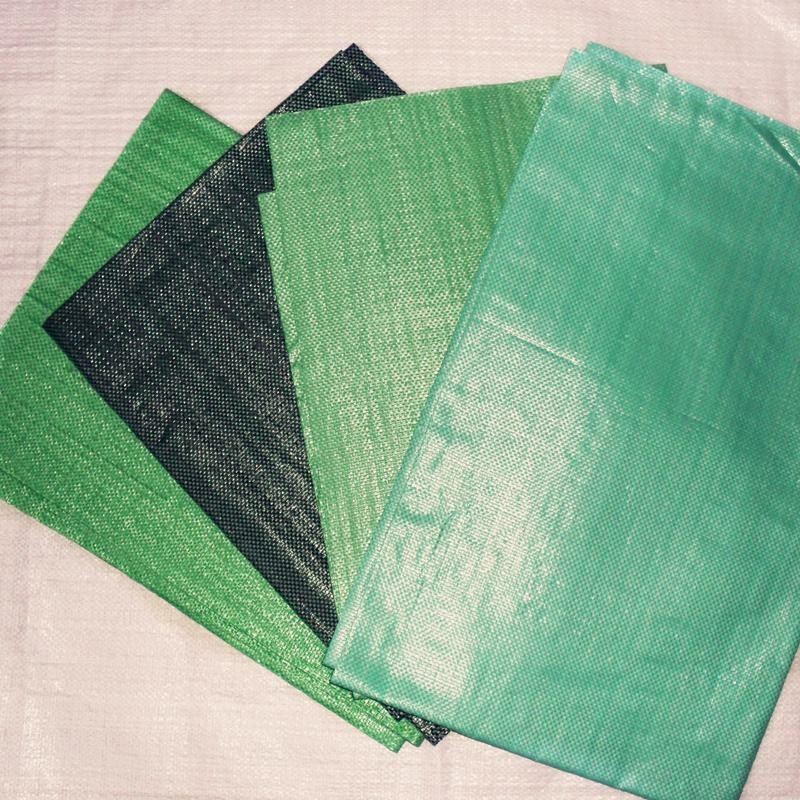

Packing Details : Outer carton box+woven bag+bubble bag+wooden box+pallet, or as customer's requirement
Delivery Details : 2-5 days if in stock, 15-30 days if not in stock, it will depend on the quantity. We will send by sea, air, truck or Express according to the quantity.
Q: Are you trading company or manufacturer ?
A: We are factory, our factory is located in Linqing city which has the reputation of the hometown of bearings.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
