SHANDONG NONGGUO MACHINERY CO.,LTD
Company Profile
Shandong Nongguo Machinery Co.,Ltd is the manufacturer of the drying machine , dehydrator machine to dryed vegetable , fruits , seafood , various peanut etc. We have more than 20 years history and have exported to more than 40 countries . And we are the Top 5 manufacturer in China . Welcome to come to China to visit our factory from home and abroad!

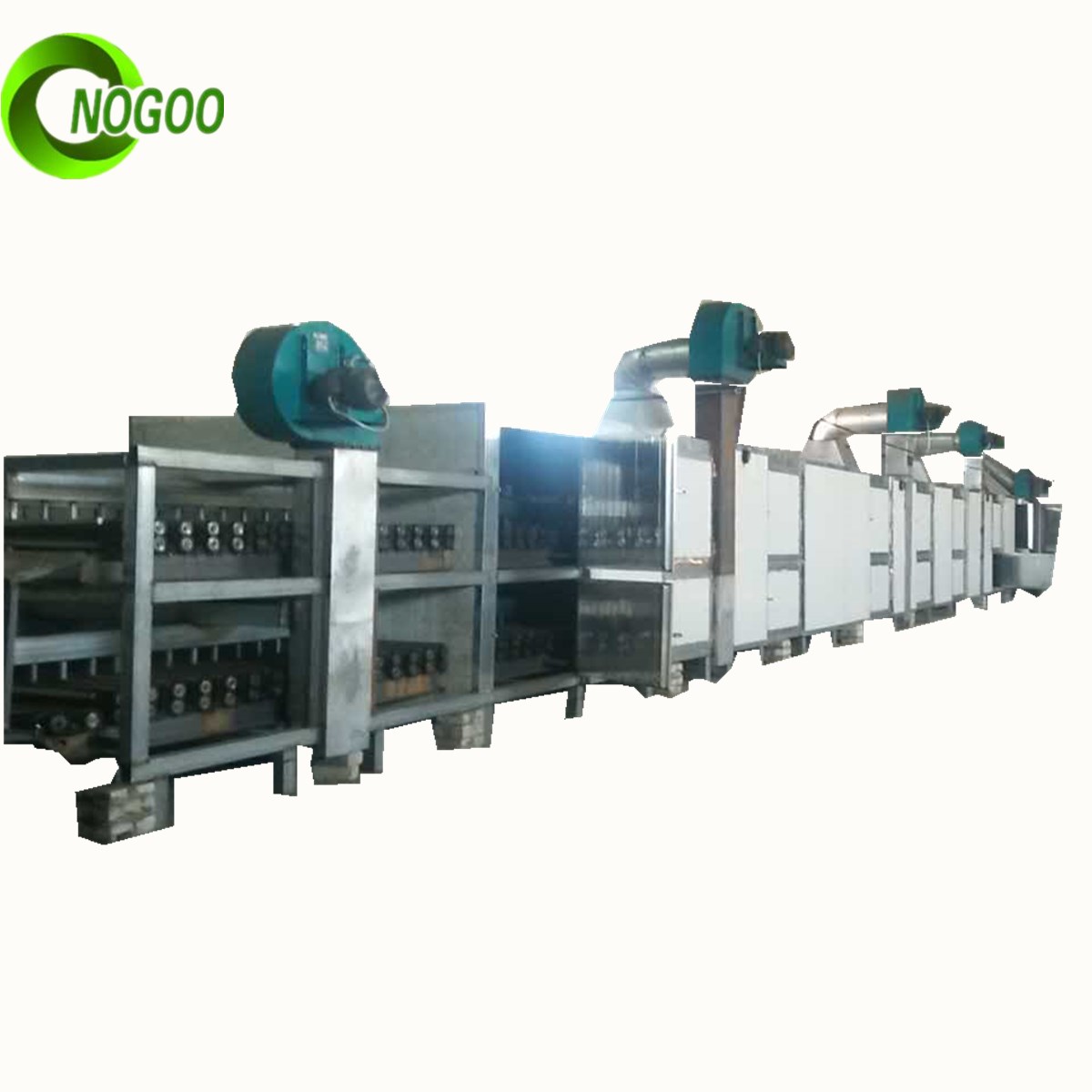

Product Information
| Model | BBG1616-1 |
| Width of feed inlet | 1600mm |
| Thickness of panel/veneer | 0.8-1.2mm |
| Working layers | 1 |
| Power of heating motor | 6X5.5kw |
| Power of cooling motor | 4.0kw |
| Power of driving motor | 4.0kw |
| Roller material | electroplating |
| Drying temperature | 90 -130°C |
| Initial moisture | 60% |
| Final moisture | 6% |
| Heating medium | Steam or Thermal oil |
| Daily out put | 8-12m3/24hours |
| Size of body(LxWxH) | 25mX2.2mX1.8m |
| Weight | 18T |
Packing and Delivery
Hot-air curtain style:
In this type, the air is circulated in (direct)direction, radiator adopt steel aluminum alloy sheets, is heated with steam and oil the hot-air immit into the top and bottom bellows by acentrical fan, and injected with high speed into both sides of the veneers. The veneers are dried uniformly.Driving system:
The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, the veneer advance pressed by the top roller weight. The veneer is dried when come through the rollers and air nozzle with flat smooth surface.Control system
According to the users’ requirement, we have manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thickness and different moisture of the veneer is dried.
Further more information please feel free to contact me !
