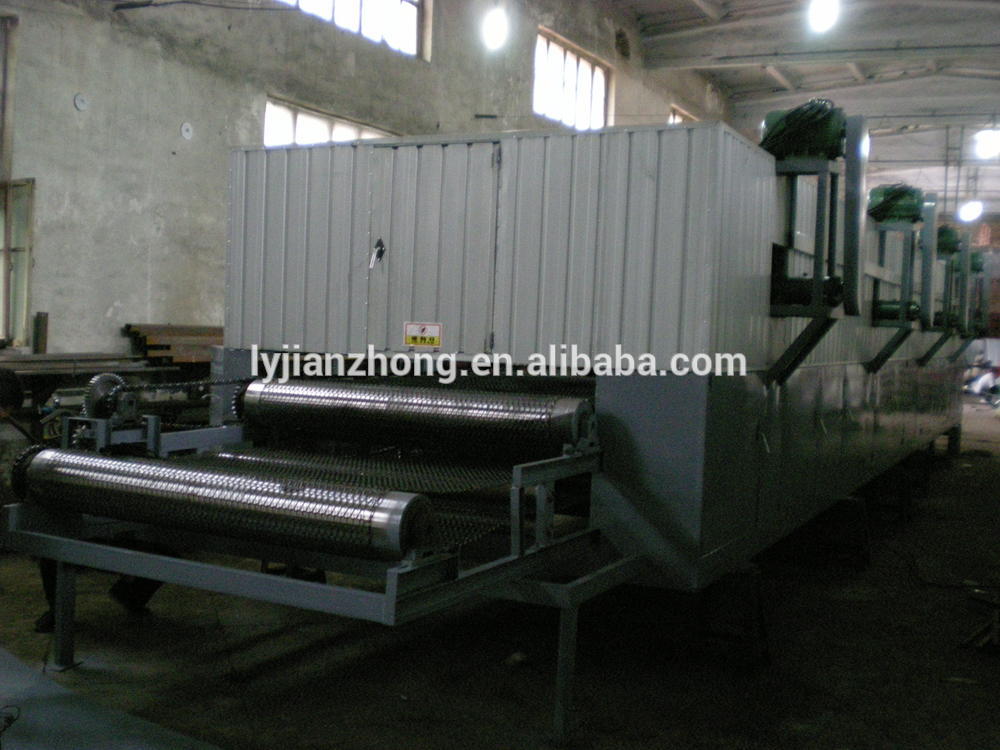

Roller type veneer dryer BG1315
Working width | 2600mm |
Wokring layers | 2 |
Length of heating section | 2000mm/pc*5pcs |
Length of cooling section | 2000mm/pc*1pcs |
Transmission motor power | 3kw*2 |
Motor power of thermal air blower | 7.5kw*5 |
Motor power of cooling air blower | 2kw*1 |
Veneer transportation speed | 2-30m/min |
Heating medium | Saturated steam or the thermal oil |
Steam pressure | 0.5-1.2Mpa |
Drying temperature | 130-160 ℃ |
Steam consumption | 1000-4000kg/h |
Veneer density | 550kg/m³ |
Available veneer thickness | 0.3-5mm |
Veneer initial moisture content | 80% |
Veneer final moisture content | 8%±2% |
Drying capacity | 1-2m³/h |
Drying efficiency | 85% |
Overall dimension | 13800x3400x2300mm |
Weight | ≈22T |
