shandong yuequn machinery Plywood roller dryer/ Roller type veneer dryer/ plywood making machine

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Product Description

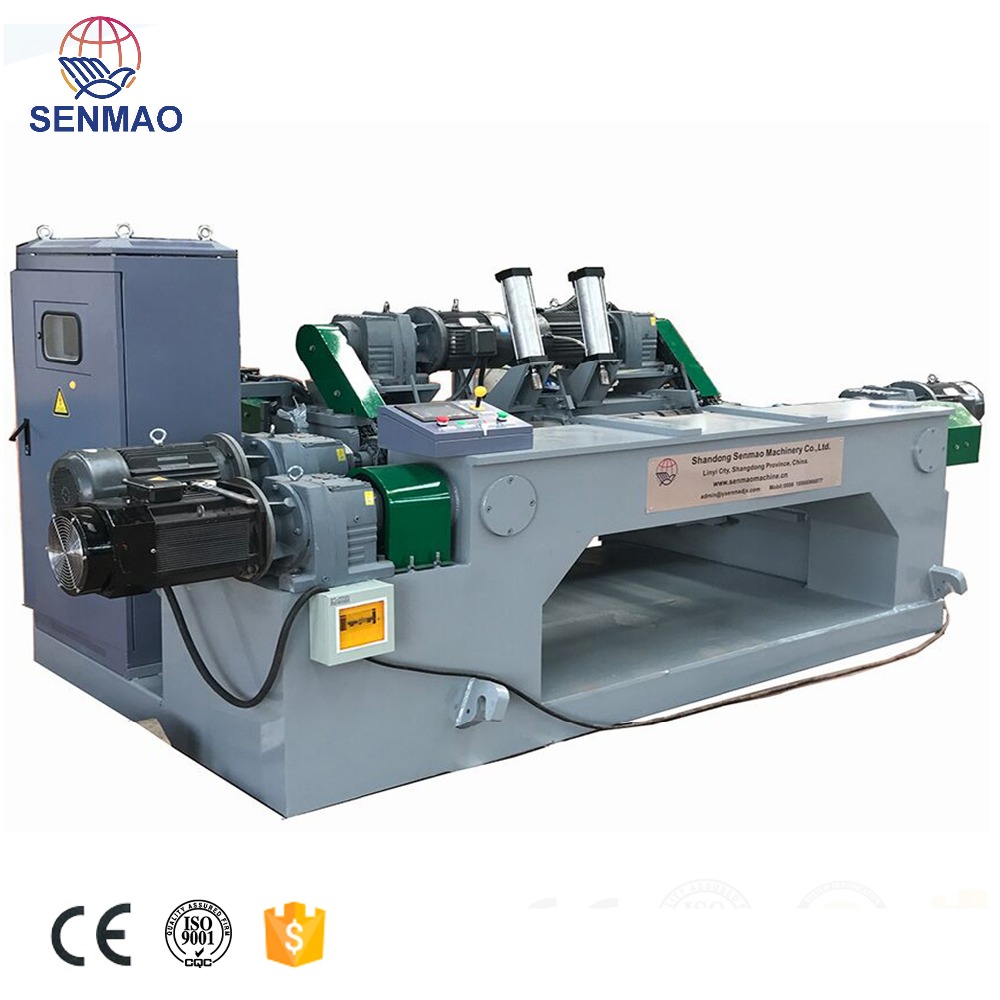

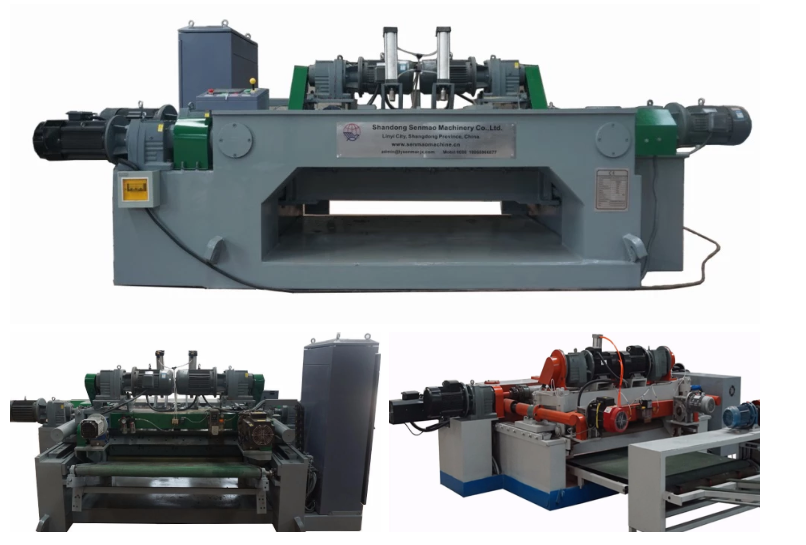

Veneer peeling machine is one of the most important machine for making the plywood,our factory is one of the biggest factory in our local market more than 20 years.

	4 FEET (1300 MM)	8 FEET (2600 MM)	10 FEET ( 3200 MM)
Max. Diameter	500 mm	500 mm	500 mm
Thickness of veneer	0.8-4.0 mm	0.8-4.0 mm	0.8-4.0 mm
Remanding diameter	28 mm	33 mm	33 mm
Knife size	*1500mm180mm16mm*	2700mm180mm16mm	3300mm*180mm16mm
Line speed	40-75 m/min	40-75 m/min	40-75 m/min
Weight	5.5 tons	10 tons	13 tons
Dimension	*4.6 m 1.9 m * 1.6 m**	5.8 m * 1.9 m * 1.6 m	6.4 m * 2.0 m * 1.6 m
Double roller motor	*7.5 kW 2**	11 kW * 2	11 kW * 2
Single roller motor	*5.5 kW 2**	7.5 KW*2	11 kW * 2
Feeding motor	11 kW ( servo motor)	11 kW ( servo motor)	11 kW ( servo motor)
Cutting motor	*2.2 kW 2**	2.2 kW * 2	2.2 kW * 2

Main Features

1) Double roller and single roller both two motors.

2) 11 kW servo motor increase the feeding stability.
3) Cutting system also use the servo motor, the width of each veneer is the same.

4) The line speed can be adjusted from 40-75 m/min, confirm the quality and the capacity.
5) Heavy duty frame, the total weight more than 5.5 tons, the hard and thick wood also very easy to rotary.

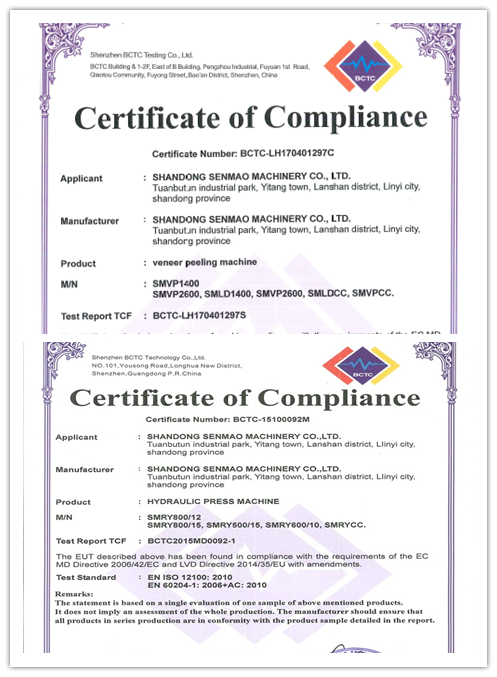

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

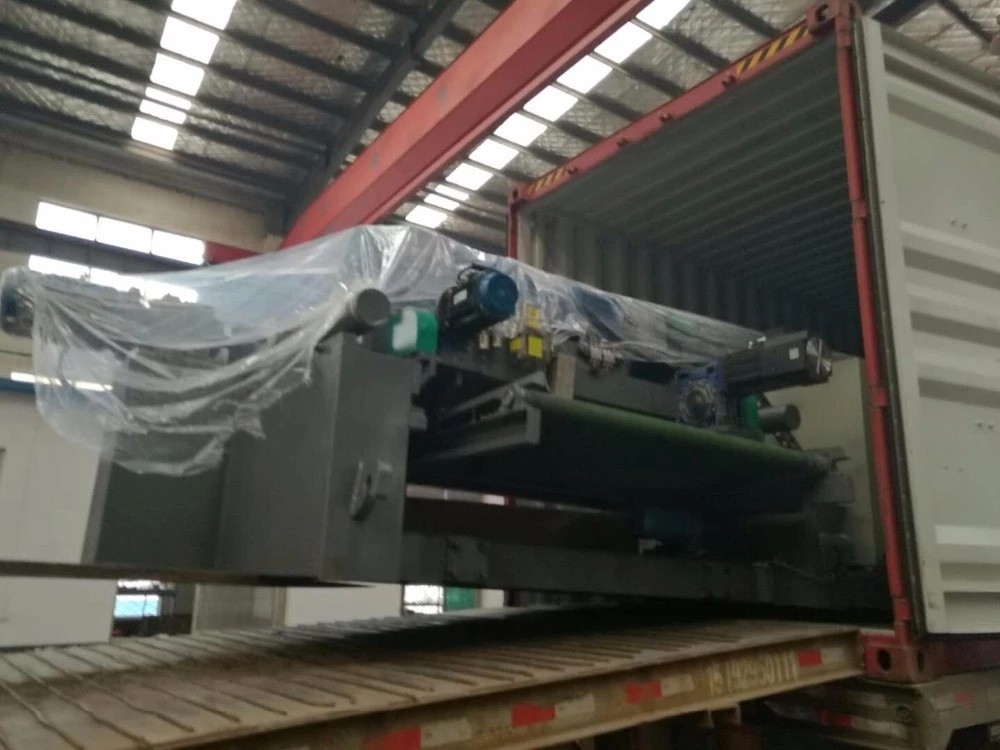

Packing & Delivery

Packaging
Size	4700 (L) * 2000 (W) * 1800mm (H)
Weight	6.0 T
Packaging Details	The normal package is in nude. If you choose the LCL delivery, will use the plywood package box. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
