with high quality and low price 1092mm Single-dryer can;Single-cylinder mould toilet &napkin paper production line
Technical parameter
1) Raw material: wood pulp
2) Output paper: napkin paper, tissue paper
3) Output paper weight: 15-30g.s.m.
4) Capacity: 5 ton per day
5) Net paper width: 1880mm
6) Cylinder mold width: 2300mm
7) Rail gauge:2800mm
toilet paper manufacturing machine
8) Drive way: AC frequency inverter adjustable speed, section drive.

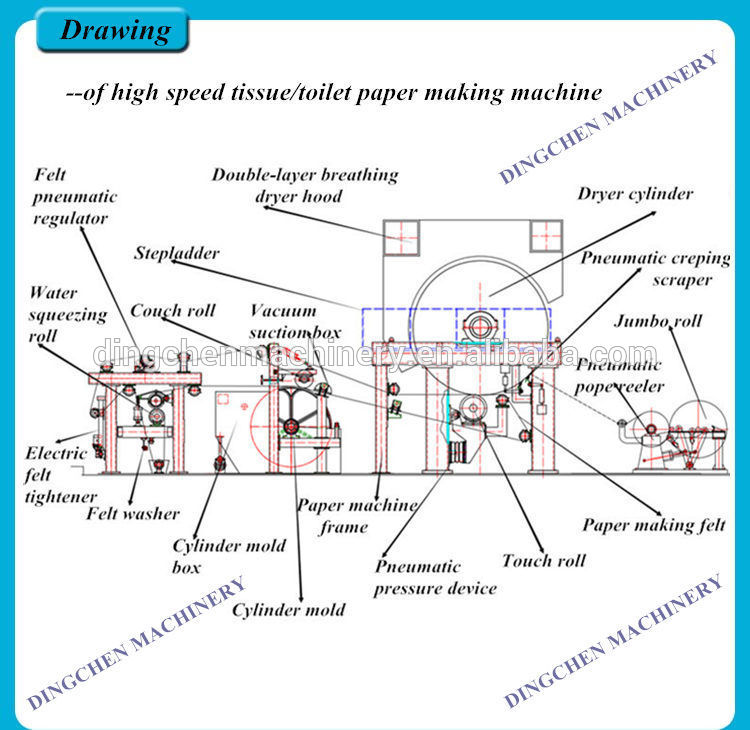

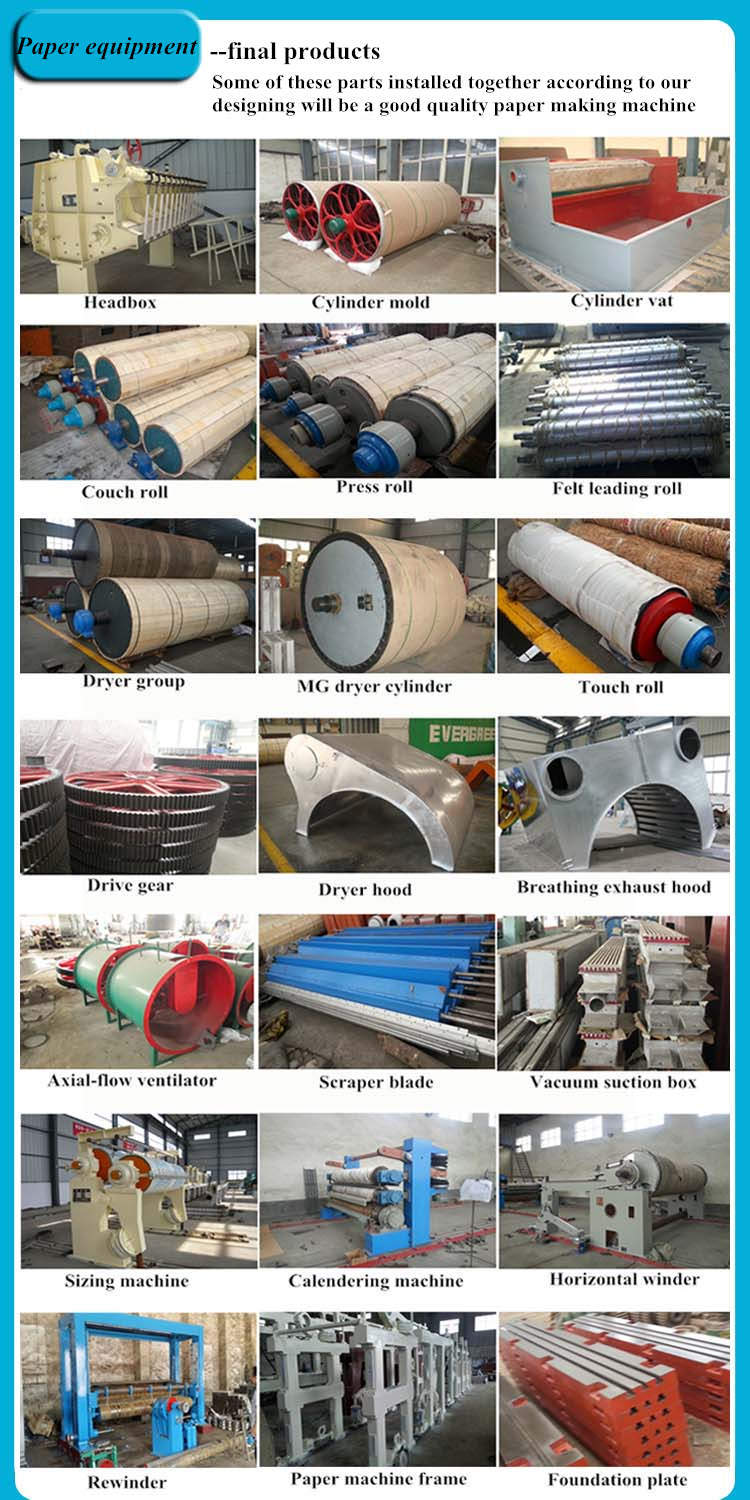

The structure and specifications of paper machine
1 .Cylinder mold part
dia.1500mm×2300mm×2800mm stainless steel cylinder mold 1 set, dia.450mm×2300mm×2800mm couch roll 1 set, coated by rubber, rubber hardness 38±2SR.. Cylinder vat is made from stainless steel plate.
2. Dryer part
dia.2500mm×2300mm×2800mm alloy dryer cylinder 1 set , dia.550mm×2300mm×2800mm touch roll 1 set, coated by rubber,rubber hardness 90±2SR... Equipped with scraper knife 2 sets, pneumatic pressure device . Equipped with double-layer dryer hood.
toilet paper printing machine
3.Winding part
dia. 900mm×2300mm×2800mm winding cylinder 1 set.

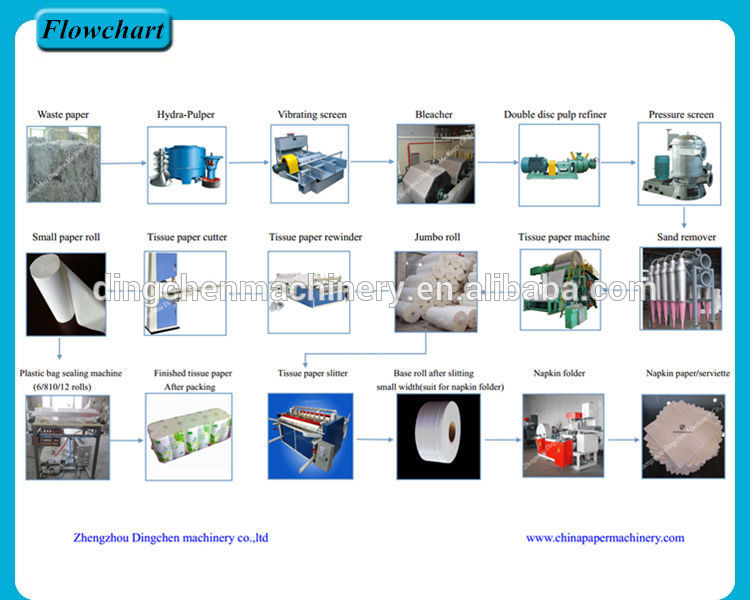

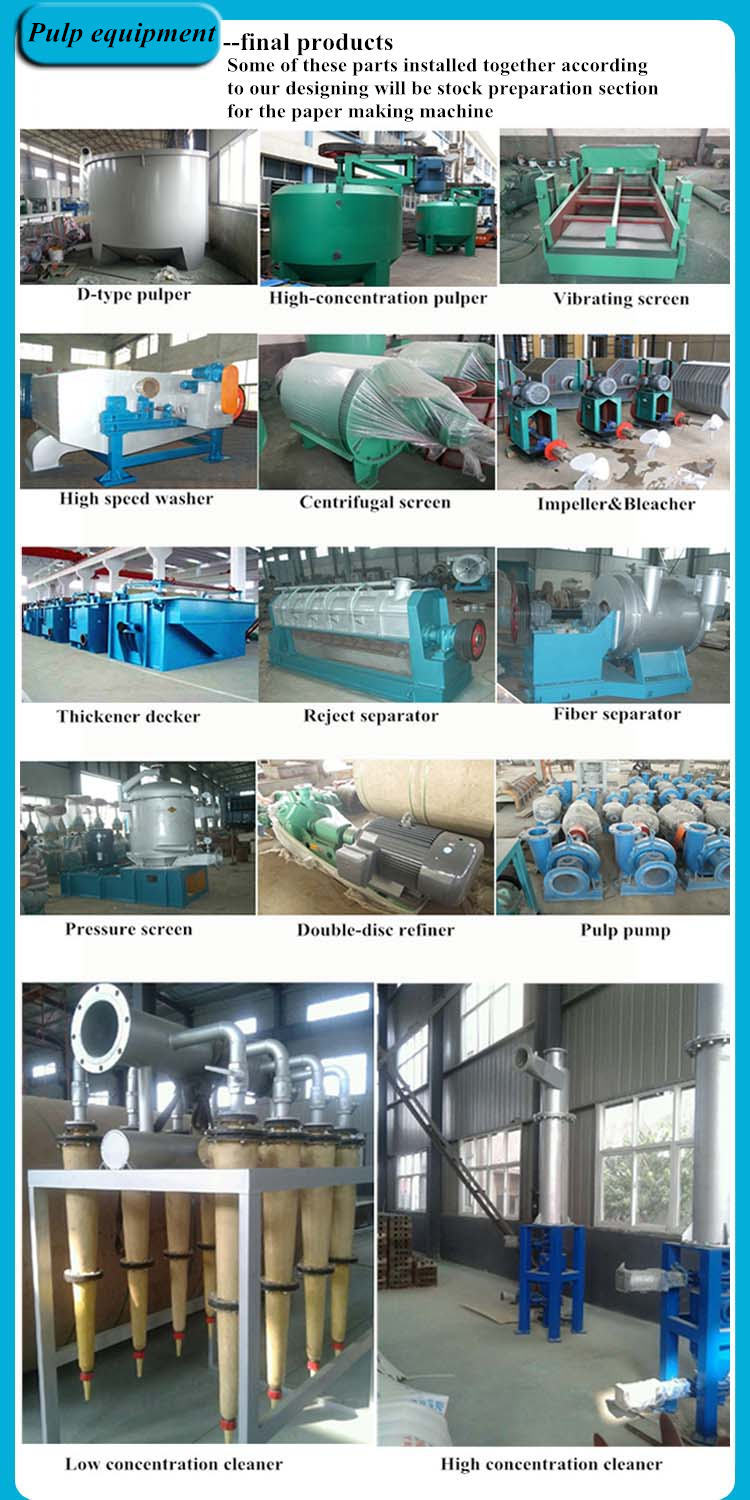

Main equipment for stock preparation
No. | Item |
1 | 5m3 hydra-pulper |
2 | 380mm pulp refiner |
3 | 606 sand remover |
4 | 700 propeller |
5 | Bleacher |
6 | pressure screen |
7 | -100 pulp pup |
8 | -150 water pump |
9 | Electric operation cabinet |

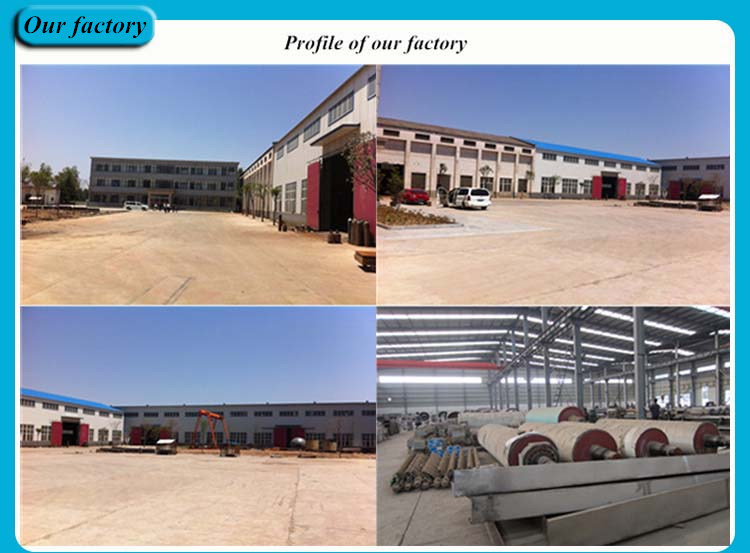

We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
1.What information do you need,if i need to get a quotation from you?
Answer Output paper type;Capacity(tons per 24hours);Output paper weight(gram per m2);Raw material.
2.How long is guarantee period for paper making machine?
Answer 12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer
(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%LC at sight.
5.How is the quality of your equipment?
Answer
(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2).We have a technician team of engineers and experts.They mainly research the advanced paper making technology,to make sure our machines’ design are newest.

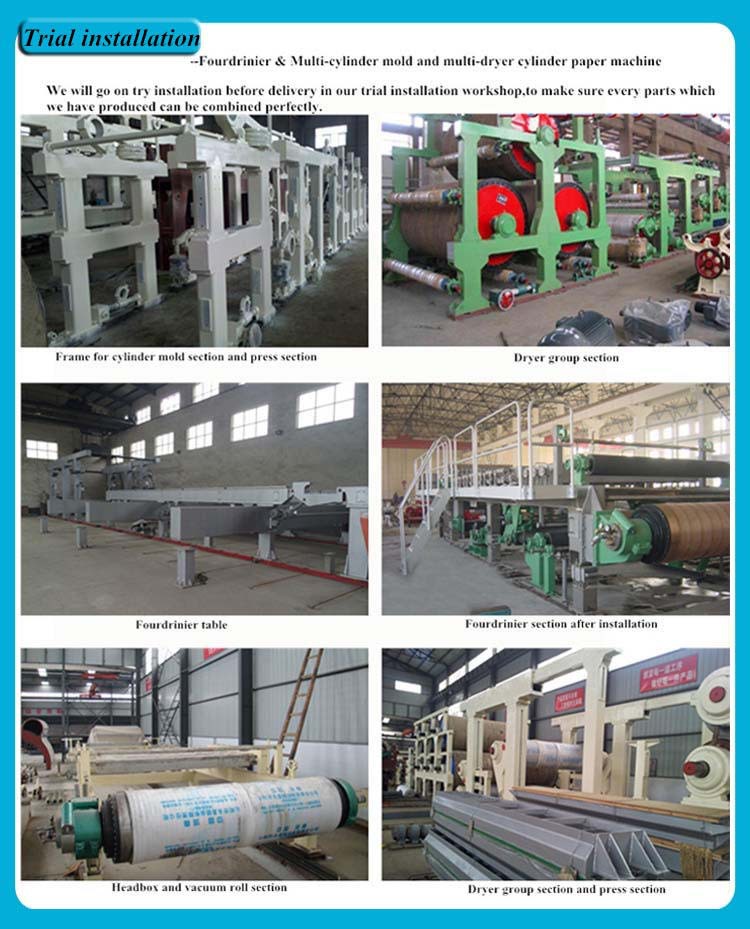

(3). The machines will be pre-installed at workshop before delivery.
(4). All of our machines has audited the certificate of ISO 9001:2008 and SGS.
6.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
7.Can we visit your factory and the running machine has installed in China?
Answer:Welcome to visit our factory.You can check our production ability,processing ability,check our facilities and running paper production line.What is more,you can discuss with engineers directly,and learn the machines well.
