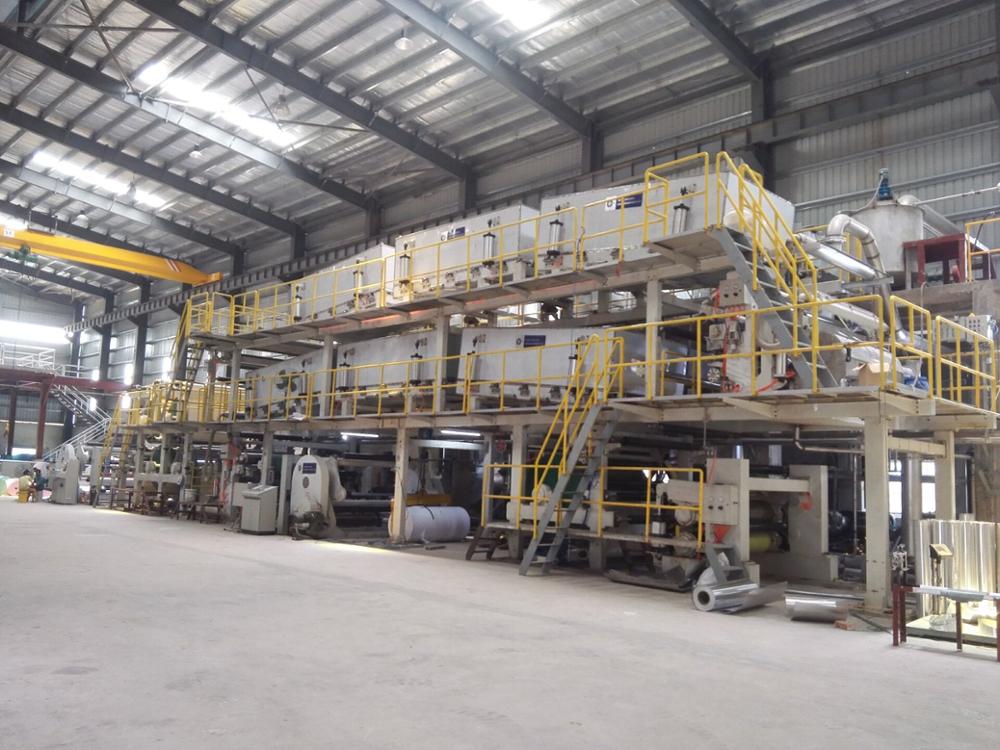

NCR PAPER COATING MACHINES BRIEF INFO

FOCUS has rich experiences in special paper coating production line area. In some countries, we dispatched professional engineers to help our customers set up their countries’ first carbonless paper production line and did our great effort to promote their paper industry level.

Focusing on special paper production line, we have already have many successful cases in carbonless paper production lines, coated paper coating production lines, duplex board coating production lines, cast coated paper coating production lines, stick paper production lines and so on.

Based on holistic solving project, we do turn key contract with our customers. Your contract will include:
~ Professional design of whole production line per your requests
~ Production after design confirmed
~ Professional transportation
~ Engineers on-site installation & commissioning
~ Give training to local worker
~ Turn the whole normal run production line to our customer
~ Supply professional technical support during production

Main Features

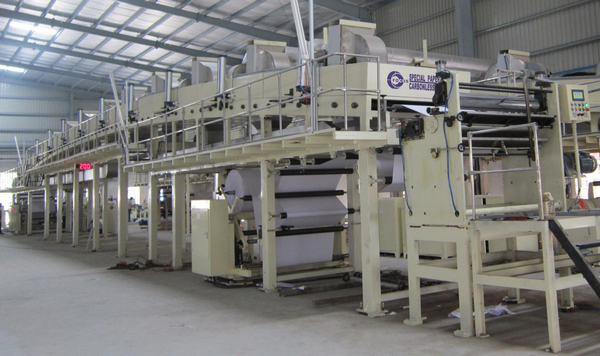

Focus brand carbonless paper coating production line can achieve the two-sided coating at the same time. We adopt the SIEMENS PLC control system with the features of high speed, high efficiency of production, low energy consumption, stable performance of equipment, low consumption of base paper, and high yield.

Specification:
1)-The width of roller surface: 1400-3600mm
2)-Max width of paper: 1200-3400mm
3)-The weight of base paper: 39~180g/m2
4)-Design speed: 230-600m/min
5)-Working speed: 200~5500m/min
6)-Coating method: single roller feeding +air knife coating
7)-Quantity of coating device: two sets
8)-Coating weight: 2~10g/m2
9)-Coating solid contain: 16-30%
10)-Viscosity of coating: 10-80CPS
11)-Starting speed: 15m/minute
12)-Drying method: hot air circulating + drying tank finishing

Brands

All the brands above are registered under the protection of State Trademark Bureau, they can be only used by Qingdao Focus Paper Co., Ltd, any infringement will be severely punished by law.

Service

First: Brand Promotion
Second: quickly claim procedure to guarantee your profits.

Third: one to one marketing strategy

Fourth: sole agent and market protection policy

Fifth: Tury-Key contract & after sale training/service

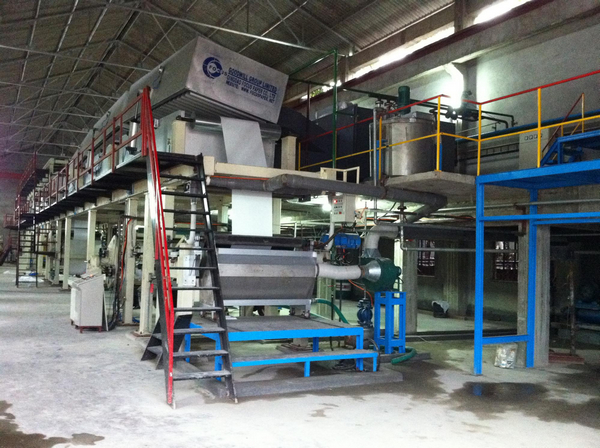

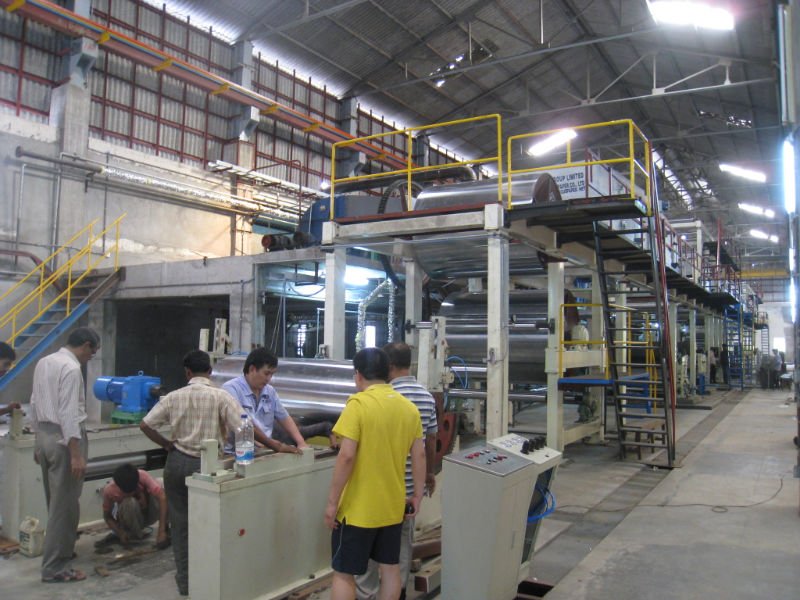

Successful Cases

Location:

Asia-Bangladesh

Middle East-Dubai

South America-Peru

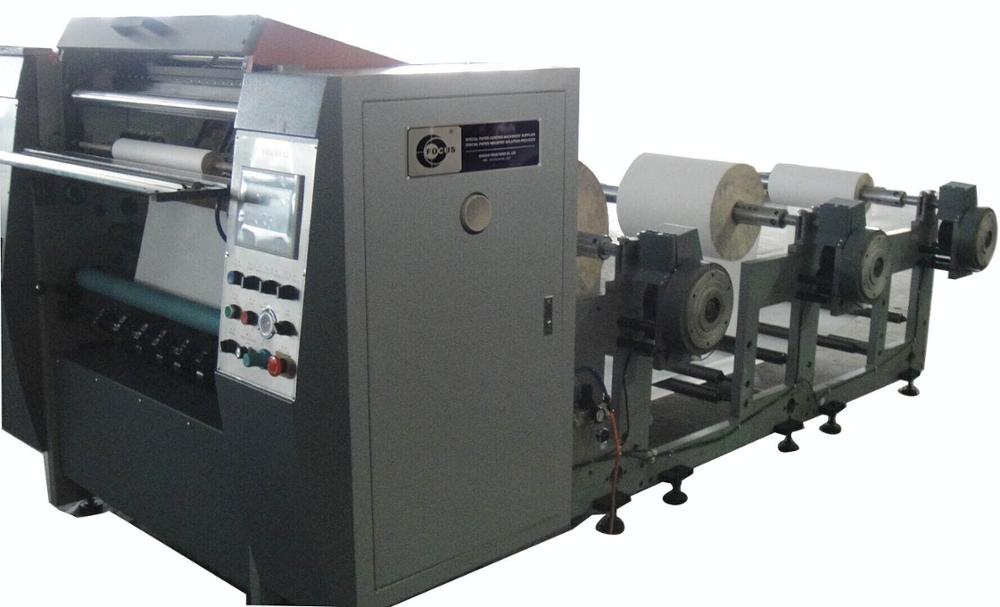

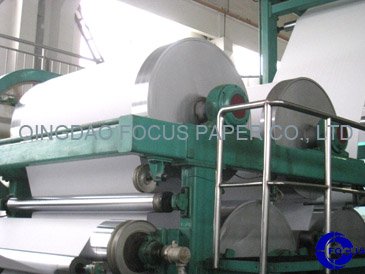

Paper Rolling Part

Roll paper by the rack, receiving roller, automatic correction device and inverter motor and other components. In the roll paper through the automatic correction device to adjust the deviation of the paper, the roll can be tight through the inverter constant tension adjustment.

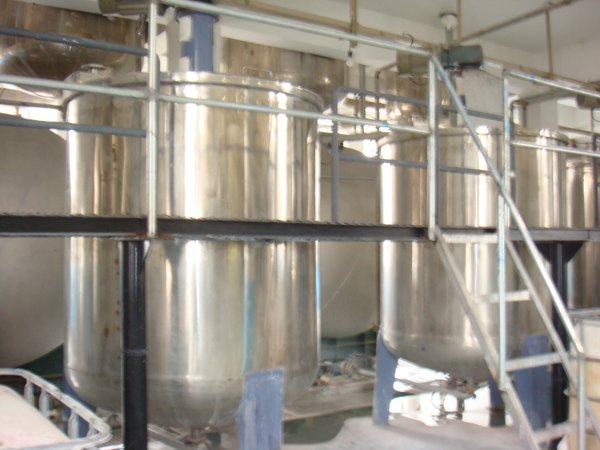

Chemical Preparation Tank

Made of stainless steel plate, designed with trough and overflow tank.

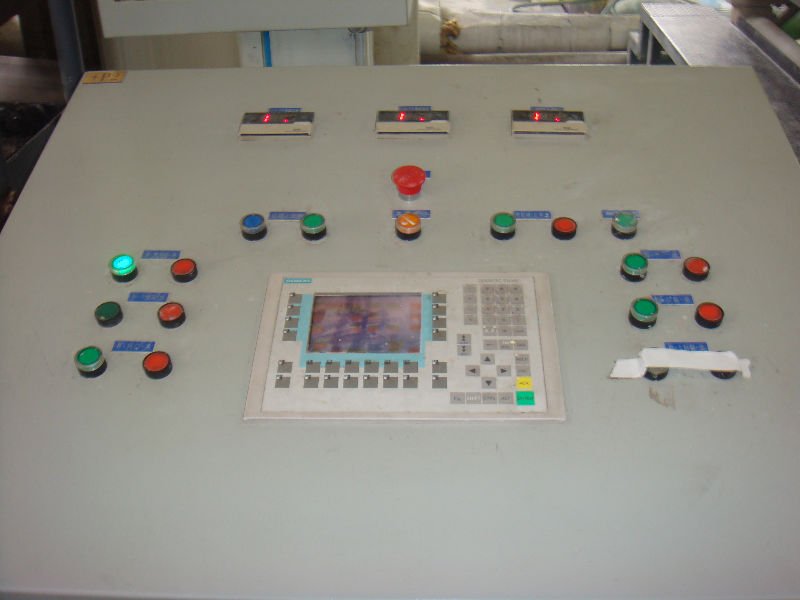

Controlling Part

Electrical control device using PLC centralized control system, the operation mode for the man-machine interface LCD touch screen panel operation. Inverter with Huichuan frequency converter, other electrical components for the Thai electrical appliances.
