Products specification:
| Model | HL7020 |
| Voltage | AC110~240v. |
| Input power(w) | according to your requirement. |
| Speed (r/min) | 12879RPM |
| Stator thickness | 12~40(mm) |
| Shaft diameter | 6(mm) |
| Shaft lenth | according to your requirement. |
Specifications:
Model | HC7020 | Model | HC7020 |
Item | Standard | Item | Standard |
Voltage | AC 230V | Voltage | AC 120V |
Frequency | 50Hz | Frequency | 60Hz |
In-put power | 400W | In-put power | 400W |
Rated pressure range | 11~14psi | Rated pressure rang | 13~15psi |
Operating pressure range | ≥10psi | Operating pressure range | ≥12psi |
Liter flow | ≥7 L/min | Liter flow | ≥8 L/min |
Sound level | ≤52dB(A) | Sound level | ≤56dB(A) |
The low voltage of starting | 207V/50Hz | The low voltage of starting | 108V/60Hz |
Insulating grade | CLASS F | Insulating grade | CLASS F |
Heating protection | 130°C | Heating protection | 130°C |

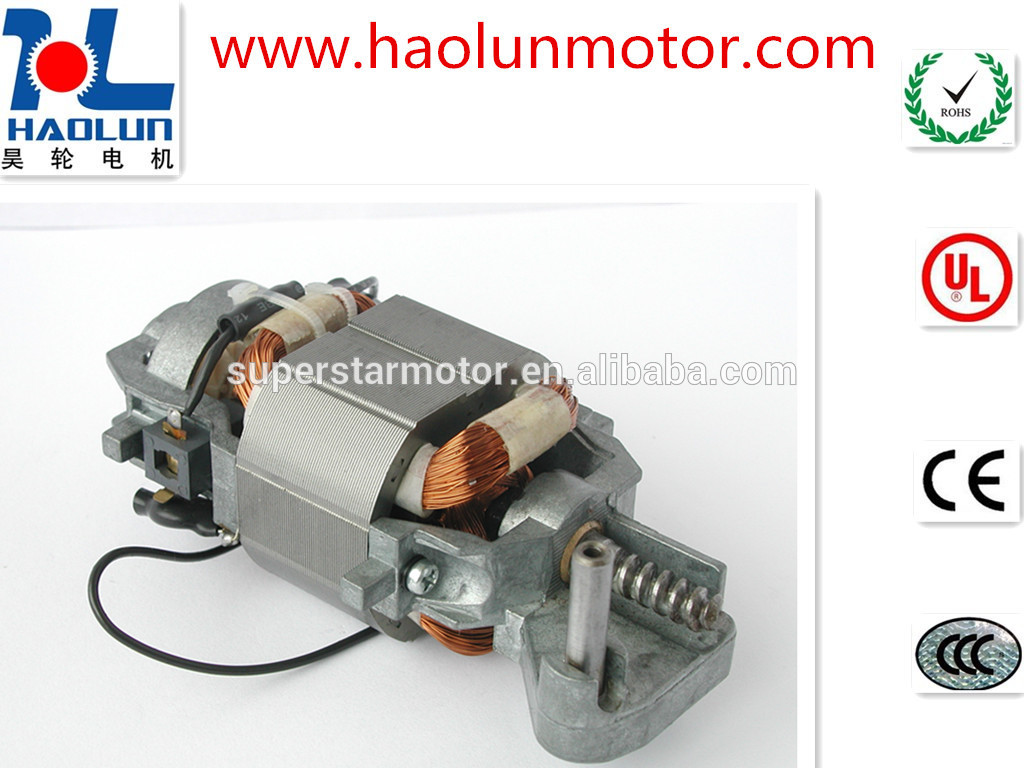

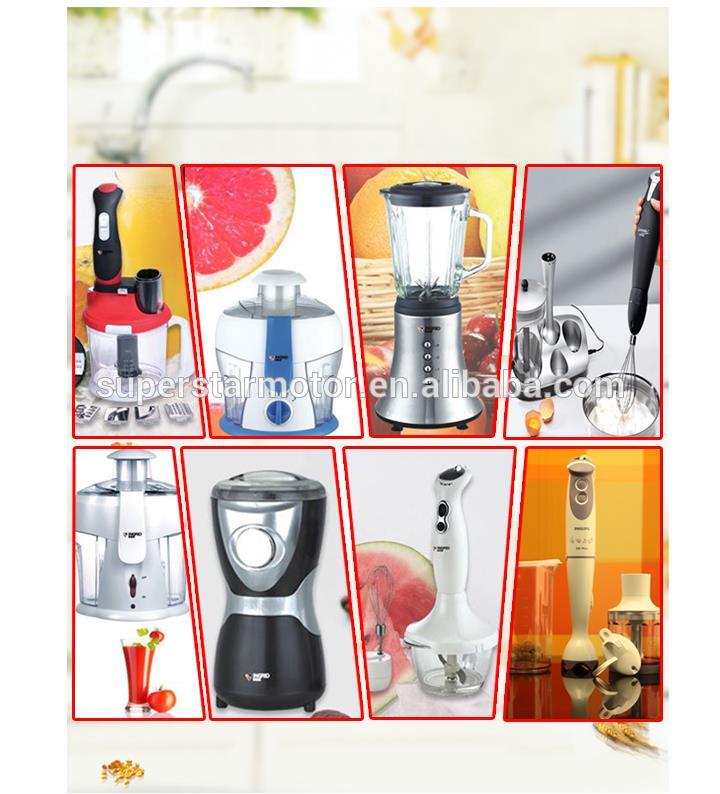

Universal Motor with armature winding, commutator and carbon brusher, uninversal motor has high starting torque and wide range of speed. Its speed changes much more with a little change of load. Power can be transferred and exchanged between stator and rotor under AC power supply. The rotor can remain rotation direction with certain output. The universal motor is mainly used in food processor. paper shredder, vaccum cleaner, hair dryer, electrical tools, etc due to its high speed, small size, light weight and big torque.

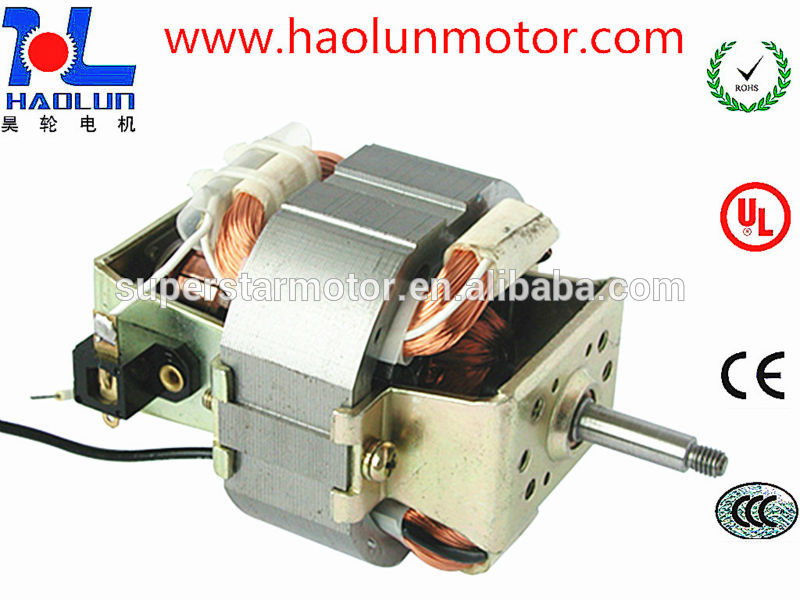

HC-5430 AC motor for juice,blender
HC8830M236 | |
Frequency | 50HZ--60HZ |
Voltage | AC 100V-- AC 240V |
power | 300W---400W |
Rotate speed | 9000rpm---25000rpm |
Applications | Chopper, Blender, Mixer |
Detailed products:

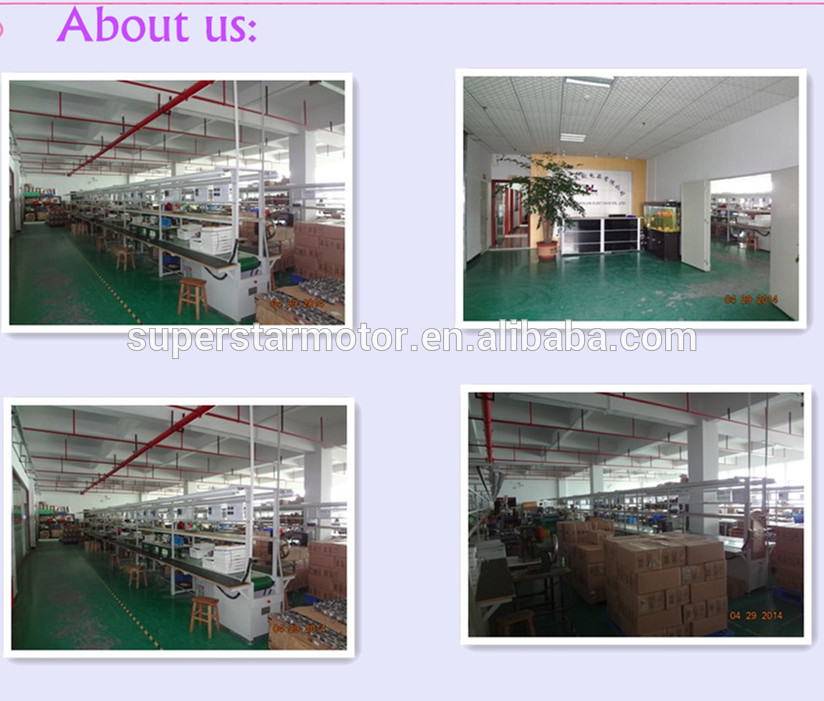

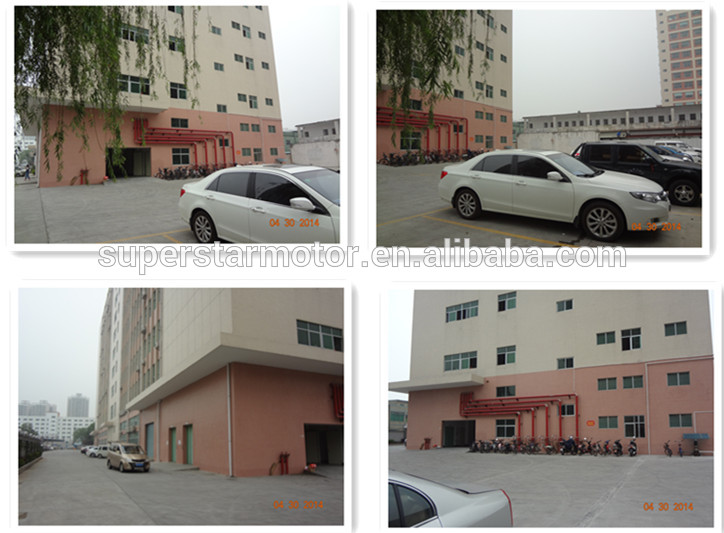

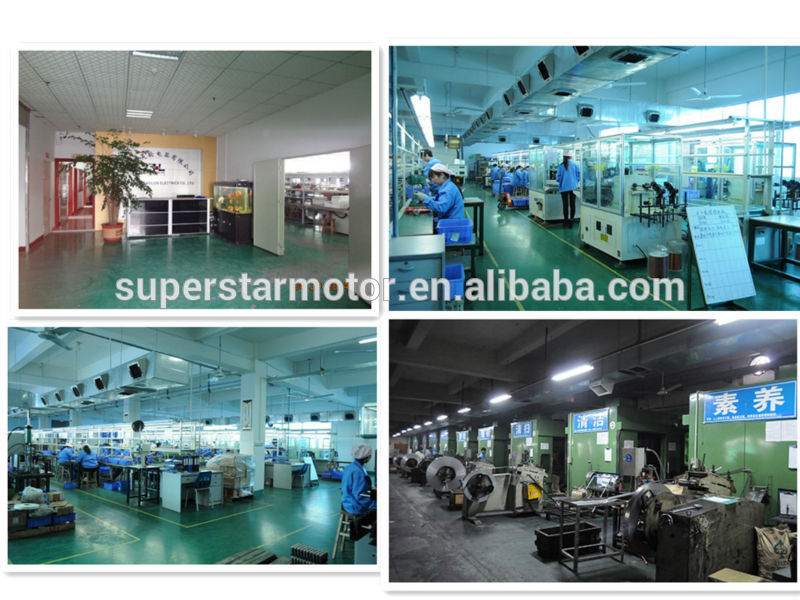

Our company:
Shenzhen Hao Lun electrics Co.,ltd is a professional manufacturer, established in May 2005 and located in the Wangfeng industrial Zone, Shajing, Shenzhen. Benefiting from the convenient transportation and timely information, we have an annual production capability of more than 300 million sets.
Our company is specialized in single-phase pole motors, series motors, DC motors, gear box motors and other micro motors. Our products are extensively used in electric ovens, fan heaters, microwave ovens, air conditioners, blowers, dryers, range hoods, juice machines, soybean milk machines, blenders and other household appliances. Our products are sold in Southeast Asia, the Middle East, Europe, the United States and other countries and regions.
With first-class technology and advanced management, we are also able to design and produce new items based on the requirements or samples provided by customers. We wil provide our high-standard and competitive price to meet our coustomers' requirement.
High Quality of our Products:

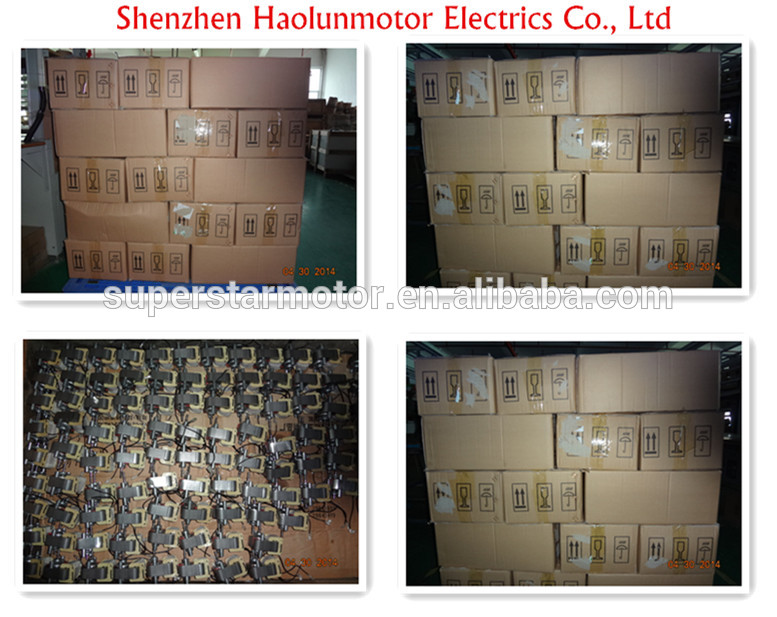

Detailed Packages:
