spherical thrust roller bearing
disc dryer bearing nmb bearing spherical thrust roller bearing 81230
spherical thrust roller bearing
1.Low noise and low vibration
2.Long life
3.High speed and durable
4.Competitive price
Description
Thrust Spherical Roller Bearings
The type of spherical roller thrust bearings are designed to achieve a high thrust capacity with low friction and continuous roller alignment.
It is ideal for operating conditions that experience heavy loads, difficulty in establishing or maintaining housing alignment, or shaft deflection.
In spherical roller thrust bearings the load is transmitted from one raceway to the other at an angle to the bearing axis.
The bearings are therefore suitable to accommodate radial loads in addition to simultaneously acting axial loads.
Another important characteristic of spherical roller thrust bearings is their self-aligning capability.
This makes the bearings insensitive to shaft deflection and misalignment of the shaft relative to the housing. roller bearing, roller bearings, thrust bearing, bearing roller spherical thrust, spherical thrust roller bearing, spherical roller thrust bearing, Axial
spherical roller bearing
Spherical roller thrust bearings can support very heavy axial loads and permit relatively high speed operation.
Spherical roller thrust bearings can support very heavy axial loads and permit relatively high speed operation.
Spherical roller thrust bearings are produced in two designs depending on the size and series.
Bearings up to and including size 68 identified by the designation suffix E have a pressed steel window-type cage which, with the rollers, forms a non-separable assembly with the shaft washer.
All other bearings have a machined brass or steel cage which is guided by a sleeve held in the shaft washer bore.
The shaft washer and cage with rollers form a non-separable unit. roller bearing, roller bearings

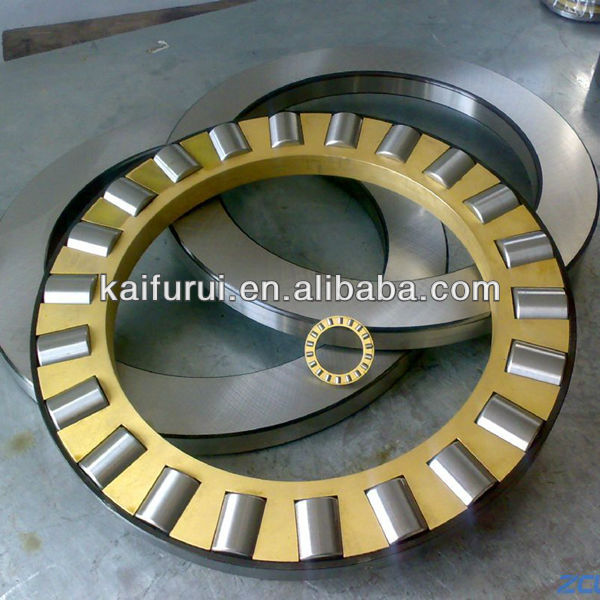

High precision thrust cylindrical roller bearing
Designation:
81124,81126,81128,81130,81132,81134,81136,9136,81140,81188,811/530,811/850,812/500,812/600,
812/670,817/1180,99436,99440,99448,99476,197/1290
| New model | Old model | ID | OD | T (mm) | Cr | Cor | Grease | Weigth |
| (mm) | (mm) | (kN) | (kN) | (r/min) | (kg) | |||
| 292/1060 | 90392/1060 | 1060 | 1400 | 206 | - | - | - | - |
| 292/500 | 90392/500 | 500 | 670 | 103 | 2460 | 14800 | 500 | 101 |
| 292/530 | 90392/530 | 530 | 710 | 109 | 2800 | 16200 | 400 | 108 |
| 292/670 | 90392/670 | 670 | 900 | 140 | 4440 | 26500 | 200 | 224 |
| 292/710 | 90392/710 | 710 | 950 | 145 | 4840 | 29400 | 150 | 261 |
| 292/750 | 90392/750 | 750 | 1000 | 150 | 5180 | 31900 | 130 | 293 |
| 292/800 | 90392/800 | 800 | 1060 | 155 | 5620 | 35300 | 100 | 339 |
| 292/850 | 90392/850 | 850 | 1120 | 160 | 6080 | 38900 | 80 | 389 |
| 292/900 | 90392/900 | 900 | 1180 | 170 | 6590 | 42000 | 60 | 444 |
| 292/950 | 90392/950 | 950 | 1250 | 180 | - | - | - | - |
| 29230 | 9039230 | 150 | 215 | 39 | - | - | - | - |
| 29232 | 9039232 | 160 | 225 | 39 | - | - | - | - |
| 29234 | 9039234 | 170 | 240 | 42 | - | - | - | - |
| 29240 | 9039240 | 200 | 280 | 48 | 536 | 2270 | 1600 | 8.9 |
| 29244 | 9039244 | 220 | 300 | 48 | 542 | 2490 | 1550 | 10 |
Relying on strong resource network, we can supply any bearing that you need. Meeting each customer' satisfaction
is our pursuit!
