787mm single dryer can &single cylinder mould
toilet paper machine
Technical parameter:
1.output paper :tissue paper
2. raw material: waste paper
3.capacity: 0.8-1ton per day
4. net paper width:900mm
5.output paper weight: 13-40g/m2
6. rail gauge:1300mm
7.working speed: 40-100mmin
8. drive way: Alternating current , speed control , section drive

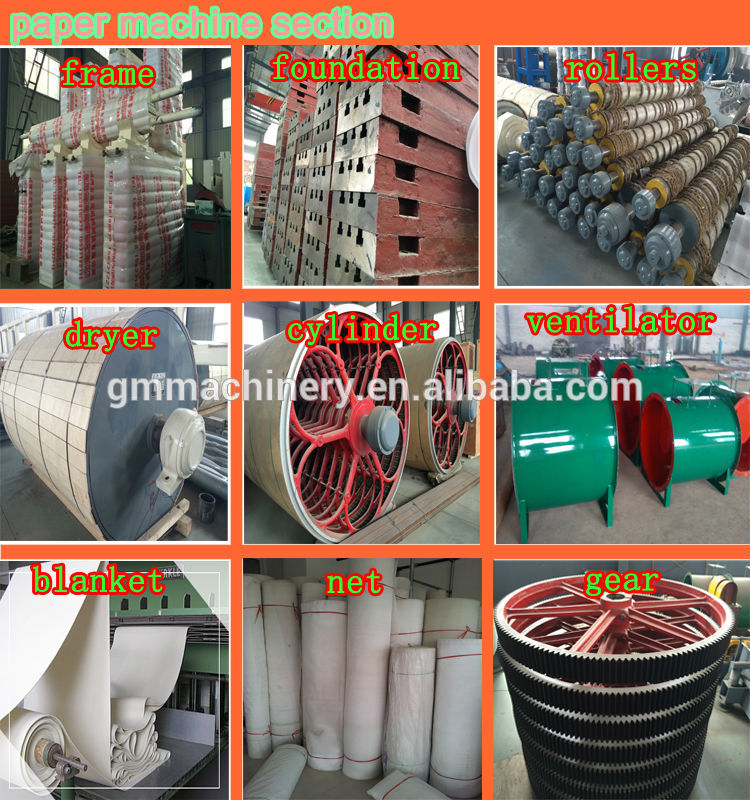

structure and characteristic:
1. cylinder section:1000mm×1100mm stainless steel cylinder mould 1set, 260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
2.dryer section:1250mm×1100mm cast iron alloy dyer can 1 set, 300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
3.paper cutting section: 787mm slitting machine1set .
4.drive and control section: Alternating current , speed control , section drive

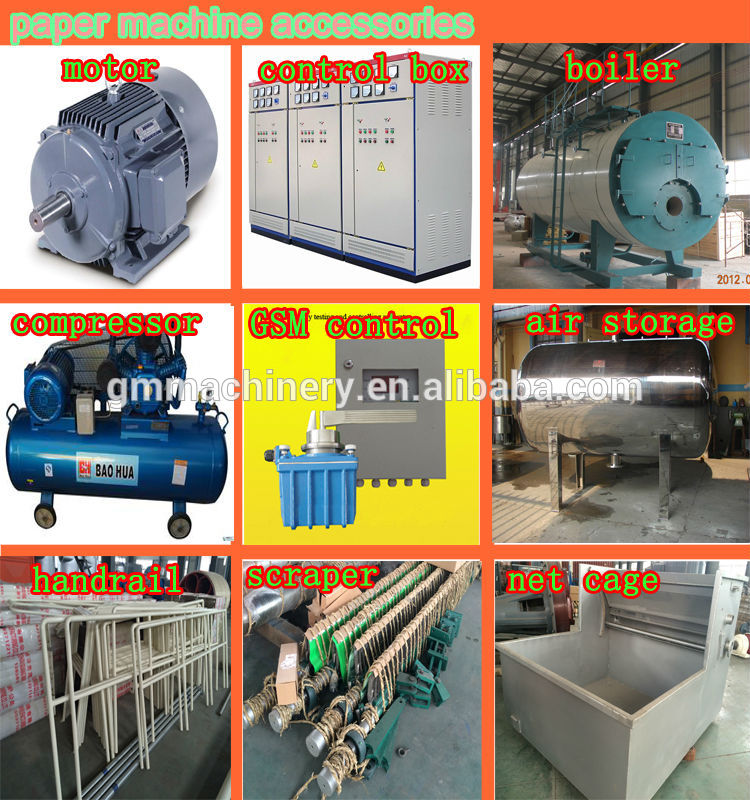

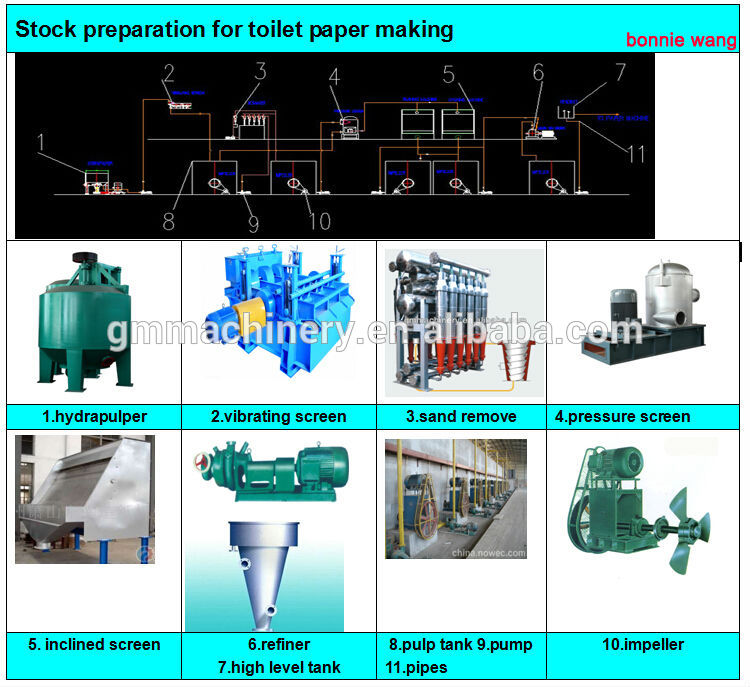

machine list:
No. | Motor | Power (Kw) | Qty (set) |
| 787mm toilet paper machine | 4 | 1 |
| 1.5m3High consistency hydrapulper | 4 | 1 |
| 0.8m2 High frequency vibrating screen | 2 | 1 |
| 250 Refiner | 11 | 1 |
| 500 Impeller | 5.5 | 3 |
| 25M3 bleaching machine | 3 | 1 |
| Roots pump | 5 | 1 |
| Pulp pump | 3 | 5 |

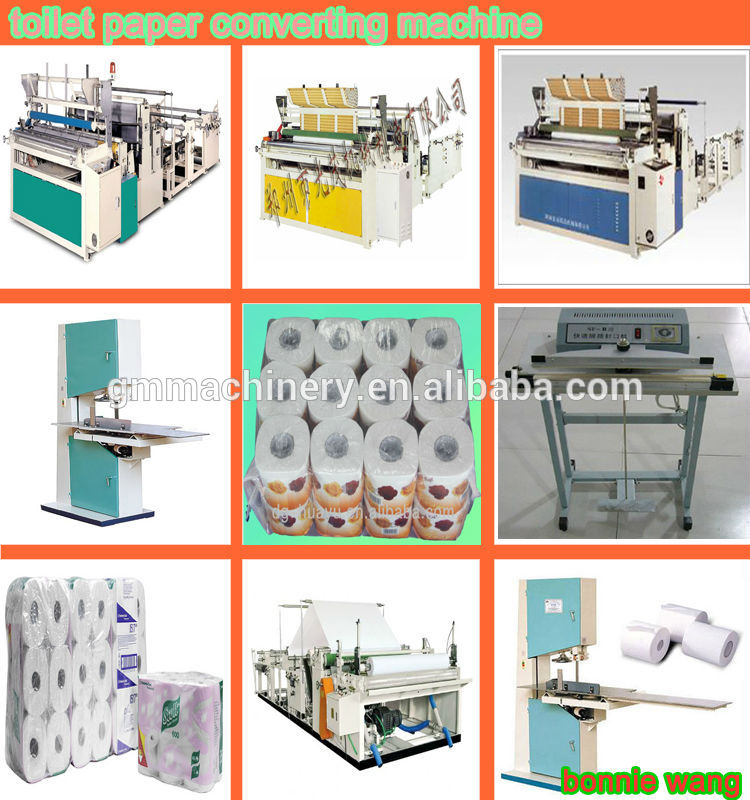

| Rewinding machine | 2 | 1 |
| Toilet paper cutter | 3 | 1 |
1. 11. | Boiler | 4.5 | 1 |
787mm tissue paper machine service:
1. According to customers' demand, we supply the services in a flexible way not only the traditional services
but also the Internet on-line services. We try our best to carve out market and provide services all the time.
2. Before customers' purchase, we will send our engineers to customers' site to design the best flow chart;
3. After purchase, we will send the engineer to guide to install the machine, take trial run.
Try our best to provide our customers with service of high quality and high efficiency.
4. Spare parts will be supplied for free within 1 year.
787mm tissue paper machine spare parts:
1.paper making felt/blanket.
2.paper making net of cylinder mould.
3.paper making wire mesh for bleaching machine.
4.paper making scraper knife.
5.vibrating screen plates.
6.pressure screen plates.
7.pulp refiner blades.
8.rewinding machine blades.
9.cutting machine knife.

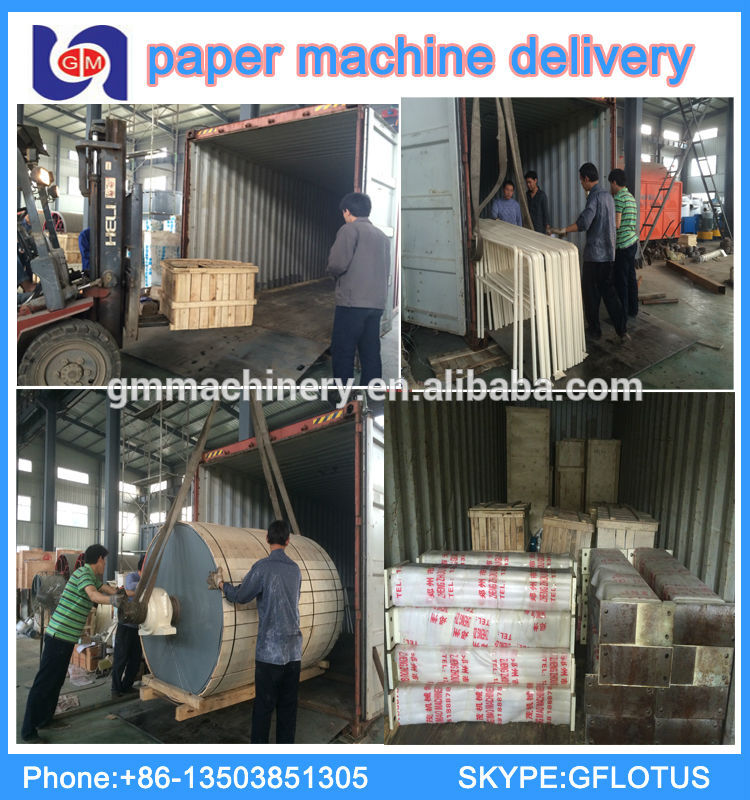

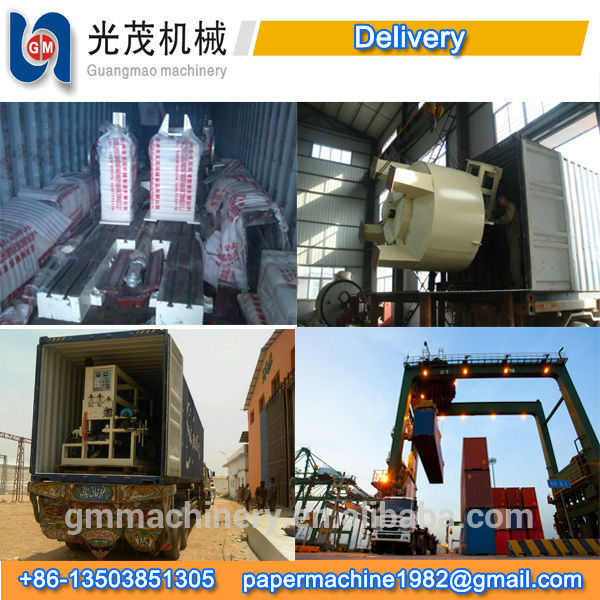

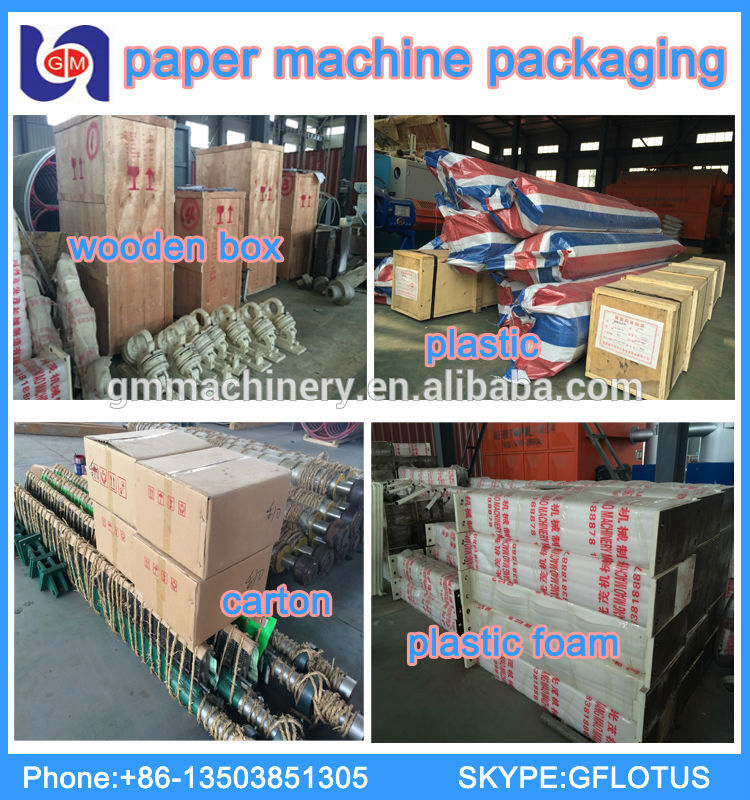

Different parts packed by different materials:
--paper machine frame will be packed by plastic foam.
--paper machine accessories parts will be packed in wooden cases.very small parts packed by carton.
--paper pulping machine packed by water-proof PVC film,and outside packed by wood cases.
Tighten Packaging, Detailed Checking:
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.

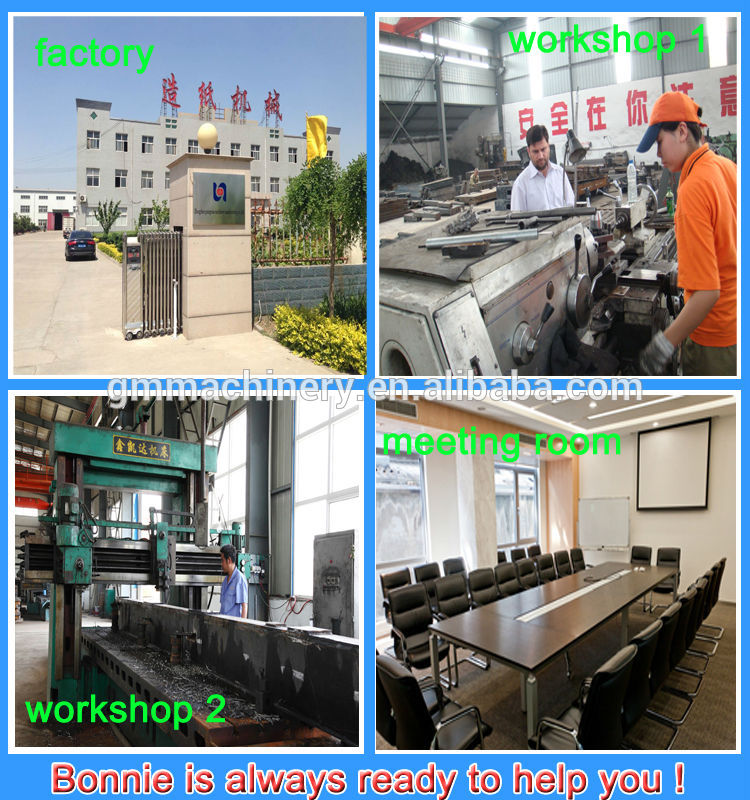

zhengzhou guangmao machinery manufacturing co.,ltd has developed into a much more competitive company since establishment in 1982.mainly manufactures all kinds of paper machines,toilet paper production line,kraft paper
production line,copy/writing paper production line.We have 4 paper machine producing workshops and more than
110 workers.our factory total area is 20,000 square meters.
Our company superiority:
1.more than 30 years producing experience.
2.alibaba 4 years of gold supplier.
3.25 engineers with rich experience.
4.have passed CE,SGS,ISO quality system certification and all manufacure processes are conducted by the standard strictly.
1.how long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry.If you are urgent to get the quotation,please feel free to call 8613503851305 or tell us by email,then we can reply you as the first priority.
2.can you make paper mill design for us?
yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.how about your machine quality,we are worry about the quality

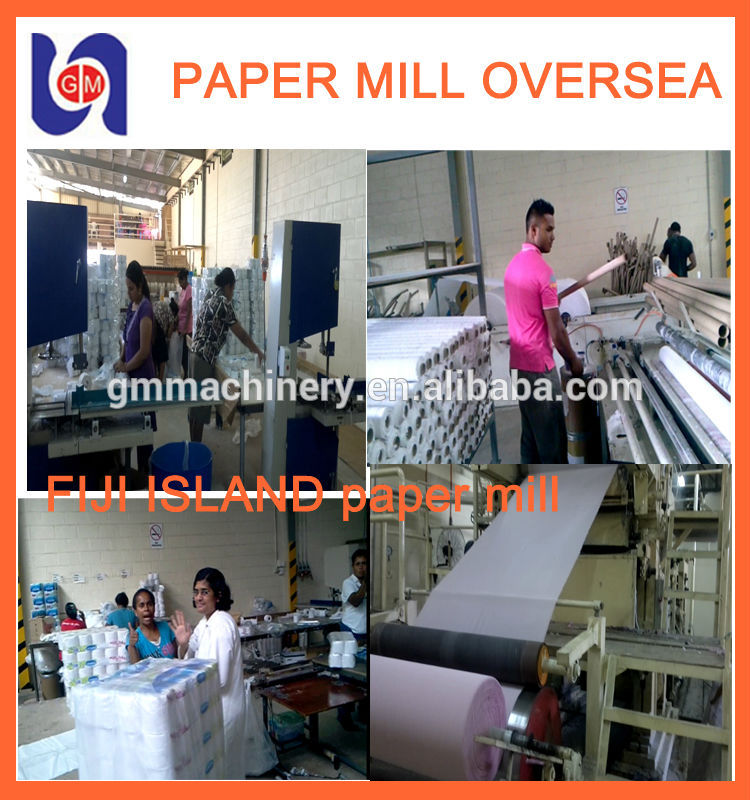

GM is a mature brand in china,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on alibaba already 4 years.
4.your machine price is high,is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have
enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
5.how we visit your factory and what will be the procedure?
our company located in zhengzhou city,henan province,if you take plane,it will need about 2 hours from guangzhou city,1.5hours from shanghai city and 1 hour from beijing city.we will pick you up from airport as well as the train station.we will take you to see our machine running in our chinese clients' paper mill.welcome you and your team to visit us at any time!
6.could your engineer teach and train our worker and stay in our factory for long time?
yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
7. how much water,electricity should i prepare for producing 1 ton finished paper?
(1) clean water: 5M3
(2) electricity:250kw/h
8. which kind of chemical I should prepare:
(1) deinking agent
(2) dispersing agent
(3) bleaching agen
