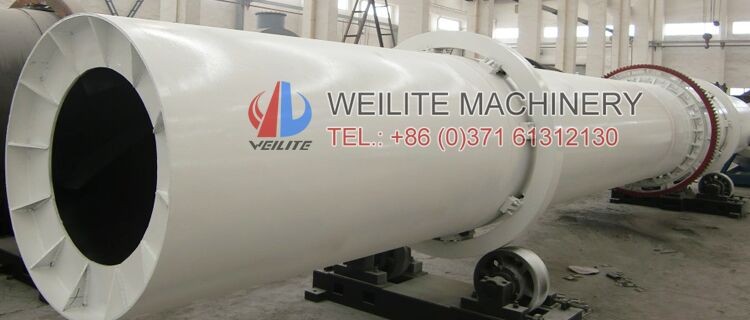

1)Sand dryer also called sand drying machine, quartz sand drying machine, and it is a drying equipment with reliable running, flexible operation, strong adaptability and large quantity processing . Sand dryer generally adapted to granular materials, specially wet sand, river sand, and quartz sand.
2) The advantages of sand dryer is large production capacity, wide application range, and convenient operation and so on. It is commonly used in drying sand, artificial sand, quartz sand, slag, coal cinder and so on.
Main Features
1). High dry capacity,mooth rotation.
2).Smooth rotation, stronger applicability ,easy operation.
3). Overload resistance, large processing capacity, and low drying cost.
4). High efficiency radiator, and with reasonable guide operation, make hot air directly and material contact, greatly improve the drying efficiency.

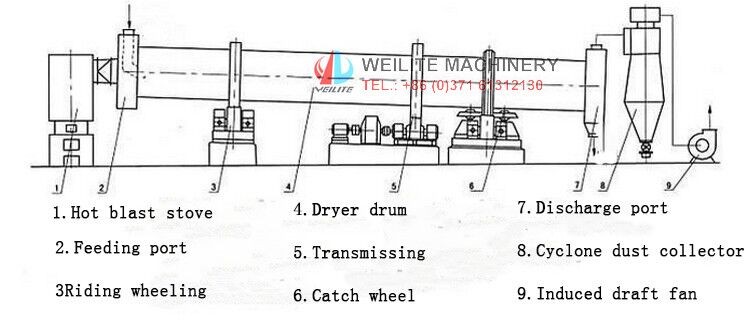

The wet material is put into the dryer after dehydration. The material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller . Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down , make materials and hot air mix completely.
| Model (mm) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (KW) | Production capacity(t/h) | Weight (t) |
| Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
| Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
| Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
| Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
| Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
| Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
| Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
| Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
| Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
| Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |

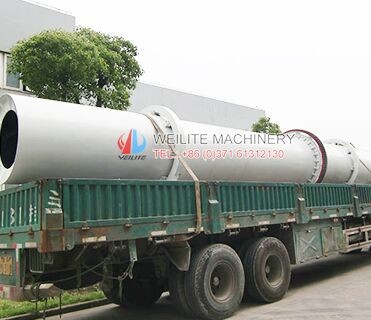

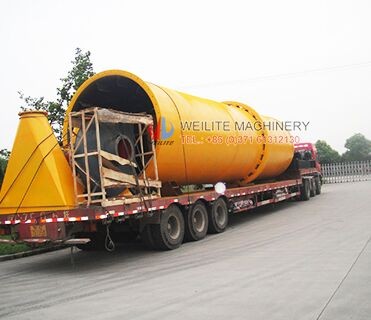

1) Bare the the main body of the machine
2) Motors and other small spare parts are packaged in wooden cases
3) Or as your requirement.
Zhengzhou Weilite is a professional designer and manufacturer of the mining equipments in Zhengzhou City, Henan, China. We are specialized in manufacturing industrial Crushing, Briquetting, Drying, Beatification equipment and other related devices with 10 years experience. All of our products are certificated by ISO9001:2000 and share the best quality as well as competitive price. They have been sold to more than 100 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. Welcome to visit to our factory.
1) Pre-sale services: Enthusiasm
We provide you with the prophase plan process flow design and manufacturer equipment according to your special demand.
2) Sale services: Servant
Sending technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check with you.
3) After-sale services: Faithfulness
To establish long term friendship with you, we will regularly return visit to customers.
4) We provide one-year warranty to make sure your machine runs consistently.Supplying technique,building design, instruction, installation and debugging for free.
1) What's the material suit for the rotary dryer?
Sludge,sand,cement,coal,charcoal,etc. The mineral material and construction material,and so on.
2) What's the temperature when it working ?
Less than 700°C.
3) What is the heating resource for the machine?
Wood chips, gas, coal and other solid fuels.
4) Do you provide custom-made service?
We are manufacturer, so the machine can be designed as your wish.
5) How is the machine price?
We can provide the machine at the factory prices.
If you don't get the suitable machine in this page , please email me you detailed requirement . We have the manufacturer with over 30 years working experience . We can help you in this matter .
