Sawdust Rotary roller professional manufacturer three layers drum dryer
drum dryer
1. Simple structure and efficient drying.
2. Less energy consumption and easily.
3. For operation and maintenance.
4. After drying moisture: the best is 10%-13%.
5. Consist of mainbody of the dryer;Rotary seperating device;Hopping vave.
6. Product collection term: Main material production and Whirlwind Splitter.
Features
1. It is applicable for drying the straw,the long fiber and 20-30 cm size of grass,granular,woodchips,flake, etc.
2. Low power and energy consumption
3. It can be adjusted the drying speed according to the moisture request
4. Continuous feeding and discharging and high output.
Technical Parameters
| Model | YLHG ø1200x10000 |
| Power(kW) | 1.5*2+11 |
| Moisture of raw material(%) | 50-60 |
| Temperature of heat source( °C ) | 400-500 |
| Moisture of discharged material(%) | 10-13 |
| Evaporation capacity(kg/h) | 800 |
| Inlet Temperature(°C): | 400-500 |
| Outlet Temperature(°C): | 70-80 |
| Rotary speed(r/m): | 0.5-6 |
| Voltage (v): | 380/415/400 |
| Coal Consumption (Kg/h): | 340 |
| Calorific value (Kcal/Kg): | 5500 |
| Equipment material: | SC steel |
Parameters
Model: YHGJ Series
Inlet Temperature(°C): 400~500
Outlet Temperature(°C): 70~80
Rotary speed(r/m): 0.5~6
Voltage (v):380/415/400
Coal Consumption (Kg/h):340, calorific value (Kcal/Kg):5500
Product collection term: Main material production and Whirlwind Splitter
Equipment material: SC steel
Working Principle
After the dehydrated wet materials enter the drum dryer, fliped by the shovelling plate device which are uniform distribution in the drum cylinder. The materials are evenly distributed in the drum cylinder, fully contact with the hot air, speed up the drying heat and mass transfer. During the drying process, under the effect shovelling plate and hot treatment, the materials after drying are discharging from star type valve which in another section of the rotary dryer. Rotary drum dryer is suitable for drying various types of materials which the moisture content is less than 85%.

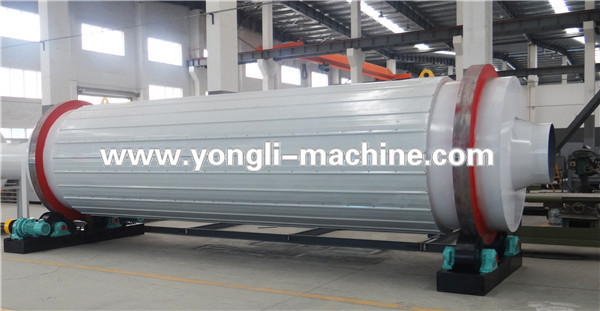

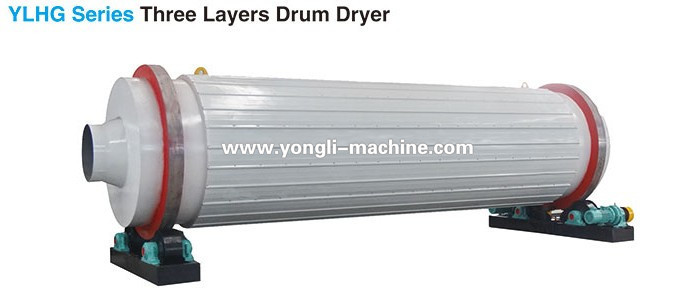

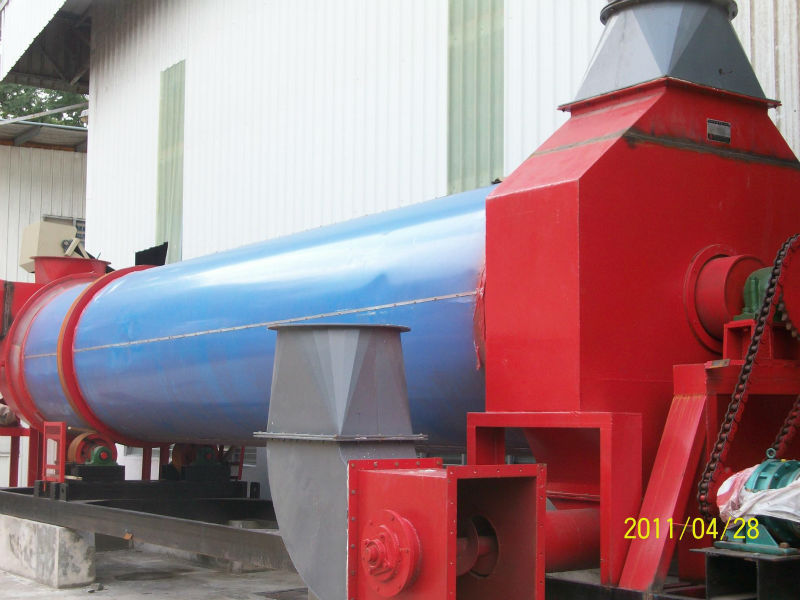

Three layers drum dryer

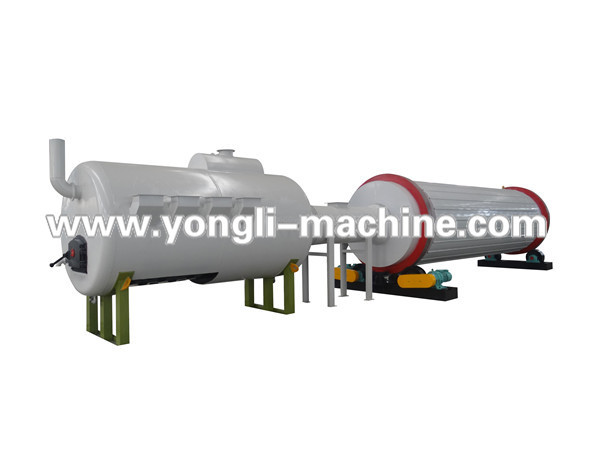

Drum dryer+ Roaster

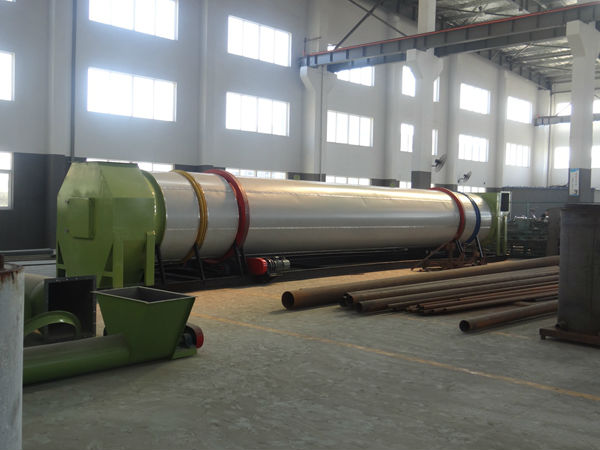

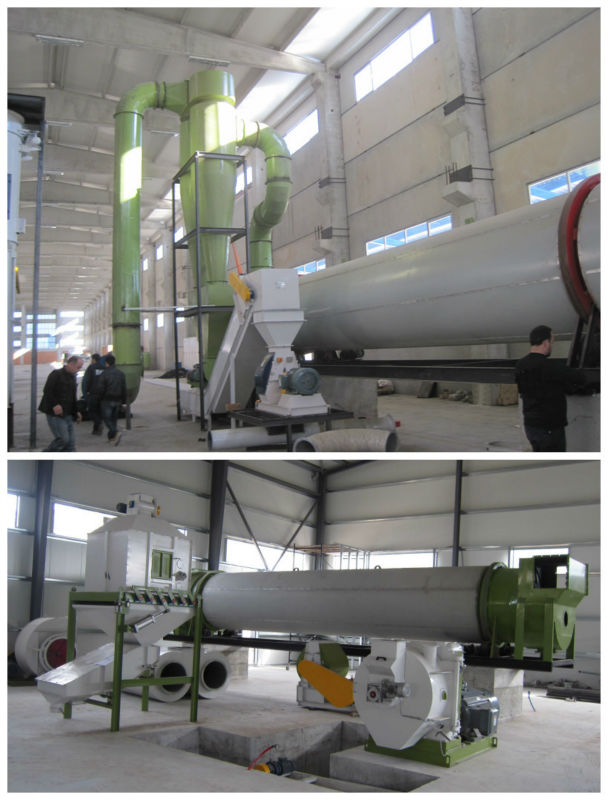

Workshop

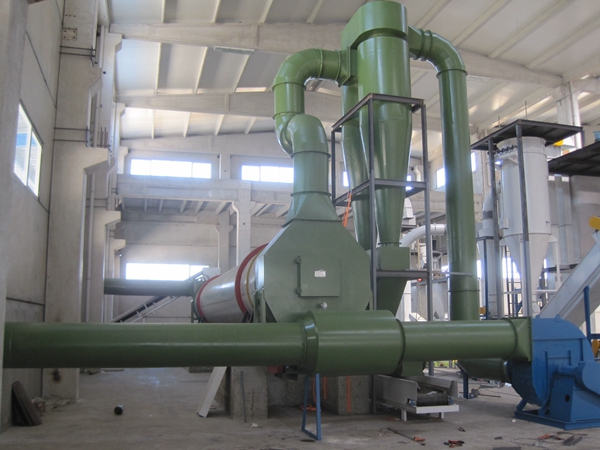

Dryer in the Pellet line
Drying material
Workshop

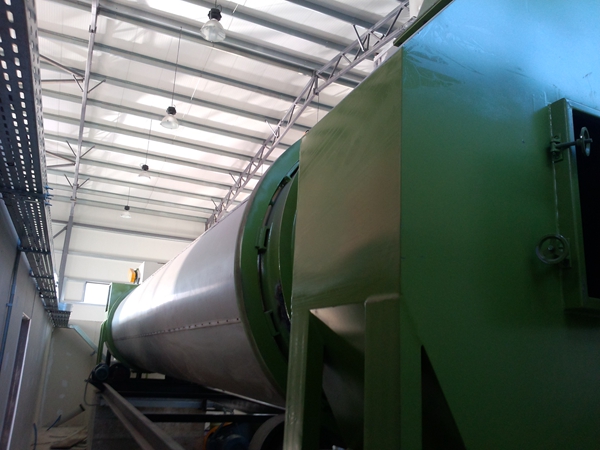

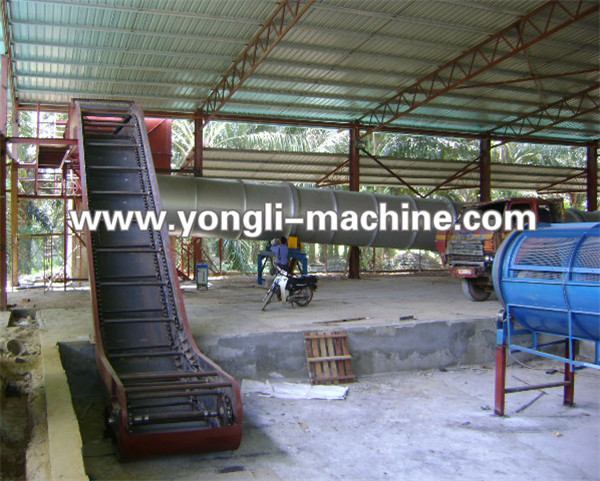

Installation site
Our clients from around the world

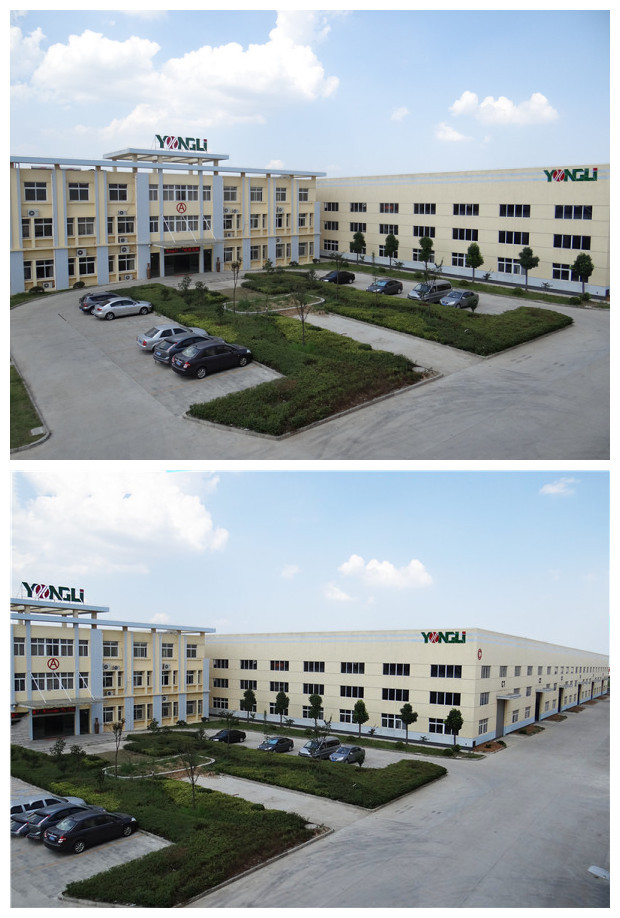

Company Profile
Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.
The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.
We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.
Certificates
1.The quality assurance system of Jiangsu Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.
2.The products of YONGLI are issued CE certification by European Union.

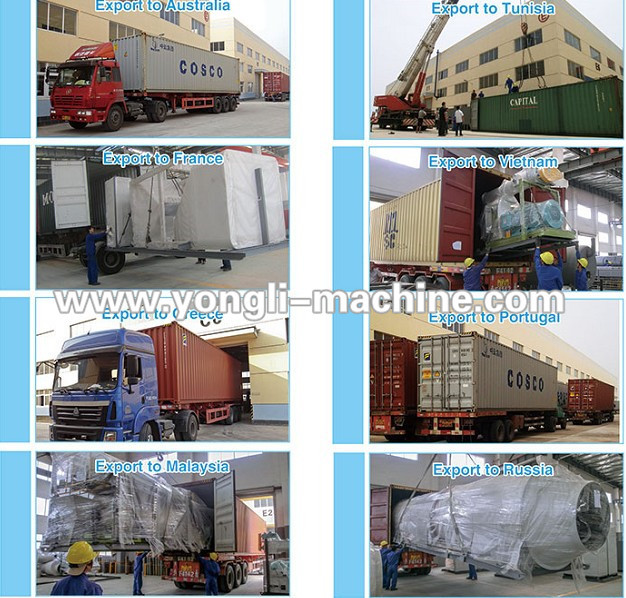

Delivery Management
When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
