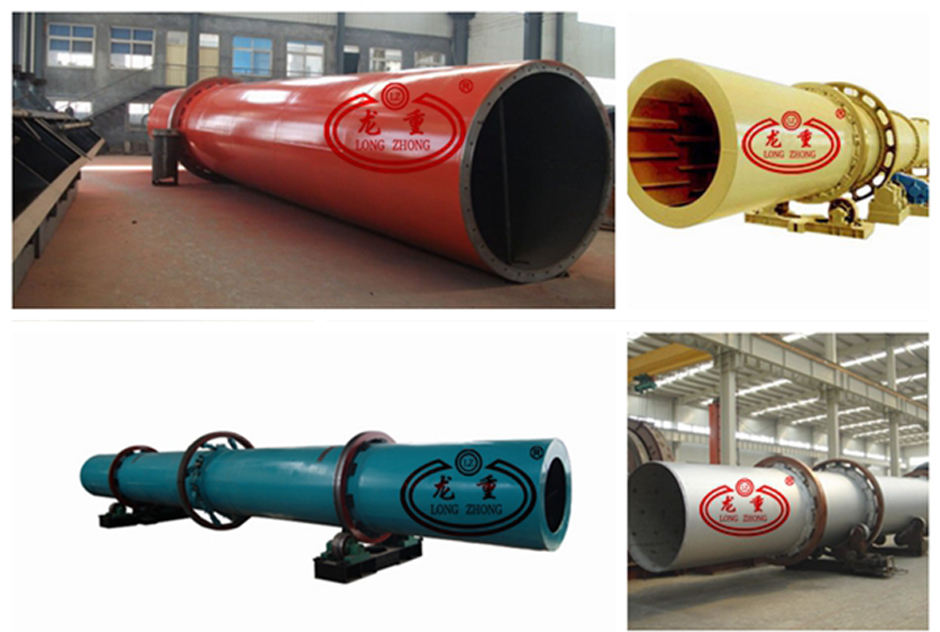

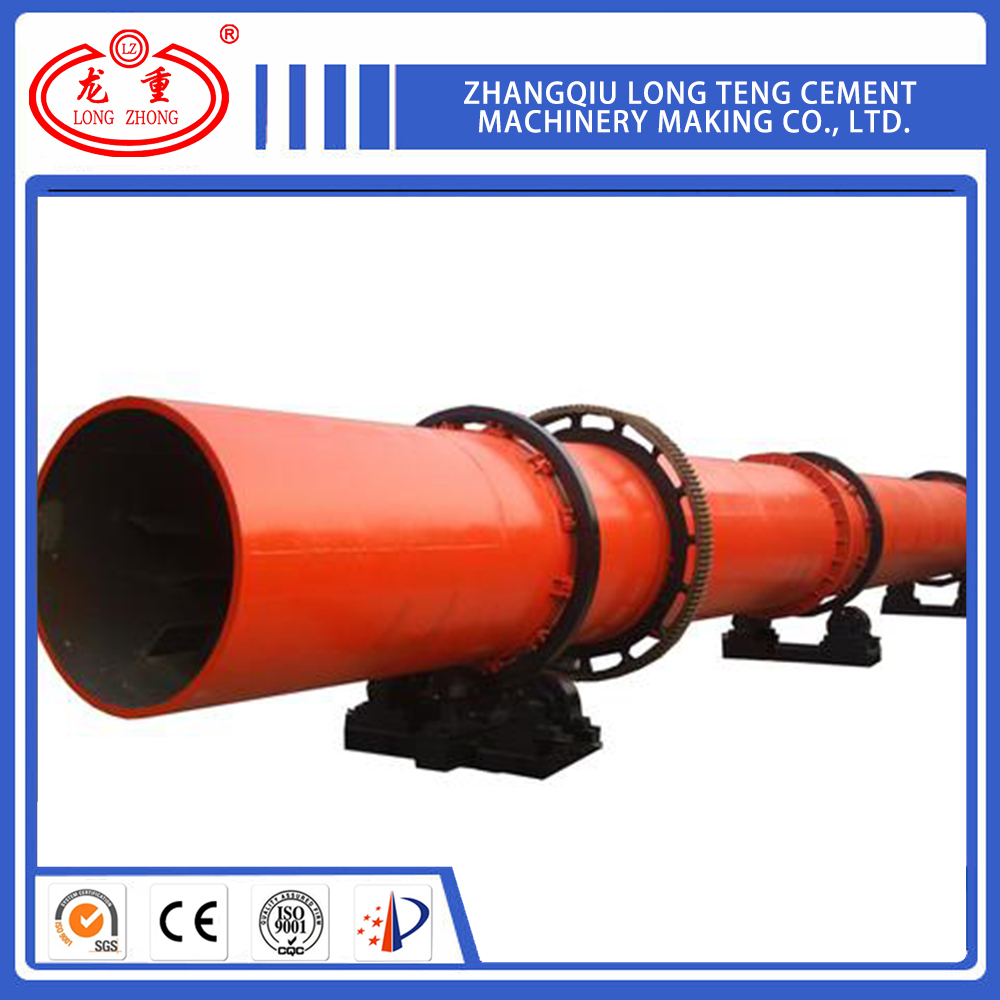

Brief introduction of dryer machine
1. Widely used for drying material with humidity or granularity in the industries of mineral dressing,
building material, metallurgy and chemical. It can be used for drying many kinds of materials
such as limestone slag, coal powder, clay stone etc.
2. It has advantage of reasonable structure, high efficiency, low energy consumption.
3. It mainly consists of rotary body, raw material feeding plate, lifting blade, driving and supporting device, sealing ring and etc.
Working principle of dryer machine
1.The raw material plate which is arranged reasonably with chargeable angles in order, throws
moisture materials into the rotary cylinder.
2.The water will be separated from the materials by hot airflow and changed into vapor to be
discharged into the atmosphere.
3.Then the material would be dried.
Technical parameters of drum dryer machine | |||||||||
Specifications(m) | Dia(mm) | Length(mm) | Output (t/h) | Speed(r/min) | Gradient(%) | Motor | Reducer | Weight(t) | |
Model no | power (kw) | Model no | |||||||
Φ1.5*12 | Φ1500 | 12000 | 6-9 | 3-6 | 3-5 | Y2-200L-8 | 15 | JZQ500 | 18.6 |
Φ1.5*14 | Φ1500 | 14000 | 7-10 | 3-6 | 3-5 | Y2-200L-8 | 15 | JZQ500 | 17.9 |
Φ2.2*12 | Φ2200 | 12000 | 12-17 | 3-6 | 3-5 | Y2-200L2-6 | 22 | JZQ650 | 30.3 |
Φ2.2*14 | Φ2200 | 14000 | 14-20 | 3-6 | 3-5 | Y2-200L2-6 | 22 | JZQ650 | 32.2 |
Φ2.2*16 | Φ2200 | 16000 | 16-23 | 3-6 | 3-5 | Y2-225M-6 | 30 | JZQ750 | 34.5 |
Φ2.4*18 | Φ2400 | 18000 | 21-23 | 3-6 | 3-5 | Y2-250M-6 | 37 | JZQ750 | 45 |
Φ2.4*20 | Φ2400 | 20000 | 23-34 | 3-6 |
| Y2-280S-6 | 45 | JZQ850 | 54 |
Φ2.4*22 | Φ2400 | 22000 | 26-38 | 3-6 | 3-5 | Y2-280S-6 | 45 | JZQ850 | 58 |
Φ2.6*20 | Φ2600 | 20000 | 28-40 | 3-6 | 3-5 | Y2-280M-6 | 55 | JZQ1000 | 60.5 |
Φ2.6*24 | Φ2600 | 24000 | 33-48 | 3-6 | 3-5 | Y2-280M-6 | 55 | JQ1000 | 72.7 |
Φ3.0*20 | Φ3000 | 20000 | 35-54 | 3-6 | 3-5 | Y2-315S-6 | 75 | ZL100 | 86 |
Φ3.0*25 | Φ3000 | 25000 | 46-64 | 3-6 | 3-5 | Y2-315M-6 | 90 | ZL100 | 96 |
Φ3.2*25 | Φ3200 | 25000 | 60-80 | 3-6 | 3-5 | Y2-315L1-6 | 110 | ZL115 | 119 |
Features:
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area ,easy regulation and equipped with greenhouse .

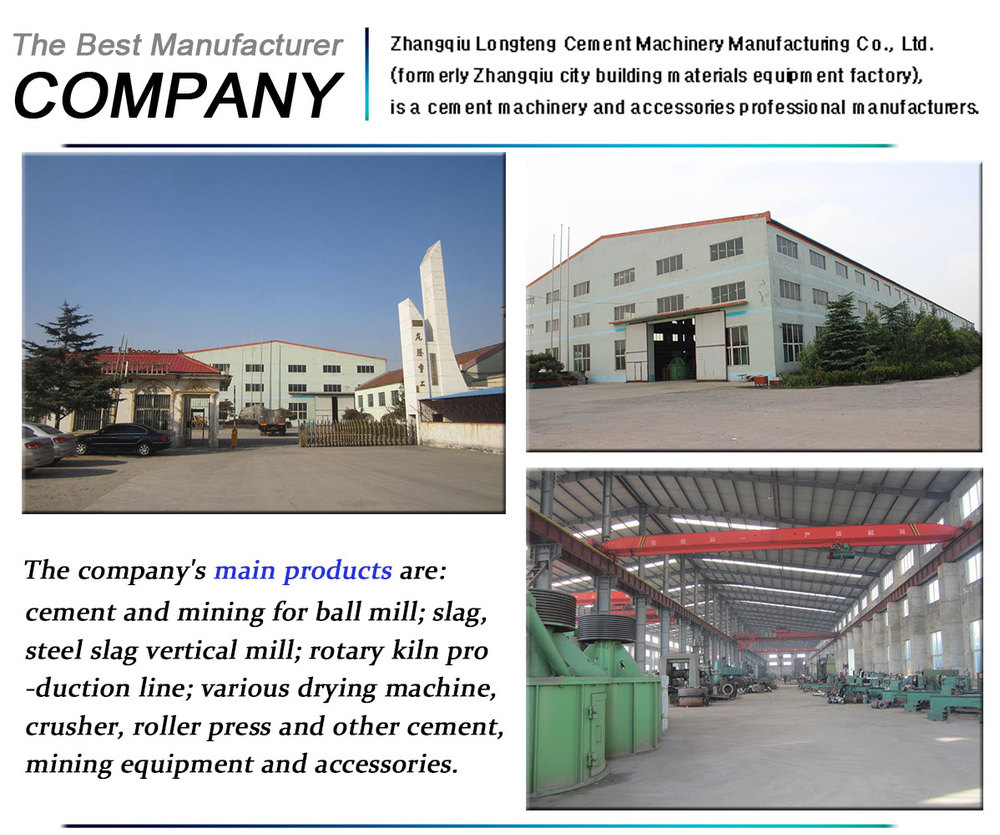

Zhangqiu Longteng Cement Machinery Making Co., Ltd. is one of the heat treatment steel ball ,cement equipment and mining equipment manufacturing enterprises after constructing and developing for 40 years. We are ISO9001 and CE certified company with the annual production capacity over 60,000 metric tons.
1.Where the advantages of our products ?
High hardness, good wear resistance, low broken rate, can greatly reduce the production cost.
2.How many high and low chromium ball breaking rate and single warehouse receipt consumption?
High chromium broken rate less than equal to 0.5%
Single warehouse receipt consumption 18g/T for cement
Low chromium broken rate less than or equal to 3%
Single warehouse receipt consumption 50g/T for cement
3.Does Quality assurance checking or testing?
a.workshop self-inspection
b.quality inspection,
c.lab final inspection
If you are interested in our products or want to get the price.
Please send email to us and we can prepare a good price list for you .
We hope you can send the detail materials information, such as the specification, output, granularity and so on. This will help us make you a reasonable price and solution.
