Easy installation wood sawdust roller drum dryer

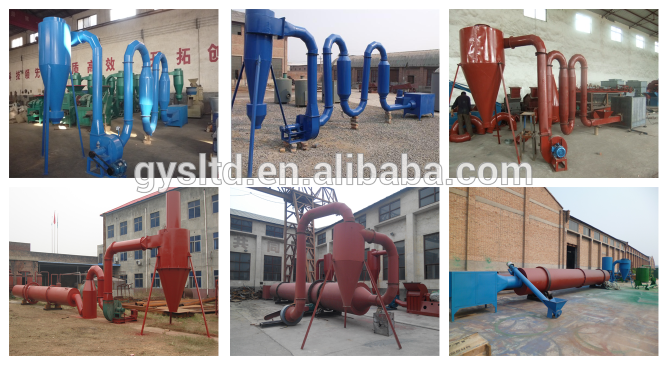

we have two types of the sawdust dryer , one is the air flow type sawdust dryer with samll capacity , the other is the wood sawdust rotary drum dryer .
air flow type sawdust dryer
wood sawdust rotary drum dryer

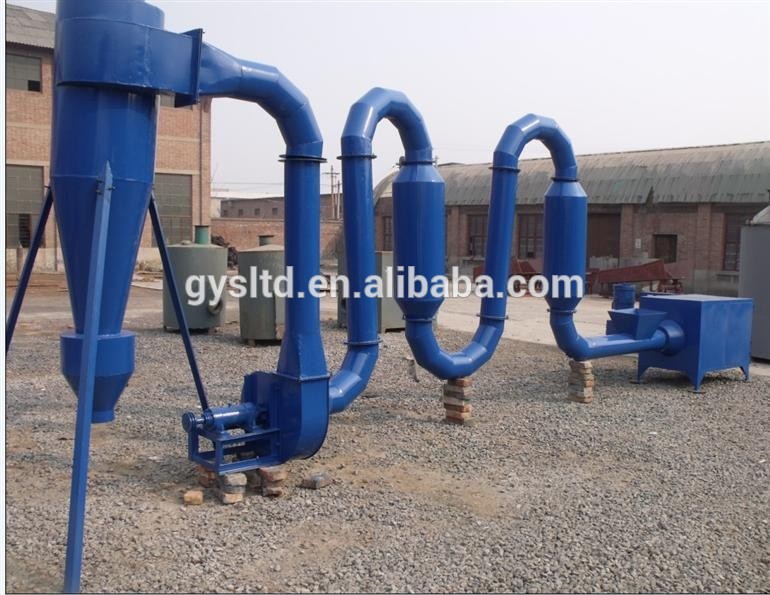

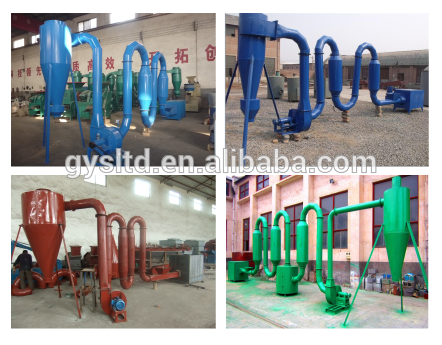

air flow type sawdust dryer

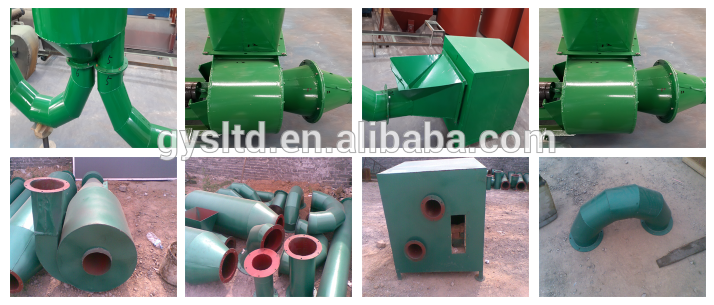

This hot airflow dryer dryer is suitable for drying materials of moisture 30~60%. The eco-friendly dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. This eco-friendly dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.
| Model | Power(kw) | Capacity(kg/h) | Weight(kg) | Before drying and after drying moisture content |
| HJ-4 | 4 | 300-400 | 1000 | 20-40% to 8-12% |
| HJ-6 | 5.5 | 400-600 | 1500 | 20-40% to 8-12% |
| HJ-8 | 11 | 700-800 | 1800 | 20-40% to 8-12% |
| HJ-10 | 15 | 800-1000 | 2500 | 20-40% to 8-12% |

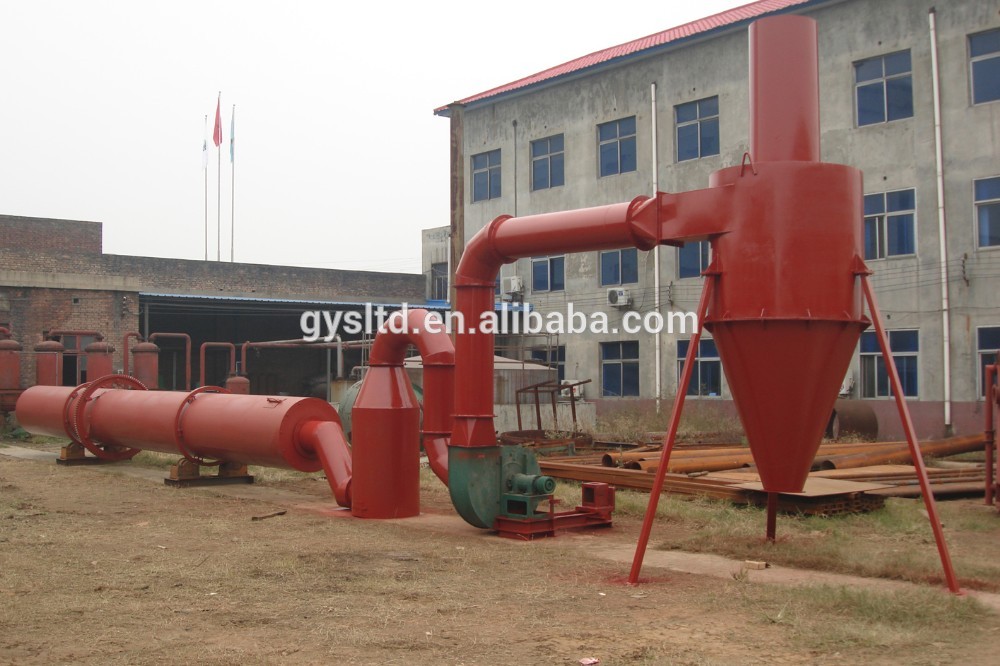

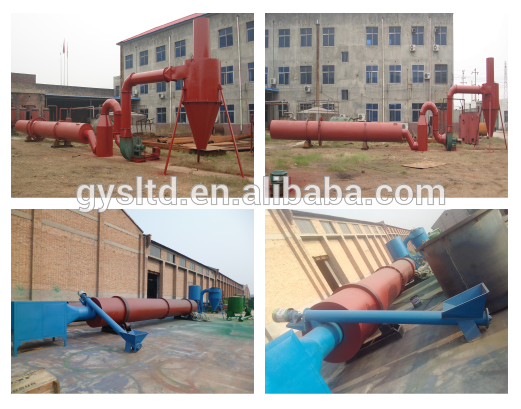

wood sawdust rotary drum dryer
wood roatry drum dryer's material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, sawdsut drying system is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow.
| Model | Power (kw) | Capacity (kg/h) | Diameter of the drum (mm) | Total length (m) | Weight (kg) | Waste wood use(kg/h) | Drying before and after moisture content |
| GT-650 | 5.5+1.1 | 600-800 | 650mm | 9 +4 | 2600 | 15-20 | |
| GT-800 | 7.5+1.1 | 800-1000 | 800mm | 10+5 | 2800 | 20-25 | |
| GT-1000 | 7.5+2.2 | 1200-1500 | 1m | 10+5 | 3800 | 30-40 | |
| GT-1200 | 11+2.2 | 1500-2000 | 1.2m | 12+6 | 4500 | 40-50 | |
| GT-1500 | 15+2.2 | 2000-2500 | 1.5m | 12+8 | 5000 | 50-60 |
Found in 1988 andlocated in Henan Province, China, is specialized in charcoal machine manufacturing, the oil press machine, wood pellet machine and animal feed pellet machine,etc. Based on our professional technology, advanced manufacturingequipments, perfect after sales service and sustained technological improvement, our products have been awarded 10 patents in China,and are widely accepted in both domestic and world market, and alsoexported to more than 30 countries.
Sincerely seeking cooperation with you.
