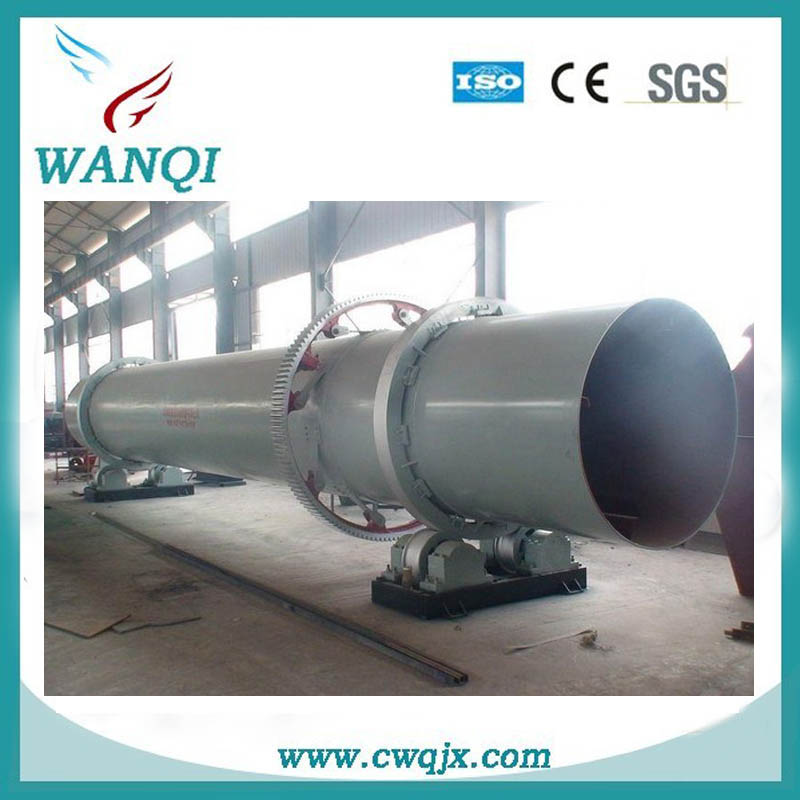

rotary drum dryer / roller dryer

PRIMARY PARAMETERS

Condition

New

Type

Rotary Drying Equipment

Place of Origin

Henan, China (Mainland)

Brand Name

wanqi

Model Number

Daliy100t-1000t

Dimension(L*W*H)

Depend on capacity, materials...

Weight

as follows

Certification

CE & ISO

Warranty

1 year warranty

After-sales Service Provided

Engineers available to service machinery overseas

Application

Mineral processing, metallurgy,food,chemical raw materials drying

Color

as your request

Material

High quality steel

DETAIL DESCRIPTION

23 years Professional Manufactures: Best selling rotary dryer / sawdust rotary dryer/ aggregate rotary dryer

Scope:

The Dryer is mainly used for drying certain humidity or the granularity material in the ore-dressing, building materials, metallurgy, chemical industry and other departments. Dryers are widely used in tea, Chinese herbal medicine, corn, vegetables, food, chicken manure, slag, towel quilt cover, sawdust, coal slurry, desulfurization gypsum, compound fertilizer, honeysuckle, straw briquette fuel, charcoal machine, sawdust pellet fuel, sawdust briquette, farming and agriculture engineering, etc.

Diverse Dryer:

Dryer includes drum dryer, three return dryer, the three-cylinder dryer, intermittent dryer, straight hot dryer, clothes left dry dryer, powder dryer, stone professional dryer, the new dryer, second-hand dryer, industrial dryer, tea dryer, Chinese herbal medicine dryer, corn dryer, vegetables dehydration dryer, food dryer, chicken manure dryer, tumble dryer, drum dryer, stone dryer, rotary dryer, solder drying machine, automatic dryer, oil dryer, electric heating dryer, energy-saving dryer, clothes dryer, towel quilt cover dryer, computer intelligent dryer, steam dryer, gas dryer, coal slurry dryer, slag dryer, sludge dryers, quartz sand dryer, sand dryer, fly ash dryer, desulfurization gypsum dryer, sawdust dryer, tunnel dryer, dehydration dryer, compound fertilizer dryer, honeysuckle dryer,etc.

Type
Parameters
Output (t/h)
Power (Kw)
Dimension (m)
Weight (t)
HGJ-600
Equipment size diameter:
Φ600×6000mm,
Volume:1.8m³
0.6
5.5
6×1.4×1.7
3
HGJ-800
Equipment size diameter:
Φ800×8000mm,
Volume:4.1m³
0.8
7.5
8×1.6×1.8
4.5
HGJ-1000
Equipment size diameter:
Φ1000×10000mm,
Volume:7.85m³
1
11
10×1.9×2.1
6
HGJ-1200
Equipment size diameter:
Φ1200×12000mm,
Volume:13.8m³
2
15
12×2.2×2.4
12
HGJ-1500
Equipment size diameter:
Φ1500×14000mm,
Volume:24.9m³
4
18.5
14×2.655×2.895
18.33
HGJ-1800
Equipment size diameter:
Φ1800×16000mm,
Volume:42m³
8
22
16×3.06×2.98
21.5
HGJ-2000
Equipment size diameter:
Φ2000×16000mm
Volume:50m³
13
22
16×3.62×3.57
30
HGJ-2200
Equipment size diameter:
Φ2200×18000mm
Volume:68.4m³
17
30
18×3.62×3.57
34.15
HGJ-2400
Equipment size diameter:
Φ2400×18000mm
Volume:70m³
20
30
18×3.86×3.76
39.9
HGJ-2600
Equipment size diameter:
Φ2600×20000mm
Volume:90m³
27
45
20×3.86×3.76
55
HGJ-2800
Equipment size diameter:
Φ2800×20000mm
Volume:97m³
33
55
20×3.86×3.76
70
HGJ-3000
Equipment size diameter:
Φ3000×22000mm
Volume:176m³
42
75
22×5×4.5
110

The parts on the rotary dryer

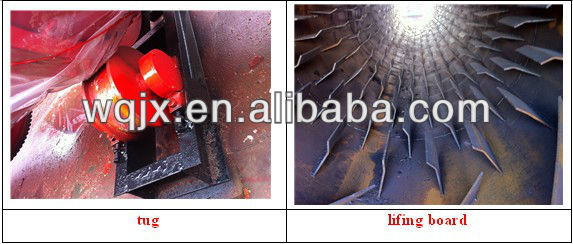

Cylinder; rollering ring front; roller ring behind; tug; gear; gear roller; carrier roller; small roller; discharging part; lifting board; reduction gears; electrical machine; hot air duct; feed chute; Furnace body.

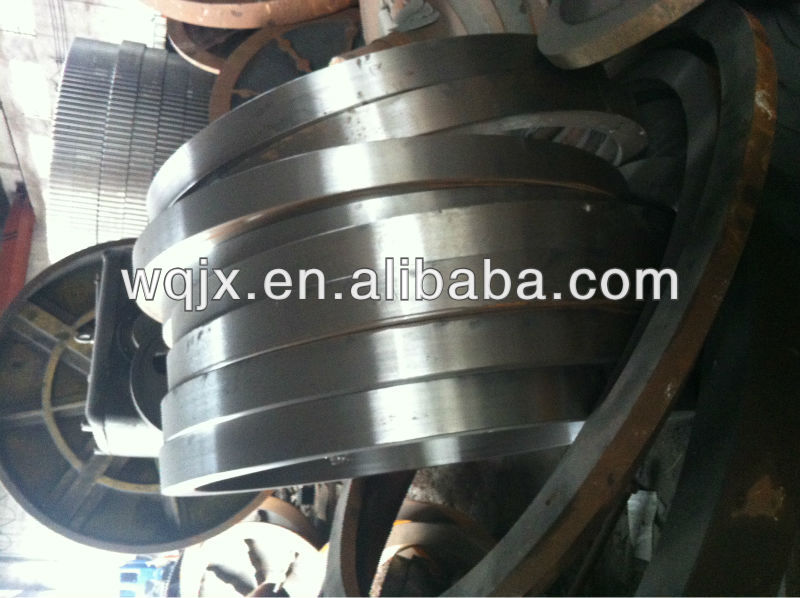

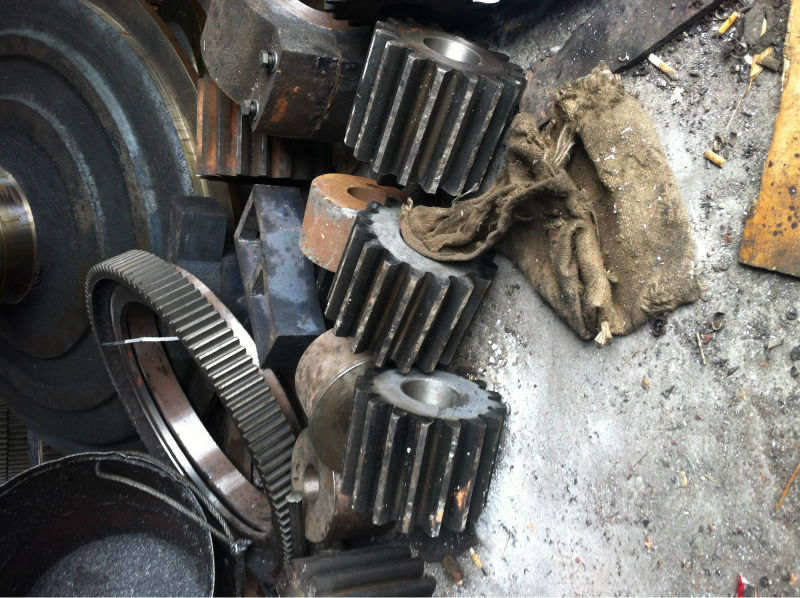

Roller ring Gear

Equipments for one complete rotary dryer production line

Name Qty
Bucker 1
Material scattered machine
(according to the raw material's moisture)
1
Belt conveyor
3
Cowper stove
1
Dryer
1
Induced draught system
1
Dust removal system
1
Control cabinet
