HG-600 China rotary drum scraper roller dryer for fertilizers
Application
It is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry and so on.
Description
HG rotatary scraper roller drying machine is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the paddle, and are conveyed, collected and packed.
Features
1. High thermal efficiency. The principle of heat transfer of rotary dryer is heat conduction which heat conducting direction keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material. It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.

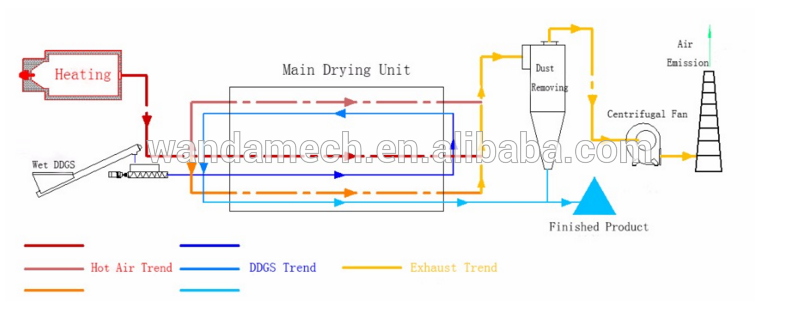

Structure chart

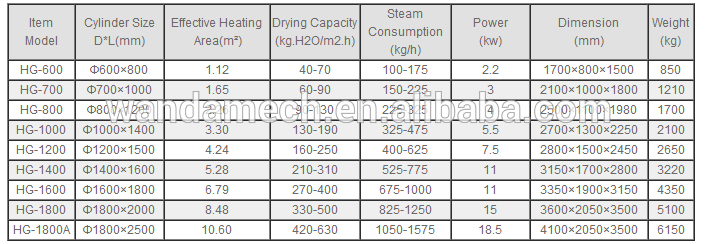

Product technical parameter

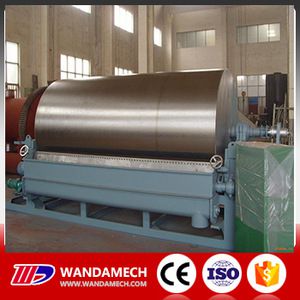

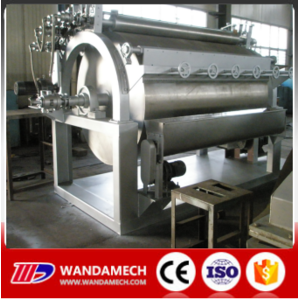

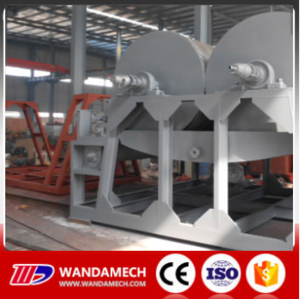

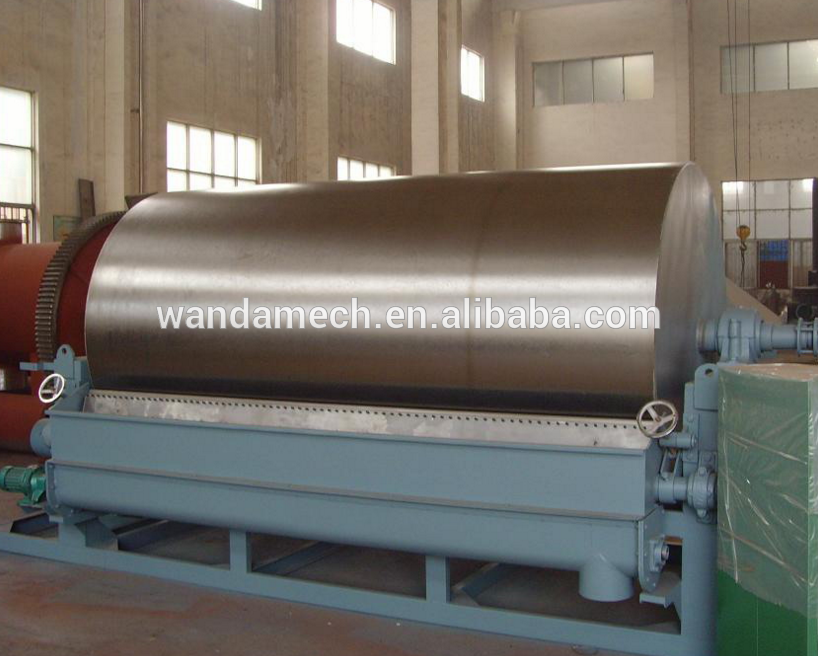

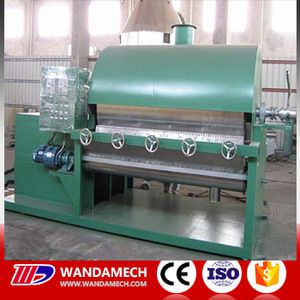

Product pictures
LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, chemical and packaging machinery.Our products include filter, centrifuge, mixer, tablet press machine, granulator, dryer, packing machine, teabag packing machine, etc. Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.

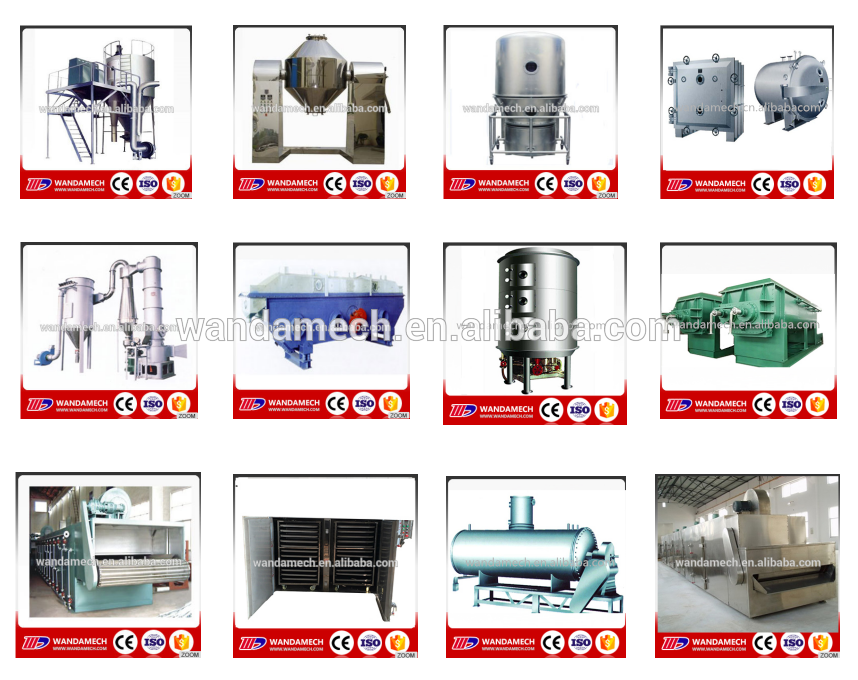

Other feature products
