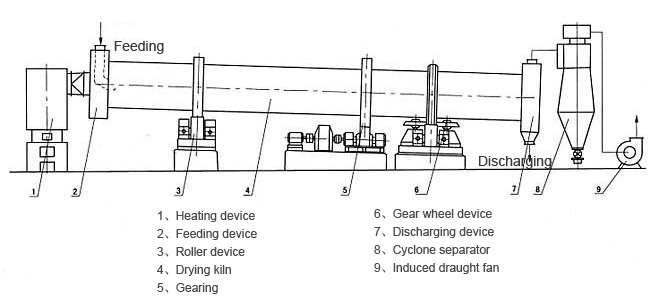

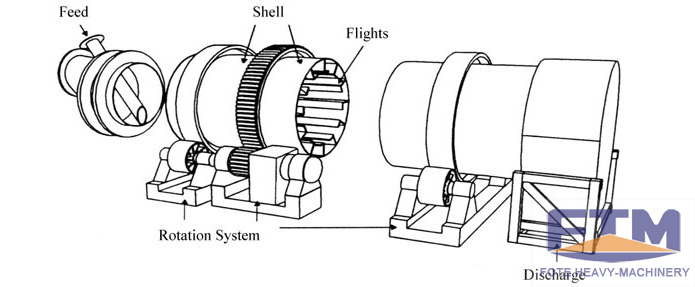

1. Rotary dryer mainly consists of cylinder device,front and rear roller device, feeding and discharging device, gearing device, gear cover and other components,etc.
2. Rotary dryer is widely used to dry mineral powder, slag, clay, limestone, lignite and other materials in mining, metallurgy, building materials, chemistry and other industries.
3. We supply the following dryer: wet material rotary dryer, sand dryer, sawdust dryer, coal dryer, coal slime dryer, bentonite dryer, ore concentrate dryer, wood chip dryer, cassava dryer, gypsum dryer, cow dung dryer.
Features of rotary dryer:
1. Compact structure;
2. Reasonable layout, good drying effect;
3. Small basis investment, which is only half of the same production monocular dryer;
4. Reliable operation;
5. Low energy consumption;
6. High thermal efficiency;
7. Automation control reduces the operating personnel, saving labor resources.
8. The outlet temperature is low and the dust removal device has long service life.
2. Medium temperature in outlets
3. Alloy steel plate or stainless steel plate
4. Guaranteed dry effect
5.Smooth and reliable cylinder running
6.Spherical roller-type device reduces wear and power loss.
7.Customized for every application; best price on the market.
Technical Data
| Spec./m (Dia.×vLength) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity (%) | Highest Inlet Air Temperature (°C ) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3~24.1 | 3~5 | 700~800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1~37.7 | 3~5 | 700~800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7~47.1 | 3~5 | 700~800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9~53.6 | 3~5 | 700~800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8~76.0 | 3~5 | 700~800 | 160 | 135 |
These machines are processed to be rustproof and moisture proof before delivery. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
1. Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special
demand.
2. Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check
with you.
3. After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design,
instruction, installation and debugging for free.
4. We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services
and provide spare parts for a long term, and repair main parts under right using for free in two years.
Henan Fote Mining Machinery Co., Ltd., the former Henan First Machinery Factory in Henan, is located in Zhengzhou, capital of machinery manufacturing in China. Founded in 1982, our company is a large joint-stock enterprise specialized in manufacturing heavy mining machinery and civil machinery. Our company covers 360mu, over 2,000 staff, 60,000 square meters of standardized heavy industrial plant, and about 500 sets of large and medium sized processing, riveting, welding and assembly machines. After 30 year's construction and development, Fote has become a famous production and export base of mining machinery and civil machinery in China.
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standards, and we take a test on every
machine before delivery.
2. What guarantee do you provide?
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
We have factory, so we can give you the lowest price than other companies. Besides, we have a policy that " to save
time and with honest business attitude, we quote as low as possible for any customer, and discount can be given
according to quantity."
