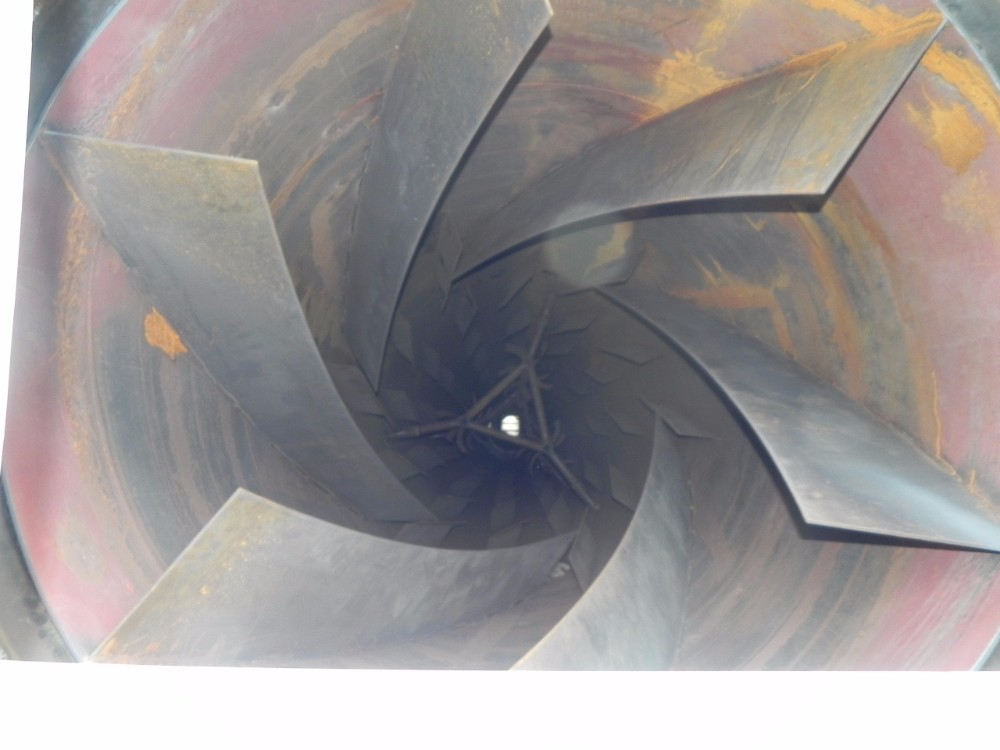

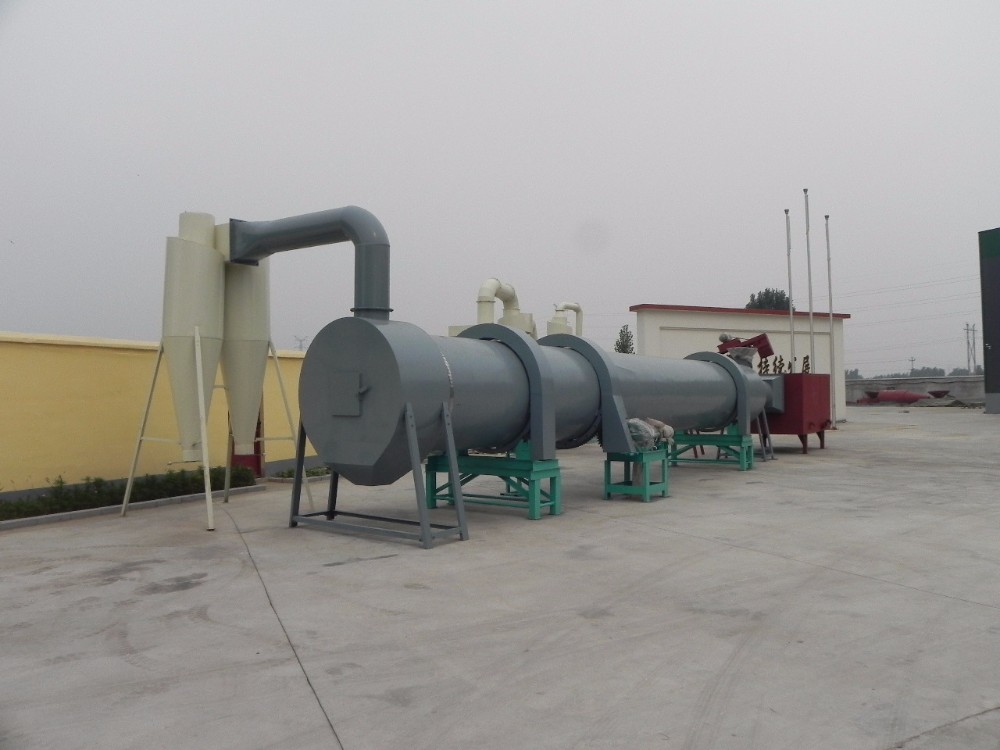

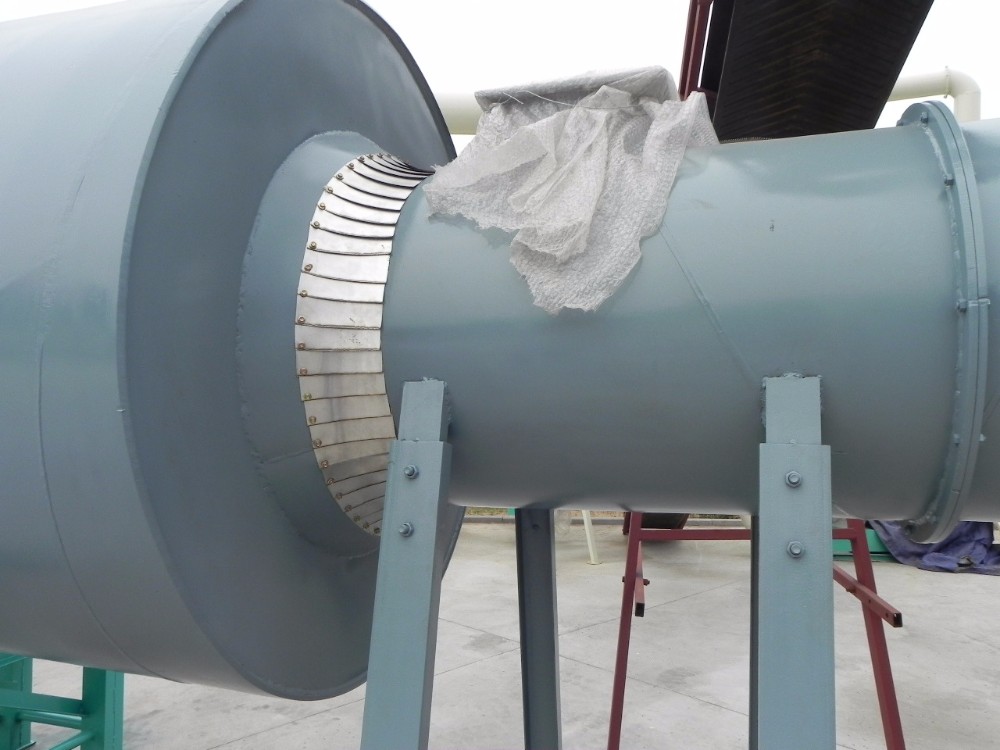

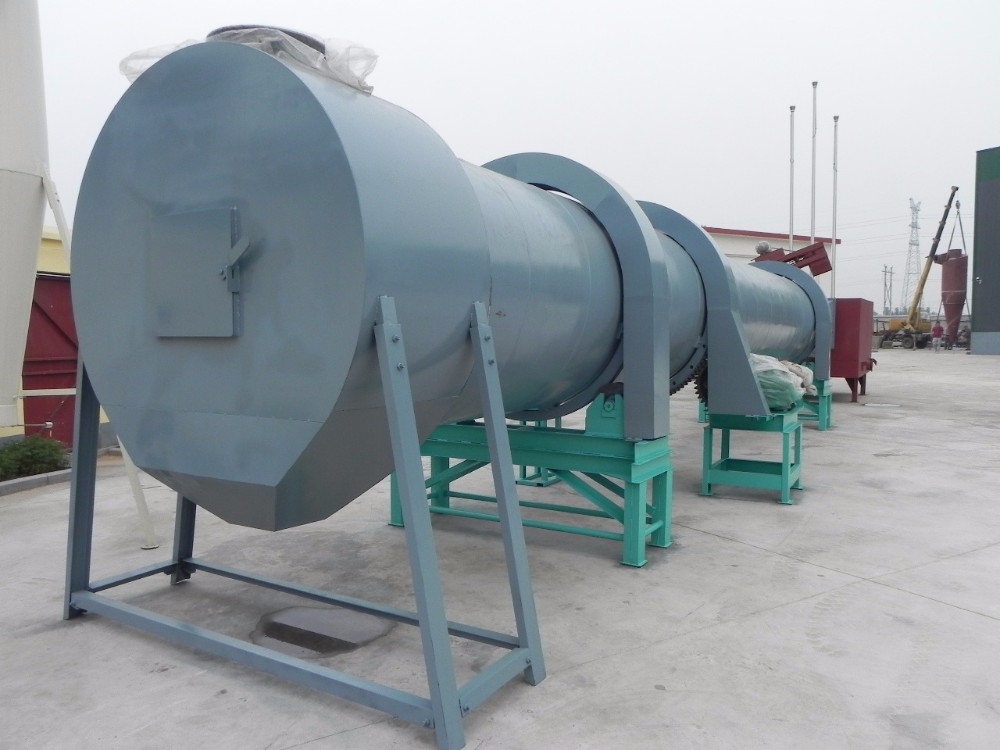

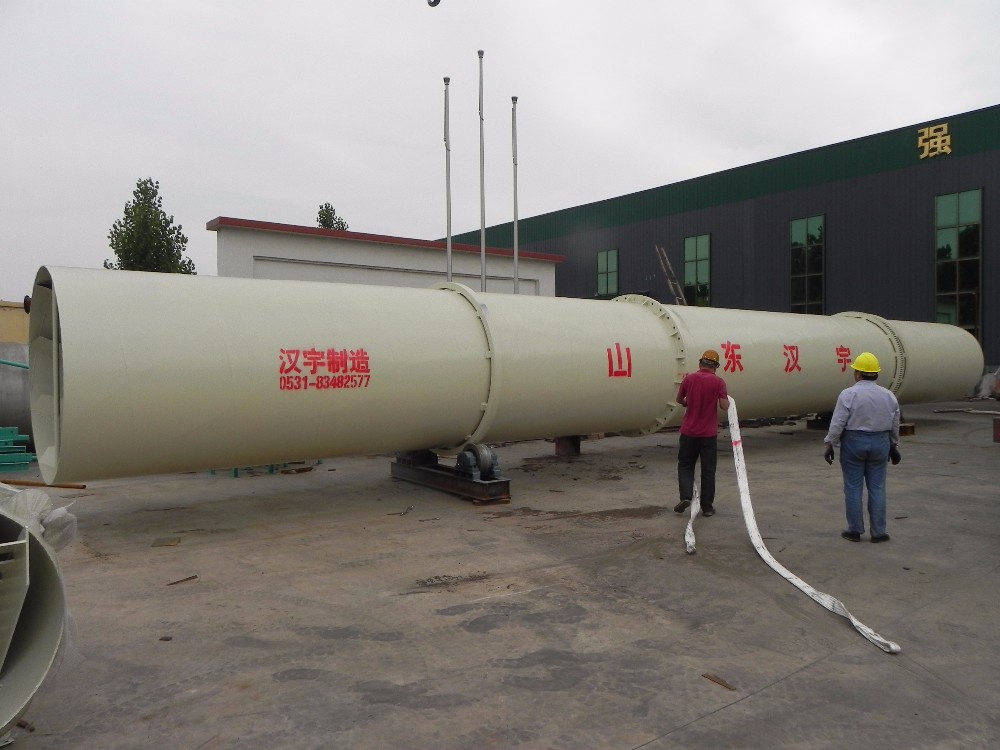

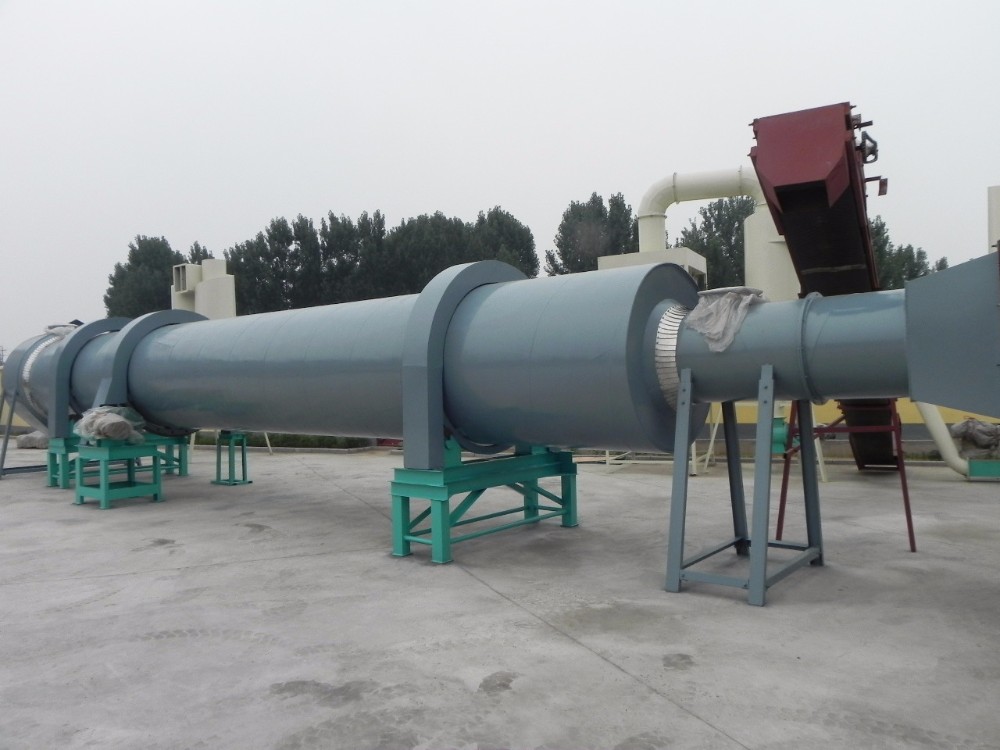

Biomass rotary drum dryer and sawdust rotary dryer from hanyu
Application:
Rotary dryer is widely applied in biomass fuels industry,organic fertilizer industry,mining, building materials,chemistry and other industries,mainly stoving wood ,mineral powder,slag,clay,limestone,lignite and other materials.
| Model | Diameter(m) | Length（m） | Power(kw) | Temperature | Capacity(t/h) | Weight（t） |
| HYHGΦ0.8×12m | 0.8 | 12 | 5.5 | 400℃-600℃ | 0.2-0.3 | 3 |
| HYHGΦ1.0×12m | 1.0 | 12 | 5.5 | 0.4-0.5 | 3.5 | |
| HYHGΦ1.2×12m | 1.2 | 12 | 5.5 | 0.4-0.5 | 4.2 | |
| HYHGΦ1.4×12m | 1.4 | 12 | 7.5 | 0.6-0.8 | 4.8 | |
| HYHGΦ1.5×12m | 1.5 | 12 | 7.5 | 0.8 | 6.2 | |
| HYHGΦ1.6×12m | 1.6 | 12 | 7.5 | 0.8-1 | 6.8 | |
| HYHGΦ1.6×18m | 1.6 | 18 | 11 | 1-1.2 | 12.8 | |
| HYHGΦ1.8×12m | 1.8 | 12 | 11 | 0.8 | 7.2 | |
| HYHGΦ1.8×18m | 1.8 | 18 | 15 | 1 | 14.8 | |
| HYHGΦ2.0×12m | 2.0 | 12 | 11 | 1.2 | 14.2 | |
| HYHGΦ2.0×20m | 2.0 | 20 | 18.5 | 1.5 | 25.9 | |
| HYHGΦ2.2×12m | 2.2 | 12 | 18.5 | 1.2 | 14.5 | |
| HYHGΦ2.2×24m | 2.2 | 24 | 22 | 1.8 | 28 | |
| HYHGΦ2.5×12m | 2.5 | 12 | 18.5 | 1.5 | 15.8 | |
| HYHGΦ2.5×24m | 2.5 | 24 | 22 | 1.8 | 23.8 | |
| HYHGΦ2.8×12m | 2.8 | 12 | 30 | 1.8 | 16.7 | |
| HYHGΦ2.8×24m | 2.8 | 24 | 37 | 2.4 | 31.5 |
standard export wooden packing
Container loading
Strong after-sales is the guarantee of you choose Han Yu pellet mill.
1.Pre-sale services: to provide you with project design, process design, Set out scheme of choose and buy equipment which suitable for you according to your specific needs, design and manufacture products, training technical and operations personnel for you.
2.Sale of services: to accompany you to complete the equipment acceptance, assist in the development of construction program and detailed process.
3. After-sale Service: The company sent technicians to the scene to guide the equipment installation, commissioning and training of site operators.
1. General questions to design the production line for you?
A: What is your raw materials? ( help us to confirm which machines will be used and to confirm the mould compression ratio of the pellet machine )
B. What is the moisture content of your raw material?( If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15% )
C. How many output capacity do you want per hour / month/ year?( help us to choose the suitable type and models of the machines for you )
2. How long is your guarantee?
5 yeas for the machine body,12 months for the motor and 1000-1500 working hours for the quick waering parts(die and rollers).
3. Will you send engineers to install the machines?
Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory at once. Our engineers will guide you to install the machines and training your workers how to operate the machines and mentain the machine.
4. Voltage requirement ?
Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz or according to your requirements.
