Product Application

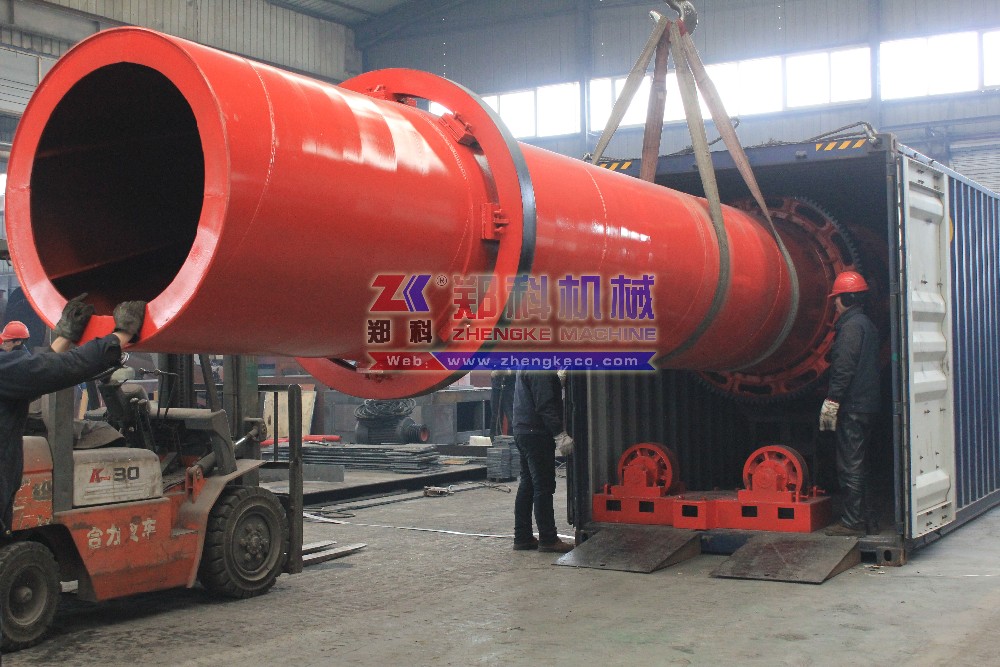

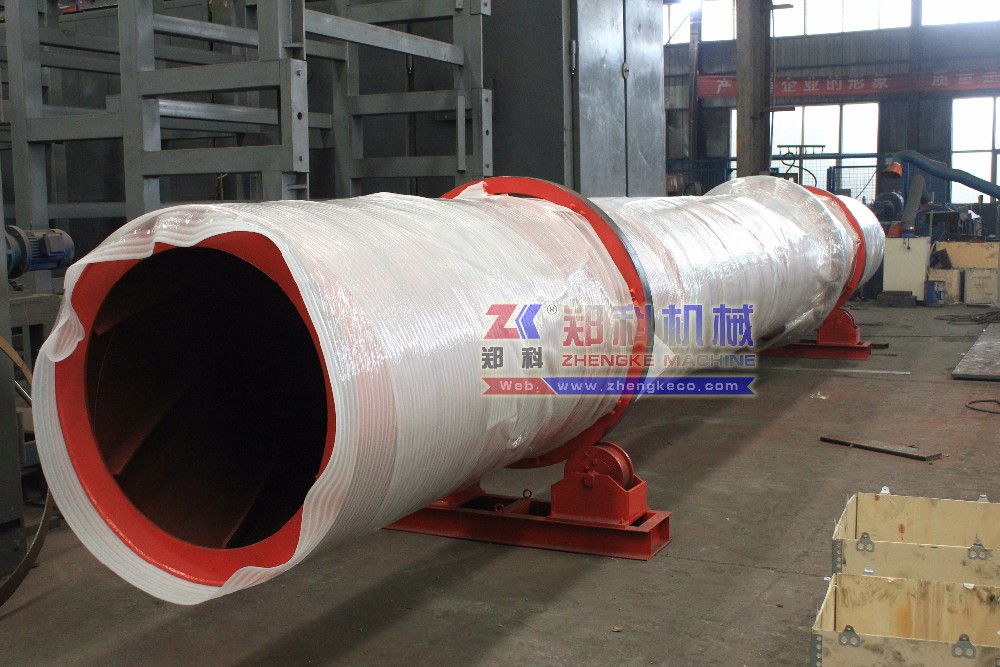

rotary dryer is a kind of drying equipment used to reduce moisture content of the material , and can be used for drying sand, coal, sludge, coal slurry, brown coal, fly ash, gypsum, clay, Kaolin, mineral powder, slag, iron powder, mill scale, sawdust/wood chips, chicken manure, feed etc. It is widely used in building materials, metallurgy, cement and mining industry.

it has features of reasonabl structure ,excellent fabrication ,high production ,low consumption ,economical &environmental etc .

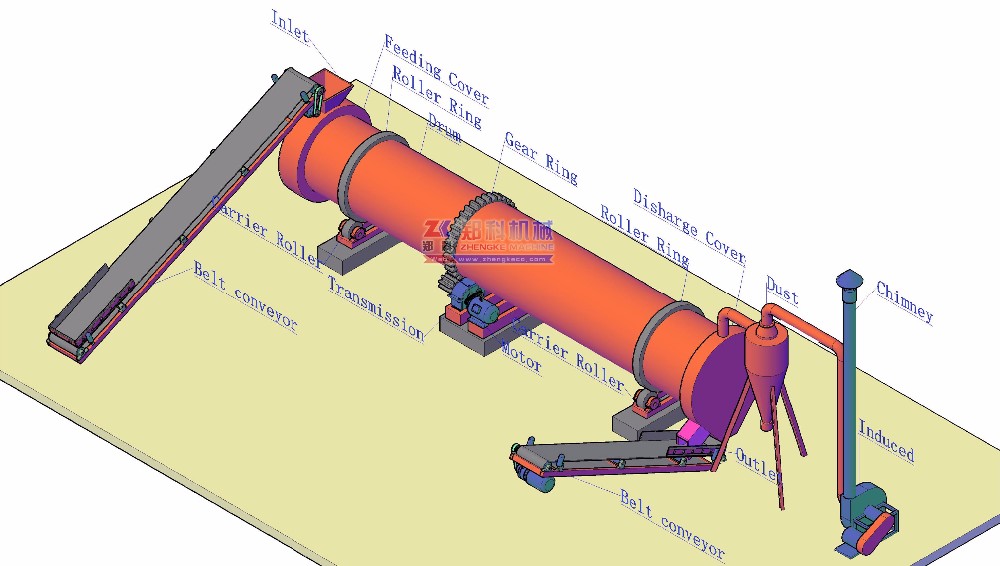

rotary dryer mainly consists of drum,roller ring,gear ring,transmission,motor,carrier roller etc parts.it is matched with conveyor,ID fan and dust remover etc equipment.

EFB rotary dryer 's working principle

EFB rotary dryer is the cylinder with little tilt and rotative. The wet material enters from upper part of one end while the dry material is collected from lower part of the other end. The hot wind enters from the feeding end or the discharging end and is discharged from the upper part of the other end. There is regular way shoveling plate which makes the material up and down in the process of barrel rotation.Thus the material fully contacts with the hot air current to improve the drying efficiency and move the material forward. The heat source of material drying is hot air, high temperature flue gas which can be chosen by the property and quality of material.

Zhengzhou Kehua Industrial Equipment Co., Ltd ,

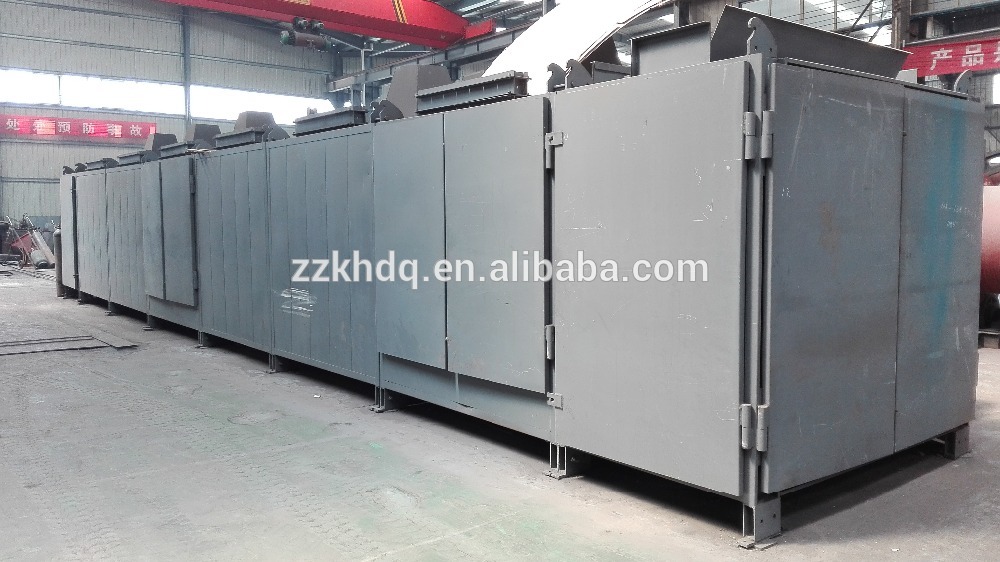

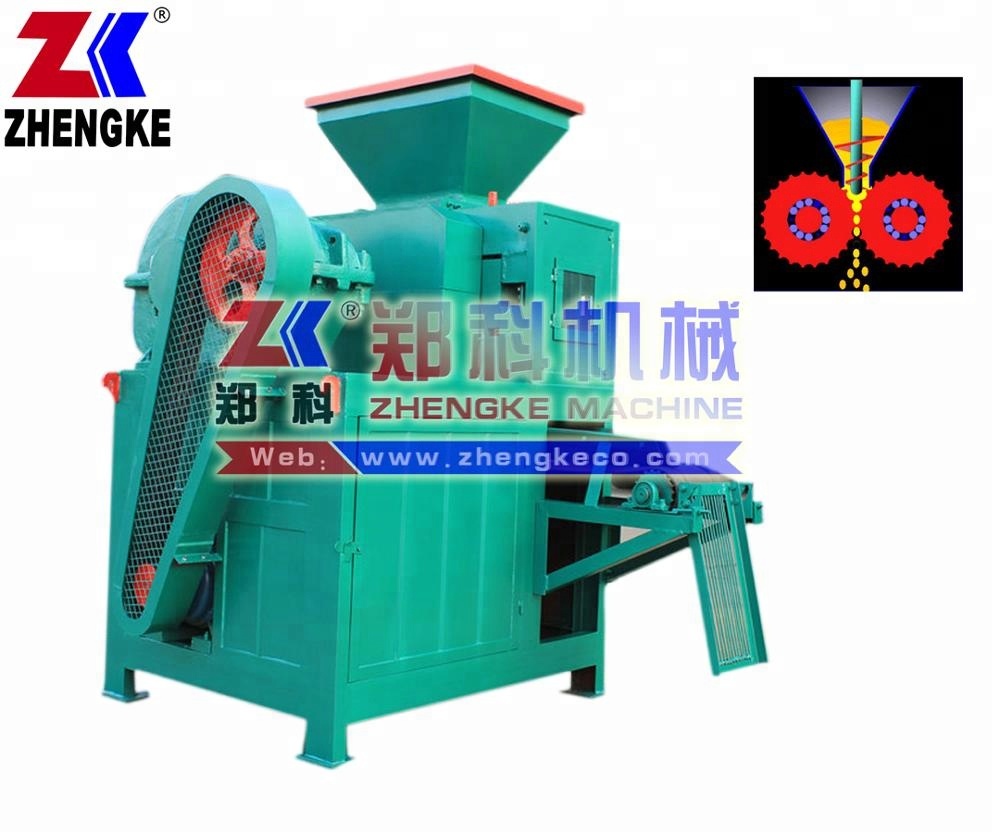

a manufacturer specialized in producing series briquetting machine, and different types of dryers such as rotary dryer, vertical dryer, mesh belt dryer, chain plate dryer, rotary kiln etc. They are excellent quality and enjoy good reputation both in China and overseas. Our factory had more than 30 years in manufacturer experience. Our machines are with ISO9001 & CE certificate.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support.
