Wood Chips Rotary Drum Dryer Application and Materials:
We, Henan Manxon Machinery Equipment Co.,Ltd has built a high reputation on building the best Wood Chips Rotary Drum Dryer in the industry. All of our dryers are accepted to be custom designed to suit the unique processing needs of your material. Wood Chips Rotary Drum Dryer are known as the equipement of industrial dryers, which are able to process a wide variety of materials. Some of the most common industries and materials include:
Wood Chips, Wood Shavings, Sawdust, Coal, Chicken Manure, Cow Dung, Bentonite, Oil Palm Fiber, Sewage Sludge, Silicon Sand, Organic Fertilizer, Bagasse, Gypsum, Aggregates, Agricultural by-Products, Animal Feeds, Biomass, Biosolids, Fertilizers Gypsum, Inorganic Chemicals, Limestone, Manure, Metal Chips & Shavings, Mining Ores & Concentrates, Municipal Waste & Sludge, Organic Chemicals, Paper Sludge, Plastic Pellets & Grains, Potash, Reclaimed Dust, Rubber Pellets, Sand, Steel Mill Waste Sludges, Urea Prills & Crystals.
Whether you require low or high inlet temperatures, short or long residence times, counter current or co-current flow, our MANXON's professional team can design a rotary drum dryer for your application.
Wood Chips Rotary Drum Dryer Working Principle：

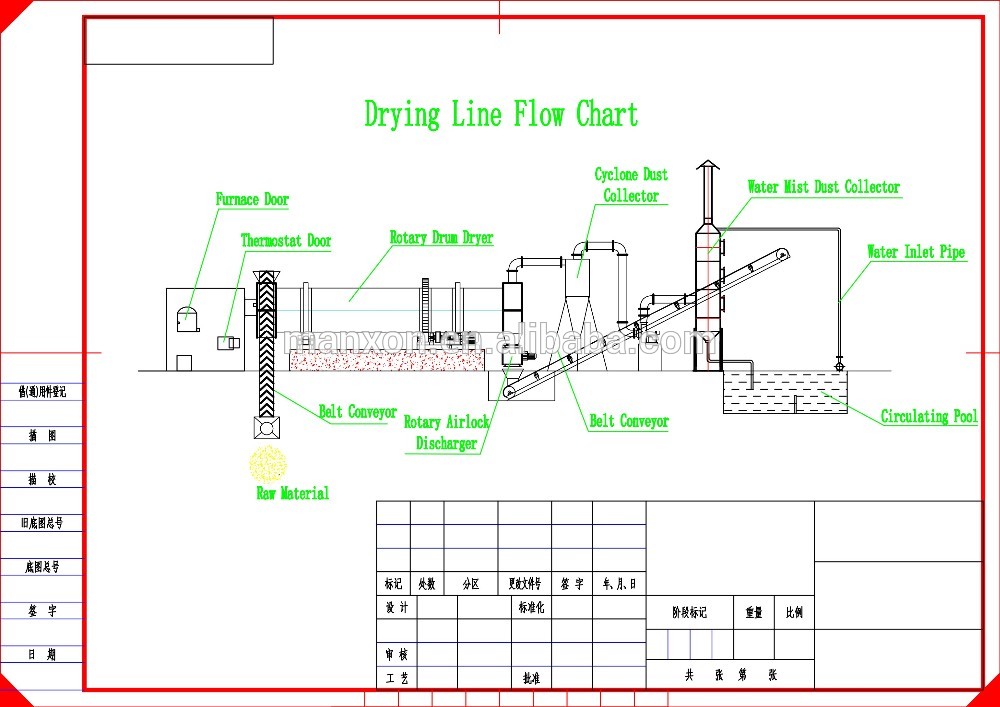

Our MANXON brand Wood Chips Rotary Drum Dryer are a highly efficient industrial drying option for bulk solids. They are often chosen for their robust processing capabilities and their ability to produce uniform results despite variance in feedstock. Wood Chips Rotary Drum Dryer is consist of heating device, feeding device, transmission assembly, discharging device, dust collector and other connecting parts. For the installation process, the Wod Chips Rotary Drum Dryer should slopes slightly so that the discharging end of Wood Chips Rotary Drum Dryer is lower than the material feed end in order to convey the material through the Wood Chips Rotary Drum Dryer under gravity. Material to be dried enters the Wood Chips Rotary Drum Dryer, and as the Wood Chips Rotary Drum Dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the Wood Chips Rotary Drum Dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of Wood Chips Rotary Drum Dryer, passing through the hot gas stream as it falls.
The Wood Chips Rotary Drum Dryer is mainly for drying the small size raw material less than 30mm, the moisture content less than 75%. Firstly, the wood chips enters into the drying sysem by conveyor or bucket conveyor, the wood chips raised by lifting plate to make the chicken manure and heat totally contact with each other.The wood chips are evenly distributed in Wood Chips Rotary Drum Dryer cylinder, at the start of the Wood Chips Rotary Drum Dryer and the end of the Wood Chips Rotary Drum Dryer have temperature detector, so that you can check everywhere temperature inside the Wood Chips Rotary Drum Dryer. After the Wood Chips Rotary Drum Dryer have fan, it will absorb the hot air into the dryer and finally make the material to dry.
Between the Wood Chips Rotary Drum Dryer and cyclone, it can collect the dust from the dryer machine.

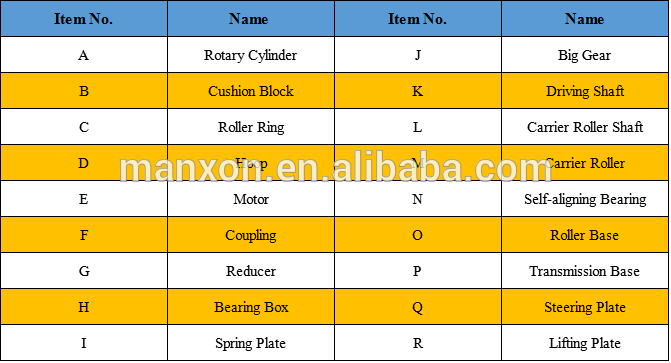

Wood Chips Rotary Drum Dryer Construction：
Wood Chips Rotary Drum Dryer Basic Information
Adjustable motor: produced in Xinxiang City, Henan Province;
Reducer: it has a strong carrying capacity, and the reducer produced in Zibo city, Shandong province;
Gear: big gear use ZG45 size steel (heat treatment); small gear (forge); big gear and small gear has ratio in there, in order to design the speed of cylinder, which can meet any customers’ requirements;
Draught Fan: produced in Xinxiang city, oil make cold, which is better than water cooling;
Feeding Device: Q345 manganese steel;
Discharging Device: Q345 manganese steel;
Others: lifting plate ( inside the dryer and make the heat and material totally contact with each other); transmission parts (motor, reducer,small gear); small gear( smith forging); cyclon dust collector.
Wood Chips Rotary Drum Dryer Features:

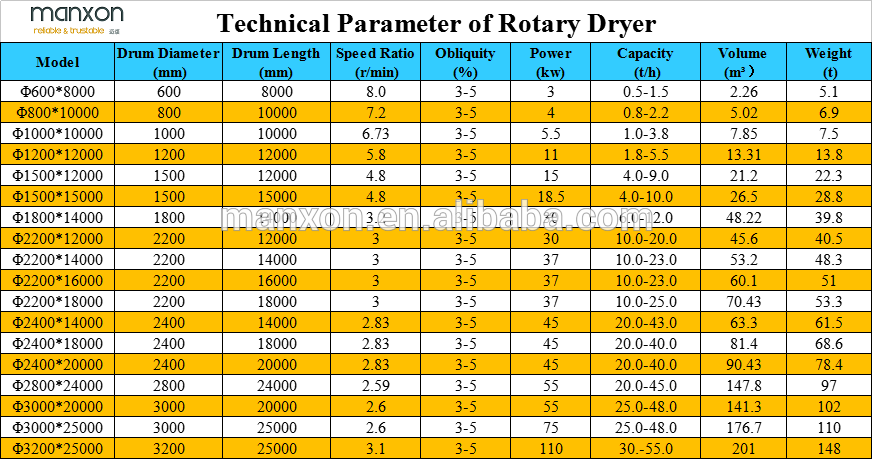

Diameter: 600mm---3200mm
Length: 8000mm---25000mm
Specially designed lifting flights to maximize heat transfer between the material and hot gas stream
Heavy duty design and construction for many years of service
Heating source available: Coal, Oil, Natural Gas, Biomass Fuel, Waste heat, etc. Various drive assemblies available: Chain & Sprocket, Girth & Pinion Gear, etc.
Various materials available: Carbon Steel, Stainless Steel, Specialty Alloys, etc.
Various dust collector available: Cyclone dust collector, Pulse dust collector, Water mist dust collector, etc.
Project Location: Buenos Aires, Argentina
Industry: Wood Processing
Major Equipment: Φ1500*16000mm Wood Chips Rotary Drum Dryer (1set), B500*12000mm Belt Conveyor (2 sets), Dust Collector System with size of Φ1000mm (1 set), Burning Furnace (1 set)
Material Processed: Wood Chips/Wood Shavings/Sawdust
Supplier: Henan Manxon Machinery Equipment Co.,Ltd.
Process: Raw material testing, plant design, machinery equipment produced, installation, commisioning, and training guidance by MANXON.
Machine Parts
Name: Dust Collector
Brand: MANXON
Original: Henan, CHINA
Cyclone dust collector+Water mist dust collector ensure that the air is free of contaminants.
Machine Parts

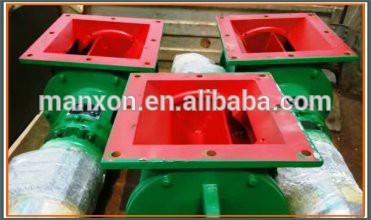

Name: Rotary Airlock Discharger
Brand: MANXON
Original: Henan, CHINA
MANXON brand Rotary Airlock Disharger has a very good effect.
Machine Parts

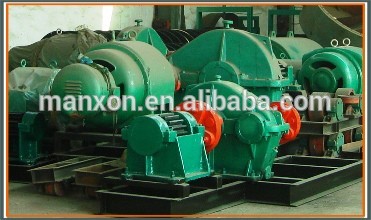

Name: Transmission assembly
Brand: MANXON
Original: Henan, CHINA
The tranimission assembly including: motor (famous brand), reducer, small gear, base.
Machine Parts

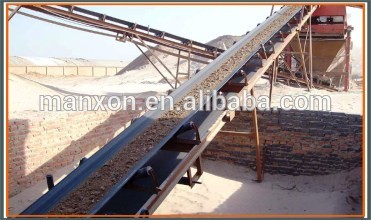

Name: Belt Conveyor
Brand: MANXON
Original: Henan, CHINA
Belt (5-layers cord fabrics, high wear-resistance), carrier roller, lifting lug, etc.
Pre-Sales Service
* Inquiry and consulting support
* Raw material testing support
* Warmly welcome visit our factory
After-Sales Service
* Installation & start-up support
* Training service
* 24-hour emergency service
A: Our Wood Chips Rotary Drum Dryer are being exported to Peru, USA, Chile, Brazil, Egypt, South Afrcia, Ethiopia, Sudan, Zambia, Kenya, Turkey, Indonesia, Malaysia, Philipines, Australia, Iran, India and so on.
A: Our senior engineers will guide the installation and commissioning as well as the initial production at your working shop until machine works smoothly;
Q 3: How about the wear parts supply?
A: Our factory offer wear parts to every customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place at our early time;
Q 4: How about the quality of your Wood Chips Rotary Drum Dryer?
Q 5: Why Choose your factory?
Q 2: May we know what is the approximate size of your raw material?
Q 3: May we know what is the moisture content of your raw material before drying?
Q 4: May we know what is the moisture content you require after drying?
