Tumble Drum Dryer, Sludge Drying Machine for sale

s single drum rotary dryer are endowed with large drying capacity, smooth working, low energy consumption, easy operation, high yield advantages.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • BAICHY
  • DLSG
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~86

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
BAICHY
Model Number
DLSG
Voltage
220v/380v
Power(W)
6-75 kw
Dimension(L*W*H)
Various
Weight
50 ton
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Shell Diameter
600-2800 mm
Shell Length
8000-24000 mm
Slope
3-5 Degree
Rotary Speed
3-8 r/min
Installation
Engineer Guide
Volume
118 m3
Application
mining, chemical
Heating source
oil, gas, coal
Usage
Reduce Material's Moisture
Factory visit
welcome

DETAIL DESCRIPTION

Tumble Drum Dryer, Sludge Drying Machine for sale

Product Description

Description of Tumble Drum Dryer, Sludge Drying Machine for sale:
Baichy's single drum rotary dryer are endowed with large drying capacity, smooth working, low energy consumption, easy operation, high yield advantages. The dryer according to the different materials characteristics, set up different types of lifting plate and in case of sticky measures, the material feed in the inner of rotating cylinder drying, as well as multi-angle lifting by the plate, so that the material raise uniform full and high-temperature hot air for heat exchange. Drying effect high,external cylinder with shaking devices to prevent the material sticking on the wall.



Product Features

Features of Tumble Drum Dryer, Sludge Drying Machine for sale:

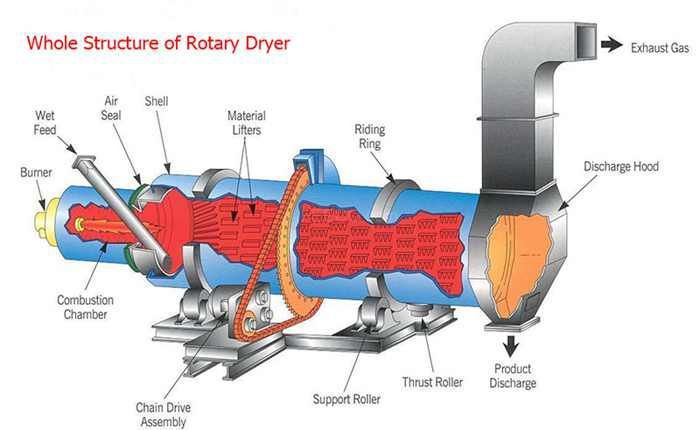

Rotary dryer is mainly composed of cylinder, under frame, feeding and discharging devices,transmission device, gear cover, etc. (Optional auxiliary equipment includes combustion chamber, feeder and discharging device, and dust collection equipment). Rotary drier manufactured by us adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising. The materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency. Our rotary drier is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common dryers.





Product Applications

Applications of Tumble Drum Dryer, Sludge Drying Machine for sale:

Industrial Dryer have many applications but are most commonly seen in the mineral industry for drying sands, limestone, stones and soil, ores, fertilizers, wood chips, coal, iron sulphate, filter cakes, sewage sludge, etc.





Working Principle

Working Principle of Tumble Drum Dryer:

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is intalled with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.






Technical Parameter

 Technical Parameter of Tumble Drum Dryer:

pecificationCapacity (t/h)Power (kw)Square(Square Meter)
DLSG14122011120
DLSG16154015240
DLSG19657537320
DLSG221811045400
DLSG281815075540

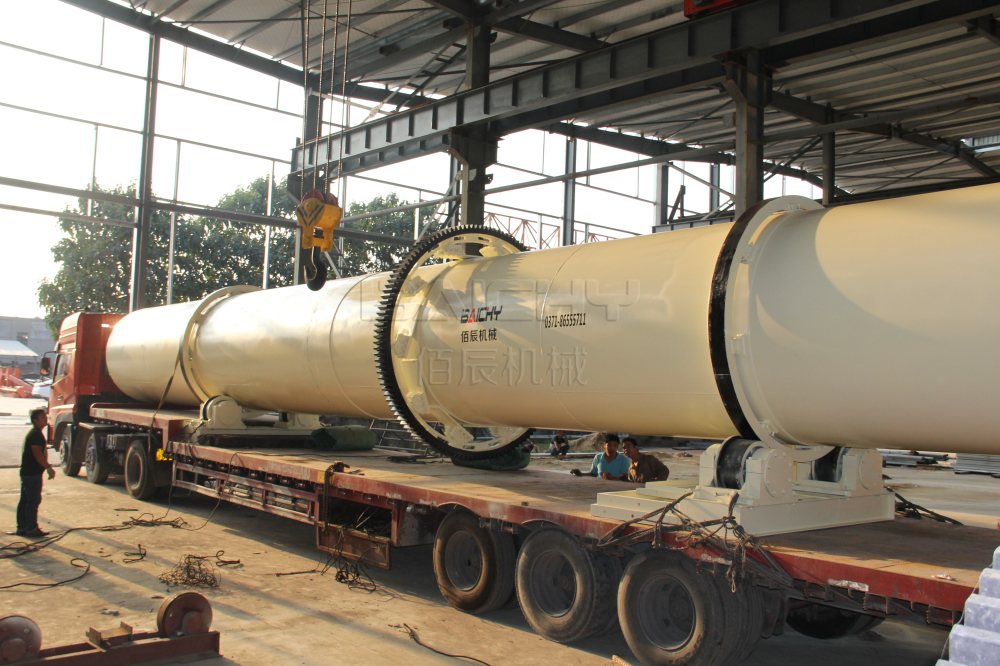

Packaging & Shipping



Our Services

Pre-sales Service:

1. The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;

2. Based on our customers'request and budget, our experts make efficient, reliable solutions;

3. Before placing the order every customer has the chance to visit daiwo working machines or complete plant in the site;

4. We have a full set of testing equipment, to provide a good test environment.

After-sales Service:

1. Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers'plants;

2. Provide necessary training about machine daily maintenance to local workers ;

3. After-sales department has well-trained employees and professional installation engineers.

Company Information

Henan Baichy Machinery Equipment Co., Ltd. was founded in 2003, and now it has been becoming a high-tech mining company. Our company integrates research and development, designing, manufacturing, sales and after-sales services. The brand products, cone crusher, sand making machine, high-efficient fine crusher, high-pressure medium-speed mill, vertical mill, micronizer, three ring mill, ball mill, etc, are in the leading level of the world. Our company became the member of "CSSA Chinese gravel Association", and all the products have gained ISO9001: 2008 quality management system certificate and IQNet international certification.
