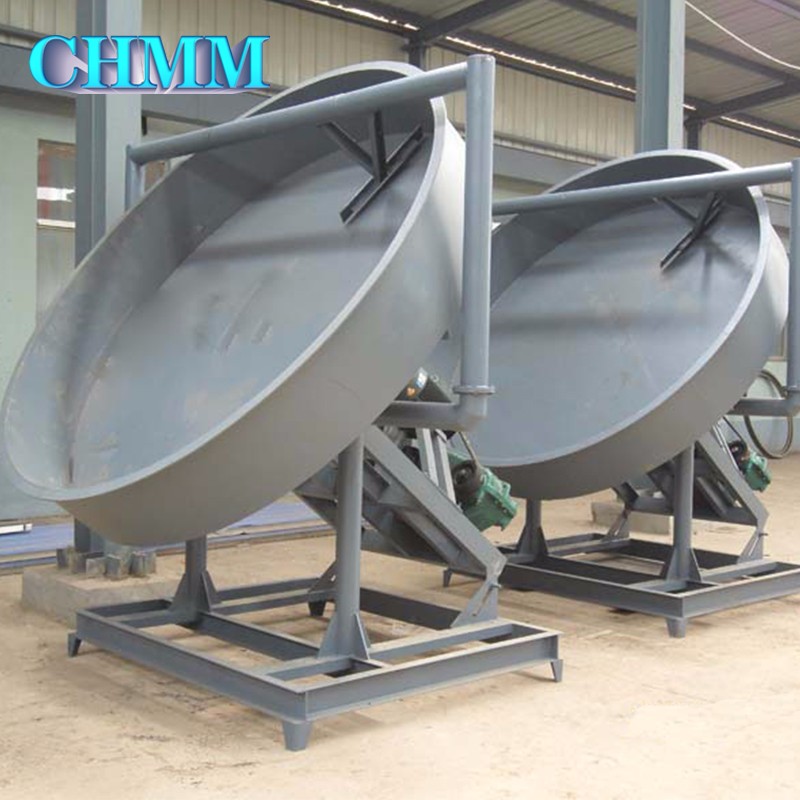

Pelletizing Industry Disc Granulator Ball Making Pellet Balling Disc
Min. Order: 1 Set , Pellet Balling Disc can be OEM
FOB Price: US $5882 - 88235 / Set

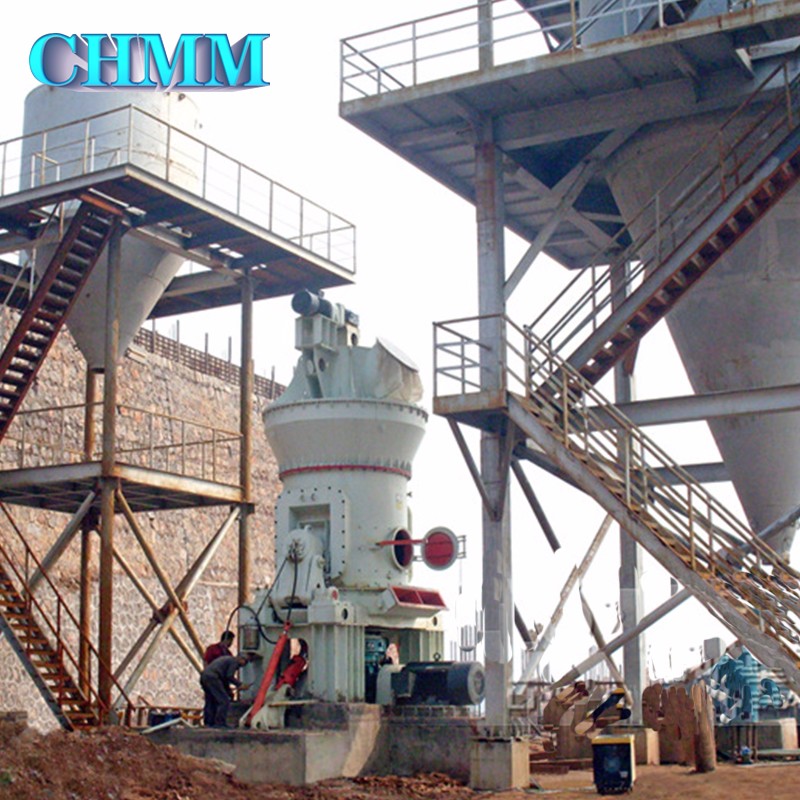

Grinding Equipment High Efficiency Energy Saving Vertical Mill
Min. Order: 1 Set, Vertical Mill can be OEM
FOB Price: US $48676 - 308823 /

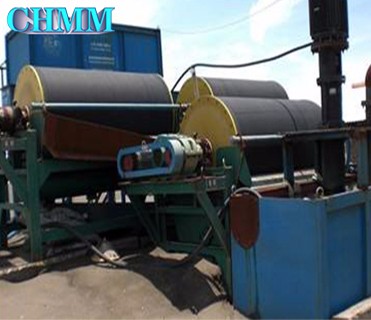

High Efficiency Iron Powder Wet Drum Magnetic Separator
Min. Order: 1 Set , Magnetic Separator can be OEM
FOB Price: US $800 - 20440 / Set

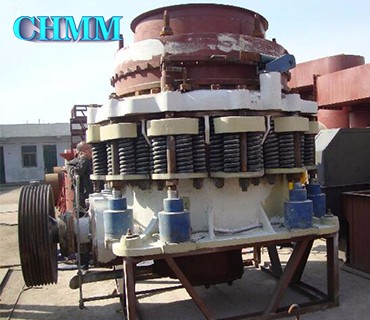

Mobile Fine Quarry Primary And Secondary Crushing Ore Stone Hydraulic Cone Crusher
Min. Order: 1 Set , Cone crusher can be OEM
FOB Price: US $ 17647 - 147058 / Set

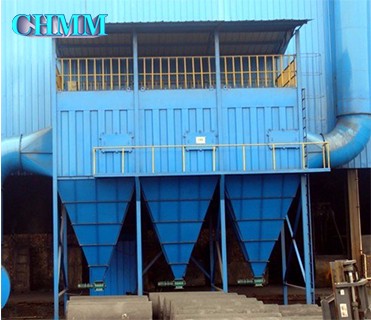

With Dust Filter Bag For Dust Catching Air Box Pulse Bag Dust Collector
Min. Order: 1 Set , Air Box Pulse Bag Dust Collector can be OEM
FOB Price: US $5882 - 117640 / Set

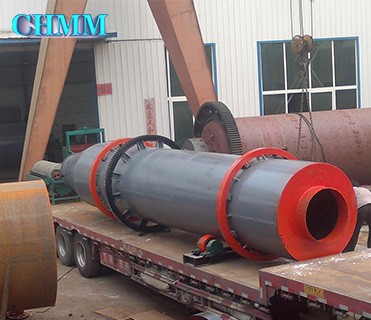

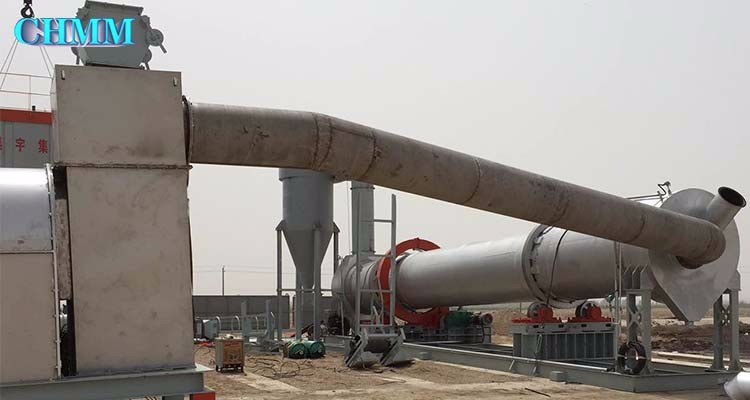

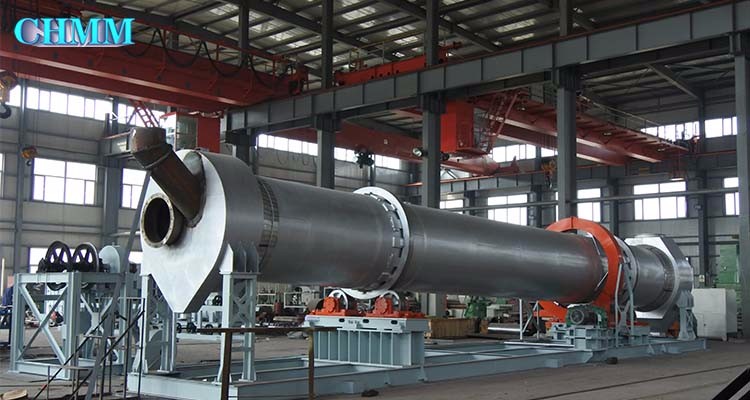

Hot Sale Professional Iron Ore Industrial Good Price Rotary Drum Dryer
The dryer machine produced by our company is the most commonly used rotary drum dryer equipment，widely used in metallurgy, building materials, food, light industry, chemical industry, coal, medicine, mining, environmental protection and other fields.
| Main technical parameter | ||||||
| Weight（t） | Design Ability（t/h） | Obliquity | Rotation rate (r/min) | Intake temperature | Primary Moisture | The final water |
| 26.8 | 10 | 5% | 0.55-5.53 | ≥750℃ | 3% | 0.5% |
| 36 | 15-30 | 5% | 4-4.9 | ≥800℃ | 8-9% | 0.6% |
| 32.2 | 8-105 | 5% | 4.5 | ≥750℃ | 15-20% | 1-2% |
| 53.5 | 40-46 | 5% | 4.35 | ≥700℃ | 10% | 6% |
| 46.6 | 13-18 | 5% | 4.35 | ≥700℃ | 15-20% | 2-3% |
| 64 | 70-90 | 2.8% | 4 | ≥800℃ | 11-12% | 7-8% |
| 47.2 | 18-28 | 2.8% | 4 | ≤700℃ | 15-20% | 2-3% |
| 92.6 | 160 | 4% | 4.18 | ≤700℃ | 11-12% | 7-8% |
| 104 | 160-200 | 5% | 3.96 | ≥800℃ | 1-11% | 6-7% |
| 89 | 34-45 | 5% | 4 | ≥750℃ | 15-20% | 2-3% |
| 143 | 160-200 | 4% | 4.17 | ≤850℃ | 10-11% | 6-7% |
| 143 | ≥150 | 5% | 3.56 | ≥800℃ | 10-11% | 6-7% |
| 159 | 180-200 | 5% | 3.9 | ≥800℃ | 10-12% | 6.5-7% |
| 165 | 180 | 5% | 3.5 | ≥850℃ | 10-11% | 7-8% |
| 183 | ≥180 | 5% | 3.9 | ≥850℃ | 10-11% | 6-7% |
| 224 | ≥50 | 4% | 4-7 | ≥900-1000℃ | 40% | 12-15% |

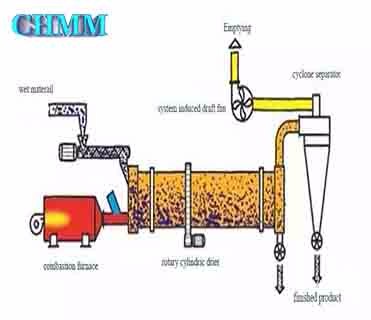

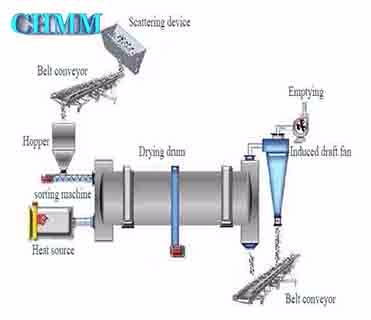

The material is added from the higher end, the heat carrier enters from the lower end, and countercuttent contact with the material, and the heat carrier and the material flow into the cylinder together get to co-current contact. With the rotation of the cylinder, the material moves to the lower end by gravity action. When the wet material moves forward in the cylinder, the heating of the heat carrier is obtained directly or indirectly, so that the wet material is dried, and then sent out at the discharging end by the belt conveyor or chain bucket conveyor.
1.Large amount of processing, less fuel consumption, low drying cost.
2.Outlet temperature is low, and the heat efficiency is high.
3.It can according to the different property of the material to change the operating parameters.
3.Higher level of mechanization, greater production capacity.
4.Good dust sealing performance, convenient maintenance.
5.Stronger adaptability of the materail, the operation is stable and convenient.

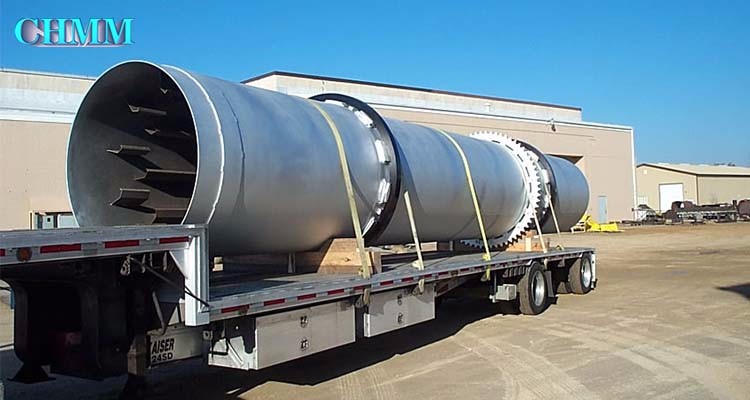

| The big size equipment directly loading into containers. Packing way can according to customers special request. |
Q1: Are you trading company or manufacturer ?
A1: We are Integration of industry and trade which is located in Liaoning Province. China.
Q2: What materials do you want to process ?
A2:Limestone, sludge or sawdust.
Q3: What kind of drying machine do you want ?
A3: Single-shell rotary drier or double drum dryer, sludge Dryer.
Q4: What’s the capacity?
A4: 10t/h or 180t/h.
Q5: What's your payment method?
A5: We accept T/T, L/C and Western Union.
Q6: How about the test and installment?
A6: We will assign the engineers.
Q6: How to delivery the goods?
A6: We will deliver it by ocean transport.
