New designed sand dryer sawdust rotary drum price

PRIMARY PARAMETERS

Condition

New

Type

Rotary Drying Equipment

Place of Origin

Henan, China (Mainland)

Brand Name

ZONEDING

Model Number

HG0.6*6

Voltage

In accordance with local voltage

Power(W)

3kw

Dimension(L*W*H)

6000*600mm

Weight

2.9t

Certification

ISO, BV, CE

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Product name

High Efficient Factory Price Industrial Sawdust Rotary Dryer

Machine type

Rotary drying equipment

Heat Source

Coal, oil, natural gas, timber

Spare parts supply

Paid

Operation training

provision of service

Installation and adjustment

Provide

Flowchart

Provide

Color

Customerized

Price

Negotiable and reasonable

Quality

High reputation

DETAIL DESCRIPTION

New designed sand dryer sawdust rotary drum price

Why Choose Us

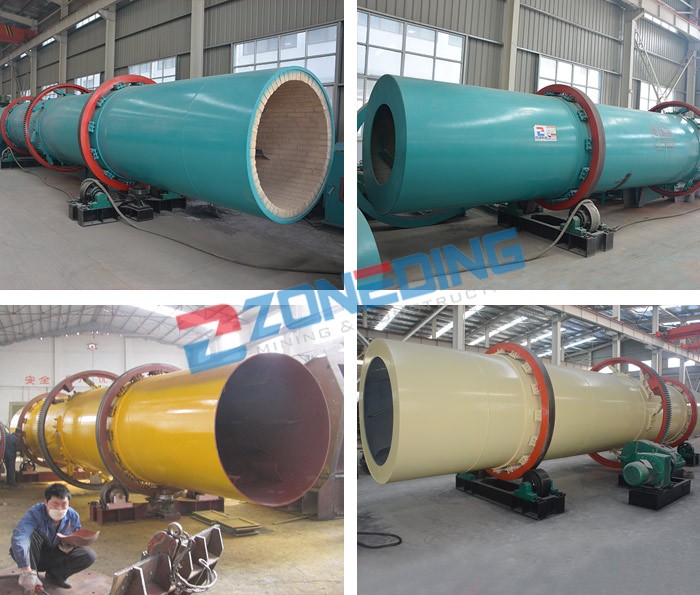

Product Description

Brand
Product Description of High Efficient Factory Price Industrial Sawdust Rotary Dryer
ZONEDING
Type
Drying equipment
Effective Volume
1.7-230m³
Heat Source
Coal, oil, natural gas, timber.
Applications
To dry materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine.
Features
1. The roller of rotary dryer machine is made of light plate's stainless steel which has excellent heat resistance, and the inner-wall smooth can reduce the materials' wear and tear. 2. Efficient radiator with a reasonable lead air duct can make hot air directly contact with materials, greatly improving the drying efficiency, while saving energy. 3. Using computer control, we can set different rotary drying temperature and rotary drum drying time according to the drying requirements. 4. Major diameter material entrance facilitates the inlet and outlet of materials and greatly improves the drying efficiency.

Technical Parameters of High Efficient Factory Price Industrial Sawdust Rotary Dryer

Model	Shell diameter (mm)	Shell length (mm)	Slope(°)	Rotary speed(r/m)	Weight(t)	Power (KW)	Volume (m3)
Φ0.6×8	600	8000	3-5	8	5.1	5.5	2.26
Φ0.8×10	800	10000	3-5	7.2	6.9	5.5	5.02
Φ1.0×10	1000	10000	3-5	6.73	7.5	7.5	7.85
Φ1.2×12	1200	12000	3-5	5.8	13.1	11	13.3
Φ1.5×12	1500	12000	3-5	5.4	19	18.5	21.2
Φ1.8×12	1800	12000	3-5	5	25	18.5	30.52
Φ2.2×16	2200	16000	3-5	3.2	41	30	60.8
Φ2.4×18	2400	18000	3-5	3	51	30	81.43
Φ2.8×24	2800	24000	3-5	2-5	97	75	147.8
Φ3.0×26	3000	26000	3-5	2-5	110	90	183.7

Note: Any change of technical data shall not be advised additionally.

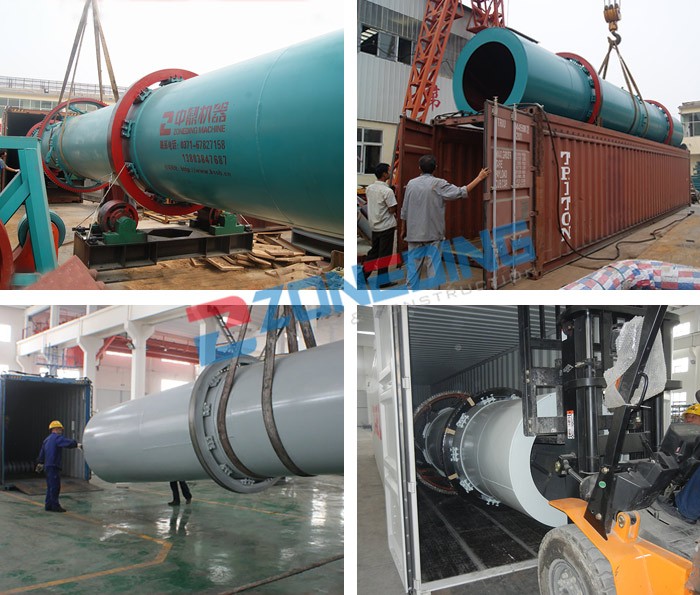

Delivery Site of High Efficient Factory Price Industrial Sawdust Rotary Dryer

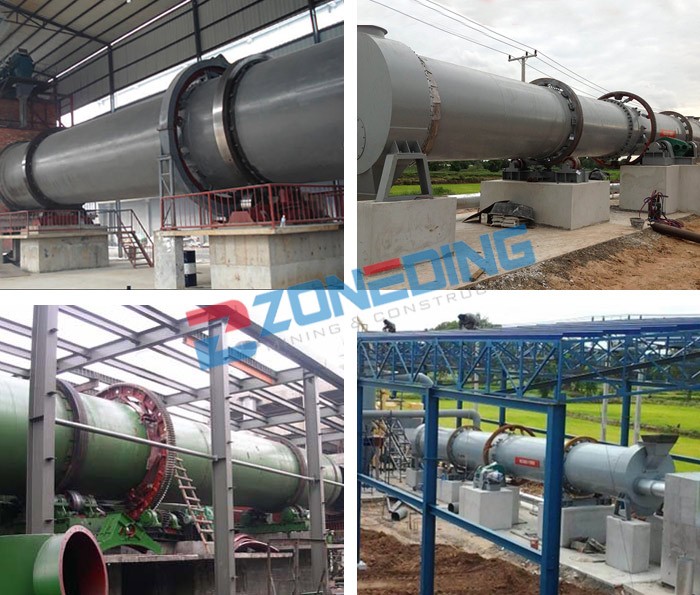

Working Site of High Efficient Factory Price Industrial Sawdust Rotary Dryer

Certifications

FAQ

Q: How about the quality of your products?
FAQ
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
