Professional manufacture super performance rotary dryer/Grain rotary drum drying equipment
Our main purpose :
We Provide complete service equipment installation, testing ,maintenance and staff Training,we can provide you the technical services for life and provide the best service to you . Help our clients gain profit in quicklly. We will provide the most environmentfriendly and safe products with high quality at most favorable price for the customer with perfect after service.
Introduction of rotary dryer/Grain rotary drum drying equipment :

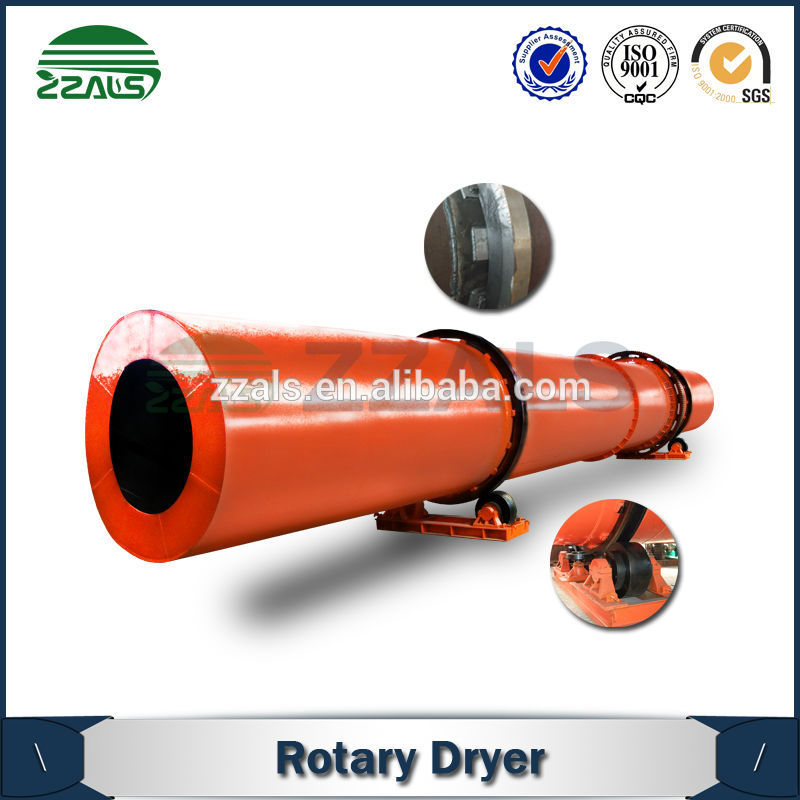

The rotary drum dryer for sale is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Rotary dryer is mainly used to drying the humidity and granules of fertilizer in manufacture of compound fertilizers. Meanwhile, it also can widely apply to drying many other various materials.
1.The consit of organic fertilizer dryer machine :
the organic fertilizer dryer machine is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

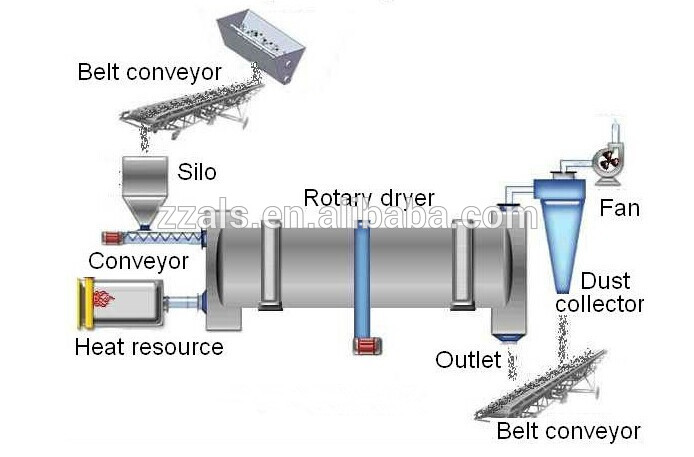

2. The organic fertilizer dryer machine how to work
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
3.The organic fertilizer dryer machine characteristics :
(1). The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
(2). According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .

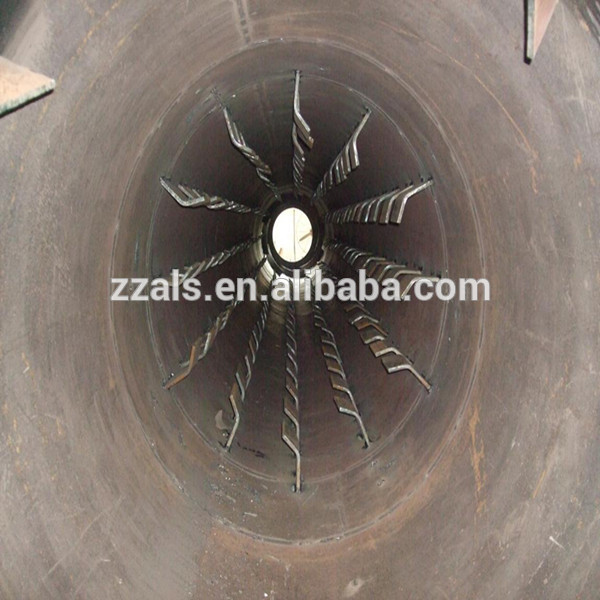

(3). Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
(4). Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
(5). The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse.
Main characteristics of rotary dryer/Grain rotary drum drying equipment :
1)Less investment, quick effect, good economic benefits, reliable in performance.
2)Small power, no "three wastes" emissions, stable operation, convenient maintenance, process rational layout, advanced technology, low production cost.
3)Feed plate Angle distribution and perfect design, reliable performance, and high heat utilization rate, uniform dry, clean up fewer materials.
The machine got the henan province agriculture department Land fertilizer agricultural technology development, the international leading level, to fill the domestic blank,it is the first time that the state environmental protection applicable technology promotion projects.

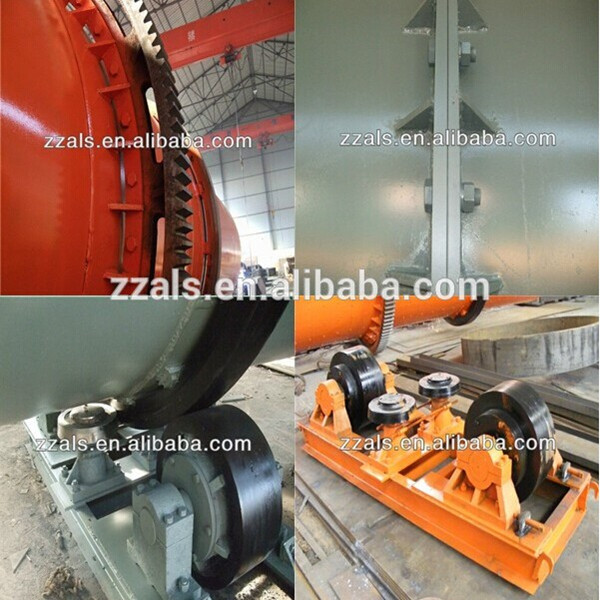

Main structure of rotary dryer/Grain rotary drum drying equipment :
The machine can be divided into five parts:

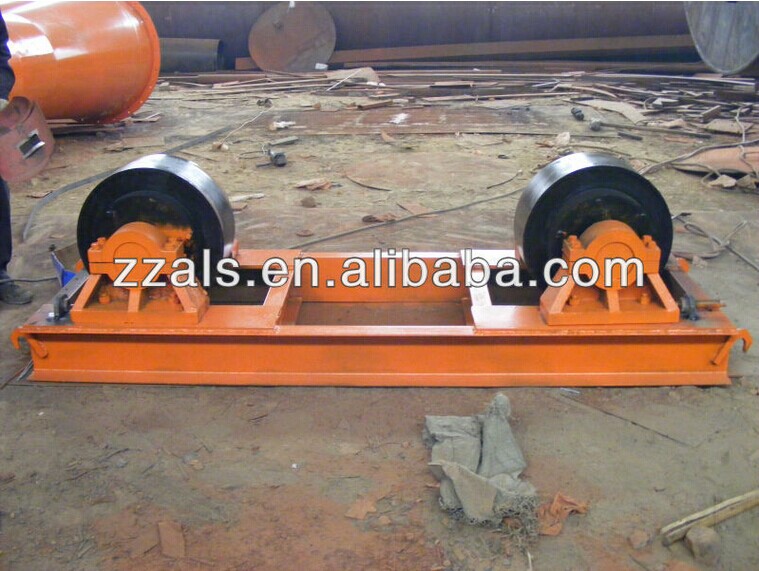

1)--Bracket parts: the whole body's rotational part is supported by bracket, more stress. So the machine bracket part adopts medium carbon steel plate, channel steel welded together, and through strict quality control and specific process requirements, to achieve the purpose of this machine is used. In addition more important is fixed to the wheel on the shelf, because of considering the body rolling belt will produce larger friction, I made a special trip for high-quality anti-corrosion, wear-resistant materials, greatly improving the service life of the machine, roller frame also USES casting technology, integrated welding of trouble from the past, the other four corners in the brackets with hoisting steel, in order to loading and unloading of transport.
2)--Transmission part: the whole drying machine, transmission part is important, on behalf of the entire body of work that line, drive also adopt carbon steel plate, channel steel welded together, and through strict quality control and specific technical requirements, installed in the transmission frame of main motor and speed reducer of choose and buy, ISO9001:2000 international quality system certification quality is reliable, motor drive pulley, v-belts, speed reducer drive to the main shaft, to make the body work. The drive reducer and the working parts of main shaft, driven by coupling meshing transmission, dowel pin.
3)--Big ring gear: fixed on the body and drive pinion gear close, mutually to jump-start the body, it USES the high tech wear-resisting material, make the machine service life is longer.

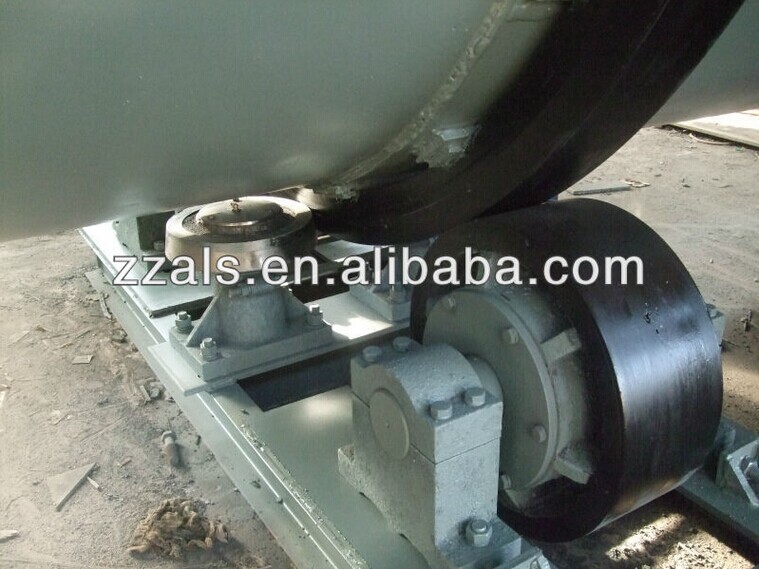

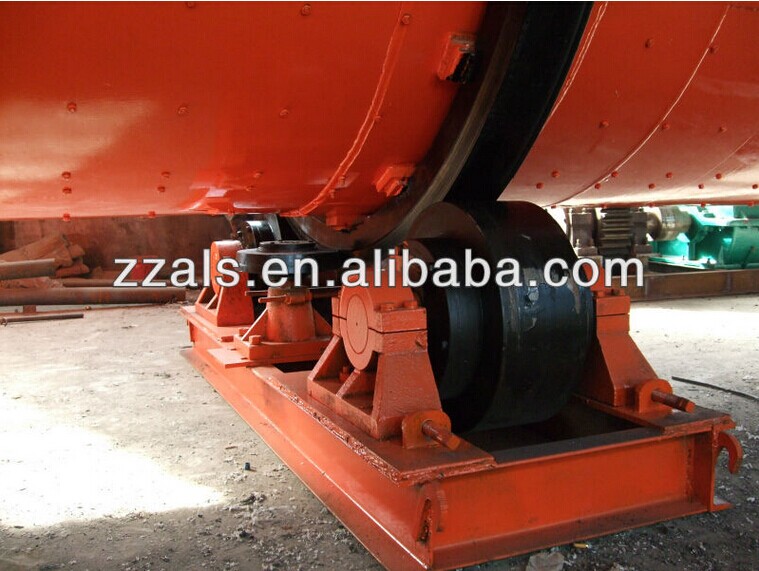

4)--Rolling belt: fixed on both sides of the body, to support the entire body.
5)--The body: the whole drying machine is one of the most important body part, the body part of the machine adopts medium carbon steel plate welding and become, built-in plate is made of high quality wear-resistant materials, distribution and cape design is reasonable, and through the layers of strict quality control and special technical requirements, to achieve the purpose of this machine is used.
Functions of rotary dryer/Grain rotary drum drying equipment :
This serial of Continuous sawdust rotary drum dryer for sale widely used in the cement, mining, building materials, chemical, food, fertilizer production and other industries of material drying, in order to control the temperature of the dryer, we set the heating coil in the out and in material device. It can show the temperature changes of the dryer’s material access through the thermometer. In order to better control the body temperature (usually 350-380 degrees) provides a basis.
Main data of rotary dryer/Grain rotary drum drying equipment :
Type | Cylinder | Capacity | Import air temperature | Exit air temperature | Motor | Type of reducer | |||||
Diameter | Length | Angle | Revolutions | Type | Power | Revolutions | |||||
mm | mm | ( .) | r/min | t/h | ℃ | ℃ | Kw | r/min | |||
ZG8800 | 800 | 8000 |
2-5 | 4.5 | 1-1.5 |
150-250 |
60-80 | Y132M-4 | 7.5 | 1440 | ZQ350 |
ZG10100 | 1000 | 10000 | 4.5 | 1-2 | Y132M-4 | 7.5 | 1440 | ZQ350 | |||
ZG12120 | 1200 | 12000 | 4.7 | 2-2.5 | Y160M-4 | 11 | 1460 | ZQ350 | |||
ZG15120 | 1500 | 12000 | 5 | 4-6 | Y180L-6 | 15 | 970 | ZQ400 | |||
ZG15150 | 1500 | 15000 | 5 | 5-7 | Y180L-6 | 15 | 970 | ZQ400 | |||
ZG18150 | 1800 | 15000 | 3.9 | 7-10 | Y200L1-6 | 18.5 | 970 | ZQ500 | |||
ZG20200 | 2000 | 20000 | 3.9 | 8-14 | Y200L2-6 | 22 | 970 | ZQ650 | |||
ZG22220 | 2200 | 22000 | 3.2 | 12-16 | Y250M-6 | 37 | 980 | ZQ750 | |||
ZG26240 | 2400 | 24000 | 3 | 15-20 | Y225M-6 | 45 | 980 | ZQ850 | |||
ZG30280 | 2800 | 28000 | 2.5 | 20-25 | Y280S-6 | 75 | 1000 | ZQ1000 | |||
Note:According to user requirements,factory can support 1.2x10M: 1.8x18M: 2x18M: 2.2x24M Rotary drum dryer. |
Why are you choose us as your partner :
1 provide the guarantee
2 we can provide the best packing as our clients requirement .
3 The quality have the best ensure , and the percent pass rate is 100%
4 There are kinds of transportations : sea transportation , air transportation , expressage and so on.
5 Factory production, the factory price, the spot goods supply.
