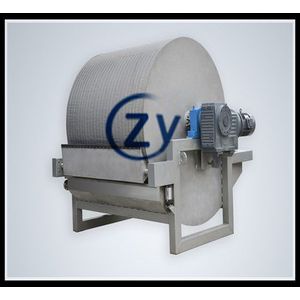

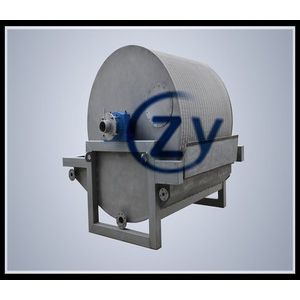

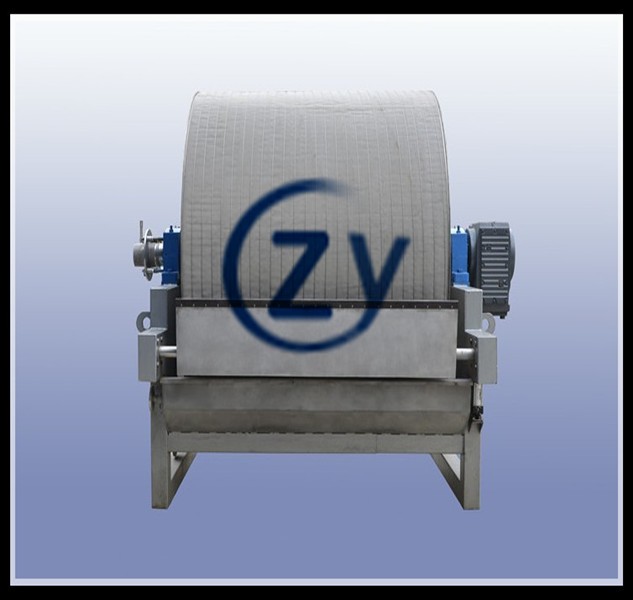

China main port stainless steel potato Starch Rotary Vacuum drum filter dewatering equipment
VF series vacuum filter, the absorption of Europe's leading design concept, developed and form. Working with stability, handling large, high efficiency, operation and maintenance convenience features.
1.Overall structural design, all components are mounted on a stainless steel base, the installation is very convenient;
2.All stainless steel structure, in line with national health standards; Dedicated laser stainless steel sieve films, high separation efficiency, long life and easy cleaning;
3.High-strength alloy scraper, scraping layer uniformity, and stability; The import dedicated vacuum pump, work stability, and low consumption, small size;
4. Automatic mixing, low energy consumption, stirring uniform
Main specification :
Type | Capacity (t/h) | Power(kw) | Diameter (mm) | Weight (kg) |
VF12 | 1.5-3 | 3 | 1800 | 2500 |
VF20 | 2.5-5 | 4 | 1800 | 3000 |
VF25 | 3-6 | 5.5 | 1800 | 3500 |
Starch quality standard:
Whiteness | ≥91% |
Moisture | 12-14% |
ASH | ≤0.25% |
Protein | ≤0.08% |
PH | 6-8 |
the Workshop of Starch production :
finished product starch :
