vacuum filter/vacuum rotary drum filter/rotary vacuum filter/ New brand precoat rotary drum vacuum filter/ Starch rotary drum vacuum filter
Seller: Zhengzhou Jinghua Industry Co.,Ltd.
Tel:0086-371-68853500 Fax:0086-371-68853570
Add:No.238,Tongbai South Road, Zhengzhou City, Henan Province,China
Introduction of vacuum drum filter
Vacuum drum filter, designed by Zhengzhou Jinghua Industry, combines the European
latest technology and years experience into a whole, which is widely used in potato starch milk dewatering in starch processing machinery, pharmacy industy, foodstuff industry and starch glucose industry, maltose syrup filter industry. Good filteration and dewatering effect.
Used in sweet potato starch dewatering industry
Used in maltose syrup filter industry
Features of vacuum drum filter
1. Fully stainless steel with no corrosion to the raw material
2. Compact structure and nice design
3. Speed of rotating drum can be adjusted according to actual site.
4.Material uploaded through blade, which is made of high rigid alloy and can be adjusted.
5. Low energy consumption, small area.
6. Stable operation
Main Technical Parameters of vacuum drum filter
Model | XDL12 | XDL20 | XDL24 |
Item | |||
Filter area(sq.m.) | 12 | 20 | 24 |
Vacuum degree(MPa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
Content of solid(%) | ≥60 | ≥60 | ≥60 |
Feeding density(Be°) | 16~17 | 16~17 | 16~17 |
Capacity(t/h) | 4 | 6 | 8 |
Power(kw) | 3 | 4 | 4 |
Drum rotary speed(r/min) | 0~7.9 | 0~7.9 | 0~7.9 |
Weight(kg) | 3000 | 4000 | 5200 |
Dimension(mm) | 3425*2312*2213 | 4775*2312*2213 | 4785*2630*2600 |

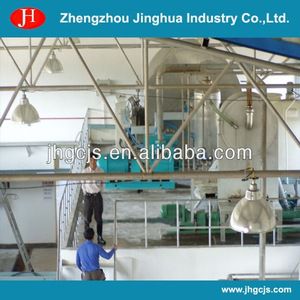

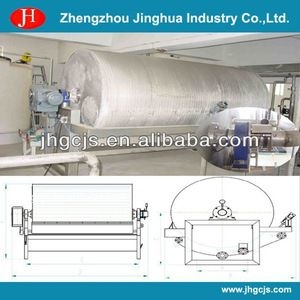

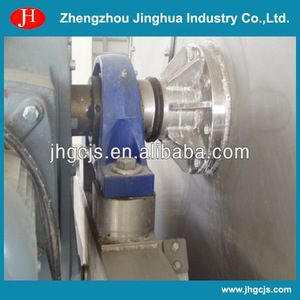

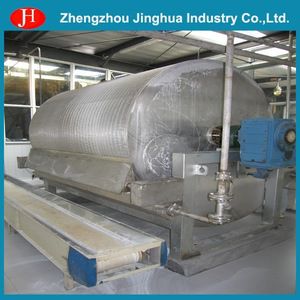

Products Show of vacuum drum filter
If you are interested in our machines, please feel free to contact us!
