Normal Plastic Crusher
Our product suitable for recycle of all kinds of plastic bottles, containers, pellicle, plastics, shees,spurs from injection molding machines and extrustion parts.
Specifications:
| Item | Crushing | Return | Crushing | Rotary | Stationary | Power | Dimension | Weight | |
| Model | chamber (MM) | Diameter (CM) | ability (KG/H) | Blade (PCS) | Blade (PCS) | (KW) | HP | (CM) | (KG) |
| PC180 | 185*150 | 6 | 100-150 | 9 | 2 | 2.2 | 3 | 76*47*92 | 160 |
| PC250 | 250*220 | 6 | 130-200 | 6 | 2 | 4 | 5 | 97*70*106 | 300 |
| PC300 | 320*240 | 8 | 220-300 | 9 | 2 | 5.5 | 7.5 | 115*820*110 | 370 |
| PC400 | 420*275 | 10 | 350-500 | 12 | 2 | 7.5 | 10 | 125*910*134 | 500 |
| PC500 | 520*300 | 10 | 450-600 | 15 | 2 | 11 | 15 | 141*102*150 | 650 |
| PC600 | 620*340 | 10 | 600-800 | 18 | 4 | 15 | 20 | 181*120*177 | 900 |
| PC700 | 720*345 | 12 | 800-900 | 21 | 4 | 15 | 20 | 182*127*176 | 1000 |
| PC700 | 720*345 | 12 | 800-900 | 21 | 4 | 22 | 30 | 182*127*176 | 1000 |
| PC800 | 773*460 | 12 | 800-1000 | 24 | 4 | 22 | 30 | 240*170*220 | 1860 |
| PC800 | 773*460 | 12 | 800-1000 | 24 | 4 | 30 | 40 | 240*170*220 | 1860 |
| PC800 | 773*460 | 12 | 800-1000 | 24 | 4 | 37 | 50 | 240*170*220 | 1860 |
| PC900 | 870*460 | 12 | 1000-1200 | 27 | 4 | 22 | 30 | 240*180*220 | 2000 |
| PC900 | 870*460 | 12 | 1000-1200 | 27 | 4 | 37 | 50 | 240*180*220 | 2000 |
| PC900 | 870*460 | 12 | 1000-1200 | 27 | 4 | 45 | 60 | 240*180*220 | 2000 |
Product Details:

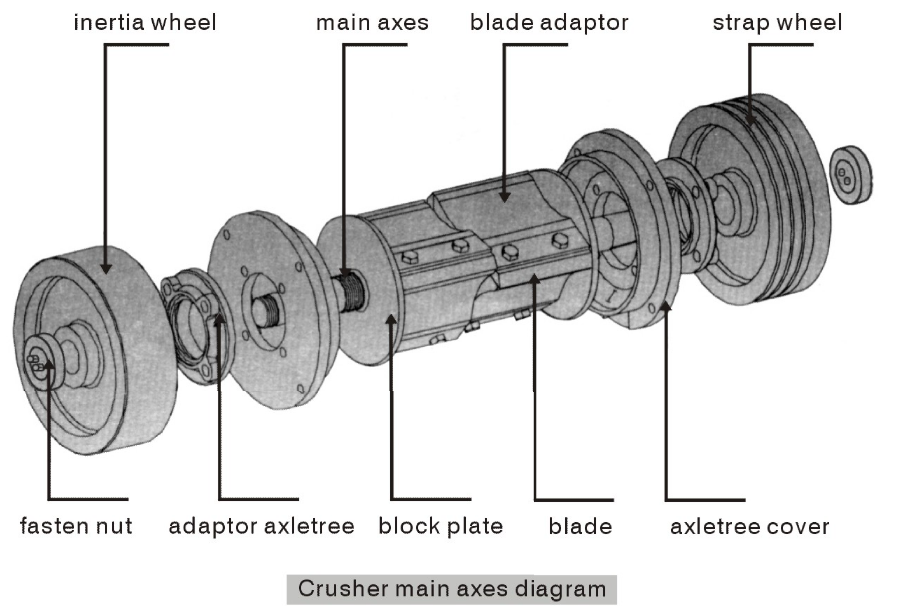

STRUCTURE DIAGRAM
Advantages:
1. Good looking in surface, color coordination, spray-painted solid.
2. Hopper, crushing room, misreported is disserted, easy to dumpster gate.
3. The crushing room use noise arrester, to lower noise.
4. Pulley with guards, so it is safe and reliable.
5. Cleaning and insurance
6. The motor has a protective device and power chain protection system.
7. The using life of the alloy blade is much longer than the ordinary one, moreover, it is very suitable for smashing high-densely plastic.

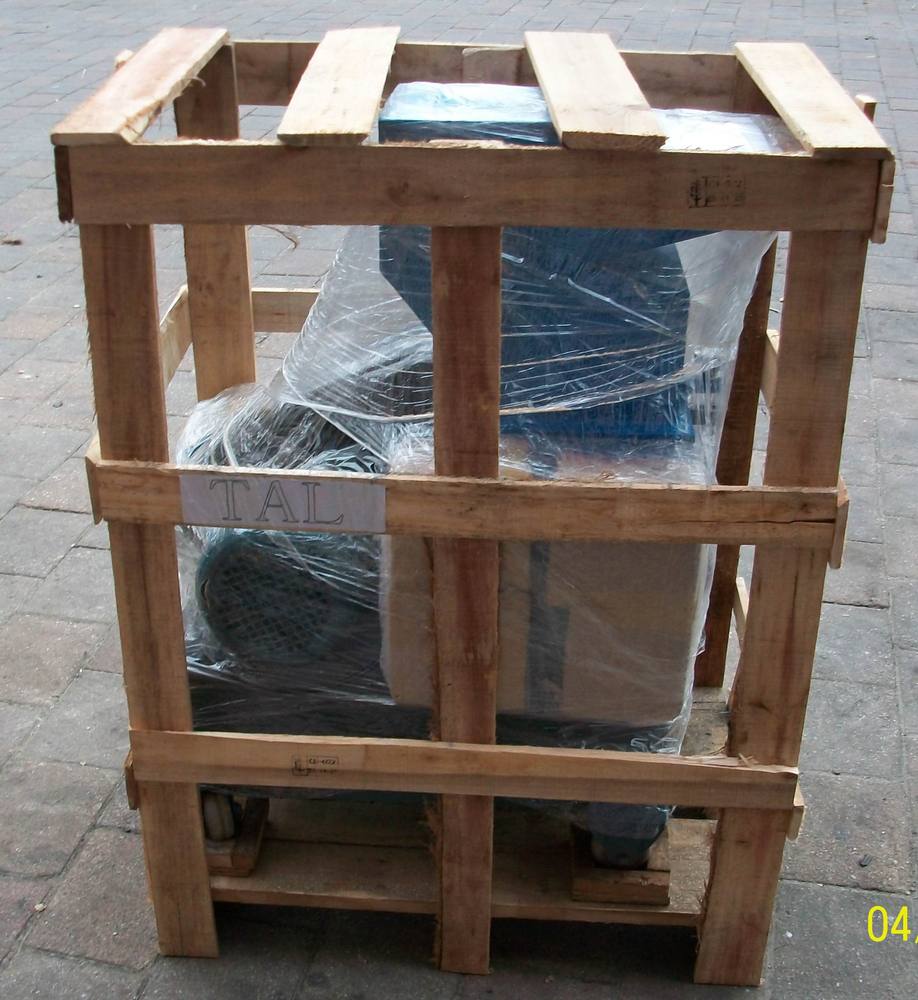

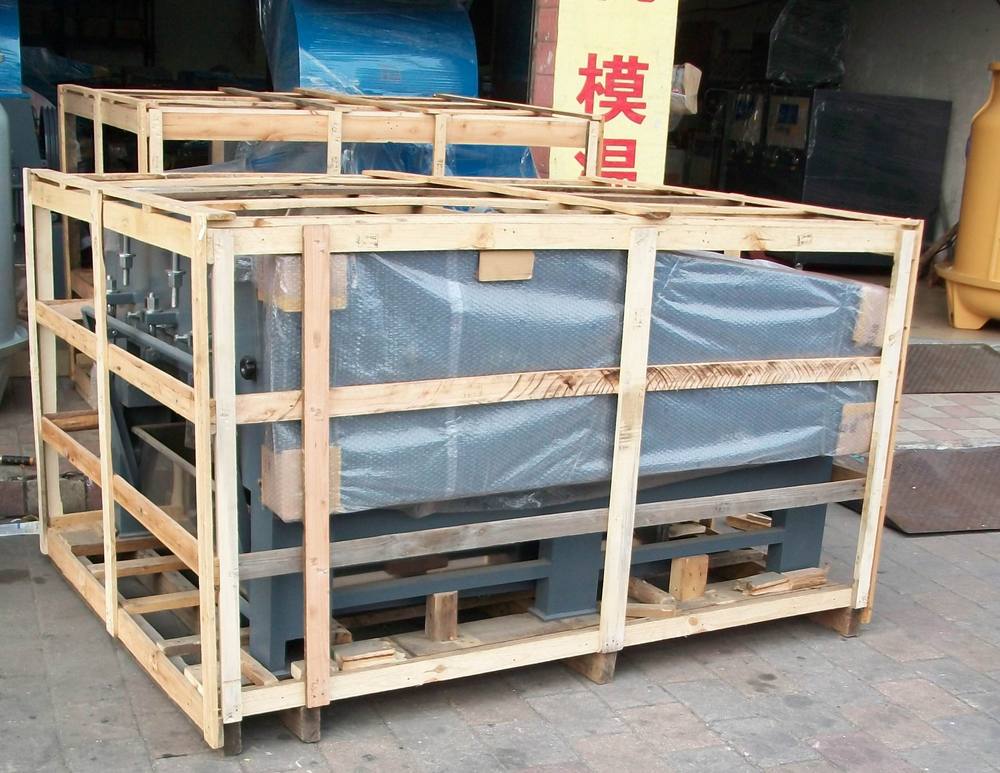

| Packaging Details: | package covered by plastic film for plastic recycle grinder crusher |
| Delivery Detail: | 30 working days for plastic recycle grinder crusher |

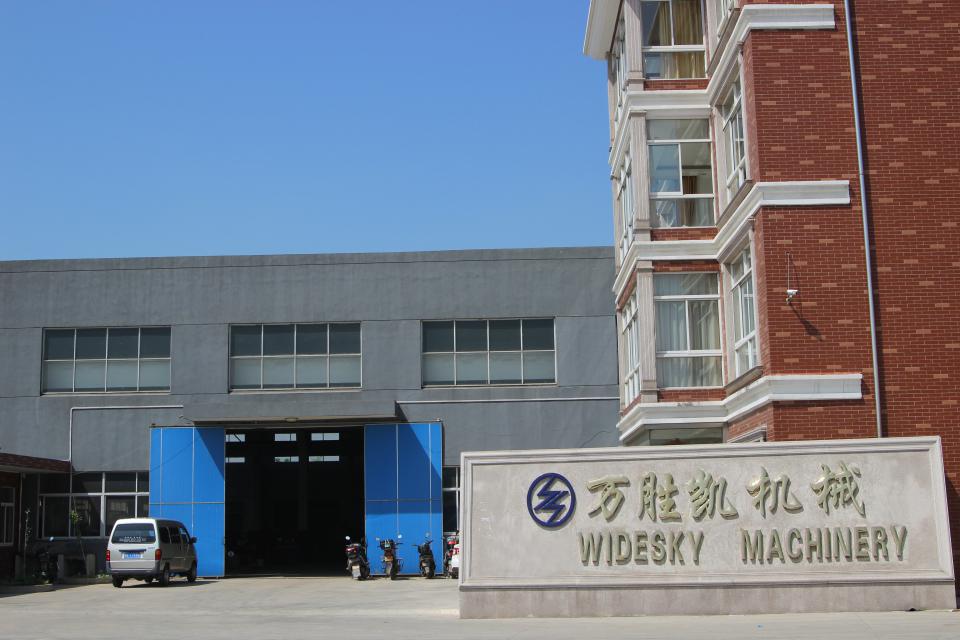

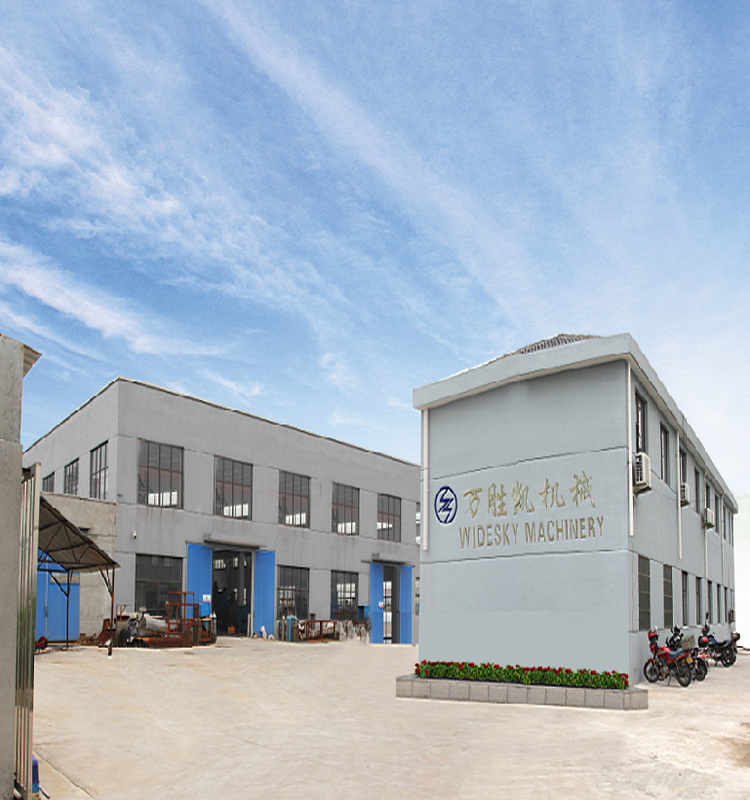

Major manufacturer of plastic machinery Start from 1988 in Domestic Market,
Develop oversea market from 2006.
3000 sqm production and administrative space
More than 50 well trained and skilful workers
More than 10 engineers and technicians
Engineer available to service machinery overseas
Monthly production capacity: over 8 Million
Sales of 2013: US$50 Million
Q1:Main product for your company?
A1:we design and product many types of plastic and economy pipe extrusion line,recycling line and auxiliary machinery.
Q2:How many years have you set up this company?
Founded in the 1980's, our factory stresses on the experience accumulation and technology research. for years,we visited the operation sites of our end-users to listen to their proposals for improving our products.
Q3:What kinds of crushers you have?
A3:WIDESKY have all kinds of plastic crusher, like: flake crusher,film plastic crusher, rubber
crusher,sound proof crusher et
Q4:How to choose crusher?
A4:It is depends on the plastic and capacity.
1) provide detailed information, picture, video & quotation for customer;
2) free testing;
3) Professional suggestions.
