HD5500-EX ISOLATED BARRIERS

OVERVIEW

HD5500-EX series isolated barriers are designed explicitly according to latest national standard for protection of electrical signals located in hazardous areas.

Installed in safe areas, HD5500-EX series Isolated barriers work in company with intrinsically safe instruments located in hazardous areas to guarantee a totally IS explosion protection system. With the inside signal transfer module, HD5500 series isolated barriers can also play the roles of RTD temperature transmitter, thermocouple temperature transmitter and mV transmitter, as well as repeater power supply, solenoid driver and so on.

With whole series carrying approval mark of the National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation(NEPSI), HD5500-EX series Isolated barriers are suitable for interfacing solution between safe and hazardous areas ranking [Exia Ga]ⅡC.

All the analogue input/output and digital input/output models have been assessed for use in a SIL3 safety function according to IEC 61508 by BUREAU VERITAS, while SIL2 for temperature converter models. Contact us to find the safety manual for reference if needed.

FEATURES

Safety

• All units with IP20 degree of mechanical protection are compliant to GB3836.1-2010 (IEC60079-0: 2007, MOD) and GB3836.4-2010 (IEC60079-11: 2006, MOD), and certified for connection into Zone0, Zone1, Zone2, Zone10, Zone11,ⅡC, ⅡB, ⅡA, T1-T6 hazardous areas worldwide.

No high-integrity earth needed

• HD5500-EX series Isolated barriers need no dedicated ground and consequently eliminate the inherent interference of ground loop.

Full input/output/power supply isolation

• Full 3-port isolation between the input, output and power supply circuits achieves highly floating systems for the pursuit of extraordinary resistibility to complicated electromagnetic interference from industrial environment.

High performance components

• High performance components are widely adopted for optimal signal integrity, taking into account both high accuracy and low drift of full range.

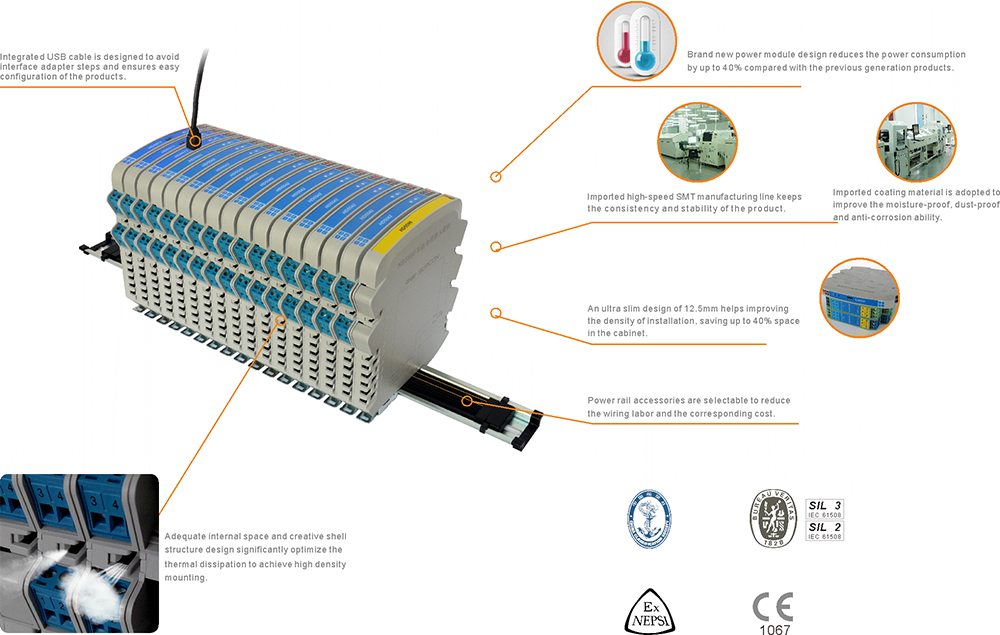

Compact modular design

• With compact modular design, HD5500-EX series isolated barriers provide wide application range in the minimum space.

Standard DIN-rail mounting and PLUG & PLAY terminals

• Standard DIN rail mounting format ensures convenient and steady installation, while application of PLUG & PLAY connector ensures the convenience of maintenance.
