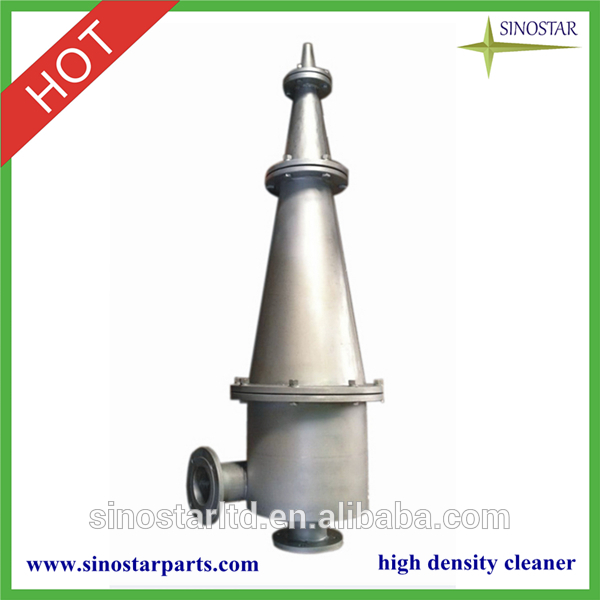

Paper industry high efficiency hydrocyclone desander
Introduction
Hydrocyclone is separated from the non-sports equipment by the up and bottom cylinder cone composed
of two parts,the separation principle is centrifugal sedimentation. When the slurry to be separated (heterogeneous solid-liquid mixtures)to a certain pressure into the periphery of the cyclone from the cyclone was forced rotary movement.Because of its subject tocentrifugal force centripetal buoyancy,fluid drag force of different sizes,the slurry of solid coarse particles to overcome resistance to the wall of water sports, and the joint action of their own gravity, downward spiral motion along the wall, fine The smaller particles and most of the water due to the centrifugal force suffered small and less close with the slurry wall that is doing rotary motion. In the follow-feeding promotion, particle size from the center to the wall is growing, forming a layered arrangement. As the slurry flows from the cylindrical portion of the cyclone cone section, getting smaller and smaller flow cross-section, the outer layer of the slurry shrink under oppression, inner slurry containing
a large number of fine particles had to change direction, turned on movement, formed in the cyclone, discharged from the overflow pipe, become overflow, and coarse particles continued to spiral downward movement along the wall, forming the outer cyclone is finally discharged from the bottom orifice, become grit.
So as to achieve the purpose of separation of classification.

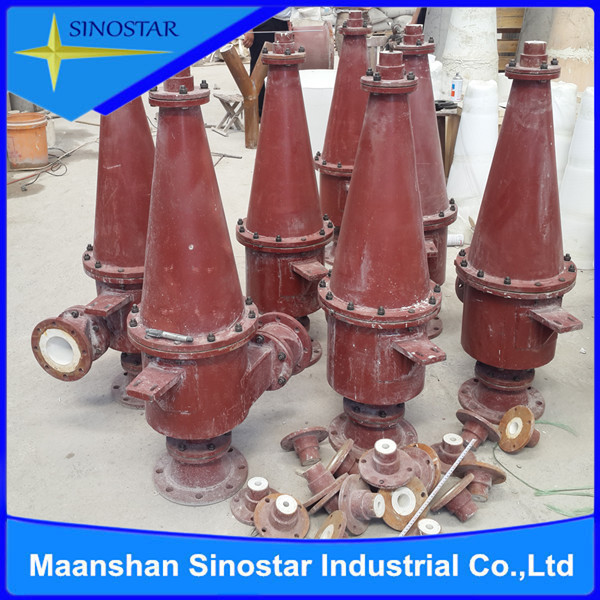

we produced the hydrocyclone overall wear-resistant ceramic lining, with strong wear resistance, it is more than three times the polyurethane, which are widely used in the beneficiation process ferrous metal mining and nonferrous metal mines,the iron,copper,gold,nickel and other metals mining unit operations in improved metal recovery beneficiation, increased processing power station,improve the economic efficiency of beneficiation.
We undertake cyclone maintenance business, it can also be processed according to the drawings.
Material Description
1.Stainless steel 304/316L body; plate thcikness: 0.6 mm.
2.Double ceramic cone.
Technical Parameters
- Throughput: 30-50m3.
- Pulp consistency:1-6%.
- Inflow pressure:0.2-0.35Mpa.
- Capability: 15-25T/D.
- Diameter of Inlet: 150mm.
- Recoil water pressure:0.22-0.3Mpa.(0.02 more than inflow pressure.)
Design Features
- Verious design selected.
- Saving area,convenient to installation.
- Lined with high abrasion ceramic.
- Controlled by PLC automatic system.
- Wear resistance and corrosion resistance.
- High temperature and Impact resistance
- Ideal structure,long service life.
Applications
1.Remove the heave impurities effectively. |
| 2.Cleaning system for all virgin fiber material. |
| 3.Cleaning for all waster paper stock. |
| 4.Low energy consumption. |
5.Less fiber loss. |
Product show
Our supply Scope
1.Pulping equipment parts,including: screen bakset, screen plate,refiner plalte,etc.
2.Pulp cleaning equipment parts,including:

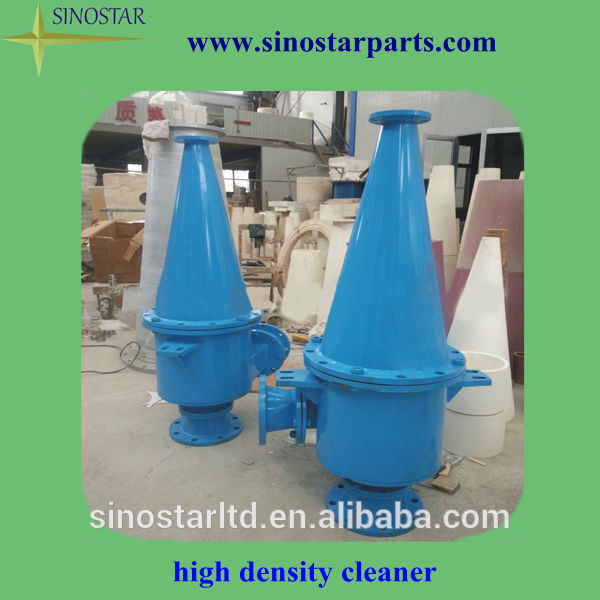

high density cleaner, medium density cleaner, low density cleaner,etc.
3.Paper machine clothing as below:
polyester forming fabric, polyester dryer fabric, sludge dewatering belt,stainless steel wire mesh,etc.
4.Other paper machinery components,including:
paper making spray nozzle, paper cutting knife, doctor blade, plain bearing,etc.
