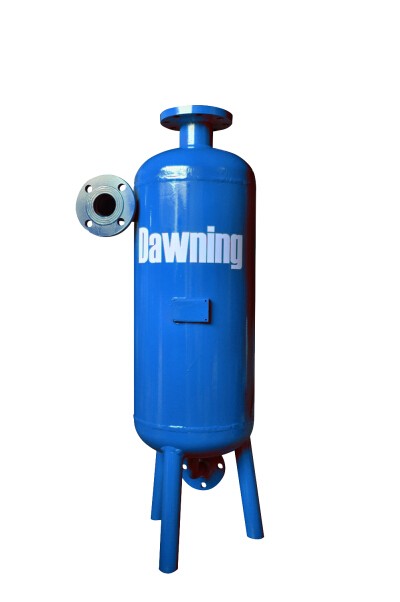

Cylinder-shaped hydrocyclone desander
Principle description
Cyclone desander is functioning according to the principle of centrifugal sedimentation and density difference. Under a certain pressure, the water produces strong rotation movement after flowing tangentially into the equipment through the inlet of the desander. Because the density of sand and water is different, they are experiencing different force under the action of the centrifugal force, the centripetal buoyancy and fluid drag force. Then clear water of low density increases and flows out through the overflow mouth, and dense sand is being exhausted from desanding outlet at the bottom. In a certain scope and condition, the higher inlet water pressure is, the greater desanding rate will be, and more desanders can be used combined in parallel.

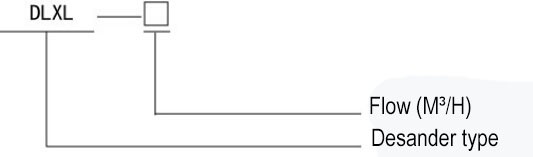

Type demonstration
Technical process
Raw water-Cyclone desanding-Precise filtering-Tank-User
Advantages and application
1. Simple structure, low cost, easy installation and operation, scarcely need maintenance.
2. Compared with expanding tube or buffer tank, it has small size, large handling ability, saving the space also.3. Application range: the clearing for river water, well water, coal-washing wastewater, industrial
beneficiation, solid-liquid separation, fluid degassing, separating immiscible fluid, etc.
4. Application field: air-conditioning water treatment, chemical, petroleum, mining, medical, textile
industry and so on.

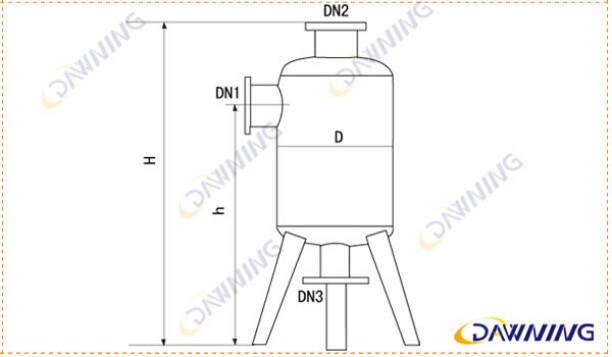

Dimension figure
Models with different size for your choice
Type | Treated water quantity | Inlet water pressure | The average desanding rate | External dimension (mm) | Water inlet DN1 | Water outlet DN2 | Drain outlet DN3 | ||
M³/H | MPa | % | D | H | h | mm | mm | mm | |
DLXL-20S/D | 20 | >0.2 | >96 | 159 | 850 | 650 | 25 | 40 | 20 |
DLXL-30S/D | 30 | >0.2 | >96 | 219 | 960 | 650 | 40 | 50 | 20 |
DLXL-40S/D | 40 | >0.2 | >95 | 325 | 1150 | 1080 | 50 | 80 | 20 |
DLXL-60S/D | 60 | >0.25 | >95 | 325 | 1150 | 1080 | 50 | 80 | 25 |
DLXL-70S/D | 70 | >0.25 | >92 | 426 | 1580 | 1300 | 80 | 100 | 25 |
DLXL-80S/D | 80 | >0.25 | >92 | 426 | 1580 | 1300 | 80 | 100 | 25 |
DLXL-100S/D | 100 | >0.3 | >90 | 426 | 1760 | 1350 | 100 | 125 | 40 |
DLXL-150S/D | 150 | >0.3 | >90 | 530 | 1760 | 1350 | 100 | 125 | 50 |
DLXL-185S/D | 185 | >0.3 | >90 | 530 | 2000 | 1550 | 125 | 150 | 65 |
DLXL-300S/D | 220-300 | >0.3 | >90 | 650 | 2334 | 1800 | 150 | 200 | 80 |
DLXL-400S/D | 300-400 | >0.3 | >90 | 900 | 2600 | 1900 | 200 | 250 | 100 |
Q: Where is your factory?
A:Changsha city,Hunan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent.
Q: How about the delivery time?
A: Usually 7-15 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q:Can you send me a sample?
A: Yes.But it is not for free.
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
Q:How can I contact you?
A:You could contact me by email or Trademanager or others.
We will select suitable model according to water source and actual situation for you.
