2014 New coal washing cyclone for coal washing plant

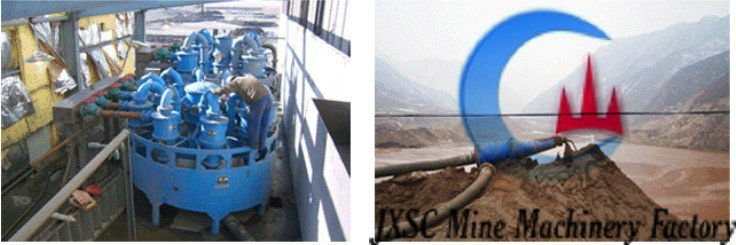

Coal washing cyclone is widely used in coal washing plant, and also in mining separation of nonferrous and ferrous, chemical, ceramics and other industries.and also for minerals classification, desanding, desilting, dewatering, desliming, etc. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine.Choose proper specification of polymer hydraulic cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration.

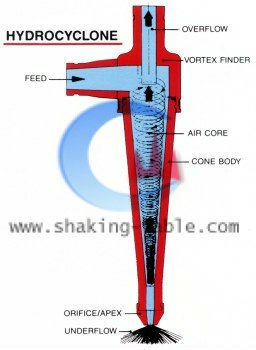

Advantadge of cyclone:
This cyclone with a simple structure, long service life,multi-functional application, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading,classifier,desander and de-sliming equipment of fine -particle material under high mine concentration.

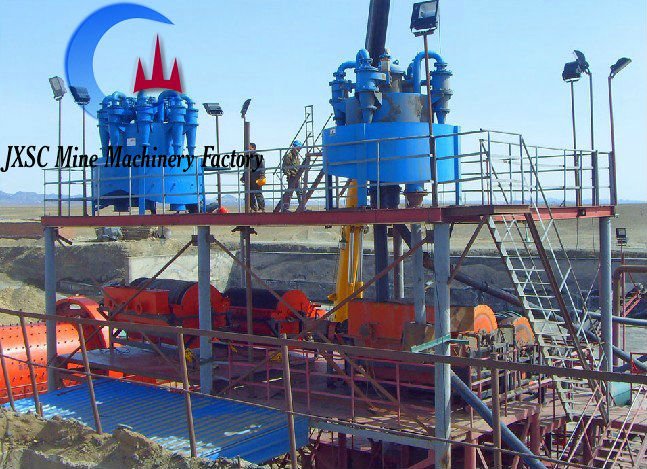

Cyclone applications:
Mineral Classification
Solids Concentration
Dewatering
Desliming
Sludge Clarification
Cyclone parameter:
Specif | Canister Interior Diameter | Cone Angle | Overfall Pipe Dia | Bottom Exit Dia | Max. | Feeding Pressure | Processing Capacity | Classi | Overall Siz | Mach | ||
L | W(mm) | H(mm) | ||||||||||
FX300 | 300 | 20 | 65~115 | 20~50 | 5 | 0.04~0.3 | 45~85 | 50~150 | 665 | 585 | 1310 | 108 |
15 | 40~100 | 665 | 585 | 1505 | 169 | |||||||
FX250 | 250 | 20 | 60~100 | 16~45 | 3 | 0.06~0.35 | 40~60 | 40~100 | 540 | 480 | 1180 | 72 |
15 | 40~100 | 540 | 480 | 1220 | 77 | |||||||
10 | 30~100 | 540 | 480 | 1380 | 83 | |||||||
FX200 | 200 | 20 | 40~65 | 16~32 | 2 | 0.06~0.35 | 25~40 | 40~100 | 435 | 360 | 1050 | 60 |
15 | 30~100 | 435 | 360 | 1115 | 64 | |||||||
10 | 30~100 | 435 | 360 | 1205 | 69 | |||||||
FX150 | 150 | 20 | 30~45 | 8~22 | 1.5 | 0.06~0.35 | 11~20 | 30~74 | 280 | 295 | 690 | 20 |
15 | 30~74 | 280 | 295 | 900 | 22 | |||||||
8 | 30~74 | 280 | 295 | 1270 | 60 |
Note: Because the words limit,we can't upload all of our dimenison online.For more dimension please contact us.
Remark:Design and manufacture according to customers’ requirements.Adopt PU, steel hull lining PU, steel hull lining TG-NM wearable material, steel hull lining high Aluminum porcelain in cyclone.
