Oilfield drilling pressuere-driven sdeparator / sand desander vessel / wellhead desander cyclone

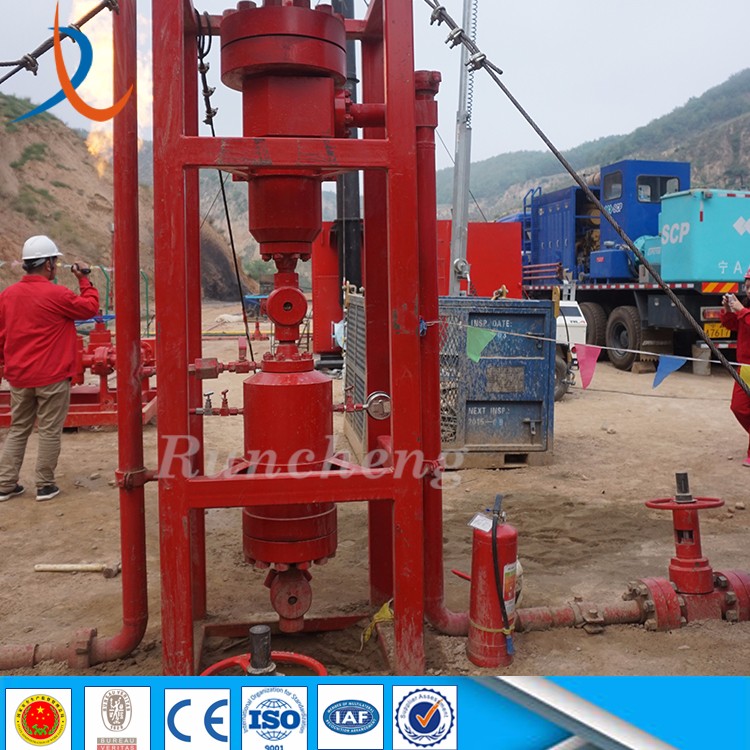

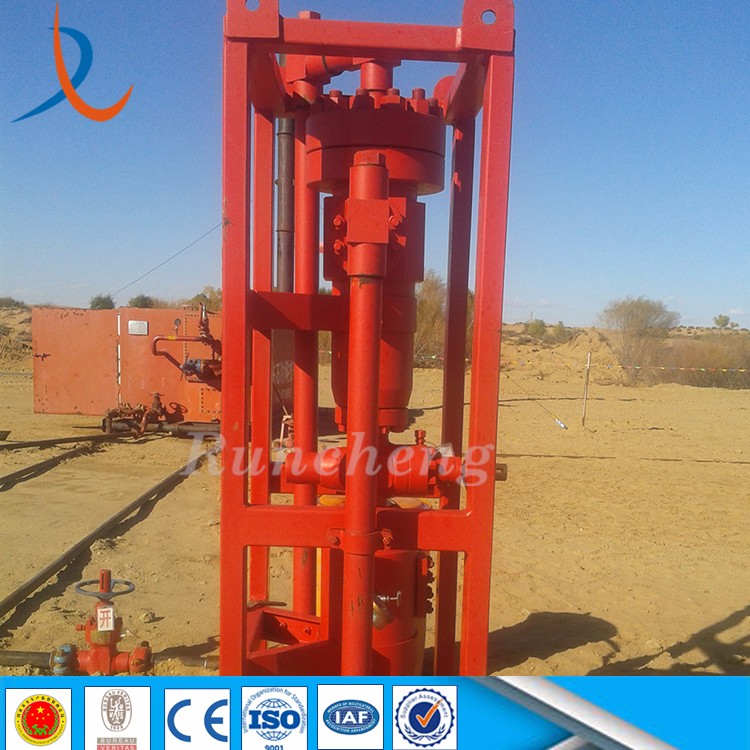

The cyclone desander is a wellhead desander designed to provid efficient and reliable separation of sand and solids from hydrocarbon and water effluent during either the early life of a well (well cleanup) or its producing life (recovery of formation sand).
The technical parameters of our wellhead desander cyclone:
| Maximum working pressure | 105MPa |
| Maximum working tempreature | 120℃ |
| Environment temperature | -40℃~70℃ |
| Gas inlet (DN) | 65mm |
| Gas outlet(DN) | 65mm |
| Working medium | oil,gas,water |
| Inlet and outlet size | 2-9/16" |
| The volume of pots | 46L |
| Gas processing capacity | 1,500,000N lm³/d |
| Anti-sulfur grade | 0.1 |
| Design Codes | API-6A (PSL-3), ASME B31.3 |
Main features of our sand desander vessel:
1.High efficient upstream solids removal
2.Simple structure, easy installation
3.Low maintenance
4.Simple to operate
5.Uninterrupted continuous operation
6.Well-proven technology
Why choose us RC International Petroleum Equipment?
1. Own factories in China mainland
2. Engaged in the industry for over 14 years
3. Achieve patents for intellectual property protection
4.QUALITY SESTEM to make sure the superior high quality
5.Large product series for one-stop service
6.Consulting, suggesting, help find perfect solution
Any question or interest about our sand desander, please don't hesitate to contact with us. It's our honor to help and support your business.
