Hair Washer Making Machine
It means that when the materials are under the vacuum condition,it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly.The materials will be processed in the narrow apace between stat or and rotor by strong energy of motion produced by the mechanical effect.By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly.After reciprocation circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved
Hair Washer Making Machine composition
The vacuum homogenizer is mainly composed of water pot,oil pot, emulsifying pot, vacuum system, lifting system(optional) ,electric control system(PLC is optional) and operation platform, etc.
Hair Washer Making Machine performance and features
1.Triple mixing adopts the the imported frequency converter for speed adjustment, which can meet different technological demands.
2.The homogenizing Structure made through German technology, adopts the imported double-end mechanical seal effect., the mix mum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
3. The Vacuum defoaming can make the materials meet the requirement of being aseptic ,the Vacuum material sucking is adopted.And especially for the powder materials ,and avoid pollution come into the mixing tank.
4. The emulsifying pot lid can adopt Lifting system to ensure easy cleaning and high-efficiency cleaning, product discharge can be bottom discharge or tilting discharge.
Technical parameter of Hair Washer Making Machine
| Model | Effective capacity | Homogeneous | Agitator | Outside Dimension | Total power | ||||||
| KW | r/min | KW | r/min | Length | Width | Height | Maxh | Electric heating | Steam heating | ||
| SZR-HA-5 | 5L | 0.37 | 0-3000 | 0.18 | 0-63 | 1260 | 540 | 1600 | 1850 | 2 | 5 |
| SZR-HA-10 | 10L | 0.75 | 0-3000 | 0.37 | 0-63 | 1300 | 580 | 1600 | 1950 | 3 | 6 |
| SZR-HA-50 | 50L | 3-5.5 | 0-3000 | 1.1 | 0-63 | 2600 | 2250 | 1950 | 2700 | 9 | 18 |
| SZR-HA-100 | 100L | 4-7.5 | 0-3000 | 1.5 | 0-63 | 2750 | 2380 | 2100 | 2950 | 13 | 32 |
| SZR-HA-200 | 200L | 5.5-11 | 0-3000 | 2.2 | 0-63 | 2750 | 2750 | 2350 | 3350 | 15 | 45 |
| SZR-HA-300 | 300L | 7.5-11 | 0-3000 | 2.2 | 0-63 | 2900 | 2850 | 2450 | 3500 | 18 | 49 |
| SZR-HA-500 | 500L | 11 | 0-3000 | 4 | 0-63 | 3650 | 3300 | 2850 | 4000 | 24 | 63 |
| SZR-HA-1000 | 1000L | 15 | 0-3000 | 5.5 | 0-63 | 4200 | 3650 | 3300 | 4800 | 30 | 90 |
| SZR-HA-2000 | 2000L | 15 | 0-3000 | 7.5 | 0-63 | 4850 | 4300 | 3800 | 5400 | 40 |

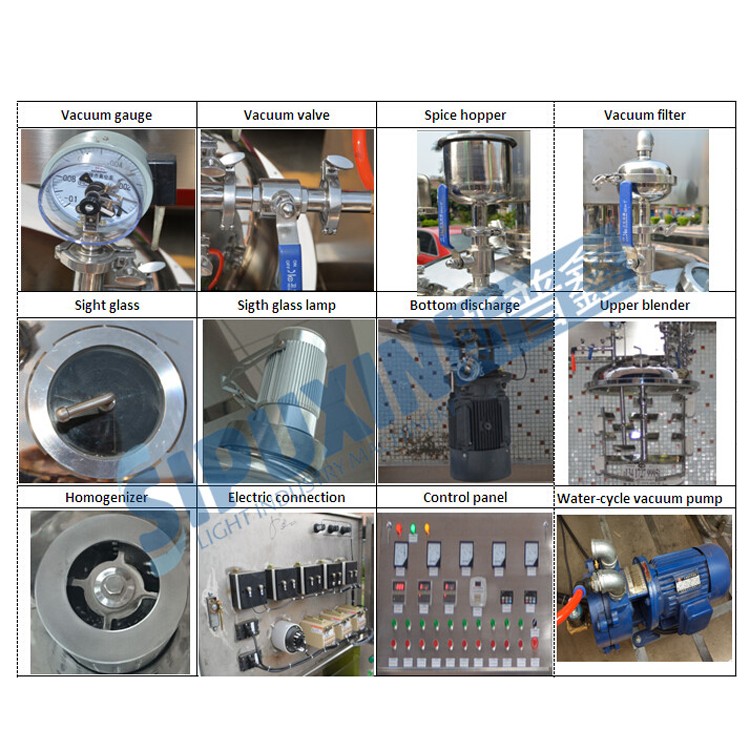

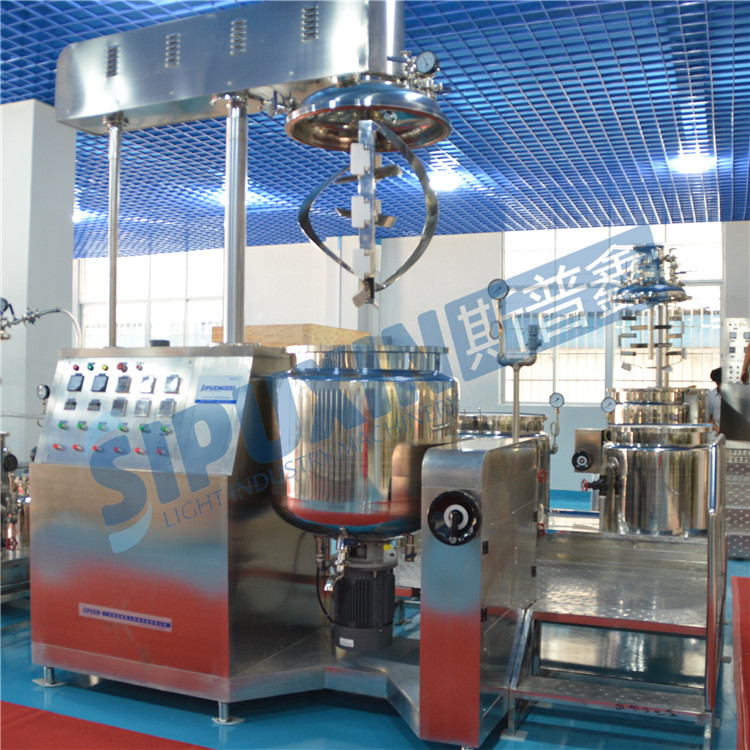

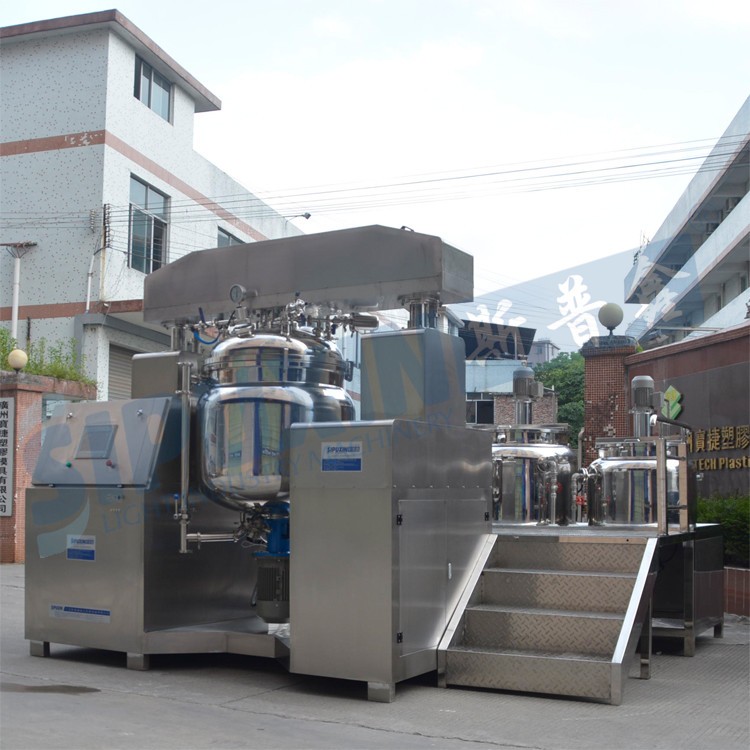

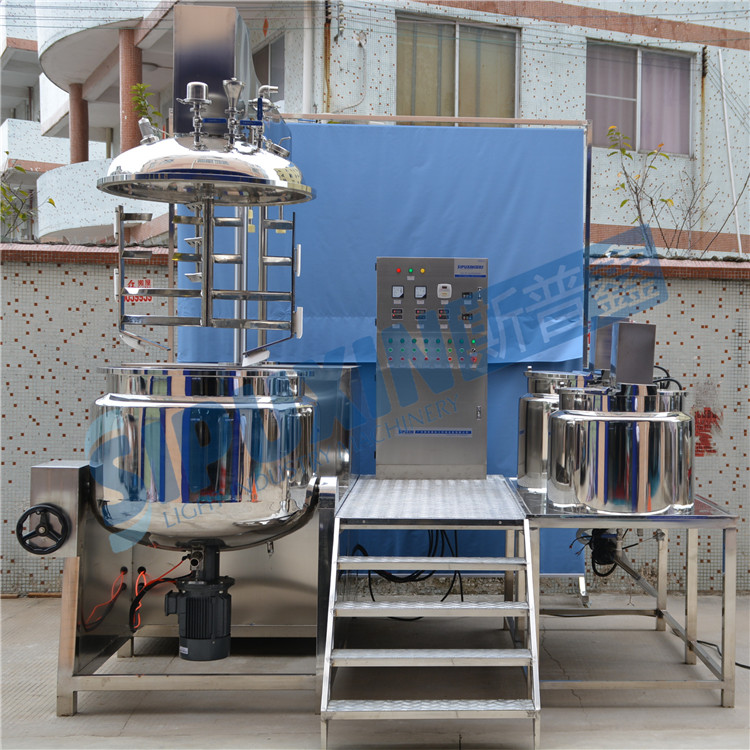

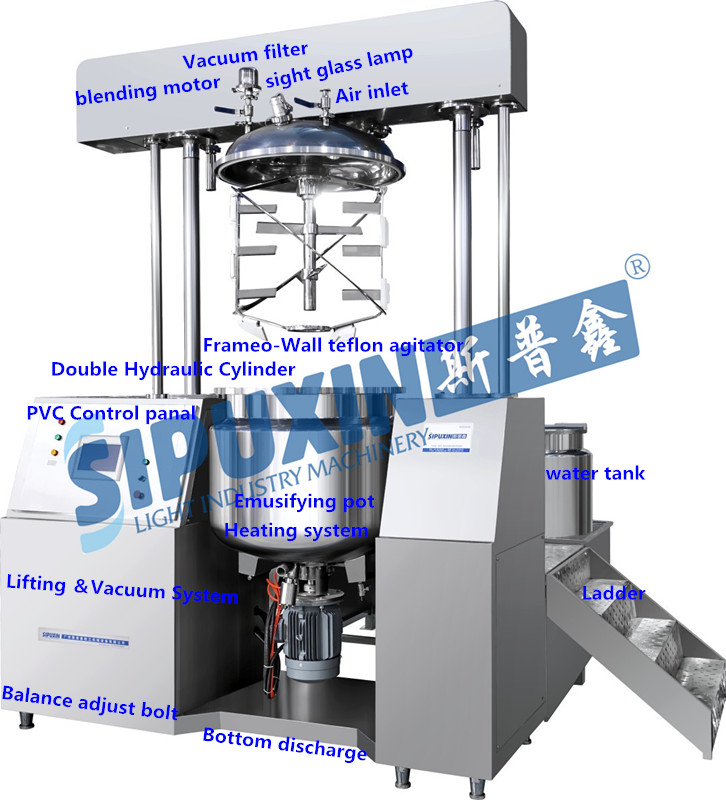

The image of Hair Washer Making Machine
Material sources of parts

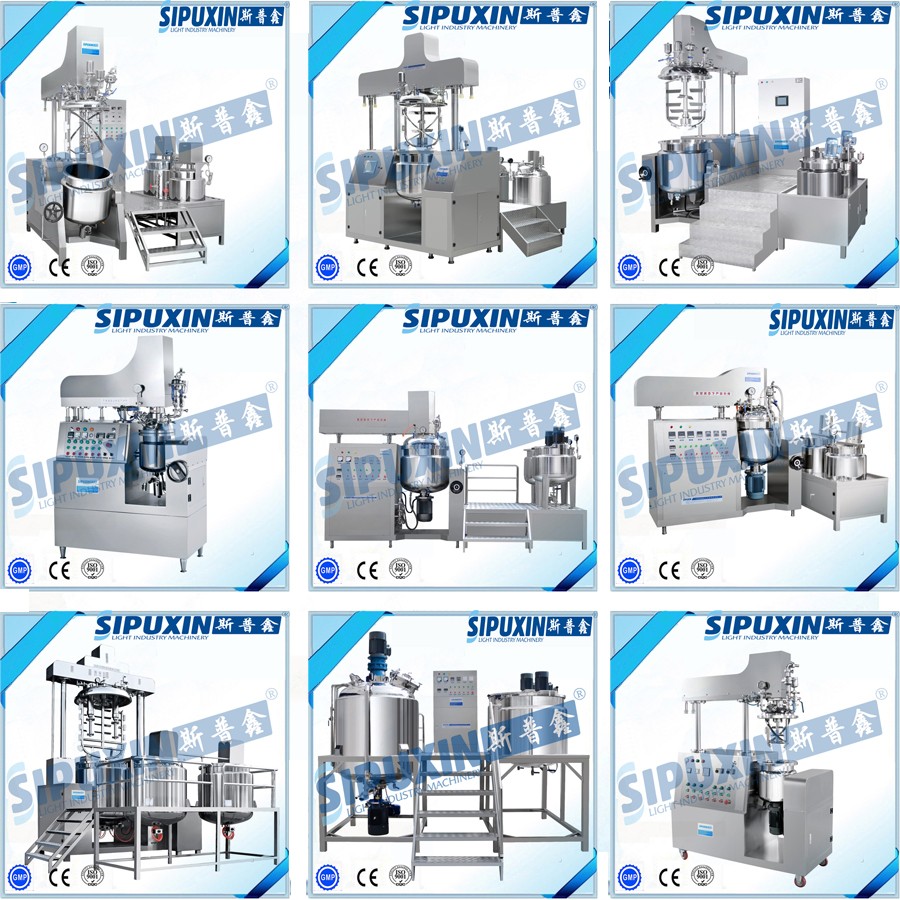

Other machine you may like
Our wooden case for the product are not only seaworthy, but also strong enough to protect the machine from possible damage.
♣Dear customers ,
Thanks for your visiting,The following are good service we offer :Production and export are SPX’s main services. We offer customized production to suit the needs of our customers. Our services range from specific request, to production, to the final stages of designing and packaging your product. Our professional services also allow for a consistent and reliable supply to our customers. We will provide one-stop services to you such as pre-sale service, under-sale service and after-sale service.
* Pre-sale: According to email communication or further more communication to make sure the details about the machine.
* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.

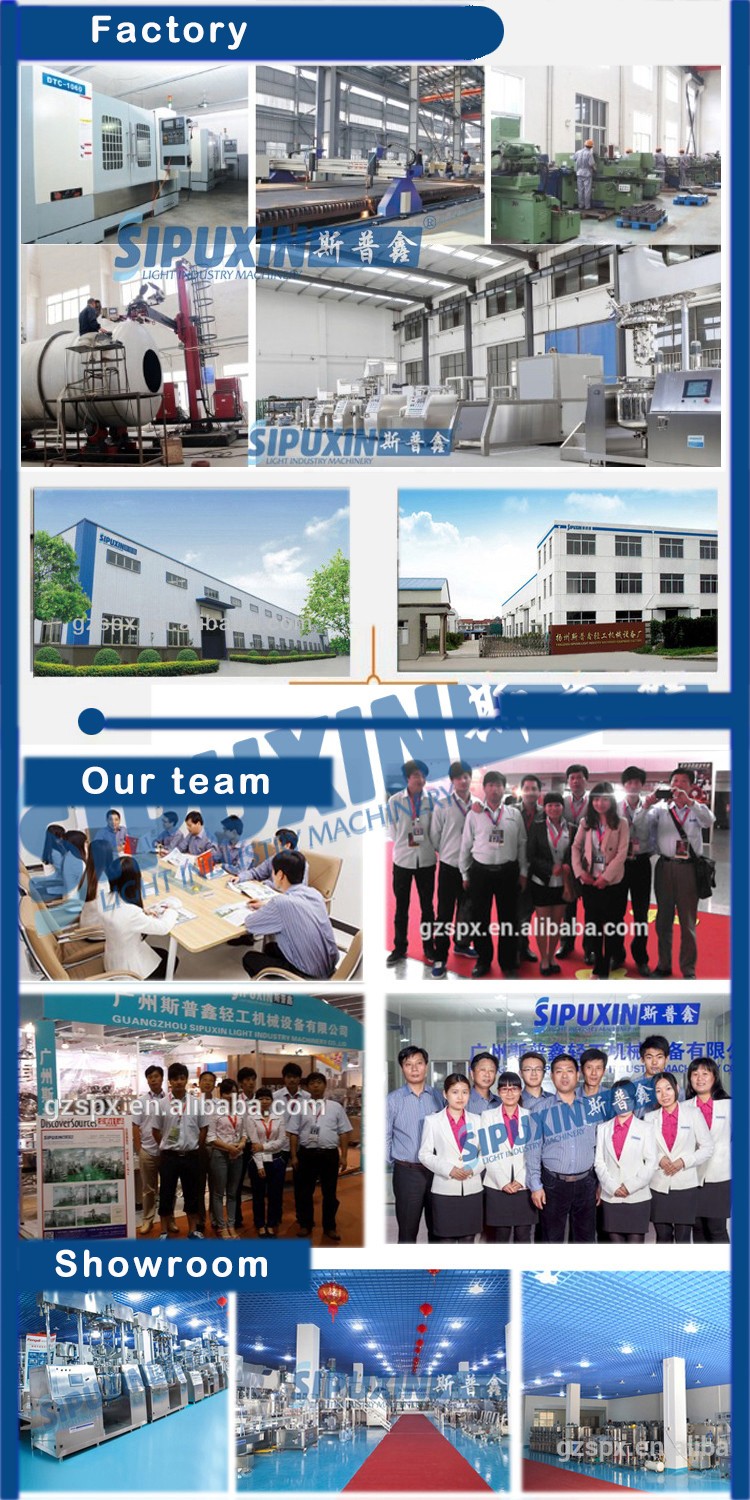

♣ Guangzhou Sipuxin Light Industry Equipment Co.,Ltd.is a professional technology-oriented machinery manufacturer integrating research, development, production, sale, engineering installation,technical consultation and after-sales service.We are mainly engaged in production and installation of equipment for pharmacy, food, cosmetics, chemical industry,etc.,providing one-stop prompt service for customers.
♣Holding the enterprise concept of providing more considerate service,we grasp equipment production standards,control equipment quality through technical innovation and provide high quality production equipment for customers.
♣Our main products:
Vacuum homogenizing emulsifier, high-shear liquid detergent mixer, reverse osmosis water treatment,storage tank, liquid and powder automatic and semi-automatic filling production line, various bottle capping machine, labeling machine, inkjet printer and other cosmetic and perfume whole-set productionline, laboratory equipment, conveyor,etc.
Q: Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
Q: Do you have one in stock?
A:Sorry. We don’t. All products are manufactured according to customer’s requirement;
Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have provlem, we will send our engineer oversea for installation guide;
Q: Where is the nearest port?
A:Guangzhou.
