Factory low price pap p10 p20 bushing for paddle pumps
| Product Name | Du Bushing |
| Max Load Capacity | Static load 250N/mm2 ; Dynamic load 140N/mm2 |
| Max Load Speed | Dry friction 2.5m/s ; Oil lubrication 5.0m/s |
| Max PV Value Limit | Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s |
| Friction Coefficient | Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07 |
| Work Temperature | -195℃~+280℃ |
| Thermal Conductivity | 42w/m k |

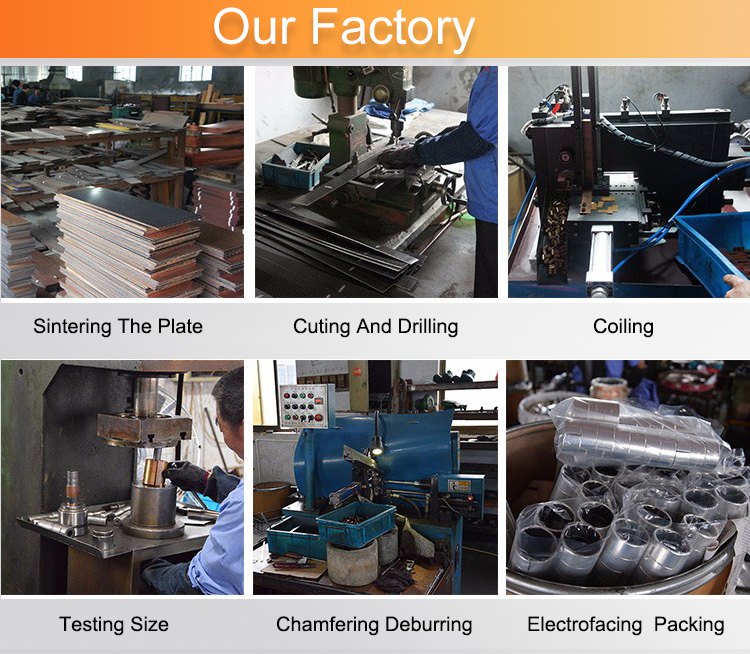

| Production Process | Material cutting~Bronze sintering~PTFE sintering~Sizing~Coiling~Surface finish~Packing |
| Application Feature | Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free |
Product Advantage

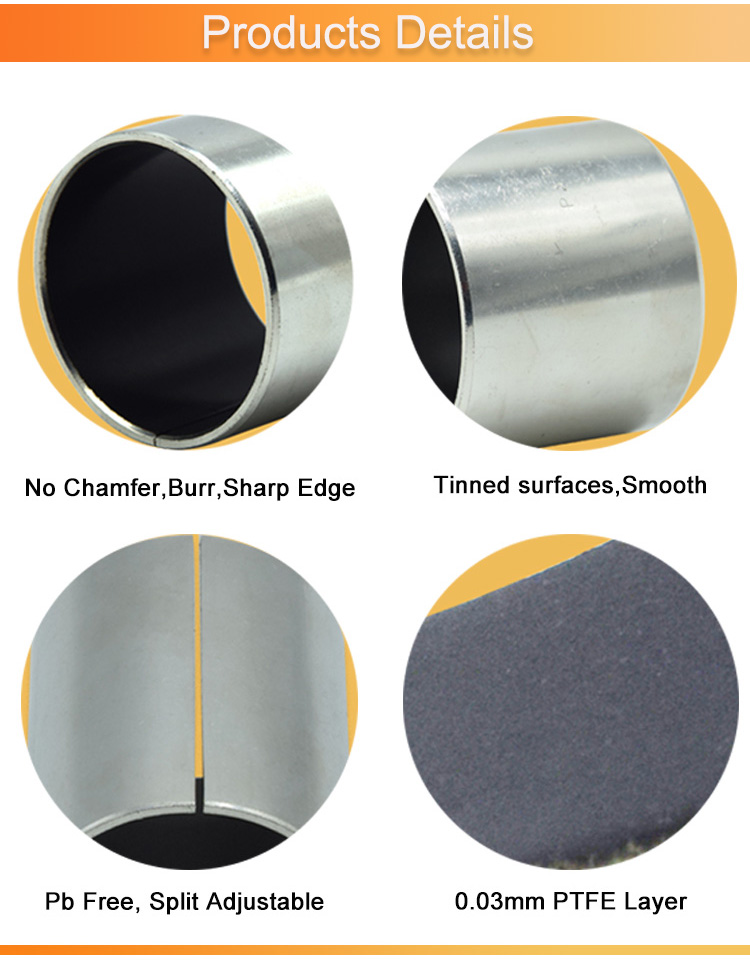

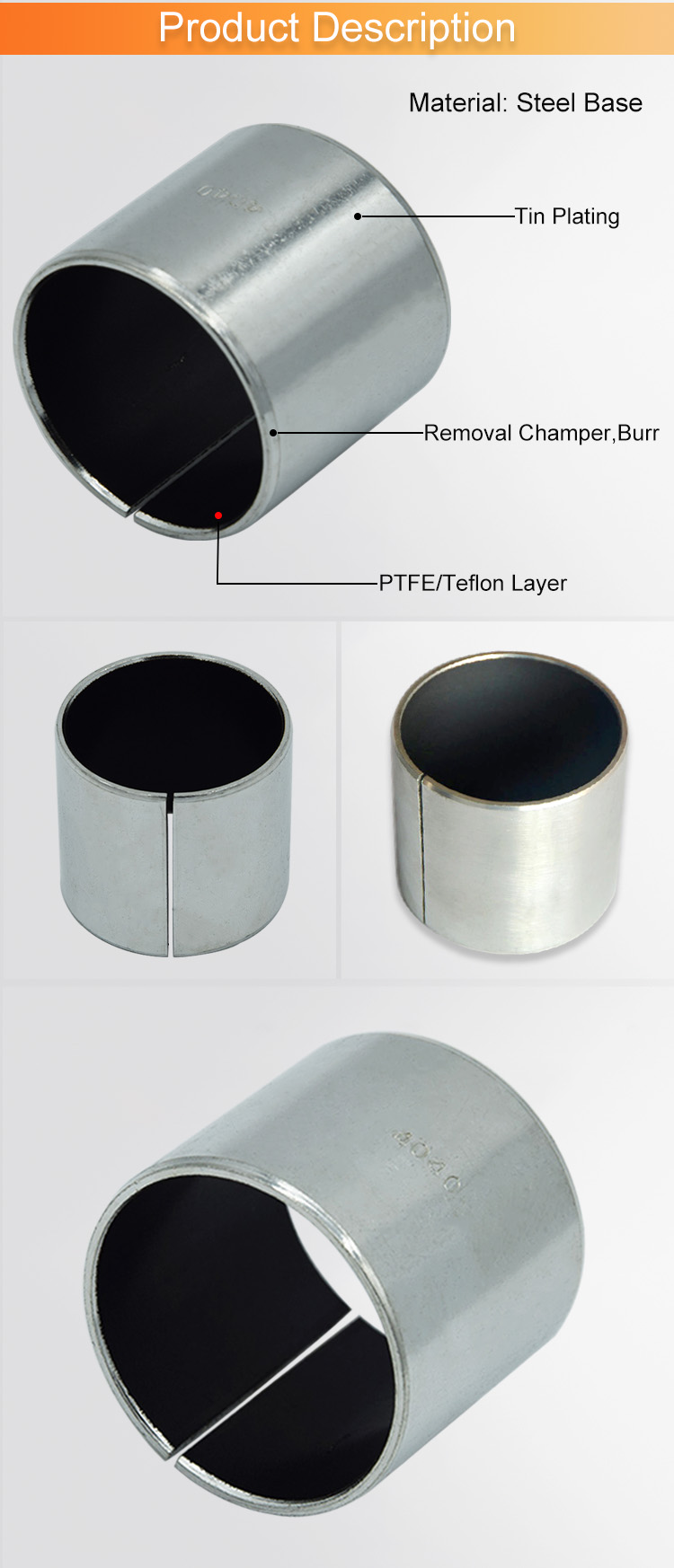

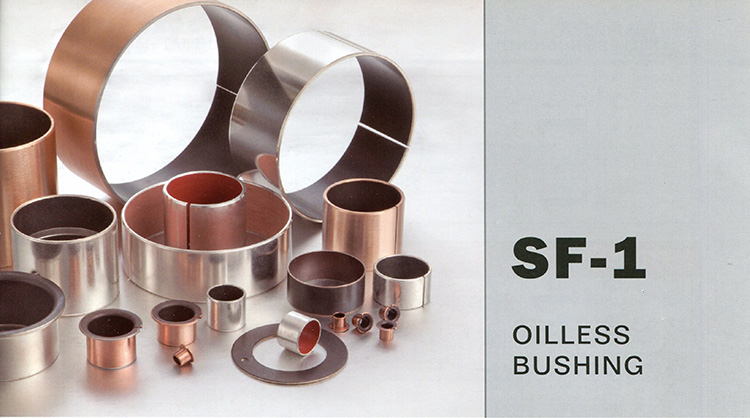

Self lubricating Metal Bushing used high quality low-carbon steel plate as base, Sintered porous bronze as its interlayer and the Compound of Teflon and Lead as its surface. It offers the property of good self-lubrication, low wear, low frication, good sliding characteristics, low noise.
It has been widely applied to various mechanical sliding positions, such as textile machinery, printing machinery, hydraulic pressure transit vehicle, tobacco machinery, gymnastic instrument and agricultural machinery etc.

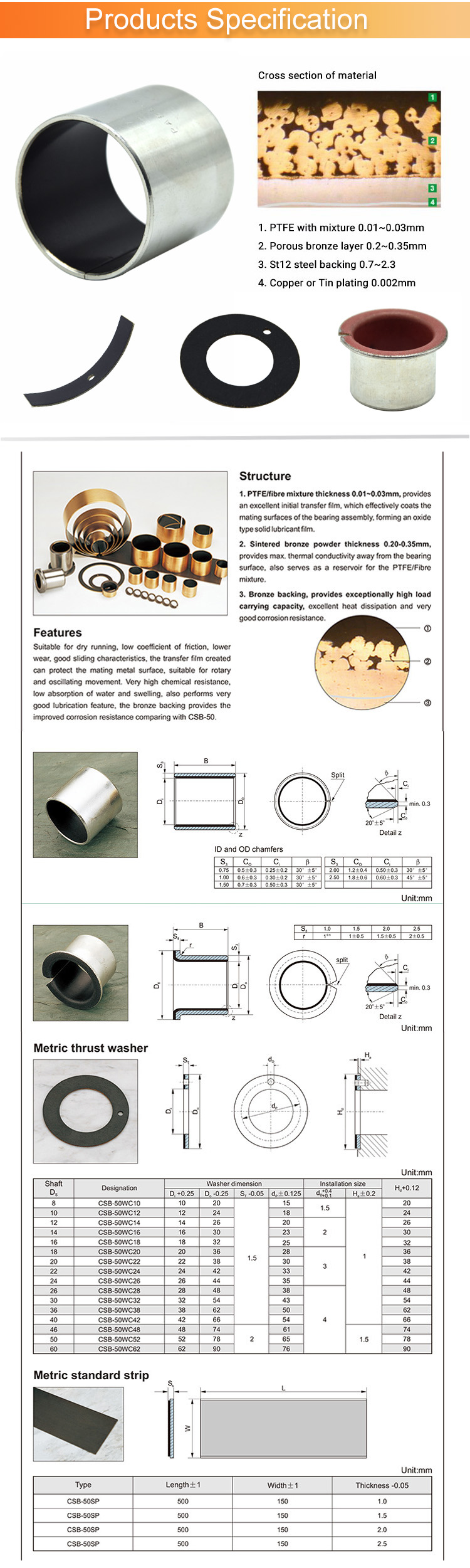

General specification and price reference table:
| Product Model | ID(mm) | OD(mm) | Length(mm) | Unit Weight(g) | Unit Price($) |
| PAP1012 | 10 | 12 | 12 | 3.2 | 0.04 |
| PAP1820 | 18 | 20 | 20 | 8.8
| 0.11 |
| PAP3020 | 30 | 34 | 20 | 30.0 | 0.18 |
| PAP2530 | 25 | 28 | 30 | 31.0 | 0.22 |
| PAP4030 | 40 | 44 | 30 | 58.2 | 0.35 |
| PAP5040 | 50 | 55 | 40 | 121.3 | 0.58 |
| PAP6550 | 65 | 70 | 50 | 193.0 | 0.92 |
| PAP80100 | 80 | 85 | 100 | 468.6 | 2.30 |
| PAP100115 | 100 | 105 | 115 | 665.6 | 3.20 |
Client Notes: The Unit Price may flucluate up and down, the Final Price depends on the Order Amount, All Size can be Customized.
Competitive Advantage
1. We provide products with good quality at best price for clients in quick delivery.
2. 100% custom pass guaranteed.
3. Always immediate and best after-sale service.
4. Flexible and negotiable payment terms.
5. Our clients distribute widely, like in UK, France, Germany, Norway, Poland, Finland, Spain, Russia,USA, Canada, Brazil, Mexico, Australia, Japan, Thailand, Indonesia, Uruguay and many other countries.
Inner Packing: 100 Pieces per Anti-rust plastic film, Vacuum Plastic Bags.
Outer Packing: 1000-2000 Pieces per Hard Carton, Wooden Case, Wooden Pallet.
Shipping Packing: 20 Carton per Wooden Case or Pallet.
Shipping Term: By Express, By Air, By Land, By Sea.
Delivery Term: FOB, CFR, CIF, EXW.
- Dewin Group Limited was founded in March 2011. We are dedicated to manufacture and provide high quality and high performance plain bearing and Powder Metallurgy Sintered metal components.Under the control of ISO9001 and TS16949,with the principle of “Preventation” and“continuous improvement”, we promise to give you real and timely feedback, help you to get qualified products, integrate and optimize your supply chain.
FAQ
1. What are the differetiates between Dewin with other supplier?
Profession and reliability.
Our advantages are multiple available technologies, strong quality assurance, and good at project & supply chain management.
2. Is there a cost for Dewin service?
There is no additional cost above the product and tooling price except third party service.
3. Will I be able to visit the supplier myself?
First, all of our supply partner has undergone a series of screening and audit process, we can provide complete audit report to you.
Secondly, if you want to perform your own independent supplier audit procedure, our representitives can accompany and assit with you to achieve it.
4. How to deal with the quality problem?
a. With our partners we perform APQP at an early stage in each project.
b. Our factory must fully understand the quality concerns from customers and implement product & process quality requirements.
c. Our quality professionals who perform patrol inspection in our factories.
We perform final inspection before the goods are packed.
d. We have 3rd party inspectors who perform final audit checks on the packed goods prior to dispatch from China.
5. Can you take responsibility for me?
Of course, I’m happy to help you! But I just take responsibility for my products.
Please offer a test report, if it was our fault, absolutely we can make a compensation for you, my friend!
6. Do you like to serve the client only with small orders?
We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us.
