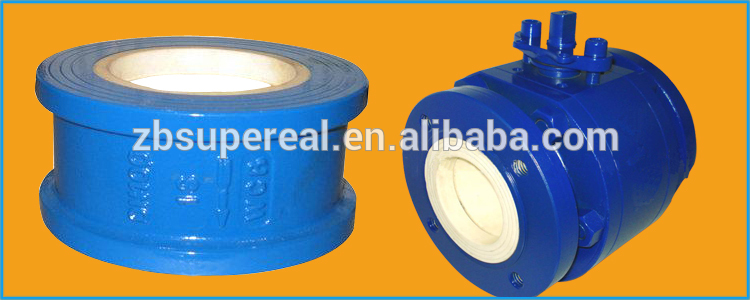

Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets

it is developed for conveying all kinds of sealing parts for valves, it is also used as a wear resistant liner for the steel pipe or other steel equipment.

Technical Feature

  • Shandong, China (Mainland)
  • Ceramic Rings
  • Industrial Ceramic, mechanical seal
  • Alumina Ceramic
  • Customer's Requirements
  • Supereal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~3

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Type
Ceramic Rings
Application
Industrial Ceramic, mechanical seal
Material
Alumina Ceramic
Model Number
Customer's Requirements
Brand Name
Supereal
Product name
Paddle valve used alumina ceramic seal rings
Alumina Content
92 %
Bulk Density
3.6-3.63g/cm3
Moh's Hardness
9
Water Absorption
0.01%
Color
White
Shape
tube
Mode of Shaped
Isostatic pressing and dry pressing
Forming Temperature
1530u2103

DETAIL DESCRIPTION

 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets

Product Description
1. Main Technical Data

   Items

  Index

 Product Name

 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets

  Alumina content

≥92%

  Bulk Density

≥3.63g/cm³

  Rockwell Hardness (HRA)

≥90

  Compressive strength

≥850MPa

  Fracture Toughness

≥4.8MPa.M1/2

  Bending Strength

≥290MPa

  Thermal Conductivity 20℃

20W/m.k

  Coefficient of thermal expansion

7.2×10-6m/×m.k

  Young's Modulus  20℃

277GPa

   Shear Modulus    20℃

113GPa

  Color

White

  Surface Finish: As Fired

1.27mm



2. Brief Introduction:

 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets are molding in one with Isostatic Pressed Technology, it is developed for conveying all kinds of sealing parts for valves, it is also used as a wear resistant liner for the steel pipe or other steel equipment.



3. Application:

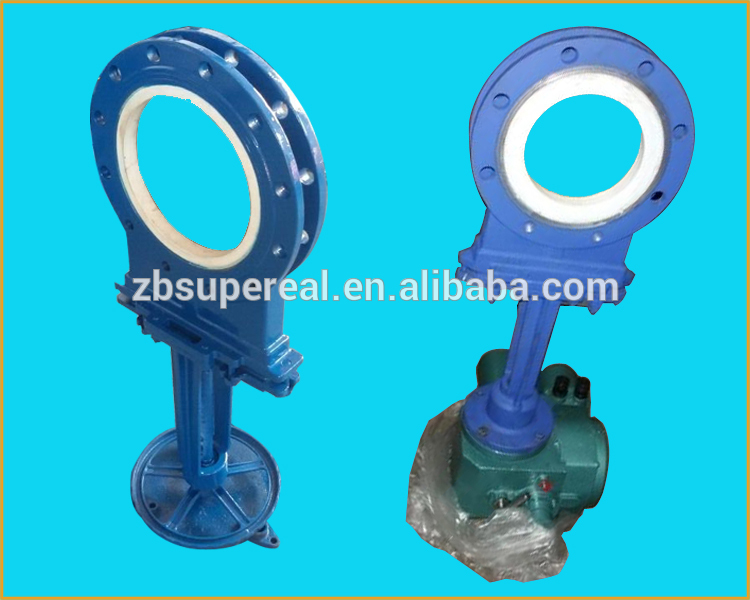

 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets are widely used for  serious abrasive environments, such as gate valves sealing parts, chute liners, cyclone liners, conveyor skirt liners, processing piping liners, hopper or silo liners, screen equipment liners in the industries including ,but not limited to:
♦ Coal Preparation Plants                                          ♦ Coal Fired Power Stations
♦ Mineral Processing Plants                                      ♦ Cement Plants
♦ Chemical Plants                                                      ♦ Steel & Iron Plants
♦ Railway Stations                                                     ♦ Ports







4. Advantages:

 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets has the following advantages, that's why we choose them to lined the steel pipe for thermal coal power plant, cyclone and so on.



5. Normal Specification:
 Paddle valve used alumina 92 Al2O3 ceramic seal ring / Washers /Gaskets can be made to various sizes and specifications, but the normal specifications are as follows:
Note: Contact us for more specification and sizes
Company Information

 ♦ One-Stop Shop for Complete Alumina Ceramic Wear Protection Solutions





Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on high alumina ceramic products ( such as high alumina ceramic plates, rubber backed ceramic plates, wear resistant alumina tiles, abraisive protection ceramic lined pipe, and so on), here you can realize an one-stop shopping for complete wear and erosion protection solutions in wide range of industries including Power Sector, Mining, Cement, Metallurgy, Coal Washing, Steel& Iron Plant, Railway, Port and so on.

As a professional supplier we can promptly supply tailor-made wear protection solutions according to the actual working conditions and requirements to solve the customer’s common problems or particular problems in bulk materials handling or conveying, including to choose the appropriate wear resistant materials, connection method, reasonable and optimum design, stable hand high quality manufactured and perfect after-sales service, all of which are aimed to help users to improve the operational efficiency and service life of devices or equipments.

Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Australia, South Korea, India, Russia, South Africa, Turkey, USA, France and etc.

Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive pricing and outstanding customer service.

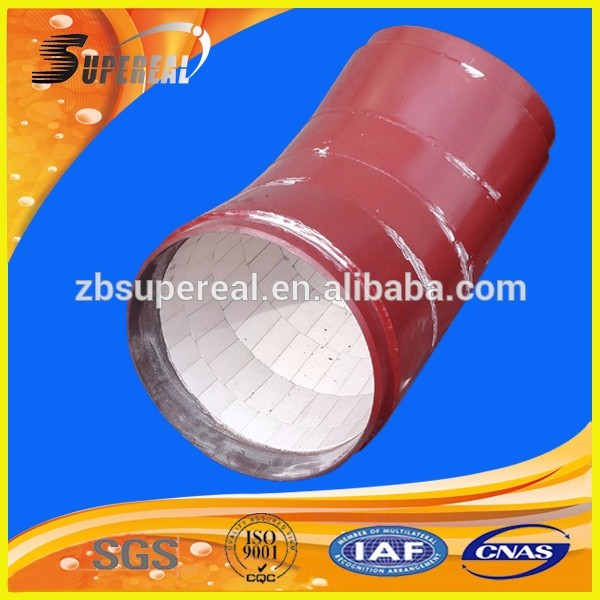

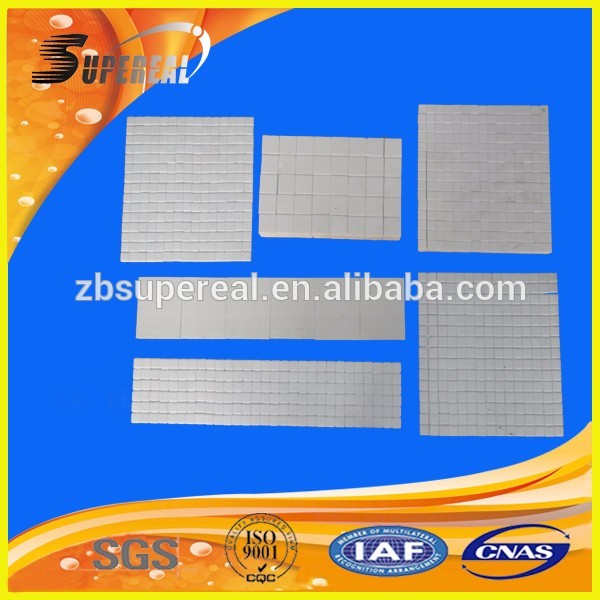

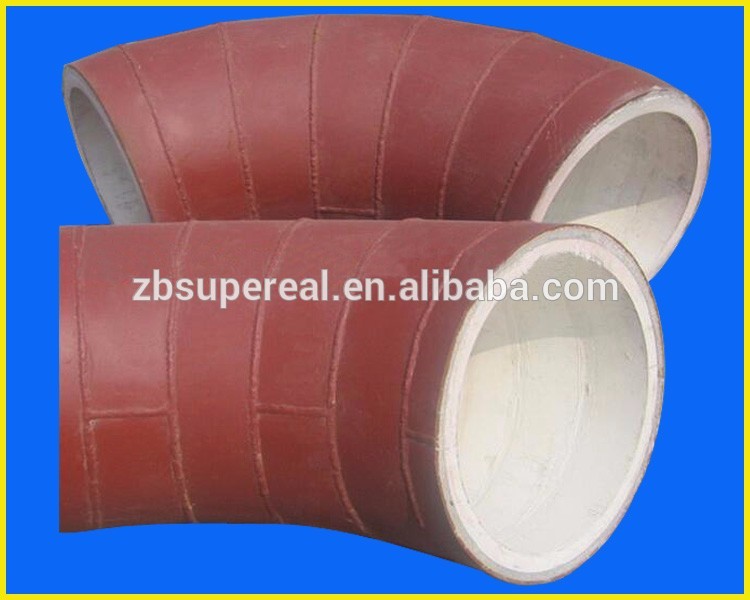

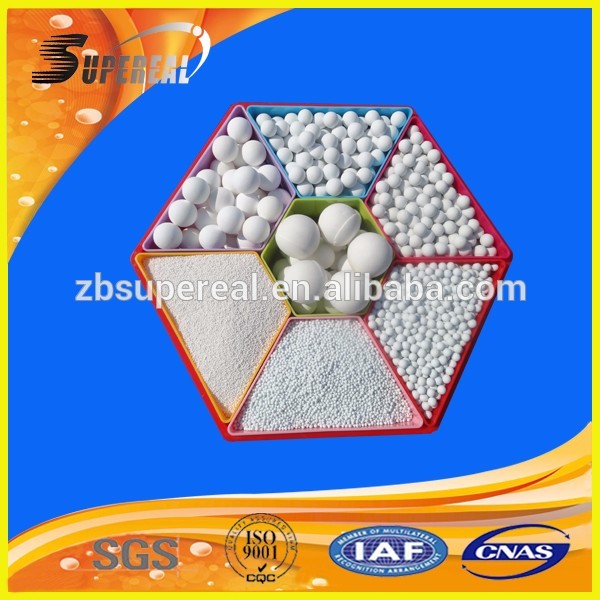

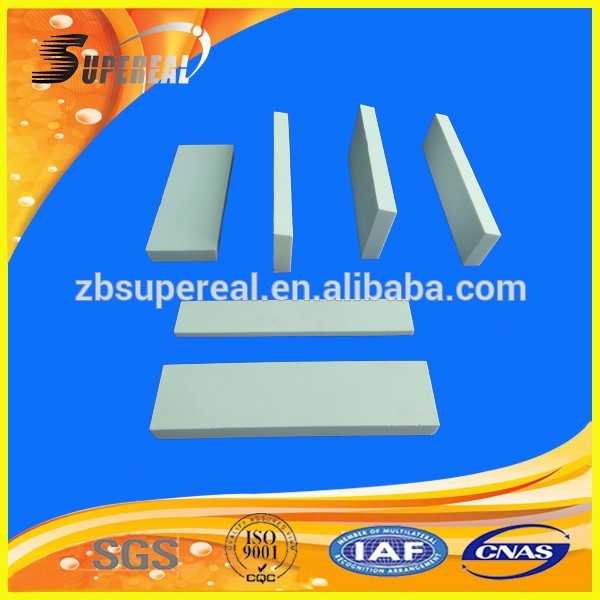

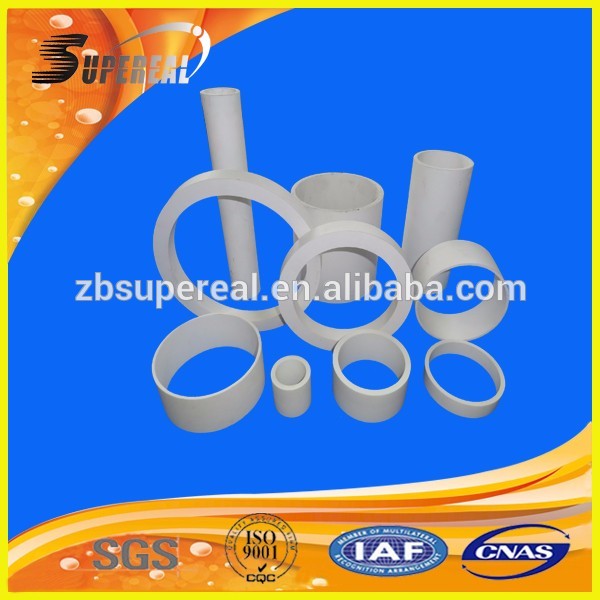

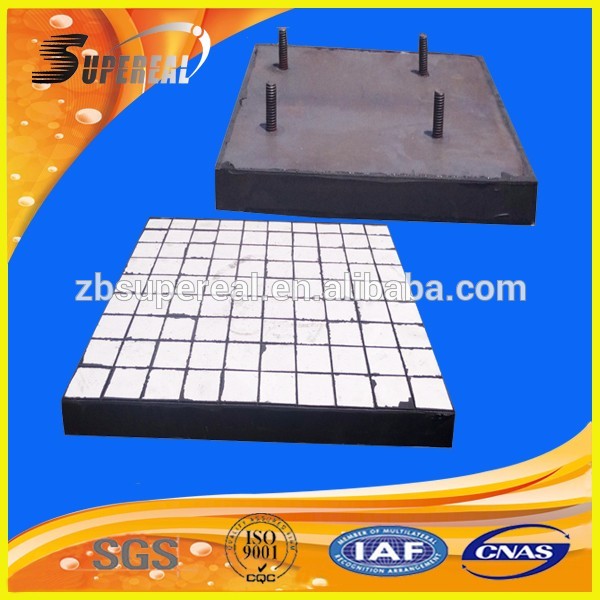

More Products Show:

Our Services

  Professional:  More than ten years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.



 ◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.



 ◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.



◊ Price &Discount: We can provide competitive price and discount for large quantity.



OEM : Customized designs, sizes and logos are acceptable.
