XKJ Series Gear Driven Portable Mixers

PRIMARY PARAMETERS

Brand name

Greatwall

Application

Chemical industry, laboratory

Process input material

Process output material

Place of origin

China

Equipment material

Power (kW)

Depends

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

30 days

Main spare parts

MODEL SPECIFICATIONS

Model	XKJ37E	XKJ55E	XKJ75E	XKJ110E	XKJ150E	XKJ37V	XKJ55V	XKJ75V	XKJ110V	XKJ150V
Power(kw)	0.37	0.55	0.75	1.1	1.5	0.37	0.55	0.75	1.1	1.5
Motor type	TEFC	TEFC	TEFC	TEFC	TEFC	TEFC-Variable	TEFC-Variable	TEFC-Variable	TEFC-Variable	TEFC-Variable
Voltage	220(380)	220(380)	220(380)	220(380)	220(380)	220(380)	220(380)	220(380)	220(380)	220(380)
Shaft(max.)	25*1500	25*1500	30*1500	30*1500	35*1800	25*1500	25*1500	30*1500	30*1500	35*1800
Speed(rpm)	300/360	300/360	300/360	300/360	300/360	0-300/360	0-300/360	0-300/360	0-300/360	0-300/360
Impeller	250	275	300	325	350	250	275	300	325	350

DETAIL DESCRIPTION

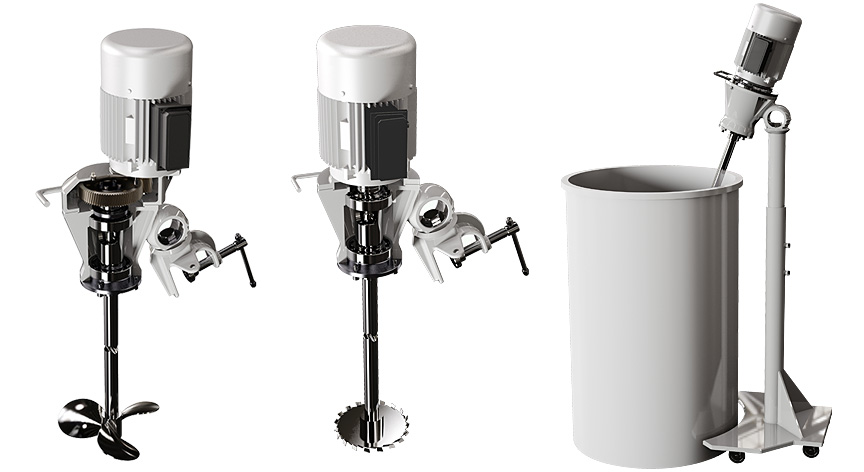

XKJ Series Gear Driven Portable Mixers

Characteristics

Technology: turbine Batch/continuous: continuous Application: for liquidsApplication domain: for the chemical industry, laboratory
Other characteristics: stainless steel, vertical, single-shaft, high-speed, hand-held, mobile

Description

XKJ gear drive portable mixers are the best choice for various, from simple to complex, mixing applications. Various motor choice and adjustable speed by VFD (or speed controller) provide flexible usage. The compact structure and strong housing reduce weight for really portable and at the same time ensure enough strength and service life. With additional pedestal or adapters (for tote or drum), it can also be used at lots of special conditions. One invest will fufill various applications. This is XKJ portable mixers.

The AGMA Quality-10 helical gears provide exceptional strength, durability and also quiet operation. Food grade (USDA H-1) lubrication grease guarantees good gearing and clean operation without contamination.

One piece shaft sleeve design ensure the centering during two bearings which can minimizes whip and vibration.

Nodular iron housing provides extra strong support. Baking finish gives smooth, beautiful surface and maximum durability.

Optimized ball and socket mount allows 360ºrotation and 90ºvertical adjustments. High strength mounting clamp is guaranteed for life against breakage.

Oversize 1" to 1-3/8" diameter shafts provide maximum stability and long life. Stainless steel 316L allows the use for rigorous conditions.

From high energy efficiency impellers to folding impellers for drum or tote, various choices can fufill all your requirements.

Technical specifications for XKJ mixers
