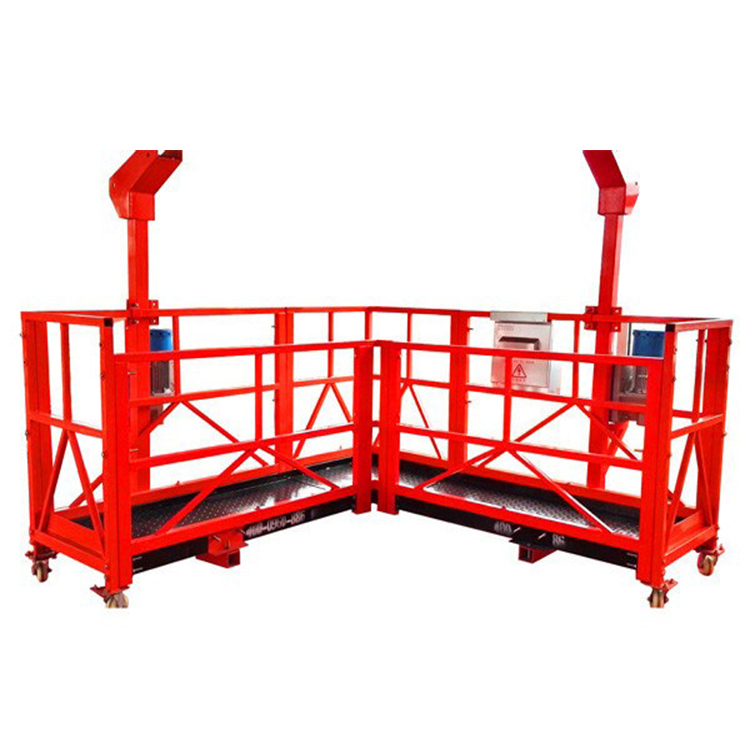

Facade cleaning machine L shape high rise window suspended cage
 |  |  |
 |  |  |

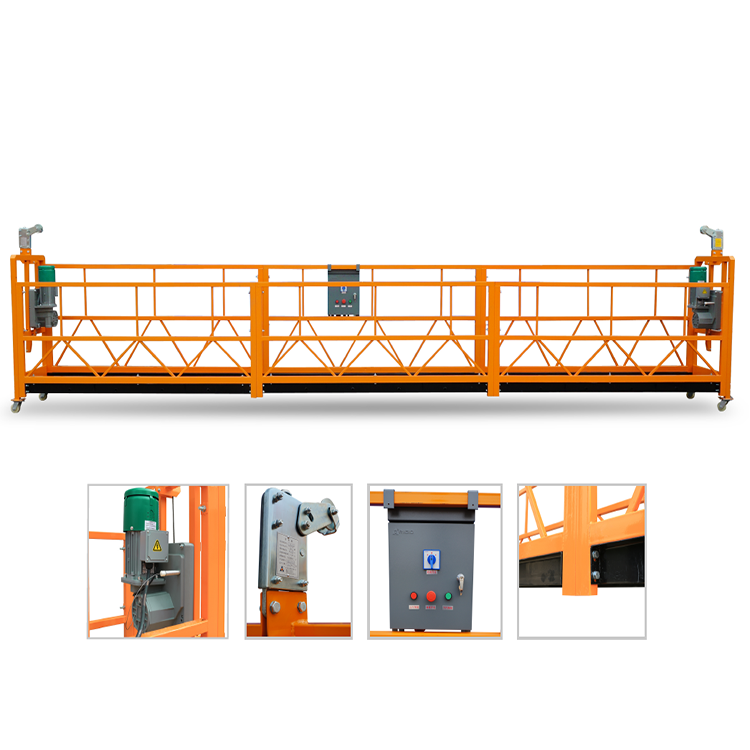

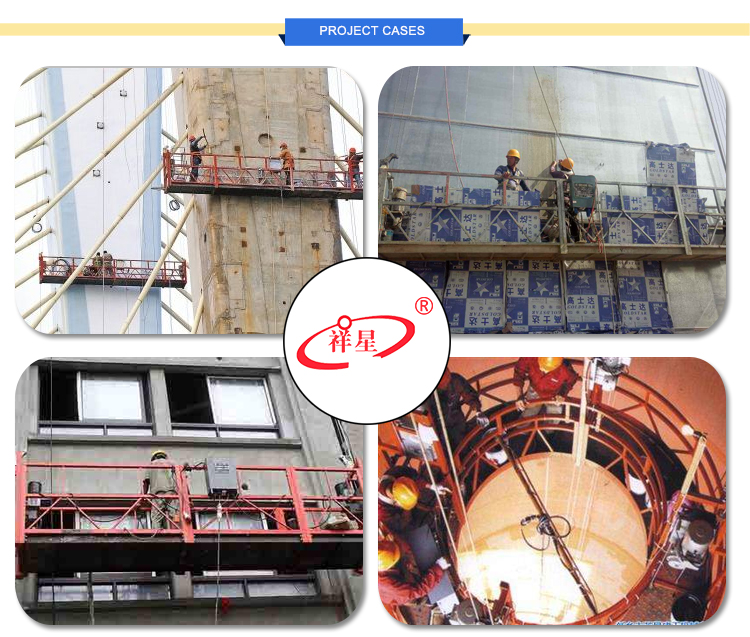

ZLP series high rise window suspended cage is ideal for building facade construction, decoration, cleaning and maintenance. It is also widely used in elevator installing, ship building and repairing, and in other areas such as big-size tank, bridge, embankment and chimney. ZLP series versatile demountable platform provides workers safer, easier and more efficient platform access.
Product Parameters:
| MODEL NUMBER | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2x2 | 1.5x2 | 1.1x2 |

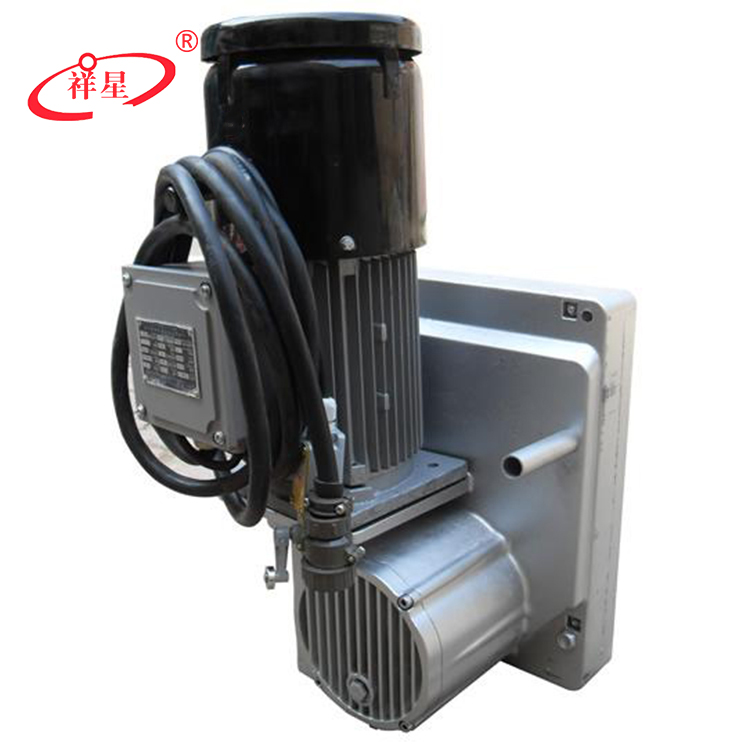

| Hoist Model | LTD80 | LTD63 | LTD50 |

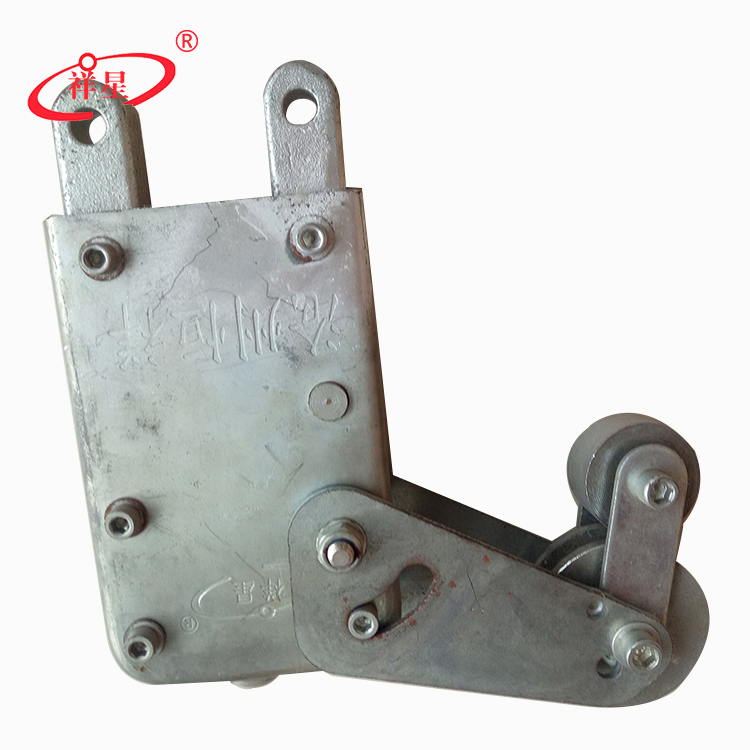

| Safety Lock Model | LSA30 | LSA30 | LSA30 |
Dimension of platform L x W x H(mm) | 7500x690x1230 | 6000x690x1230 | 5000x690x1230 |
suspension mechanism
weight(kg)
| 350 | 350 | 350 |
| Counterweight(kg) | 1000 | 800 | 750 |
| suspension platform | Steel | 600 | 500 | 400 |
| weight(kg) | Aluminum | 440 | 340 | 290 |

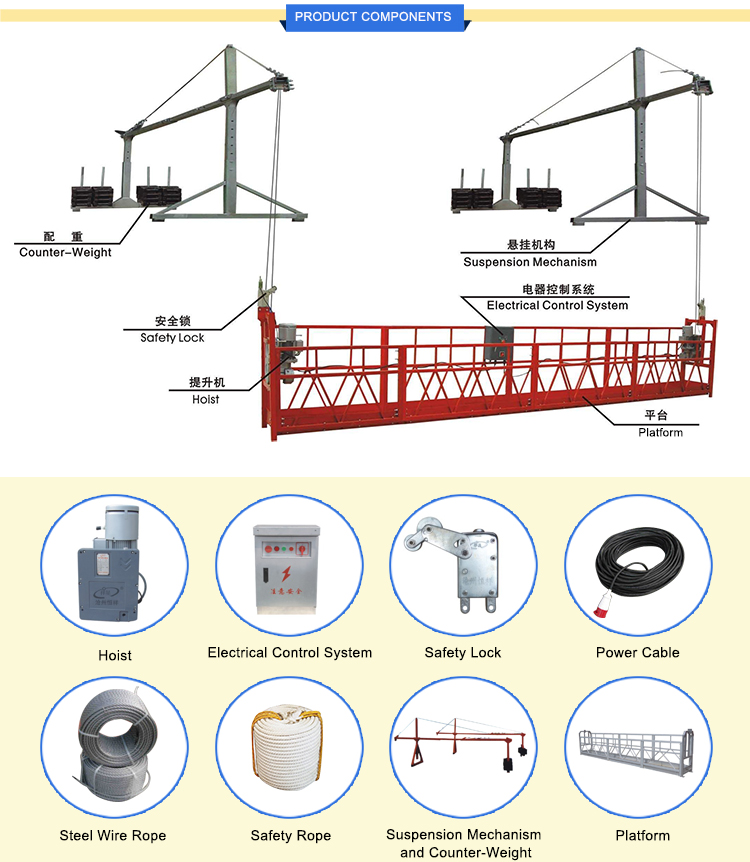

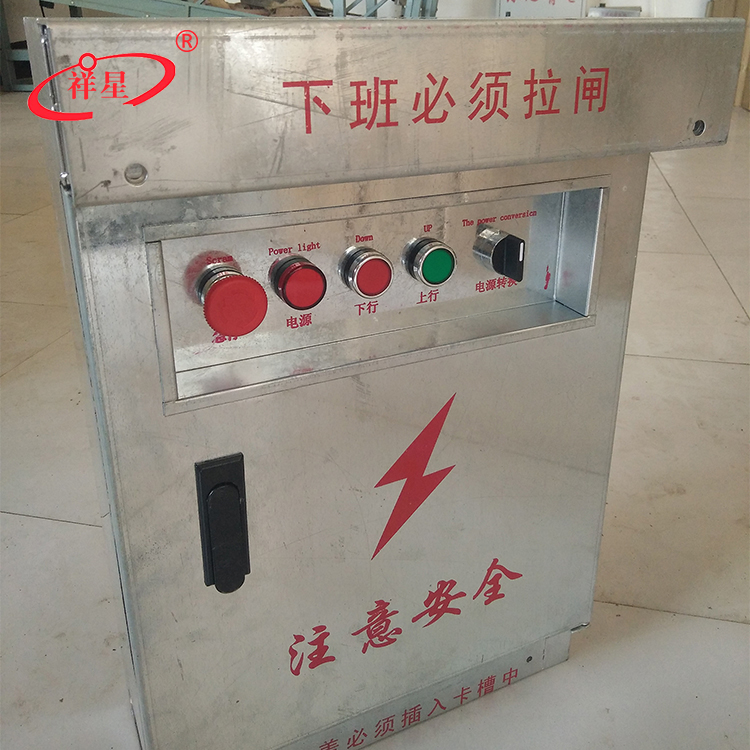

| Note | Suspension platform including hoist, safety lock, electric control panel. |

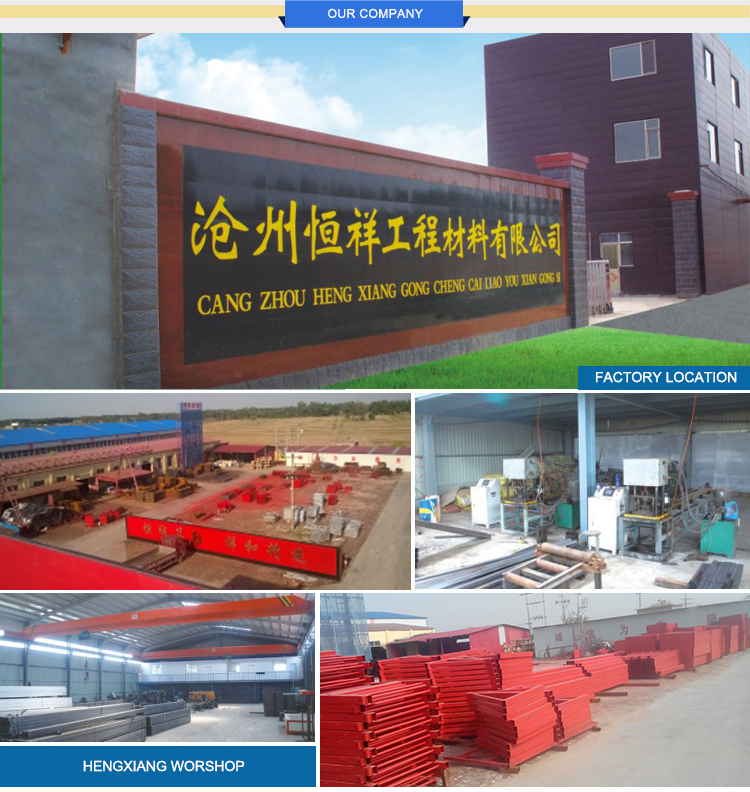

Cangzhou Hengxiang Engineering and Construction Material Co., Ltd is a professional manufacturer and developer for construction building materials. Our main products are high altitude electric hanging platform, climbing scaffolds, mobile tower scaffolds, Type 42 swivel coupler, security lock, scaffolding hoist etc.

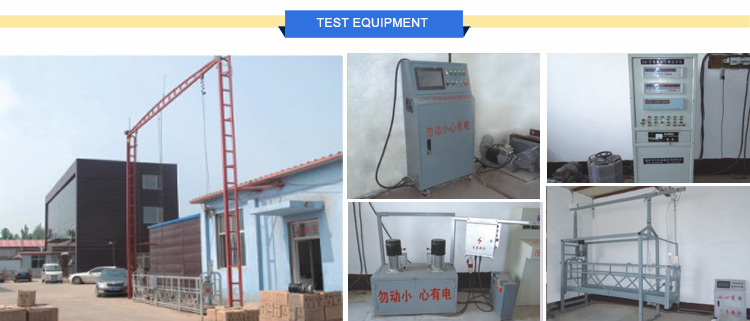

We have earned good reputation and trust from our clients, since our products being launched on the market. Product’s Quality and Human Life first is always Hengxiang’s concept, all our products have to past strict tests during production and before sending out of factory. Best technology, Best quality, Best services has been always our pursuit.
We look forward to establishing business relations with friends from all around the world. You are welcomed to visit us and contact us.
