Purposes:

The whole process of sample feeding, preparation, dispersion and sample release is performed in a low-temperature water bath, preventing re-aggregation due to the Brownian motion at high temperatures.

Suitable for use by colleges, universities, research institutes, chemical, dyeing and weaving, new material, new energy source, and biomedicine companies, etc.

Preparation and dispersion of graphene, nano-carbon tubes and carbon powder;

.Preparation and dispersion of high-molecular nano-materials;

.Preparation and dispersion of nano-coatings;

.Preparation and dispersion of nano-battery electrolytes and slurries;

.Preparation and dispersion of nano-inks;

.Preparation and dispersion of nano-dyes;

.Preparation and dispersion of nano-paints;

.Preparation and dispersion of nano-drugs;

.Other……

Features:

.Exclusive dispersers in the world in which the whole process of sample feeding, preparation, dispersion and sample release is performed in a 4-6℃ low-temperature circulating water bath, preventing the re-aggregation of nano-particles after dispersion effectively.

.Freely adjustable within 4-80℃, possible to change sample liquidity through temperature rise, convenient for preparation and dispersion

.World-class pressure rating of (207MPa), largely meeting user requirements

.Min. sample treatment capacity: JN-Mini (3ml), JN-02FS (5ml)

.High resistance to organic solutions

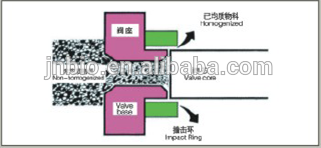

.Preparation and dispersion valve base 100% made of diamond, with wear resistance nearly 100 times that of porcelain or tungsten carbide

.Preparation and dispersion valve made from diamond, without ground powder to be blended into the feed solution, ensuring pure composition and color of the raw material

.Hydraulic main power, capable of free shutdown, starting and pause under high pressures while maintaining pressure

.Capable of no-load operation, being vented by just pressing with a stainless steel needle gently after charge without changing pressure (patented technique)

.Food- and pharmaceutical-grade advanced pollution-free materials, In-situ cleaning and disinfection

.High-strength full-stainless steel ultra-high pressure pump

.Physical disruption, eliminating chemical residue

.All preparation and dispersion containers and pipes made of 316L stainless steel, with excellent pollution and corrosion resistance

.Saving also as an agile safety valve with excellent safety

.Easy pressure regulation without handling the spring hard

.Metal sealing mainly, without rubber seals and consumables

.Independent intellectual property rights and core techniques, with ease of maintenance by widespread engineers

Figure 1 Cold field scanning electron microscope, 100,000 times; material: nano-chromium, nano-titanium, nano-copper, nano-carbon tube, and other compounds; original grain size: 40 nm

Figure 2 Cold field scanning electron microscope, 50,000 times; material: nano-chromium, nano-titanium, nano-copper, nano-carbon tube, and other compounds; original grain size: 40 nm

Figure 3 Comparison of liposomes before and after nano-emulsification

Figure 4 Grain size analysis chart of nano-emulsified liposomes

Figure 5 Nano-pulp

Figure 6 High-molecular material

Figure 7 Dyeing and weaving effect

Additional features of JN-10FS, JN-30FS and JN-100FS (touch screen and PLC control):

. Freely performing various operations with gentle touch only;

.Saving historical data (for one week), consistent with the GMP standard;

.Alarm reminding and over-warning line self-protection to prevent operational errors;

.Digitally displayed system and operating pressures;

.Saving historical alarm records for the convenience of inquiry and repair;

.Displaying the operating pressure curve in real time;

.Saving records for one week;

.Password control for operation authority;

.Emergency stop switch that can cut off the power in case of an emergency to protect the unit and the operator

Key technical parameters:

Pressure

0-207MPa (2070bar or 30,000psi)

Flow rate under max. pressure

2.1 L/hr (35ml/min)

Min. sample treatment capacity

5ml

Power supply

220V, main unit 1.5kW + cooling 0.75kW

Low-temperature circulating water bath

Whole preparation and dispersion process completed in a 4-6℃ circulating water bath

Specifications:

Item

Qty.

Power/ voltage (kW/V)

External dimensions (mm)

Length (L)

Width (W)

Height (H)

Main unit

1

1.5/220

607

555

880

Cooling system

1

0.75/220

525

635

870
