Principle

After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Features

The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
The production procedures are simple and the operation and control are easy. The liquid with moisture contents of 40-60 %( for special materials, the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and management.

II. Equipment parameters

Product information

The name of product: Liquorice

Inlet temperature: 130-200°C (adjustable)

Exhaust temperature: 75-100°C (adjustable)

Slide content before drying: 50%

Finial humidity: 1-2.5%

Input capacity: 27-60Kg/h

Max. Water evaporation: 25Kg/h

Machine material: Contact parts are SUS316, other parts are SUS304.

Our machine has explosion proof control system.

Heating source: steam for heating (pressure: 6-8Kg)

Design Parameters

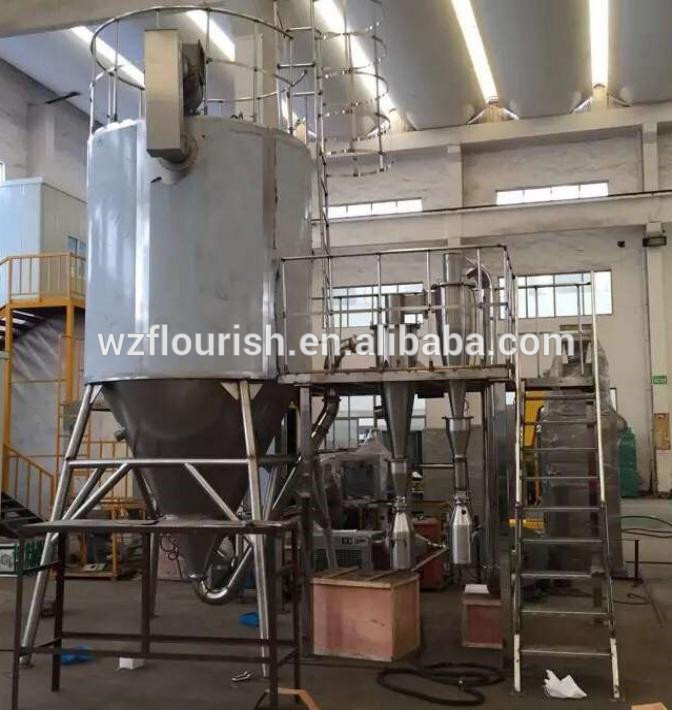

- Spec.: LPG-25 High-speed Centrifugal Spray Dryer

- Dia. of drying tower: Ø2200mm

- Height of drying tower: 6000mm

- Primary water: 50%

- Final water: 1-2.5%

- Output capacity: 10-20Kg/h

- Material temperature: 20℃ (Normal temperature)

- For the Atomizer  1. Model: LPG-50

                 2. Rotation speed: 15500~20000r/min

                 3. Disc diameter: φ100mm

                 4. Power: 1.5Kw, with frequency control

- Compressed air consumption: 0.1m³/min

-Steam consumption: 50Kg/h

1. Q: How do I pay for my purchase order?

      A:   T/T, L/C at sight, Escrow, Paypal.

2. Q:  What's the MOQ?

    A:  Our MOQ is 1 unit.

3. Q:What's the delivery time?

    A: It will take about 25-35days to finish an order, but the exact time is according to actual situation.

4. Q: Can I have my own customized product?

    A: Yes, your customized requirements for color, logo, design, mark, etc.  are very welcome.

5. Q: Do you have quality control?

    A: Yes, we attach  great performance to quality control.

6. Q: How about the warranty control?

     A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
