Instruction

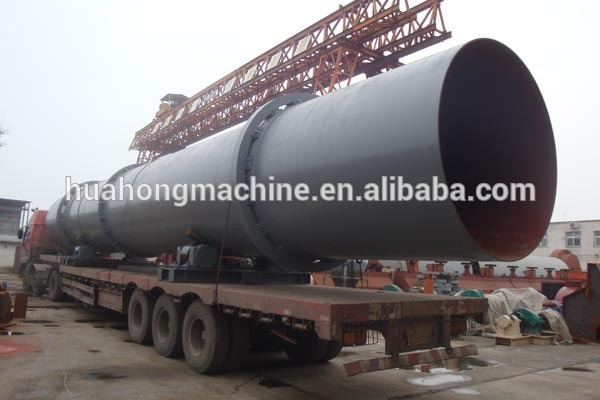

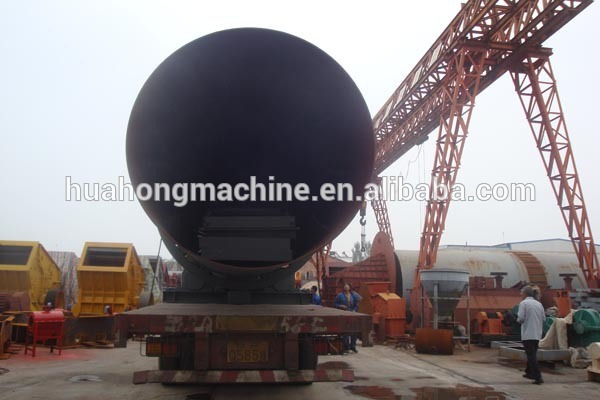

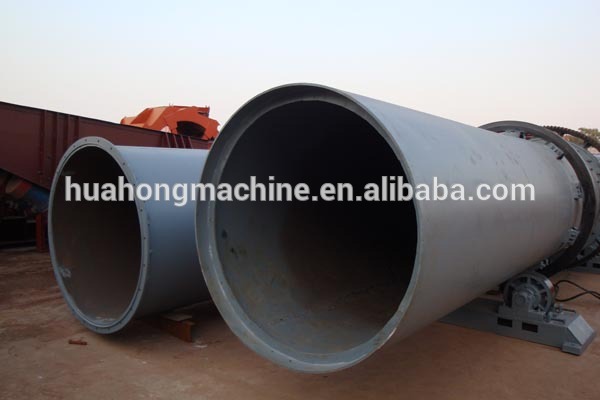

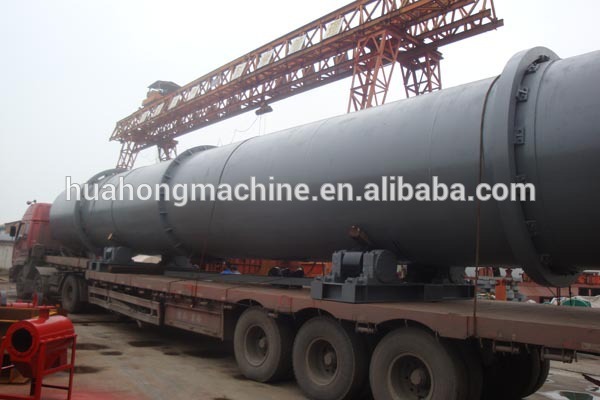

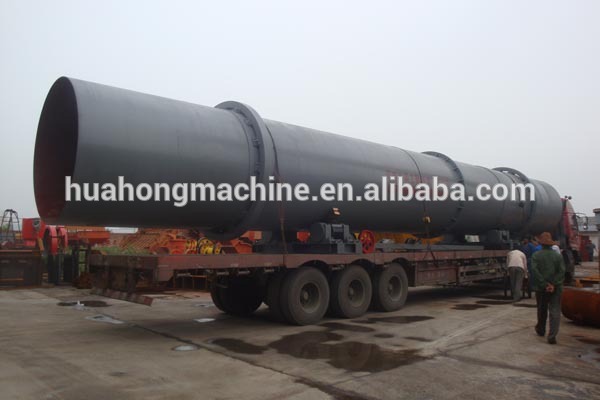

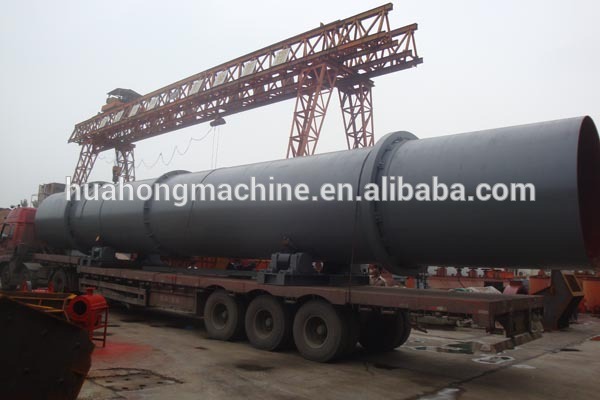

The rotary cylinder dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.
Application
1. In our company, this series applies the new type scatter plate device; it can guide direction, flow on average and scatter the material and so on.
2. And it can make the material in the thin, average and complete condition.
3. Contact the heat airflow completely and use the heat energy fully. Moreover, it adopts reasonable operational parameter, and compared with general drier, it reduce the coal and power consumption above 10-15%, and increase the output above10-15%.
4. At present, it is widely used in cement and mining industries.
Working principles
1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.
2. Materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together.
3. Materials go to the lower side by gravity when the barrel is rotating.
4. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.
Feature
1. Our dryer adopts new Spreading plate device, which has guidance, flow, material functions
2. It can make the material content in the dryer radial cross section to full uniform, material will become thin and all.
3. The state of the heat flow entirely, to achieve the purpose of make full use of the heat.
4. Our dryer choose reasonable operating parameters, coal consumption and power consumption of general baked dry machine more than 10-15%, one machine yields above 10-15%.
5. It has been widely used in the cement and mineral processing enterprise.
Main technical parameters
| Model | Drum diameter(mm) | Drum length(mm) | Gradient(°) | Rotate speed(r/min) | Weight(t) | Motor power(kw) |
| Ø0.6x6 | 600 | 6 | 3-5 | 3-8 | 2.9 | 3 |
| Ø0.6x8 | 600 | 8 | 3-5 | 8 | 5.1 | 4 |
| Ø0.8x10 | 800 | 10 | 3-5 | 7.2 | 6.9 | 4 |
| Ø1.0x10 | 1000 | 10 | 3-5 | 6.73 | 7.5 | 5.5 |
| Ø1.2x12 | 1200 | 12 | 3-5 | 5.8 | 13.1 | 11 |
| Ø1.5x12 | 1500 | 12 | 3-5 | 4.8 | 22.3 | 15 |
| Ø1.8x14 | 1800 | 14 | 3-5 | 3.2 | 45.8 | 30 |
| Ø2.2x18 | 2200 | 18 | 3-5 | 3 | 50.3 | 37 |
| Ø2.4x20 | 2400 | 20 | 3-5 | 2.83 | 78.4 | 45 |
| Ø2.8x24 | 2800 | 24 | 3-5 | 2.59 | 97 | 75 |
Zhengzhou Huahong Machinery Equipment Co., Ltd mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
