Product Description

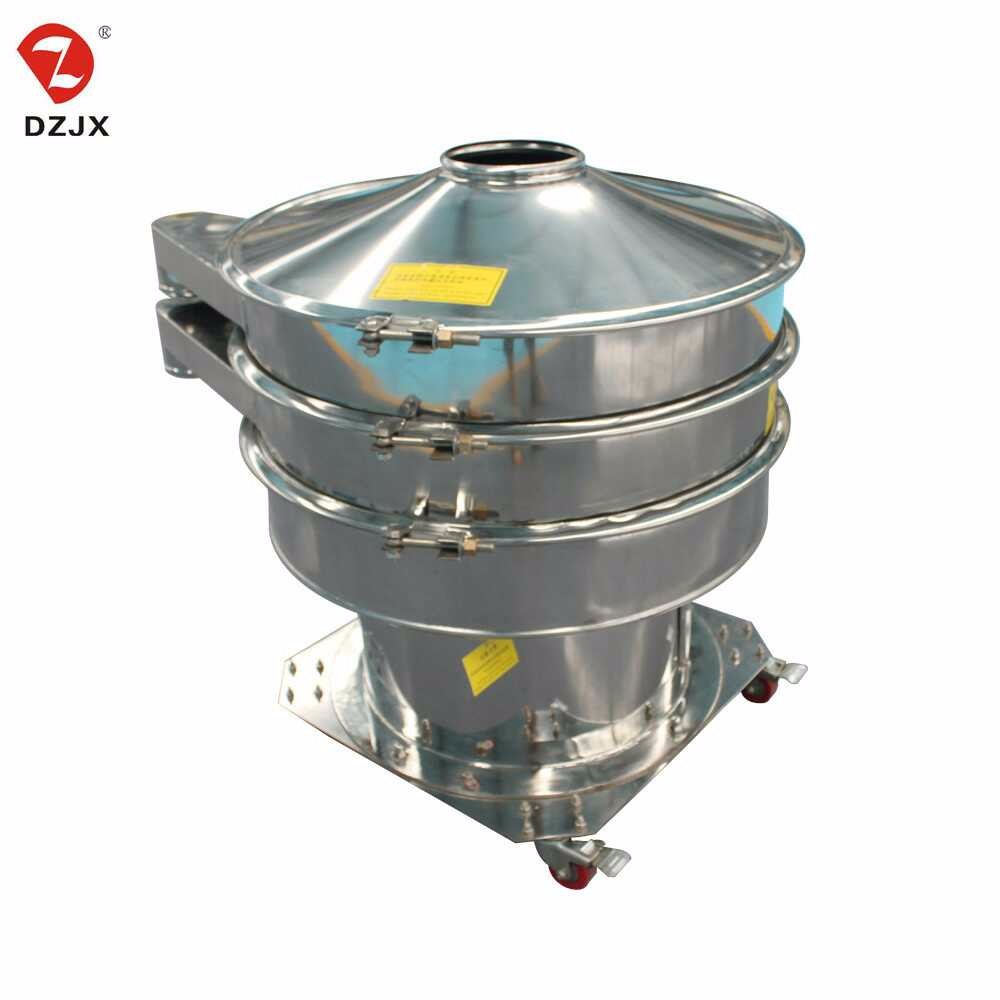

S49 -B Vibrating Sifter
S49 -B Vibrating Sifter is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.
The direction of outlet port can be changed within 360 degrees.Convenience of installation and service.It can be equipped with screen cloth cleaning deviceto avoid clogging effectively.The vertical and horizontal movement of the machine,speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
Working Priciple

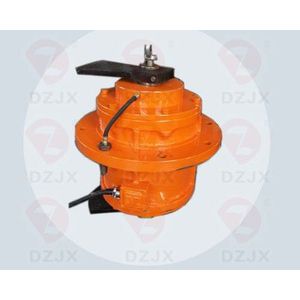

When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.
Detailed Images
Vibration spring
Quick clip

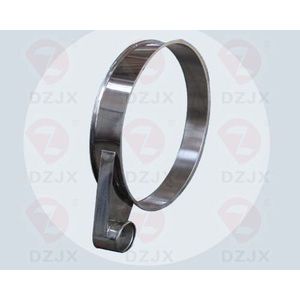

Clamp
Customized
silicon ball cleaning
silicon ring cleaning
ultrasonic system cleaning
Main Features
| 1 | .High efficiency,Design is exquisite and durable |
| 2 | Easy to replace the net . Easy yo operate and easy cleaning it . |
| 3 | Mesh will not blocking , it can screening to 500 mesh or0.028mm |
| 4 | Impurities coarse waste can put out automatically . Can continuous working . |
| 5 | Change mesh just need 3-5 mins |
| 6 | Small volume and easy to operate |
| 7 | Sieve machine up to five layers, recommend the use of three layers. |
Technical Parameter
| Model | Diameter(mm) | Deck | Mesh size (mesh) | Max particle size(mm) | Power(kw) |
| S494 -B | ∅400 | 1-4 | 3-500 mesh | ＜20 | 0.25 |
| S496 -B | ∅600 | 1-4 | ＜20 | 0.6 | |
| S498 -B | ∅800 | 1-4 | ＜30 | 0.6 | |
| S4910 -B | ∅1000 | 1-5 | ＜30 | 0.8 | |
| S4912 -B | ∅1200 | 1-5 | ＜30 | 1.5 | |
| S4915 -B | ∅1500 | 1-4 | ＜50 | 2.2 | |
| S4918 -B | ∅1800 | 1-3 | ＜50 | 2.5 | |
| S4920 -B | ∅2000 | 1-3 | ＜60 | 2.5 |
Application
