Working principle
The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft. , The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.
Application
2)Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup,bread crumbs
3)Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
4)Medicinal industry: all kinds of medicine
5)Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
Application Range
1)Size classification: separation of particles into groups of comparable size from the materials.
2)Gravity filtering: removal of solids from liquids and slurries.
3)Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4)Screening: separation of a few oversize particles from a quantity of materials.
5)Liquid cleaning: cleaning of wastewater or removing the solids from recirculation liquid.
Main Features
1)Fully adjustable amplitudes of vibration.
2)25 µm to 25 mm aperture quick change mesh - frames.
3)Automatic ejection of oversize materials.
4)304 / 316 L stainless steel contact parts as standard.
5)Deep anti - splash top rims.
6)Quiet operation from polyurethane suspension spring mounts.
Technical Parameter
| Model | Dimension(mm) | Layer | Mesh Area Per Deck(m2) | Power(kw) | Maximum Size to Progress(mm) |
| S494-B | 400 | 1-4 | 0.13 | 0.25 | 20 |
| S496-B | 600 | 1-4 | 0.16 | 0.5 | 20 |
| S498-B | 800 | 1-4 | 0.44 | 0.75 | 30 |
| S4910-B | 1000 | 1-4 | 0.63 | 0.8 | 30 |
| S4912-B | 1200 | 1-4 | 1.03 | 1.5 | 30 |
| S4915-B | 1500 | 1-4 | 1.65 | 2.2 | 50 |
| S4918-B | 1800 | 1-4 | 2.4 | 2.5 | 50 |
| S4920-B | 2000 | 1-4 | 2.98 | 2.5 | 60 |

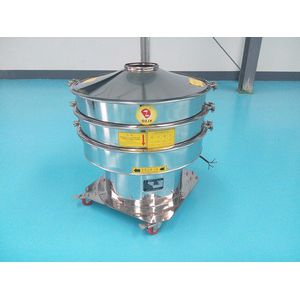

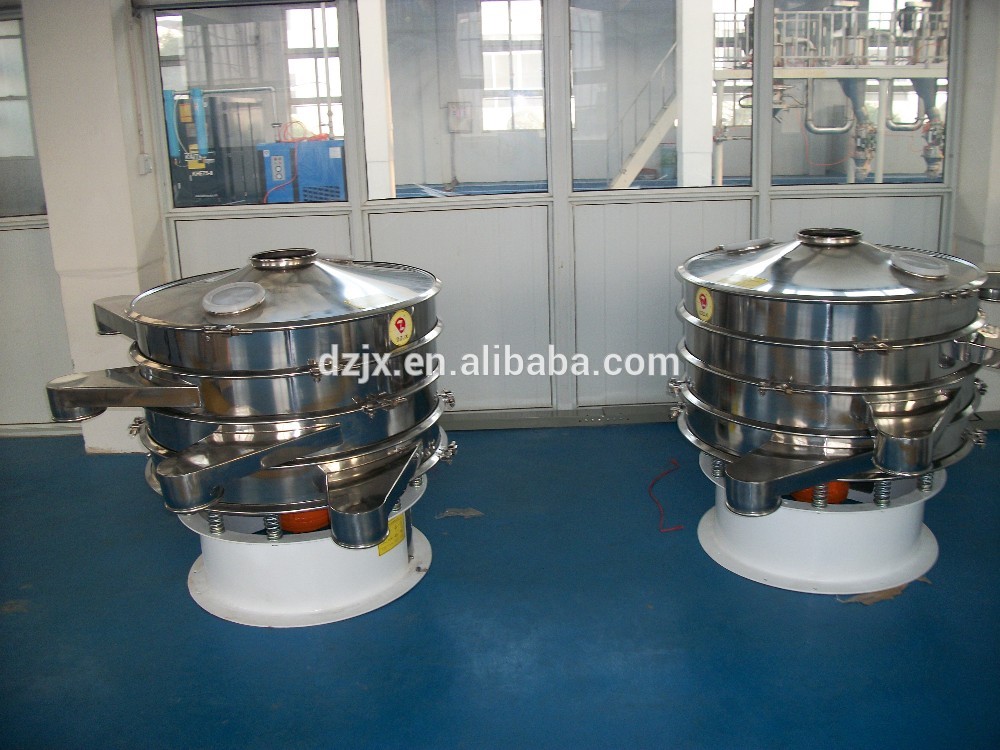

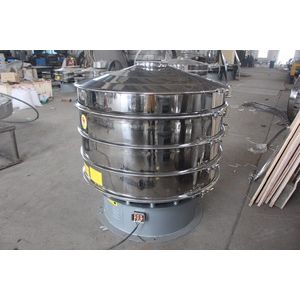

Machine picture
Name: Vibrating Motor
Brand: DZJX
The power source of the machine

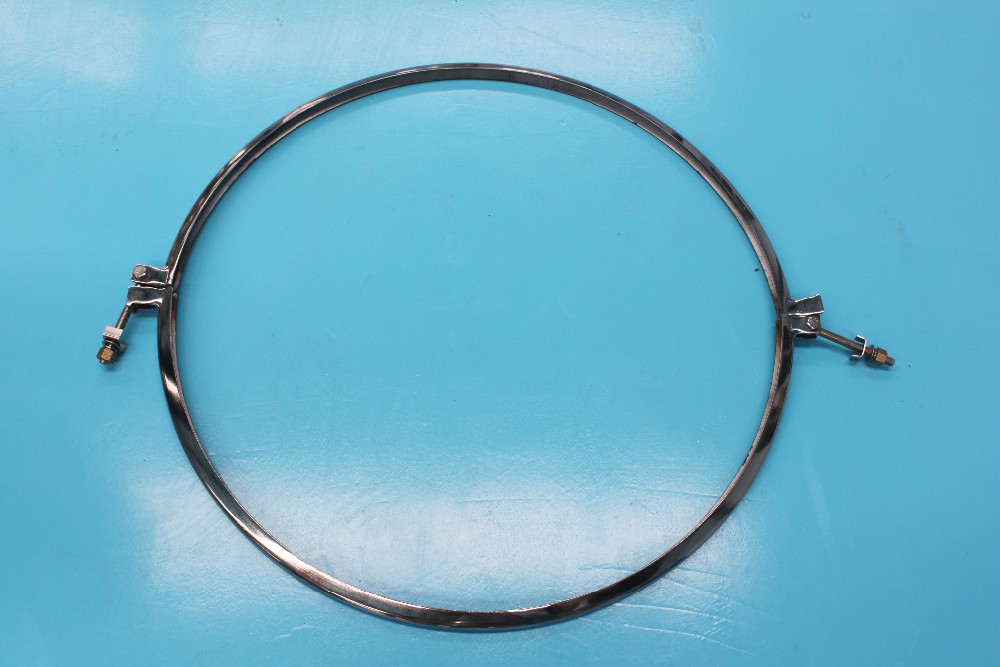

Name:clamps
Brand: DZJX
Fixed mesh

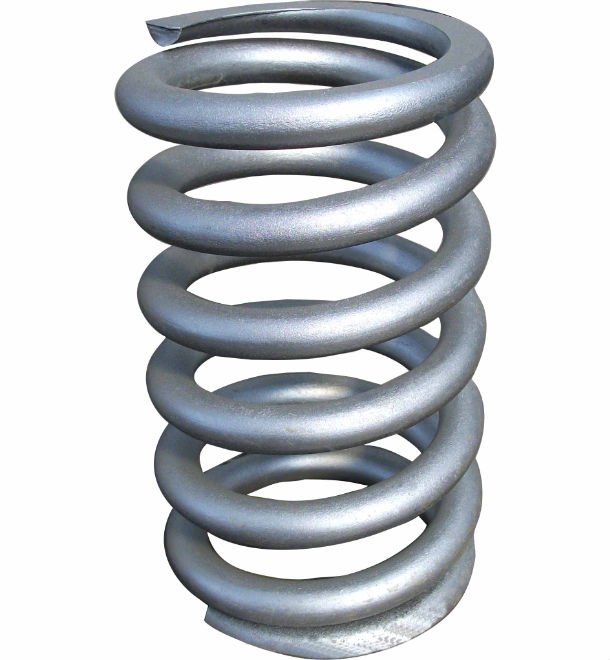

Name: Spring
Brand: DZJX
Reduce the machine damage，reduce the noise

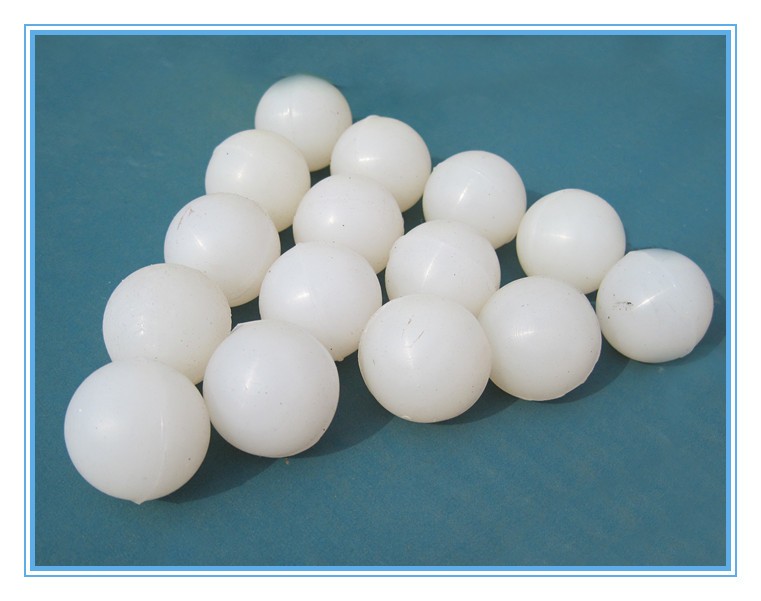

Name: Rubber ball
Brand: DZJX
Prevent the screen blocking

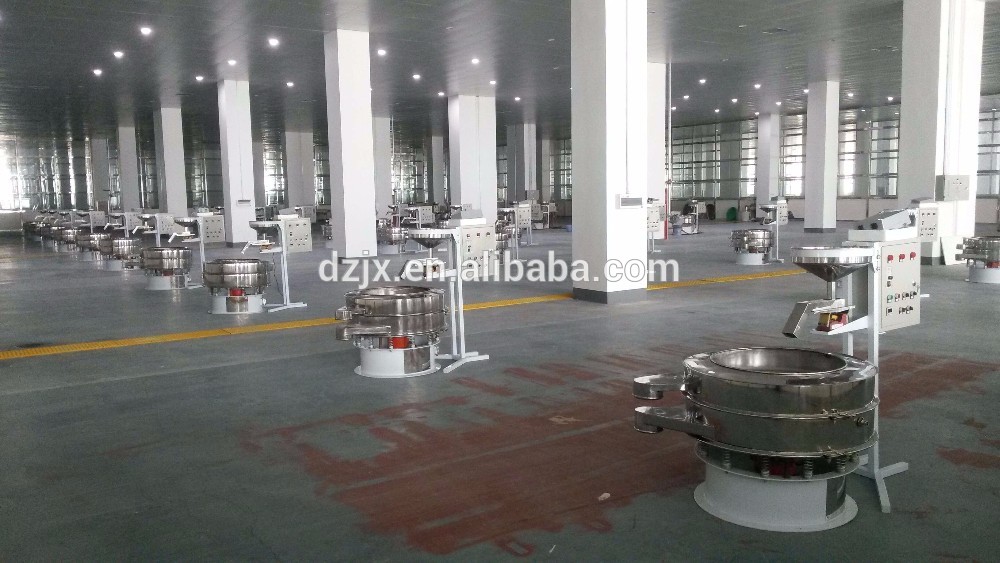

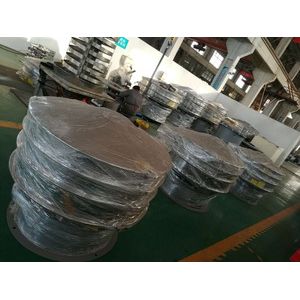

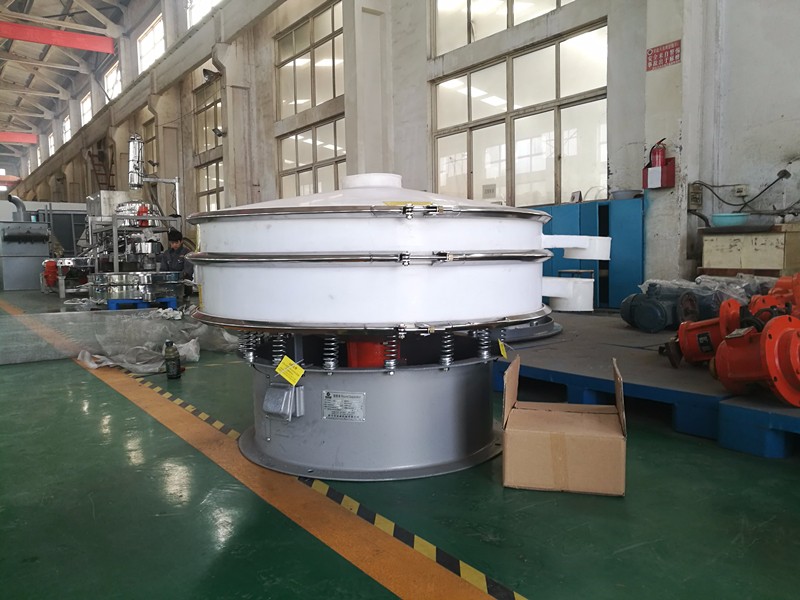

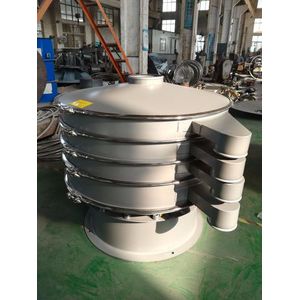

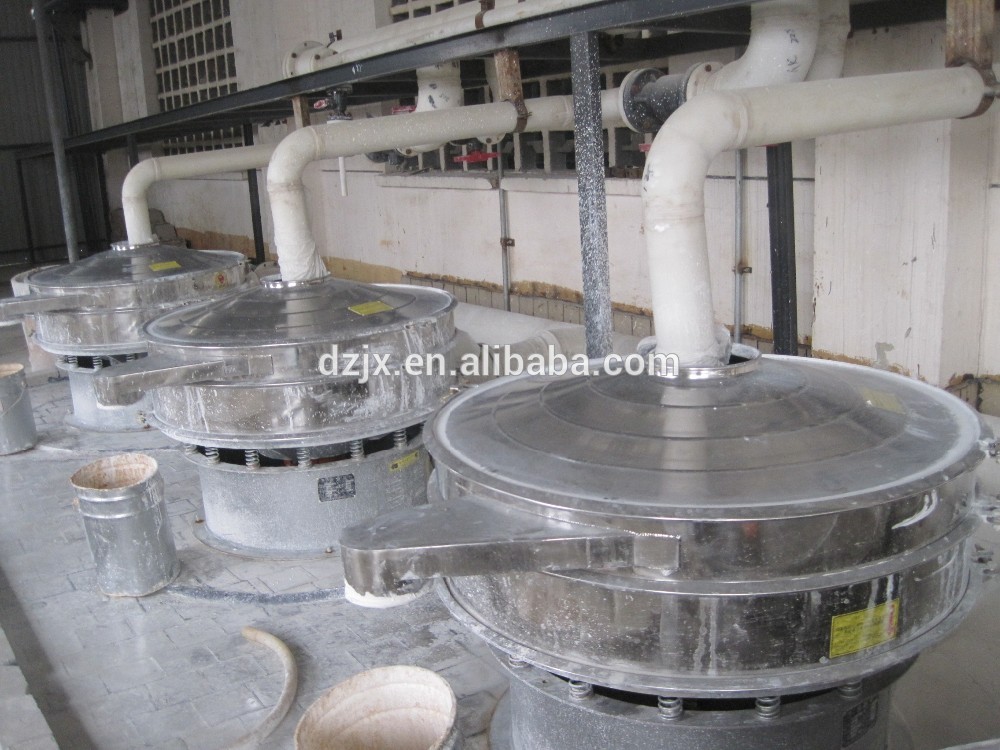

Production process
About us:
We are direct factory of Vibrating Screen, Conveyor equipment and Mixer for many years, we are glad to build longlasting business relationship with you.
We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.
Pre-Sales Service
* Inquiry and consulting support.
* Free solutions
* View our Factory.
*Make plans for choice according to the needs and special requirements of users in different sectors
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Establish long-term and friendly relationship
How to provide us the detailed need
1)Material (name) that you want to process, with the density, water content(%).
2)The necessary process quantity (per hour)
3)Material contact part, SS304, SS316L and Q235 for option.
4)The different dimension of the machine can be designed for you.
5)Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
