Vibrating screen machine for starch powder

B vibrating Sifter is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation, low noise, high efficiency, need only 3-5 minutes to rapidly replace the screen, all closed structure.

Technical Feature

  • New
  • Circular
  • Food Processing
  • China (Mainland)
  • DH
  • S49-B
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

DETAIL DESCRIPTION

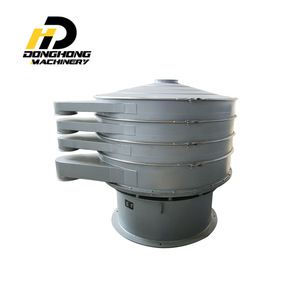

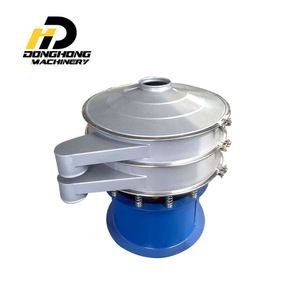

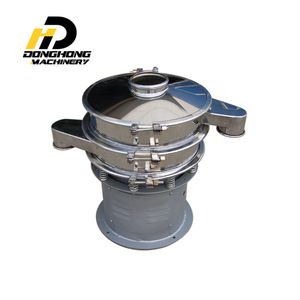

Round vibrating screen

1. Introduction

    S49-B vibrating Sifter is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation, low noise, high efficiency, need only 3-5 minutes to rapidly replace the screen, all closed structure. Used to sieve granule, powder and liquid.



2. Principle of the structure

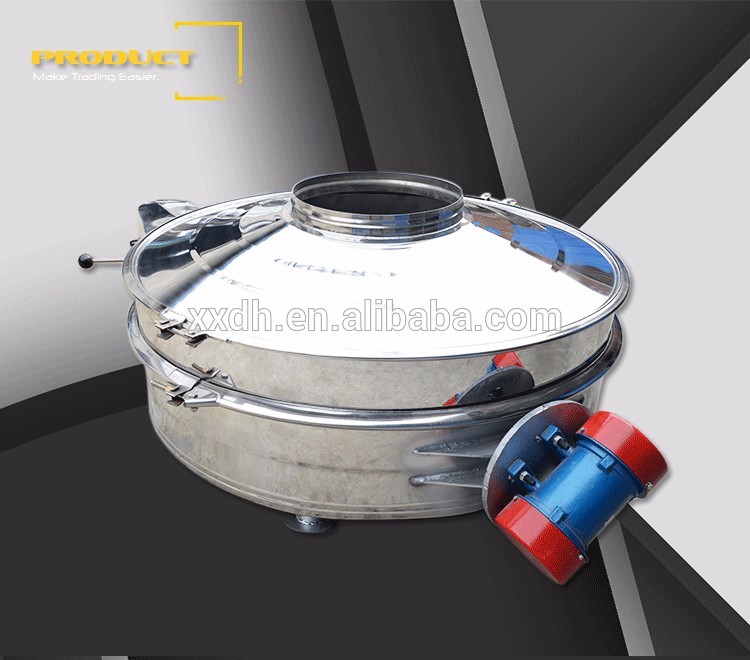

    S49-B vibrating Sifter use upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical and horizontal movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.



3. Technical parameter



Model

S494-B

S496-B

S498-B

S4910-B

S4912-B

S4915-B

S4918-B

S4920-B

Layer

1-4

1-4

1-4

1-5

1-5

1-4

1-3

1-3

Net Specification

3-500 mesh



4. Application

Foods - pea grading, instant coffee powders, ground coffees, dried milk, sugars, salts, cereals, starch, spices, nuts, flour, sugar, potato powder and flakes.

Pharmaceuticals industry- antibiotics, aspirin, bulk pharmaceutics, proteins, steroids, vitamins.

Chemicals - polyvinyl chloride, polyethylene, polypropylene and other plastic pellets, melamine, cellulose acetate, polystyrene etc.

Minerals and Metals - metal powders, silica, bauxite, cement, brick clay, coke, fluorspar, limestone.
