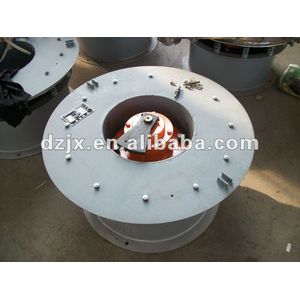

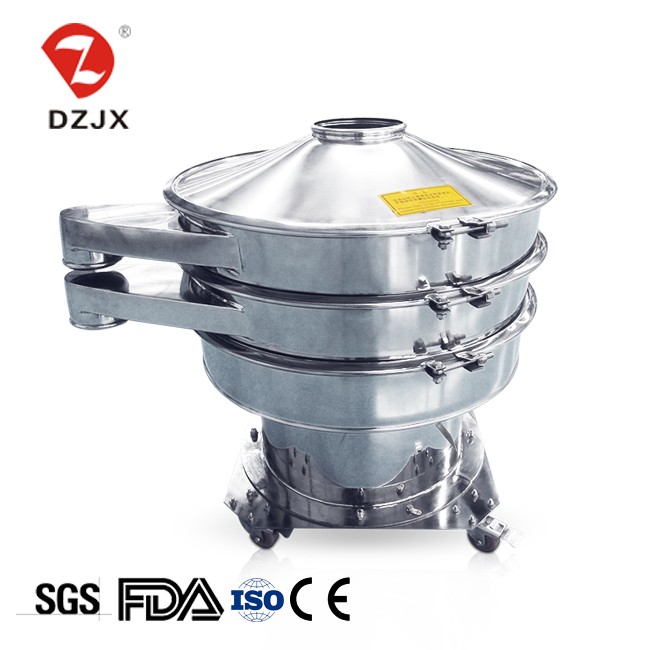

S 49-B Vibrating screen is a kind of mature technology,general and tend to be standardized classic inertia screening equipment. It can meet the requirement of the most materials in grading granulated stuffs and screening out powder and liquid in different operation.
Working Principle
When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.

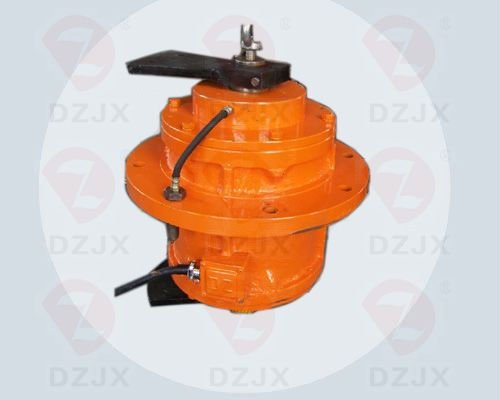

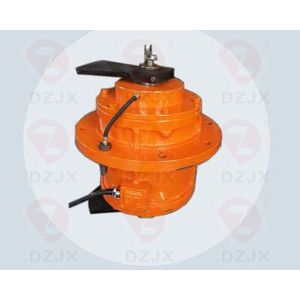

Name: Vibrating motor
Type: vertical
Original: China Dongzhen
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.

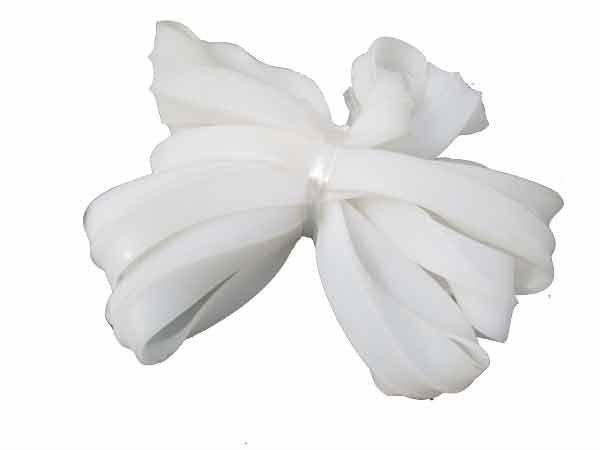

Name: sealing strip
Prevent the materials from spilling out

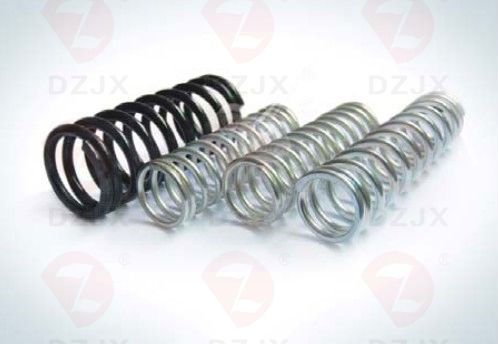

Name:Vibration spring
Brand: Dongzhen
Original: China
Prevent the machine body from shocking

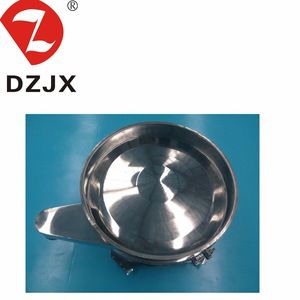

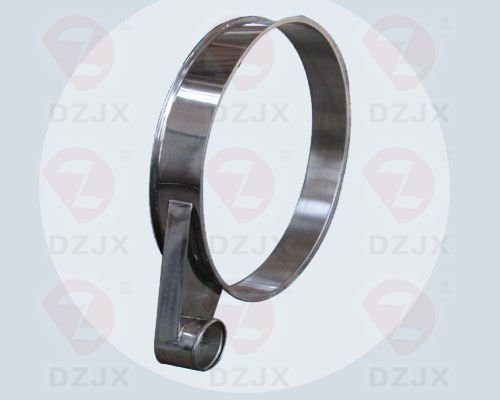

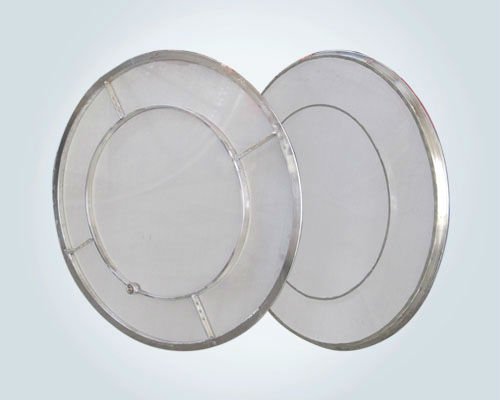

Name:Screen frame
Brand: Dongzhen
Original: China
No clogging ,No dust pollution.

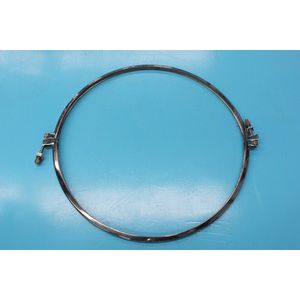

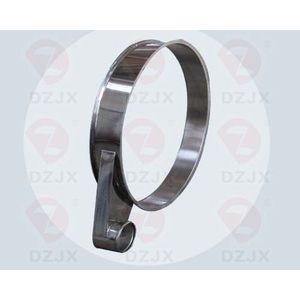

Binding clamp
It is used to connect and tighten screen frames.
Material Option
stainless steel
carbon steel
Deck Option
1
2
3
Mesh Clearance Option
bouncing ball
silica ring

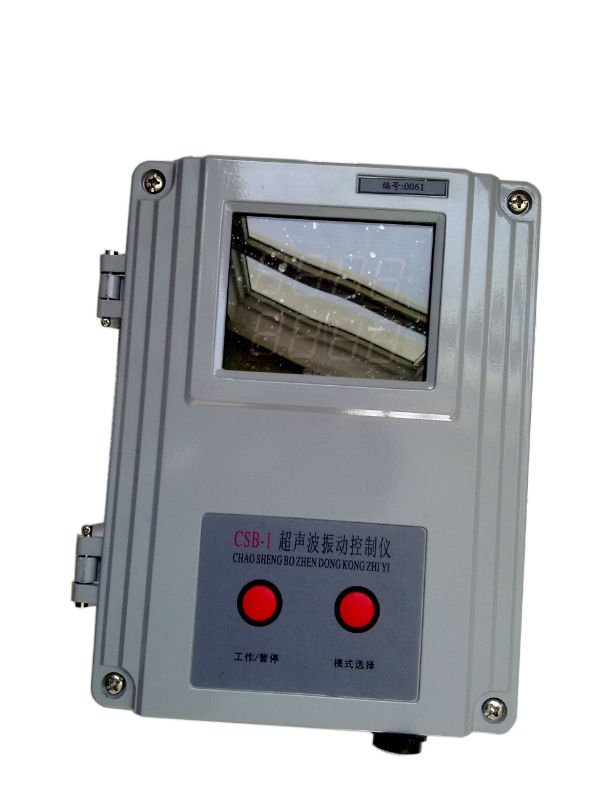

ultrasonic system
Driving force
Vertical Vibrating Motor
| 1.High efficiency,Design is exquisite and durable . Can screening any power |
| 2.Easy to replace the net . Easy to operate and easy cleaning it . |
| 3.Mesh will not blocking , it can screening to 500 mesh or0.028mm |
| 4. Impurities coarse waste can put out automatically . Can continuous working . |
| 5.Change mesh just need 3-5 mins |
| 6.Small volume and easy to operate |
| 7.Sieve machine up to five layers, recommend the use of three layers. |
| Model | Diameter(mm) | Deck | Power(kw) |
| S494 - B | ∅400 | 1-4 | 0.25 |
| S496 - B | ∅600 | 1-4 | 0.6 |
| S498 - B | ∅800 | 1-4 | 0.6 |
| S4910 - B | ∅1000 | 1-5 | 0.8 |
| S4915 - B | ∅1500 | 1-4 | 2.2 |
| S49 18- B | ∅1800 | 1-3 | 2.5 |
| S4920 - B | ∅2000 | 1-3 | 2.5 |
Food industry:sugar powder, monosodium,starch,milk powder,egg powder,rice powder,bread crumbs,soy milk,sauce,juice,food additive.
Chemical industry:fertilizer,detergent powder,talcum powder,dyestuff,rubber,resin,pigment,industrial medicine,cosmetic,coatings,Chinese medicine powder.
Metal,metallurgy industry:copper powder,nickel powder,aluminum powder,ceruse,ore alloy powder, welding powder,battery material,abrasive powder,fire -proof material,alumina.
Other industry:paper-making industry,ceramic industry,mining industry,pharmaceuticals industry etc.
Xinxiang Dongzhen Machinery ,located in high tech Development Zone of Xinxiang City, which is an enterprise integrated scientific researching,device producing and product marketing. We mainly produces DZ series vibrating screen,linear vibration sieve,test sieve,vibration conveyor,vibration feeder and other handling equipments.
Dongzhen Machinery mainly produces products for sieving ,conveying,elevating,and cruching. Our company has strong technical force.With the strategy aiming to abtain enterprise reputation,be bold in innovative technology and provides good service,our company has become a well-known enterprise in the industry.
After Sales
1.Generally,our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
2..In the gurantee time of 12 months,our general after-sale service is changing the damaged parts for the customer,but if the damage could be repaired by slight cost,we would wait for the customers bill for the fix cost .
3.we are always online except on holiday.
4.our products are in stock.
welcome to contact me if you are interested in our products.
