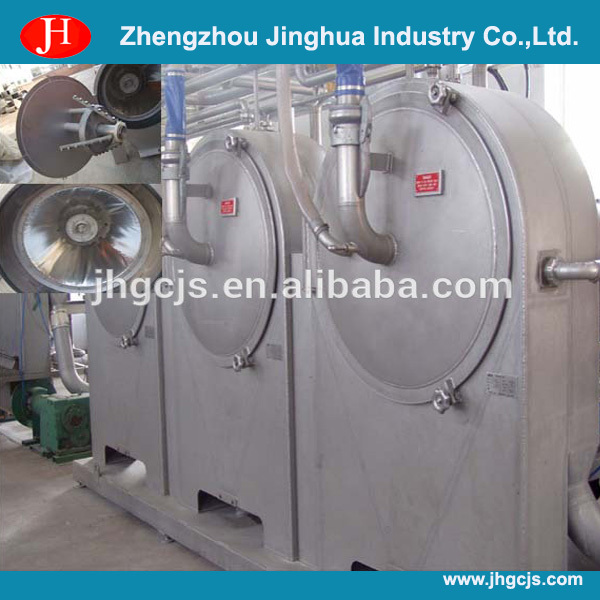

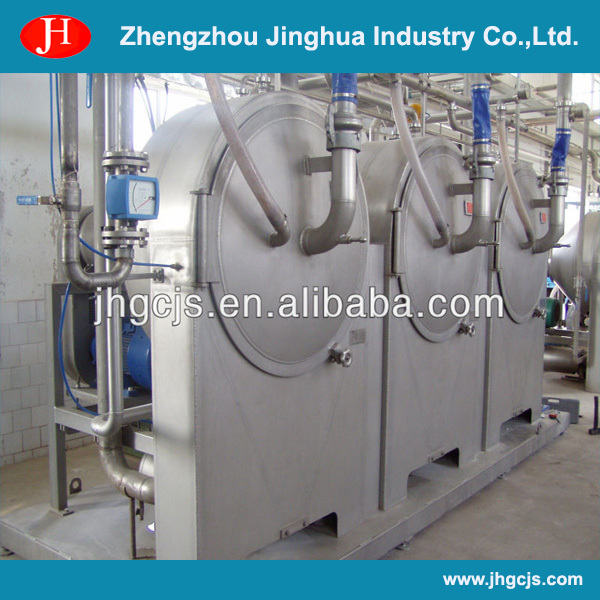

Centrifuge Sieve/starch slurry separating machine/plasm screen machine/starch centrifuge sieve/Fiber separation machine

Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, corn, rice, sago and other grain starch extraction.

Working Priciple of centrifuge sieve

First, run the machine, let  the starch slurry enters the bottom of the sieve basket.  Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

Features of centrifuge sieve

1. Combining the latest technology and years experience into a whole.

2. Key componets introduced abroad, lone service life, low maintenance cost.

3.All parts contact with material are stainless steel, no material contamination.

4.Sieve basket is calibrated through dynamic equilibrium by domestic authority body.

5.Sieve made from laser perforating on titanium alloy plate.

6.To facilitate the automatic design for centrifugal sieve group, CIP systerm and chain automatic control can be easily realized.

7.Advanced surface treatment technology ensuring the good appreance and resistance of oil and dirt.

8.Nozzles tested by strict examination in pressure and flow rate.

9.Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.

10.Widely used for starch extraction in starch processing factory.

Main Technical Parameters
