Process:

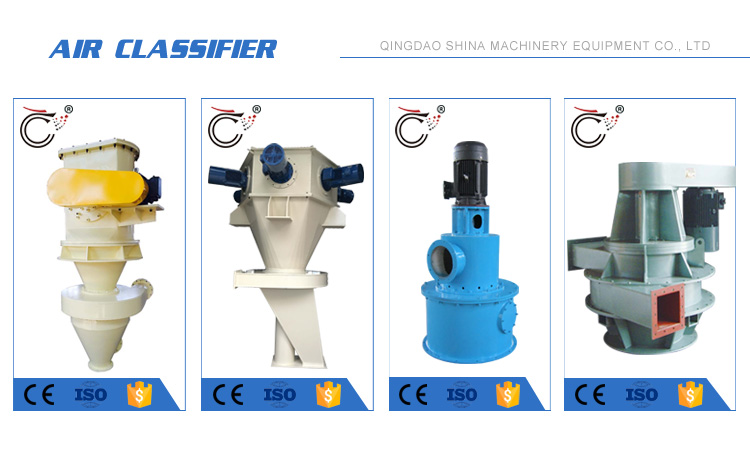

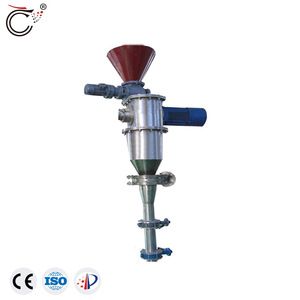

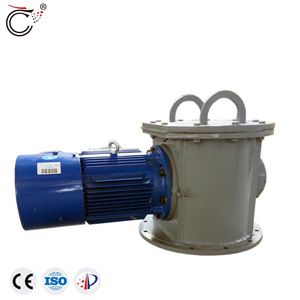

Air classifiers series IMC has been developed especially for ultra fine cut points. With the IMC series we extended our program of the ITC—series. The main point of its development was to achieve a high fineness of the end product. A good sharpness, high efficiency and low specific energy consumption with highest fines output were the guideline for this target. We could achieve these criteria by optimizing the dynamic of air flow, the material resistance and the multi-wheel concept. With this series we can offer an air classifier to meet even the most exciting product requirements. The classifying wheel of the series IMC is especially developed for highest strength during production. The wheel is placed in a horizontal position. The rotor and the drive are designed as a complete module. Also a wear protected wheel can be supplied.
Features:
- Direct driven rotors
- High speed drive system
- Adjustable of cut point by variable rotor speed via frequency converter
- Fine classification with high performance by special wheel design
- Feed from bottom with main air stream for high feed rates
- Best sharpness by most effective coarse classifying zone
- Construction material can be mild steel, stainless steel or wear protected
- The solid construction and the selected materials of construction give a long life time with low maintenance costs
Technical Data:
Technical Data for Air Classifier IMC Series with One Wheel/Rotor:
| Parameter Type | Product Fineness (D97 um) | Throughput (t/h) | Motor Power (kw) | AirFlow (m3/h) |
| IMC 60 | 3~75 | 0.005~0.02 | 3 | 300 |
| IMC 100 | 3~75 | 0.01~0.1 | 6 | 600 |
| IMC 140 | 3~75 | 0.05~0.3 | 4 | 1000 |
| IMC 200 | 3~75 | 0.1~0.6 | 5.5 | 1500 |
| IMC 260 | 3~75 | 0.2~1.0 | 7.5 | 2000 |
| IMC 315 | 3~75 | 0.5~3 | 15 | 3000 |
| IMC 400 | 4~75 | 0.8~4 | 18.5 | 4600 |
| IMC 500 | 5~75 | 1.5~6 | 22 | 7500 |
| IMC 570 | 5~75 | 2~8 | 30 | 9000 |
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
Technical Data for Air Classifier IMC Series with Multi Wheels/Rotors:
| Parameter Type | Product Fineness (D97 um) | Throughput (t/h) | Motor Power (kw) | AirFlow (m3/h) |
| IMC 315/3 | 3~75 | 3~8 | 15X3 | 9000 |
| IMC 315/4 | 3~75 | 4~12 | 15X4 | 12000 |
| IMC 315/6 | 3~75 | 6~15 | 15X6 | 18000 |
| IMC 400/3 | 4~75 | 4~12 | 18.5X3 | 15000 |
| IMC 400/4 | 4~75 | 6~15 | 18.5X4 | 20000 |
| IMC 400/6 | 4~75 | 8~18 | 18.5X6 | 28000 |
| IMC 500/3 | 5~75 | 6~15 | 22X3 | 22000 |
| IMC 500/4 | 5~75 | 9~20 | 22X4 | 30000 |
| IMC 500/6 | 5~75 | 12~30 | 22X6 | 45000 |
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
