Product Application

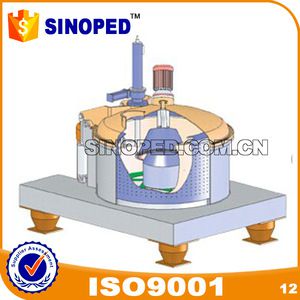

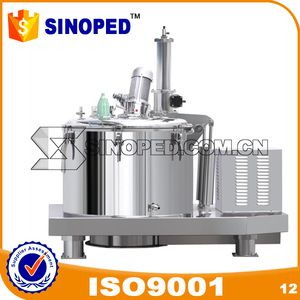

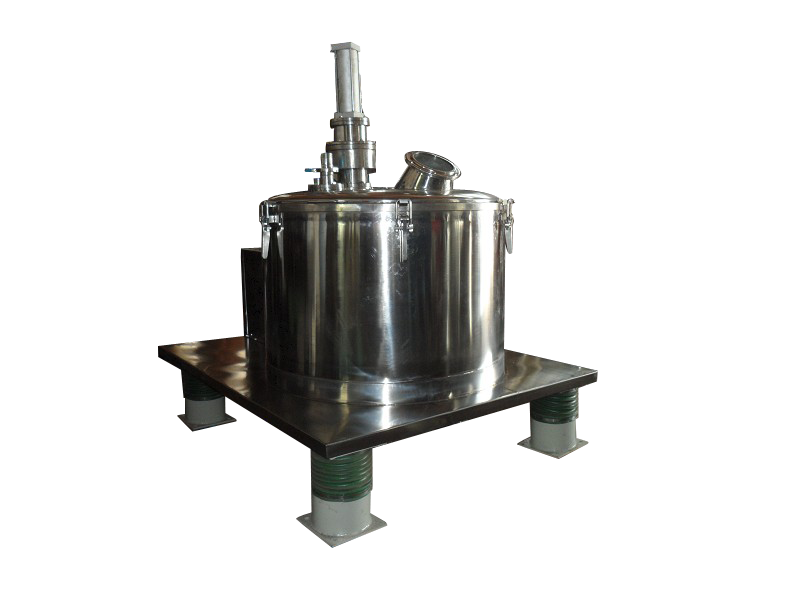

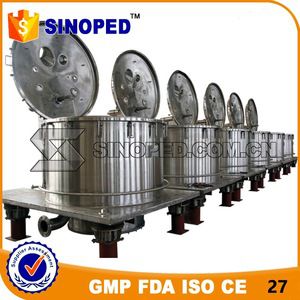

Flat type centrifuge

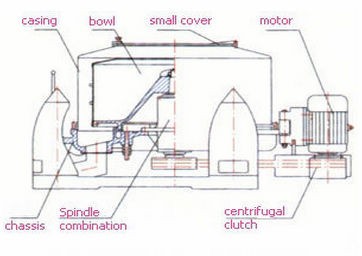

The motor actuates the clutch to transmit power to bowl via triangular adhesive tape, so that the bowl can rotate at high speed around its own axis, to form a centrifugal force filed. The material enters the centrifugal field inside the bowl through feed pipe on top, and the centrifugal force forces the material to be uniformly distributed on the wall of bowl for deliquidation and separation. The liquid phase is thrown into the space of machine cabinet through solid-phase material and gaps of gauze via wall pores of the bowl, and solid-phase materials are discharged from the liquid outlet of the underpan with machine and retained inside the bowl, to be discharged manually on top.
Product features
Simple in structure and easy in operation and maintenance. It is wide use in application. It is suitable for filtering particle suspension and for dehydration of fabric material and textile after printing and dyeing. And the material contact parts are made of stainless steel base and other parts of its body made of cast iron paint.
| Model | TS200 | SS300 | SS450 | SS600 | SS800 | SS1000 | SS1200 | SS1500 |
| Diameter(mm) | 200 | 300 | 450 | 600 | 800 | 1000 | 1200 | 1500 |
| High(mm) | 100 | 160 | 220 | 300 | 360 | 500 | 550 | 550 |
| Capacity(L) | 2.8 | 5 | 17 | 40 | 96 | 140 | 230 | 380 |
| Separation Factor(W2r/g) | 872 | 430 | 990 | 755 | 640 | 560 | 430 | 300 |
| Power(kw) | 0.37 | 0.75 | 1.5 | 3 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 40 | 130 | 200 | 600 | 1100 | 1500 | 2000 | 3800 |

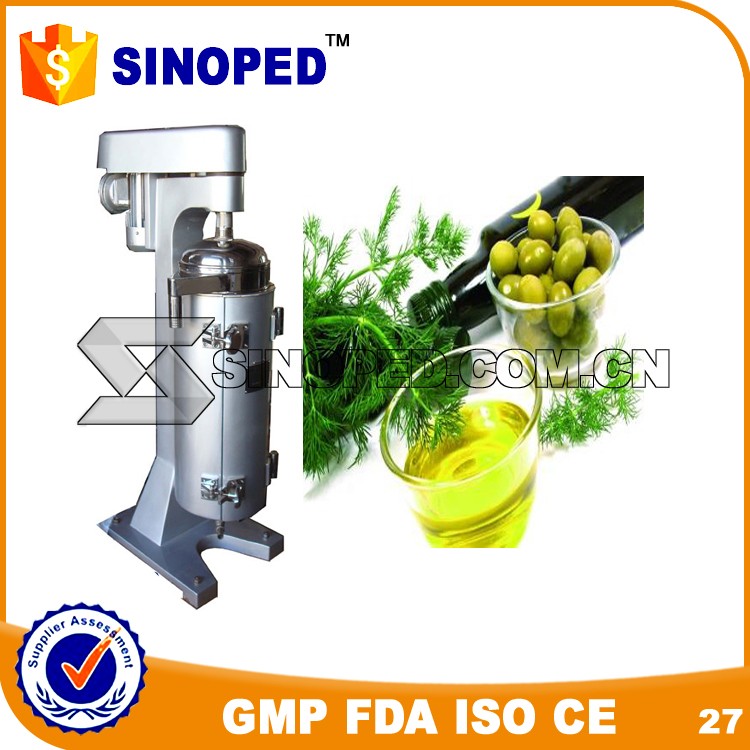

Tubular centrifuge with link
91.8% Response Rate

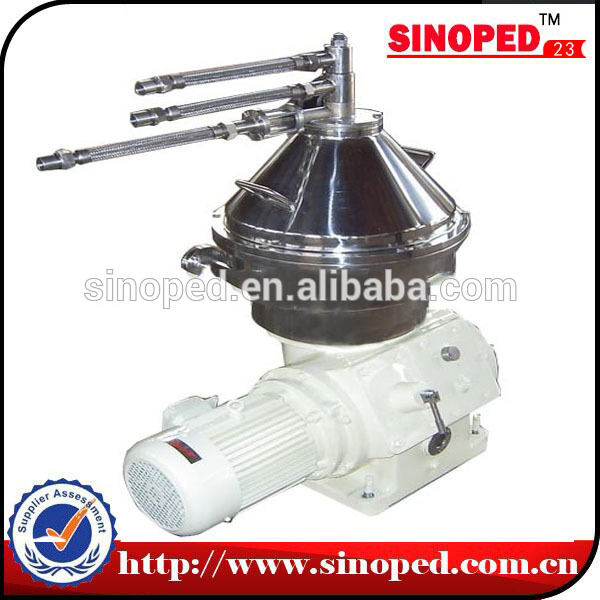

Disc centrifuge with link
91.8% Response Rate

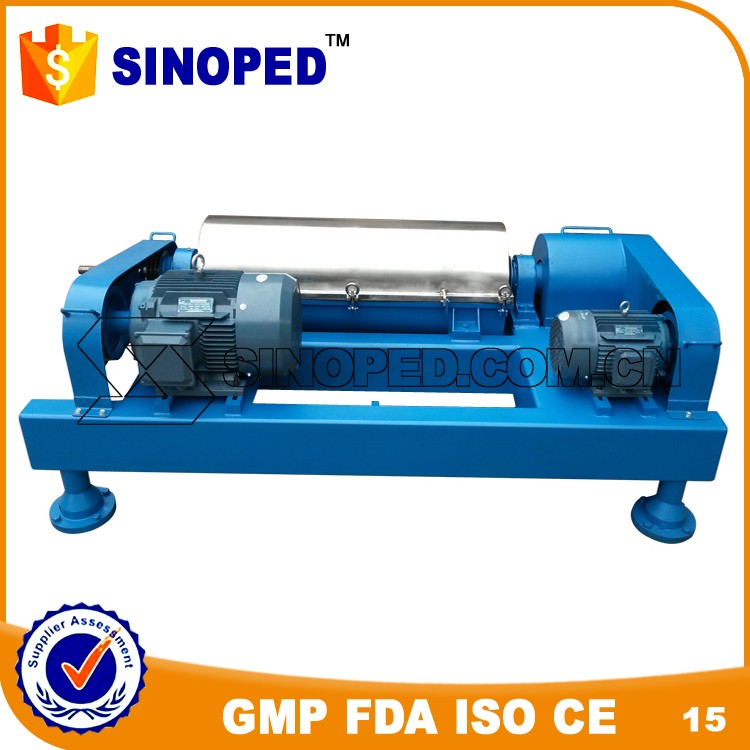

Decanter centrifuge with link
91.8% Response Rate

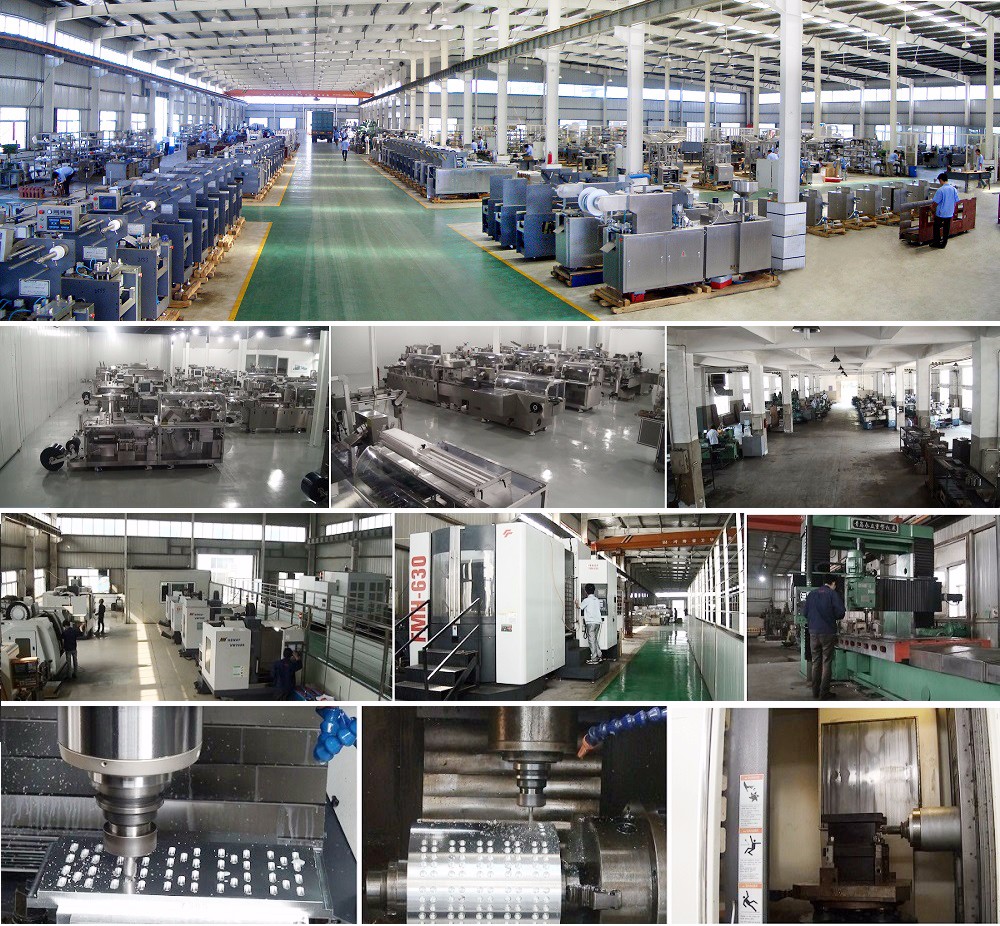

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. follow as SINOPED is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China, it belong to SINOPEC International Group. We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in the pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
