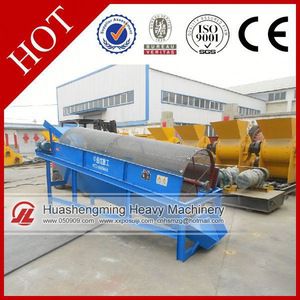

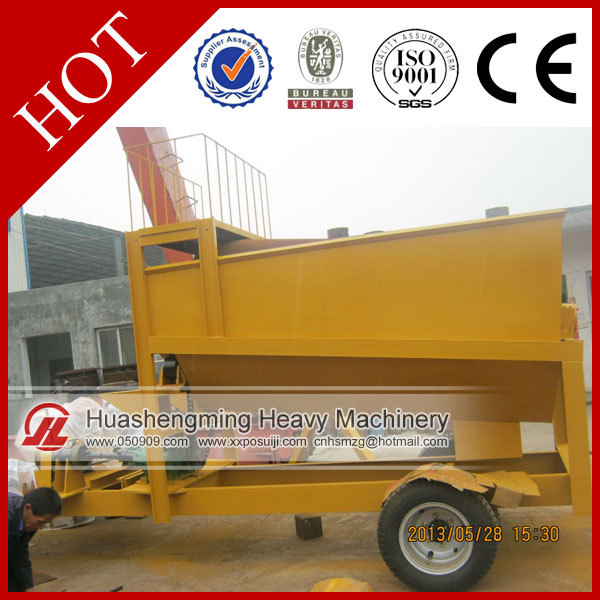

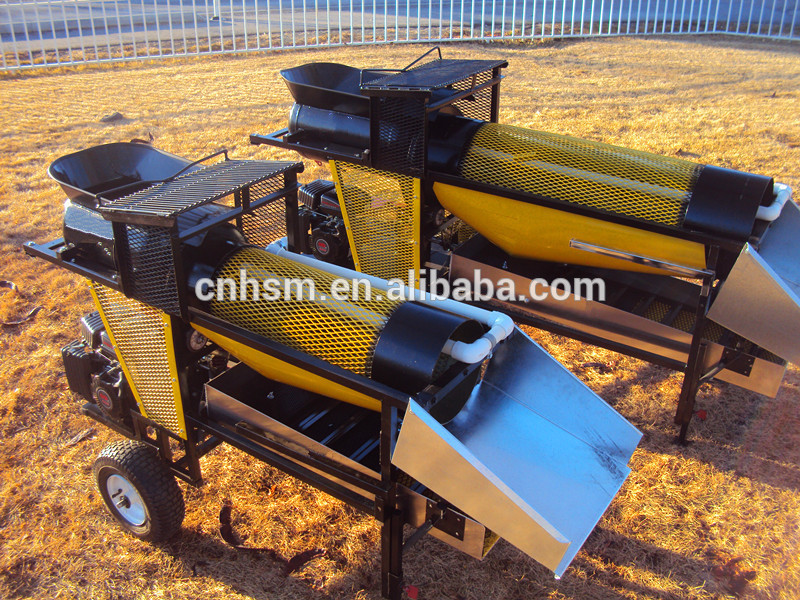

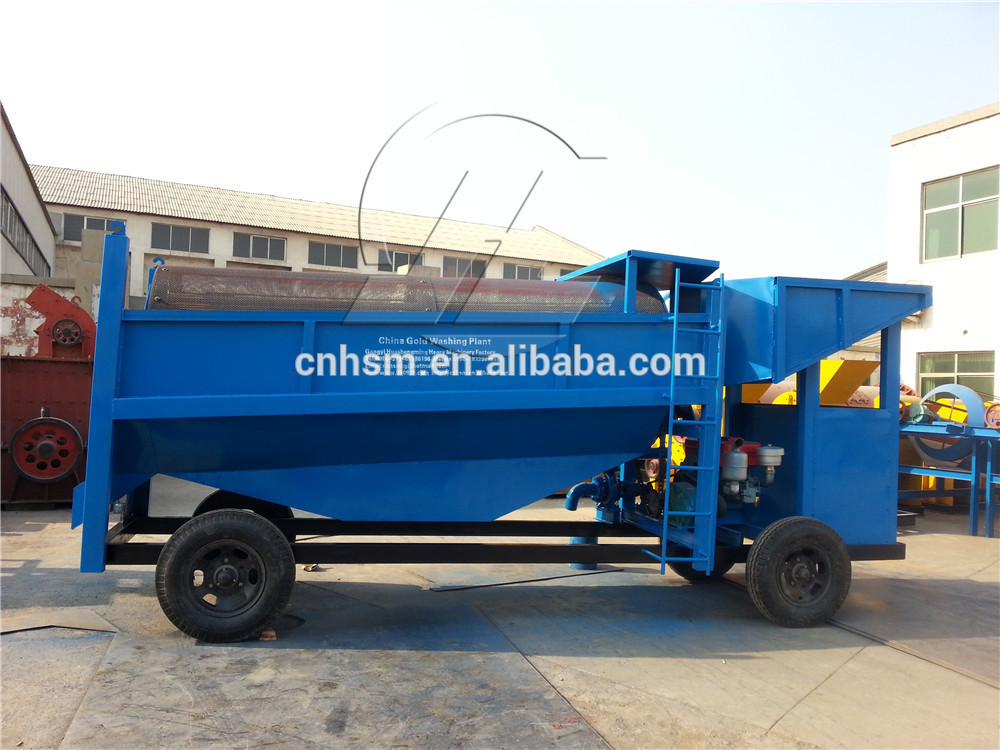

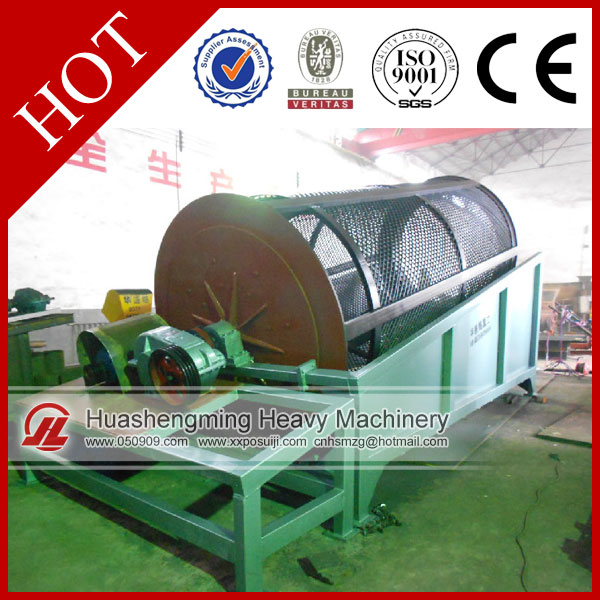

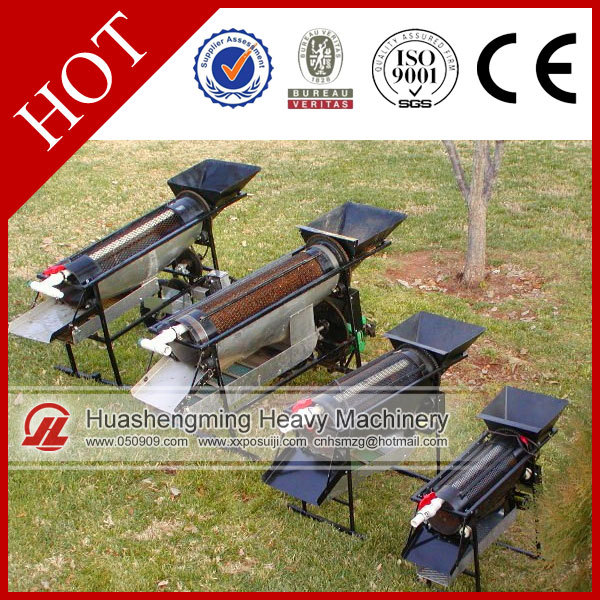

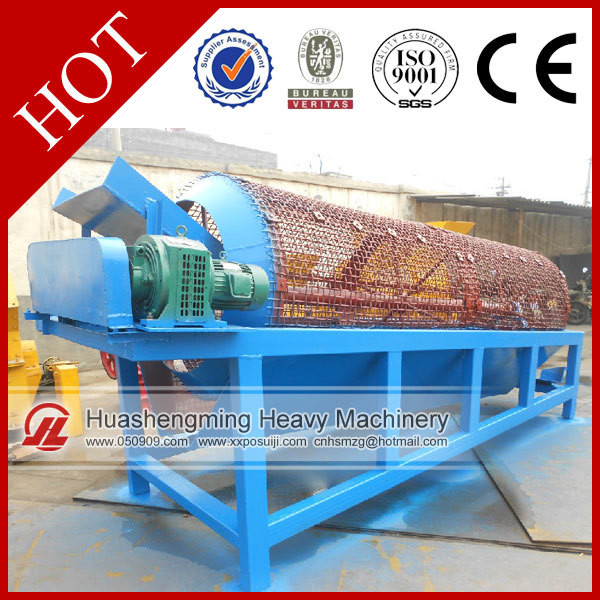

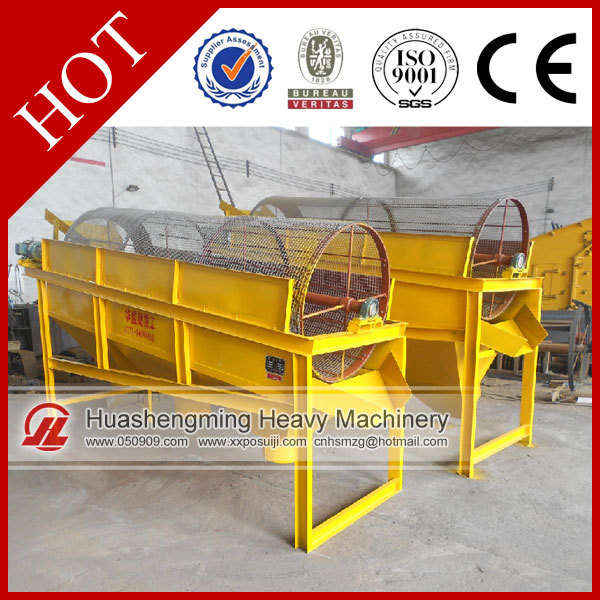

HSM Mobile And Fixed centrifugal sieve
Mobile:0086-157-3672-5101
Wechat:15736725101
WhatsApp:15736725101
1.Introduction of centrifugal sieve
sieving screen is widely used in classifying the solid materials in coal,mining,electric power,light
industry and other industries,screening the wet materials in metallurgy,construction industry and
chemical industry ,too.With a high screen transmittance,it is particularly suitable for the screening of
wet and sticky materials.The screening pores can never be blocked,and this product is widely used
for the screening and griding of coal,gravel and other materials in electric power,minging,metallurgy,
building materials,chemical and other industries.
2:Application of centrifugal sieve
1. coal, gravel, sand, nickel, ect
2. construction materials
3. gold ore
4.plastic
5. compost, fertilizer
6. recycling
7. agriculture etc.
3:Features of centrifugal sieve
1. It is suitable to separate various materials included poor quality of coal, coal slime, or soot.
2. It do not require special facility and suitable for various material feeding methods.
3. It has higher efficiency by the installation of comb shape screen structure.
4. Cylindrical shape of screen provided larger surface area which has higher possibility of materials to contact with the screen mesh; therefore, it has higher capacity and more effective.
5. It is a energy saving equipment.
6.The equipment is fully sealed with a cover to minimize the suspension of fine material in the air during the operation, able to avoid working environment pollution.
7. Since it is covered, less noise pollution during the operation.
8. It is durable and low maintenance cost.
9.The checking and the maintenance are easily to process through opening on the cover

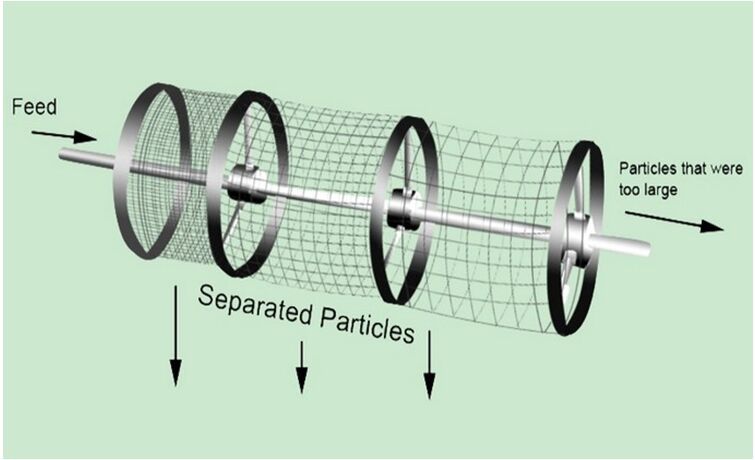

4:Working principal of centrifugal sieve

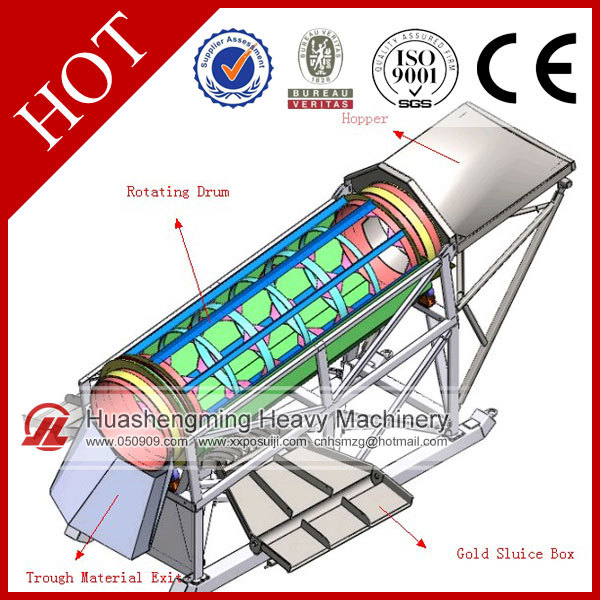

Feeding into the drum, material is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
5.Technical parament of centrifugal sieve
Model | Capacity (t/h) | Power (kw) | Drum diameter (mm) | Drum length (mm) | Feed size (mm) | Discharge size(mm) | Dimension (L*W*H) (mm) | Weight (kg)
|
GTS1015 | 50 | 3.0 | 1000 | 1500 | ≤300 | 0-100 | 2600*1400*1700 | 2200 |
GTS1020 | 100 | 4.0 | 1000 | 2000 | ≤300 | 0-100 | 3390*1400*2140 | 2800 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | ≤300 | 0-100 | 4146*1600*2680 | 4200 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | ≤300 | 0-100 | 4460*1900*2820 | 5100 |
GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 0-100 | 5960*1900*3080 | 6000 |
GTS1848 | 450 | 15 | 1800 | 4800 | ≤400 | 0-100 | 6500*2350*4000 | 7500 |
GTS2055 | 600 | 22 | 2000 | 5500 | ≤400 | 0-100 | 7500*2550*4800 | 9600 |
GTS2265 | 800 | 30 | 2200 | 6500 | ≤400 | 0-100 | 8500*2750*5000 | 12800 |
Packing :small model centrifugal sieve usually is used by one 20ft container,big model centrifugal sieve is used by 40ft container,
small parts are packed by wooden or accoding to your requirments.

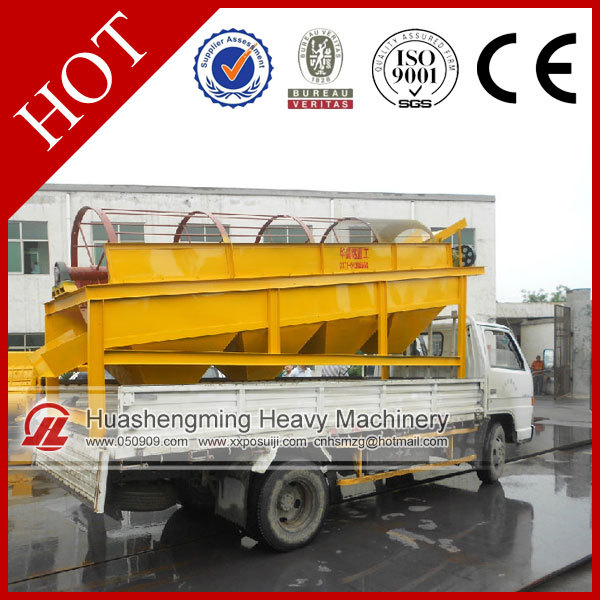

Shipping:: from our factory to nearest port we used by truck , from our port to destination port we usd by ship.
Before sales service :We will recommend suitable model of centrifugal sieve according to your demand. Due to we are original equipment manufacturer, if you have some doubt about our products, we can give you the timely answer.
♦ Sales service : We will make the products according your requirement, such as the model , color, motor and so on. And packing the centrifugal sieve in standard container or as your required
♦ After sales service :We provide 2 years warrants & technical support to ensure the machine run smoothly .
We will packing the bare machine in standard container & motor, small parts in cases. Or depend on your required.
Gongyi Huashengming Machinery Co., Ltd is a high-technology enterprise in Gongyi City. For the past twenty years, Huashengming has been developing and manufacturing machines for the stone crushing plant, drying plant, screening plant.
Our factory has 800 sets of equipment, more than 1,300 employees, including 215 technicians, with casting, forging, heat treatment, machining, welding, assembly, machine repair workshop, and a complete quality assurance system TQC. Testing and heat treatment through the ISO9001 international quality system certification, to provide customers with the design and manufacture of complete sets of equipment.
