Xinxiang high sieving precision small capacity Centrifugal sieves Centrifugal sieves for sodium alga acid
Introduction
Flour sieve separator machine is a machine whose principle is feeding the materials into a screw conveyor and a rotor rotating at high speed, the fine materials will pass through screen, while the oversize materials will be discarded at the end of the screw shaft. It is suitable for the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.
Working principle

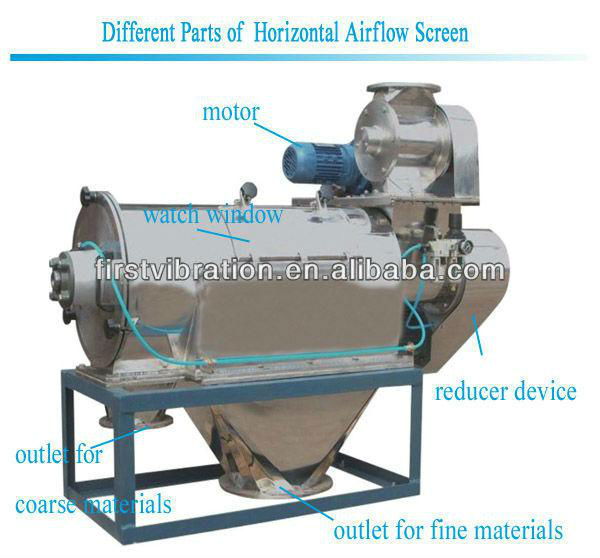

The cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow to be mixed and atomized by passing the screw conveying system. Then some of the materials are sprayed through the net and discharged from the fine stuff portal by the centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube, while the other materials that cannot across the net are discharged from spout along the net tube wall.
Applied fields
Flour sieve separator machine is especially suitable for grinding plant powder, such as: Chinese herbal medicine powder,Spices, curry powder, ginger powder, garlic powder, chili powder , pepper powder material etc, cosmetics , mica powder, pearl pigment superfine powder and so on.

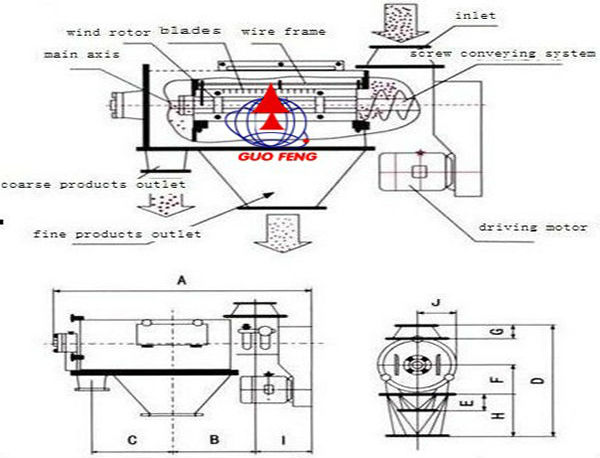

Structure diagram
Technical parameter
Model | A | B | C | D | E | F | G | H | I | J |
WQS18-65 | 1430 | 460 | 420 | 1005 | 135 | 230 | 250 | 330 | 340 | 210 |
WQS25-85 | 1845 | 655 | 766 | 1240 | 320 | 285 | 300 | 350 | 380 | 290 |
WQS50-130 | 2230 | 870 | 790 | 1775 | 280 | 515 | 150 | 660 | 400 | 485 |
Model | Material | Screen cage size(mm) (diameter*length) | Screen material |
WQS 18-65 | Q235A Carbon steel | 180mm*650mm |
Stainless steel or Nylon screen |
SUS Stainless steel | 180mm*650mm | ||
WQS30-100 | Q235A Carbon steel | 300mm*1000mm | |
SUS Stainless steel | 300mm*1000mm | ||
WQS 50-130 | Q235A Carbon steel | 500mm*1300mm | |
SUS Stainless steel | 500mm*1300mm |
If you are interested in our any products,pls don't hesitate to contact me at any time.
