manual centrifuge dewatering machine with vibrating centrifuge sieve
Widely used in the following industry,
1. Chemical industry: gypsum, ammonium sulphate, glauber's salt, copper, nickel sulfate, ferric sulfate, sulfur acid, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, pigments, plastic raw materials, soap, grease, various types of resins and other chemical products.
2. The food industry: salt, MSG, food additives, chemical seasoning, starch, sugar.
3. Pharmaceutical: vitamins, antibiotics and other kinds of drugs, herbicides, insect repellents, etc.
4. Mining and metallurgy, copper, zinc, aluminium, mineral and metal refining, etc.
5. Environmental protection: PaiSuan gypsum, water purifying sludge and sewage sludge treatment.
Three foot centrifuge dewatering machine, because the bottom of the support legs for the three feet, arranged in a triangle with equal portions named. Centrifuge is a three-column solid-liquid separation equipment, mainly in the solid- liquid separation to remove liquids or solids separate.
Tripod is the most versatile centrifuge, starting from the first centrifuges, used in all walks of life, has yao still popular worldwide, and its low cost, resistance to shock, simple structure, easy to operate.
As the general three-foot low speed centrifuge device, separation accuracy is not high, we usually draw it as a coarse type equipment regulations for the handling of large amount of solid, clear liquid clarity less demand.
The different claffify of the centrifuge
by way of discharge:
three-column upper discharge
three-column bottom discharge
by structure:
ordinary centrifuge
scraper centrifuges
punching bags Centrifuge
by working principle:
three-foot centrifuge filter
three-foot centrifuge sedimentation
way of separator ——Two ways to separate :
1.Filtering : There is holes in the rolling drums .Its widely used for some conditions ,such as less viscosity ,solid big granular ( crystalline ) ,mostly used to dewater .
2.Decanter :Closed rolling drums to separate solid and liquid through centrifugal force .Its used widely ,such as big viscosit ,small granular both can be separted .
working principle
The material from the top to join the drum under the action of the centrifugal force field, the liquid spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.
main technical parameters
Model | Rotary drum | Separation factor | Motor power | Total weight | Overal dimension | |||
Diameter | Working volume | Loading limit | Rotary speed | ω2r/g | KW | KG | MM | |
MM | L | KG | r/min | |||||
SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800x620x500 |
SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980x720x625 |
SS600 | 600 | 45 | 80 | 1450 | 755 | 3 | 600 | 1350x990x750 |
SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740x1380x1000 |
SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950x1560x1050 |
SS1200 | 1200 | 200 | 280 | 800 | 430 | 1.5/11 | 2030 | 2370x1600x1000 |
SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 3640X1850X1100 |

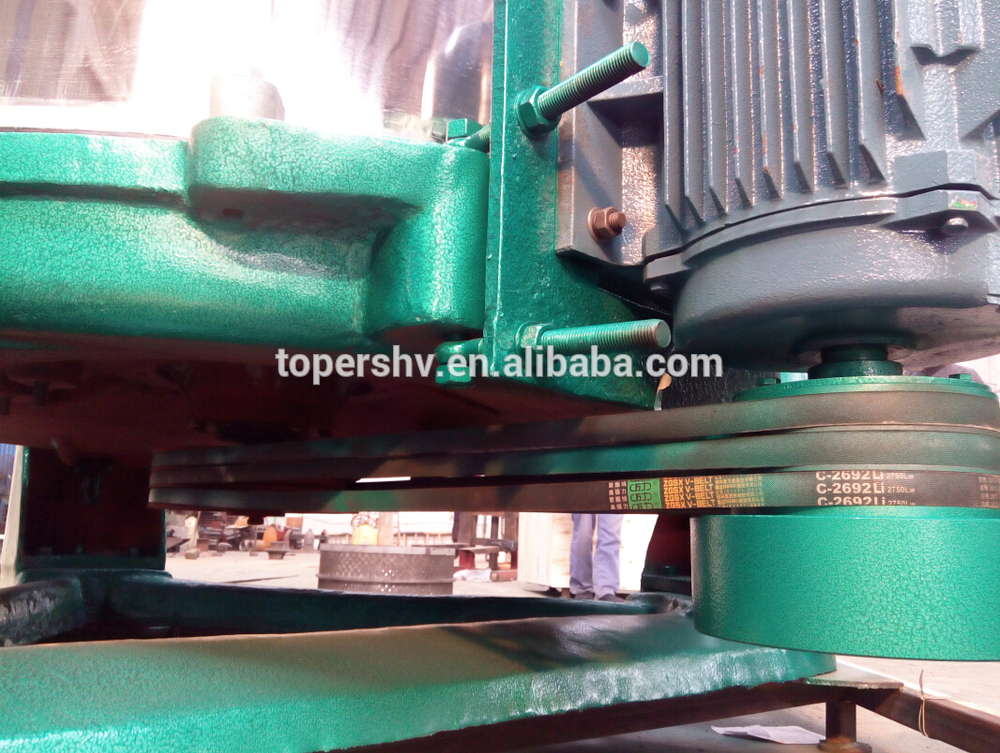

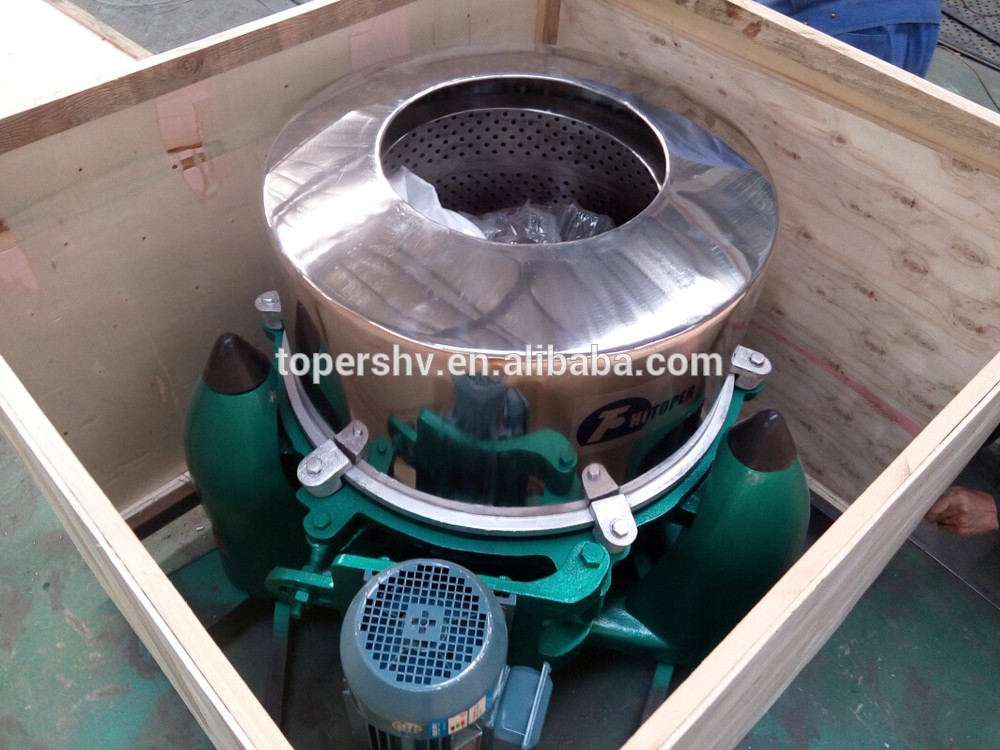

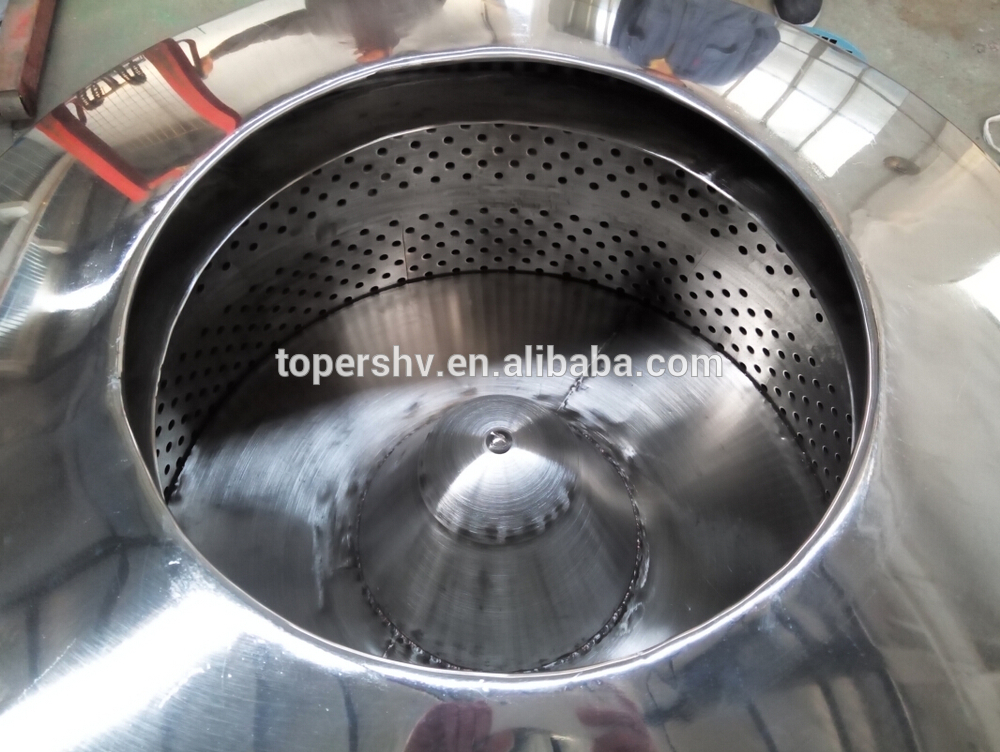

centrifuge detailed pictures.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guide the installation , debugging and solve practical problems if required.
