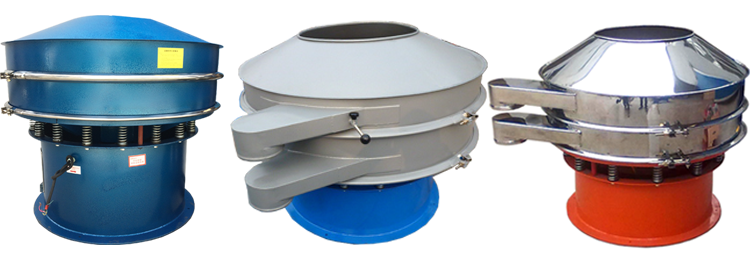

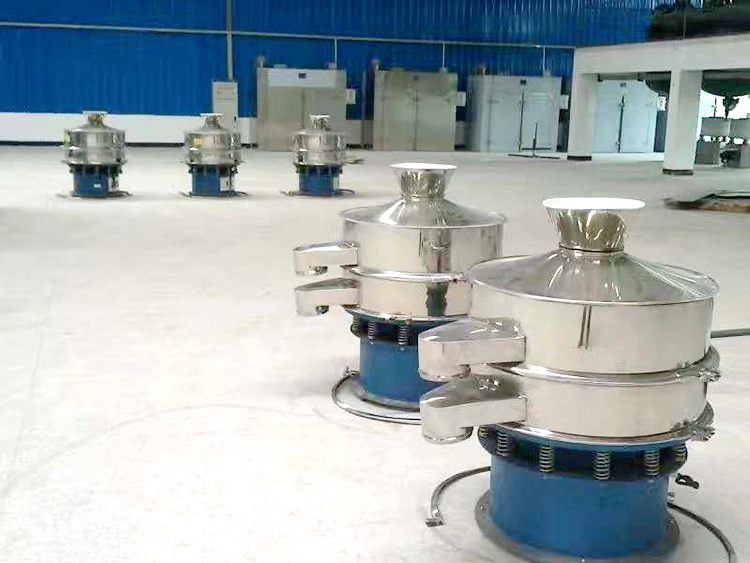

New xxsx hot vibratory screen in china
Powder vibrating sieve machine is designed for accurate classification or classification. In one operation, it can achieve up to 5 points, low noise and high efficiency. It only takes 3-5 minutes to change thescreen quickly and close all.Used for sifting powder and liquid sieving.

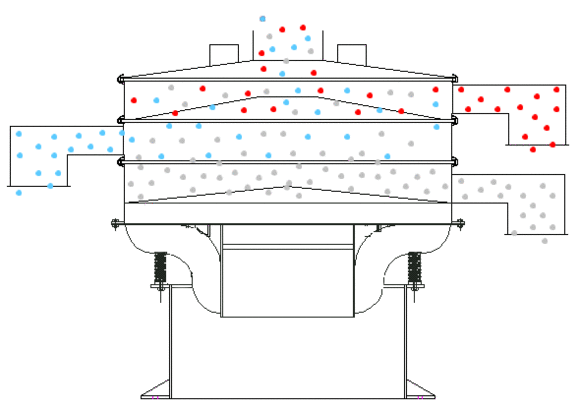

Fowder vibrating sieve machine operating principle:

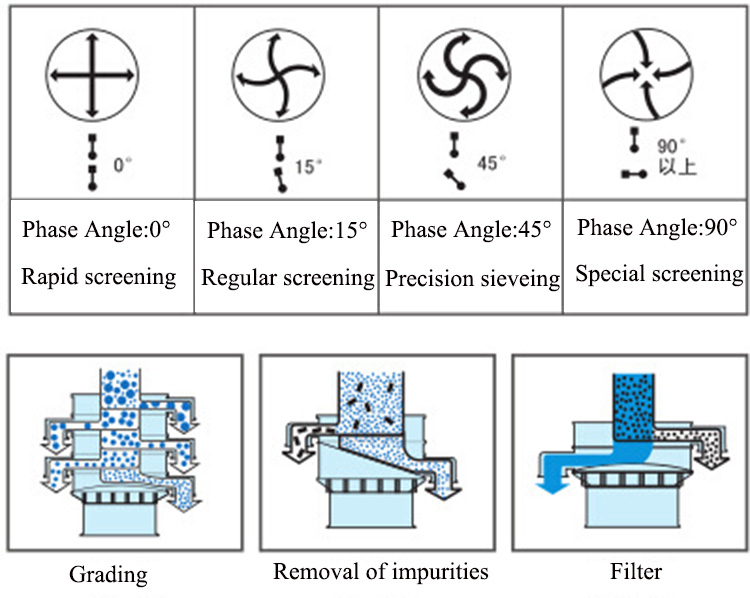

Fowder vibrating sieve machine as a piece of powdery material screening equipment, uses horizontal vibration motor or special vibration exciter as its vibration source. The horizontal vibration motor and vibration exciter have a eccentric block at the both at their upper and lower sides. The eccentric blocks cangenerate a three-dimensional movement in horizontal, vertical and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movementlocus, achieving suitable screening performance.

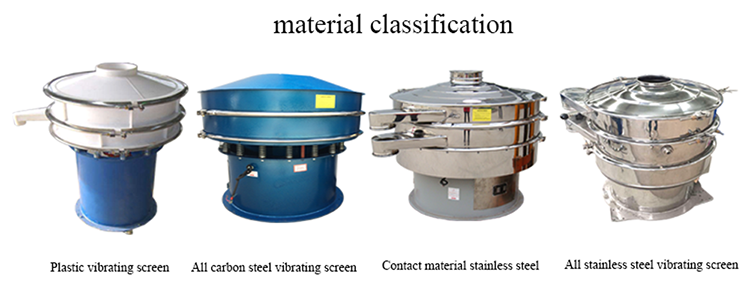

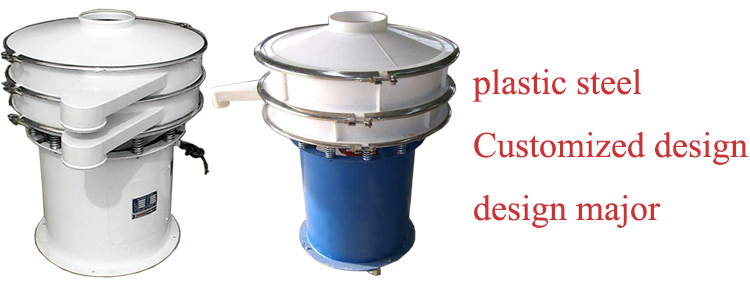

Fowder vibrating sieve machine Different material:

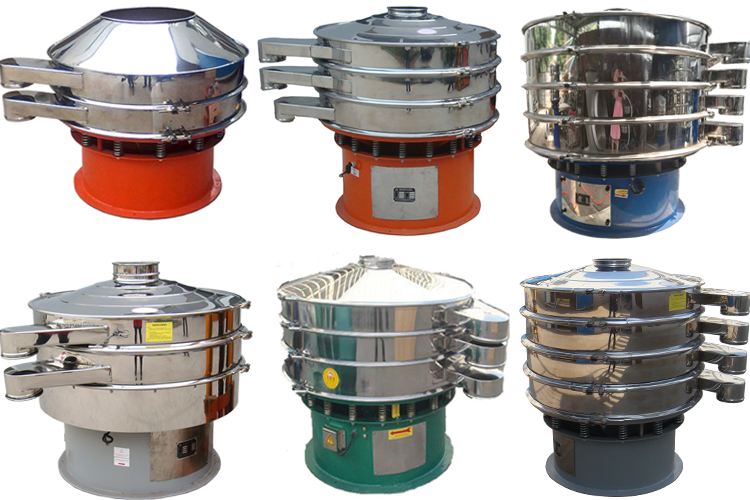

Customizable of Fowder vibrating sieve machine:
1.Contact part material of stainless steel, or all machine of the stainless steel
2.Screen frame internal polishing processing
3.Screen frame internal spray teflon
4.High-energy explosion-proof motor
5.Non-metallic screen sieve and sieve frame
6.Inert gas filling system
7.Transparent engineering plastics dust cover The above material is for reference only, please contact customer service for more information.

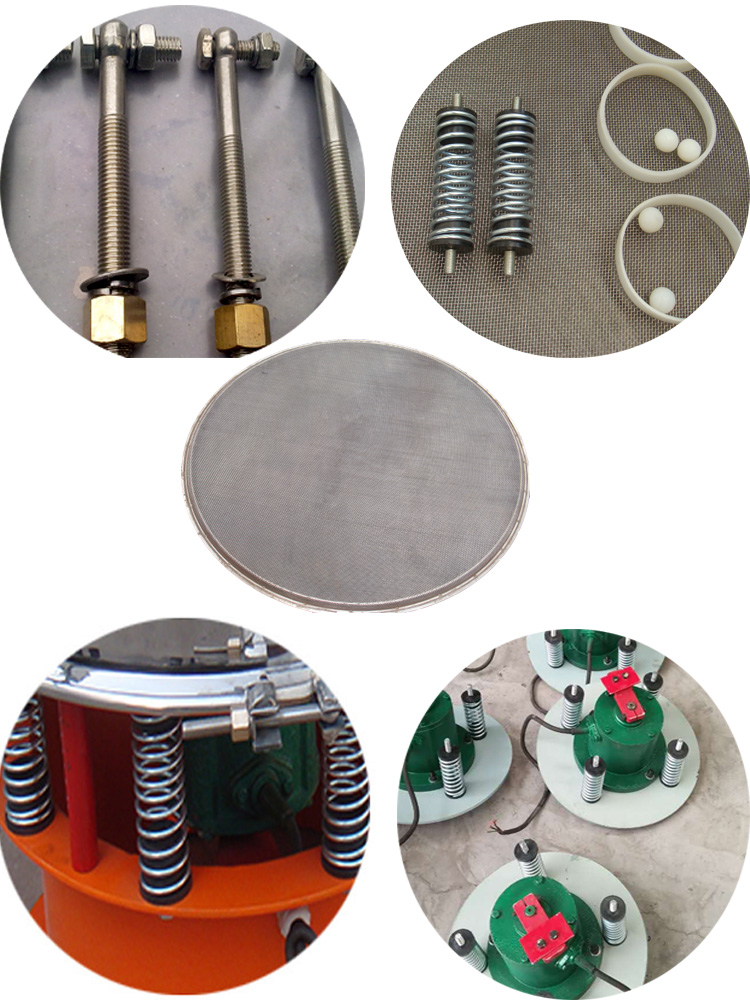

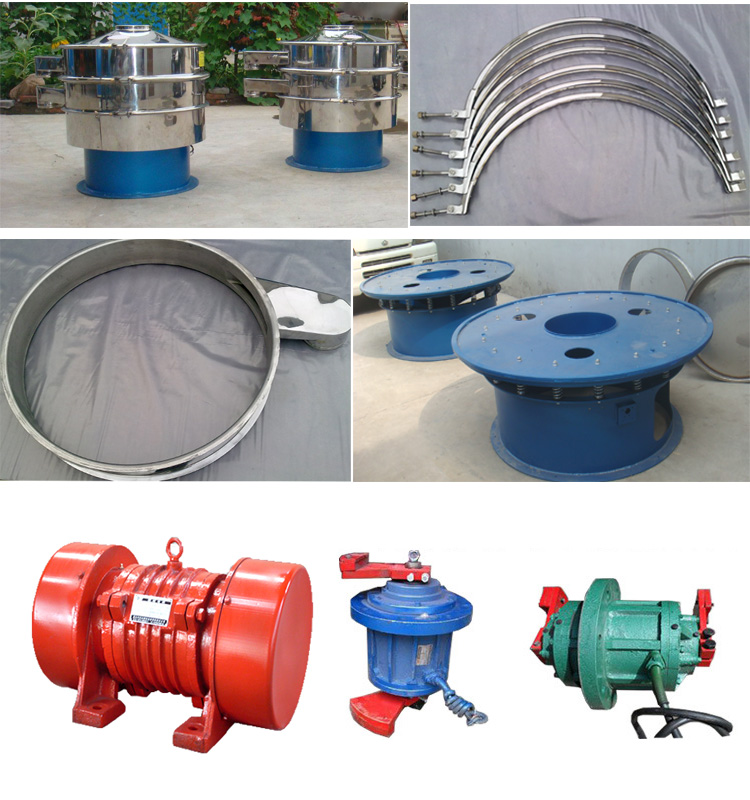

Fowder vibrating sieve machine details:

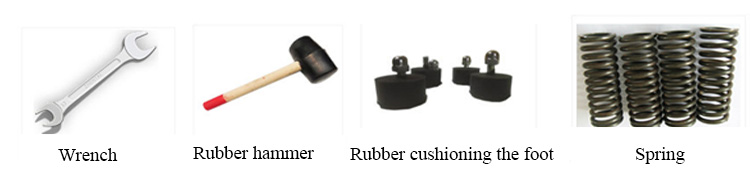

The following accessories are distributed randomly or purchased with the product
Flour vibrating sieve machine Application:
Our flour vibrating sieve machine can also be used for processing starch powder, sugar powder, sales, rice flour, milk powder, soy millet, soy sauce, juice, condiments etc.
Fowder vibrating sieve machine Technical parameters:
| Model | Power(kw) | Sieve diameter(mm) | Layers |
| KLD-400-1S | 0.25 | 350 | 1-4 |
| KLD-600-1S | 0.38 | 550 | 1-5 |
| KLD-800-1S | 0.55 | 750 | 1-5 |
| KLD-1000-1S | 0.75 | 950 | 1-5 |
| KLD-1200-1S | 1.1 | 1150 | 1-5 |
Please consult customer service for more details
-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.

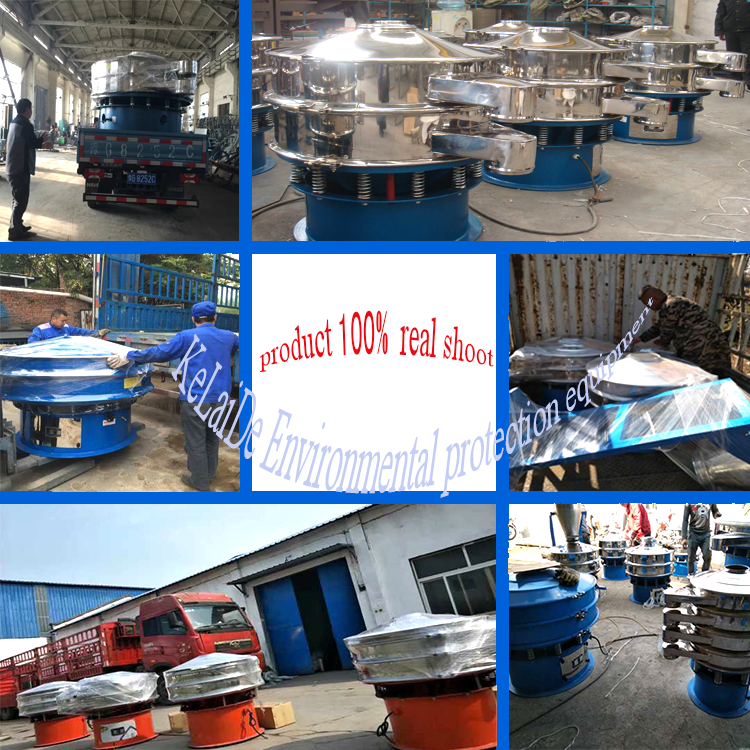

Packaging Details:1.Outer packing is plywood case, which is up to the international standards.
2.Inner packing is Moisture-proof and water-proof membrane.
Delivery Detail: About 3-5 workdays after payments.
Q1:About delivery time?
7 to 10 days for general series products, meanwhile, batches products & customized products would need 15 days to 30 days based on different situations.
Q2:About price?
We are the factory which can give you the lowest price, and we can give you a discount according to the quantity.
Q3:About quality of products?
Generally, our equipments are the most durable type in the industry.Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
We will do our best to provide the best quality products for our customers.
Q4:About after-sale service?
In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.
(note: Vulnerable parts do not include) .
Q5:About payment term?
Our usual payment term is: 30% TT in advance,70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

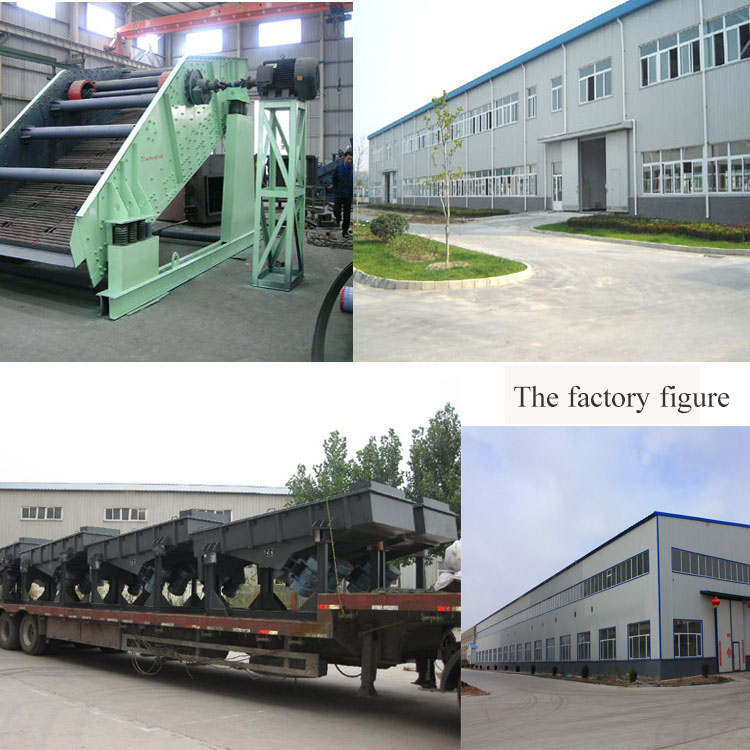

Xinxiang Clyde environmental protection equipment co., LTD is located in China's vibrating screen points of mechanical equipment - xinxiang (vibrating screen equipment of the township), is the early production of vibrating screen points of professional mechanical equipment manufacturers, rich manufacturing experience, strong technical force, advanced and efficient management team makes Clyde vibration of vibrating screen points equipment manufacturing enterprises.Has a complete production equipment sophisticated detection means perfect after-sales service and a number of highly qualified technical personnel and scientific management mode, set up a adapt to the factory actual modern enterprise management system and quality guarantee system.
